Alumaweld Adventurer 20
Alumaweld Adventurer 20

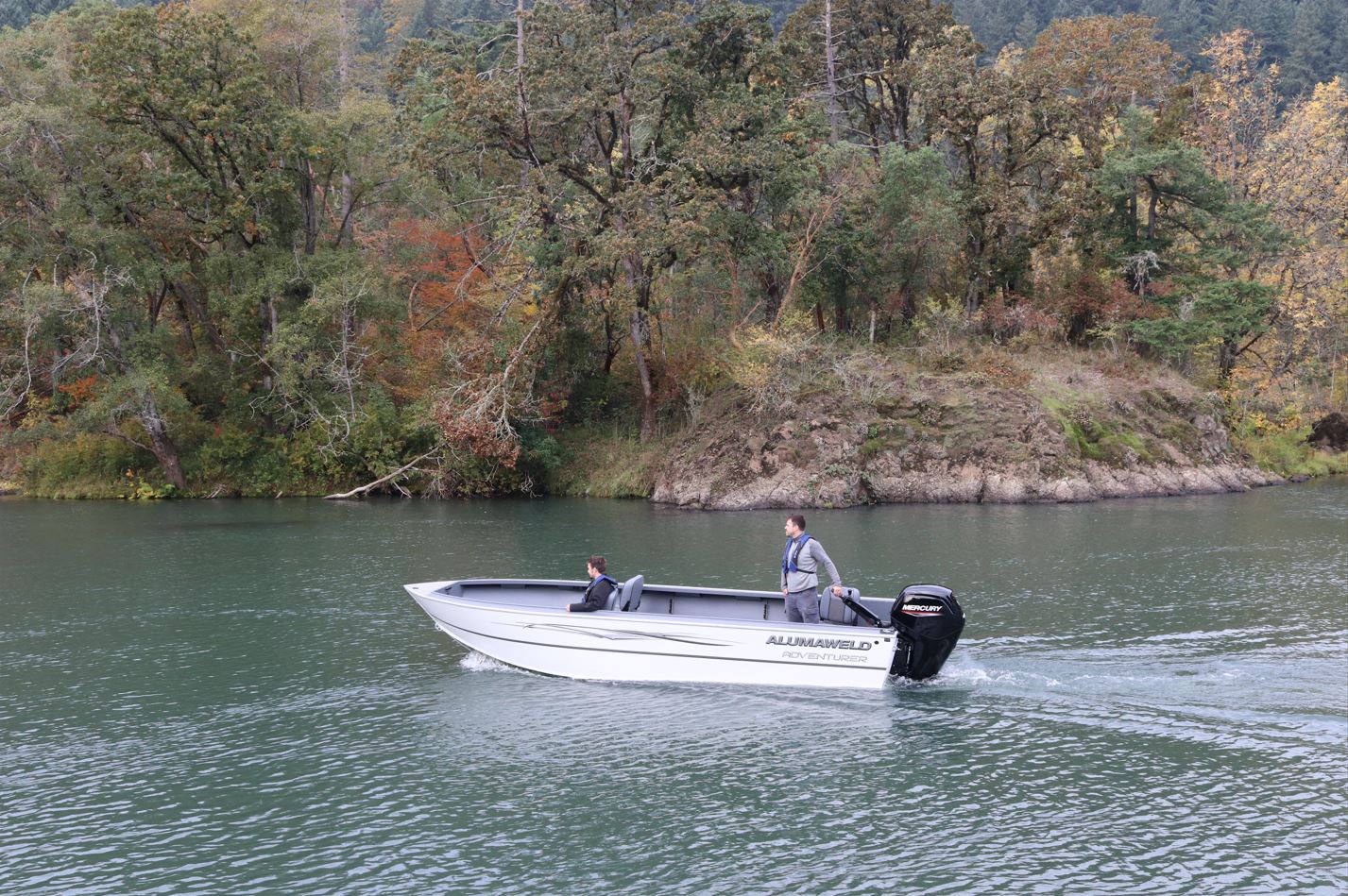

The Adventurer provides the versatility of a jet or prop application. The 14° bottom with Alumaweld’s exclusive Ride Master Vee (RMV) bottom allows you to achieve the benefits of a deep vee bottom. Allowing you to cut through chop and yet the ability to use in a jet application. High sides, along with a wide coaming, provides stability while standing fighting that record fish.
Product Highlights
-Heavy duty one-piece 0.160 bottom and 0.125 sidewall thickness.
-The 14 degree ride master vee bottom handles beautifully on shallow water.
-Engineered chine, bottom design, sidewall flare and lifting strakes assure dry, comfortable ride.
-Alumaweld's exclusive Wide Ride™ bottom planes quickly, performs flawlessly and is more stable.
Specifications
Hull Center Length: 20'1"
Beam: 88.5"
Beam at Chine: 72"
Inside Freeboard: 30"
Side Height: 32"
Transom Height: 25"
Deadrise: 14 degrees
Bottom Thickness: .160
Side Thickness: .125
Transom Thickness: .160
Approx. Weight: 1,280 lbs
Persons/Capacity: 5/750 lbs
Weight Capacity: 1,500 lbs
Fuel Capacity: 38 Gal
Max. HP Prop/Jet (remote): 115/105 hp
Max. HP Prop/Jet (tiller): 115/105 hp
Standard Features

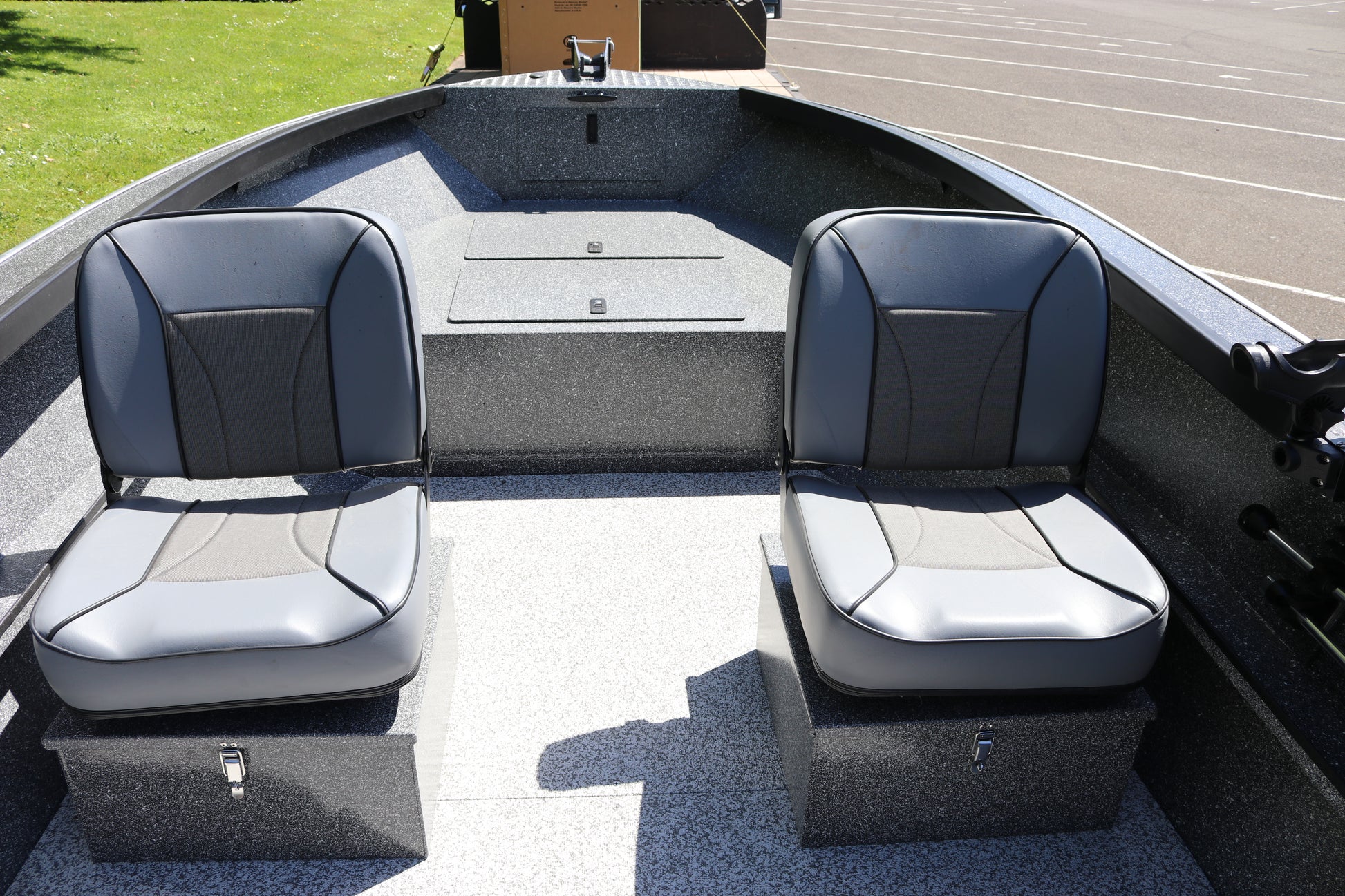

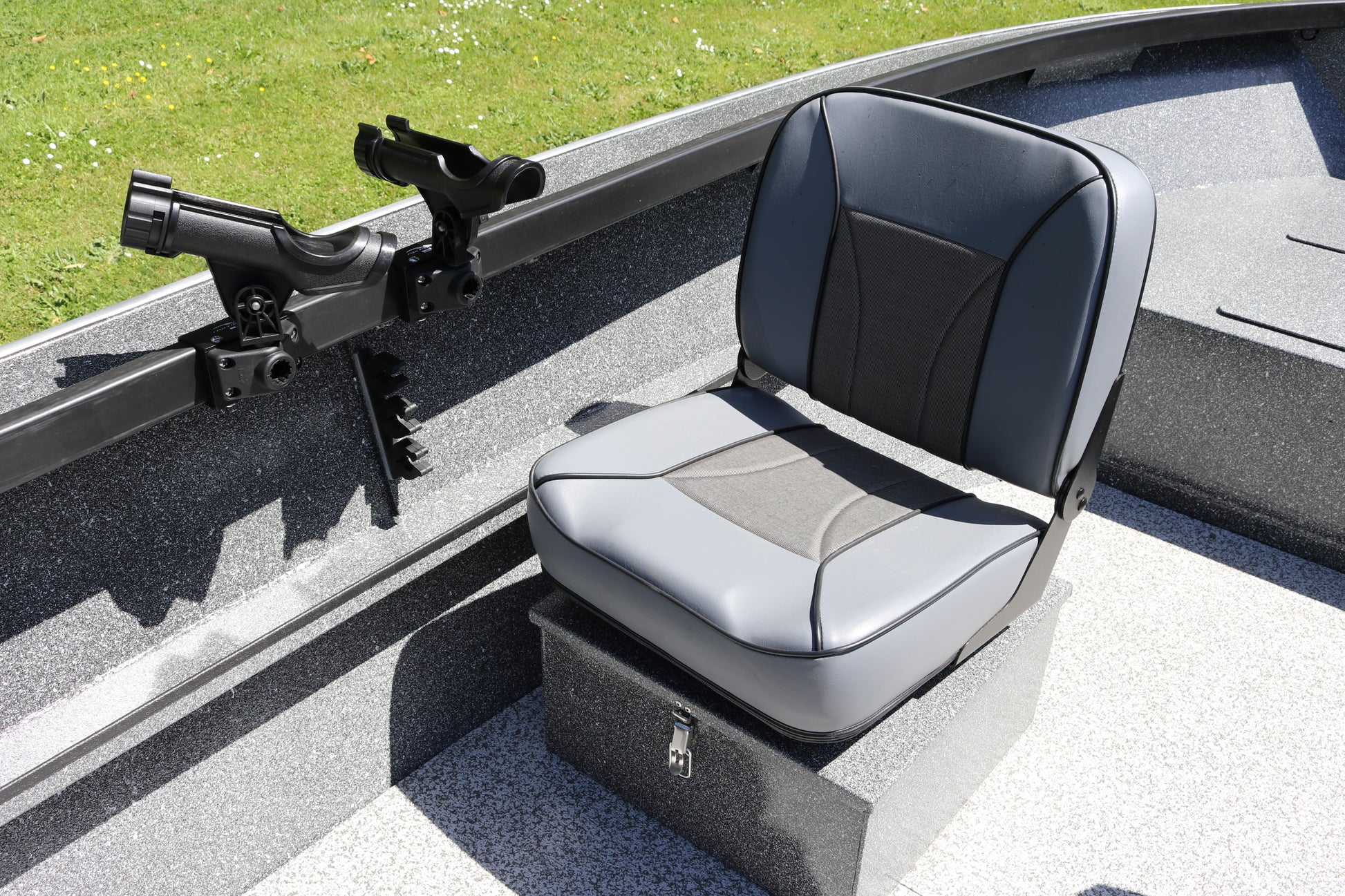

-Two comfort seats on aluminum boxes

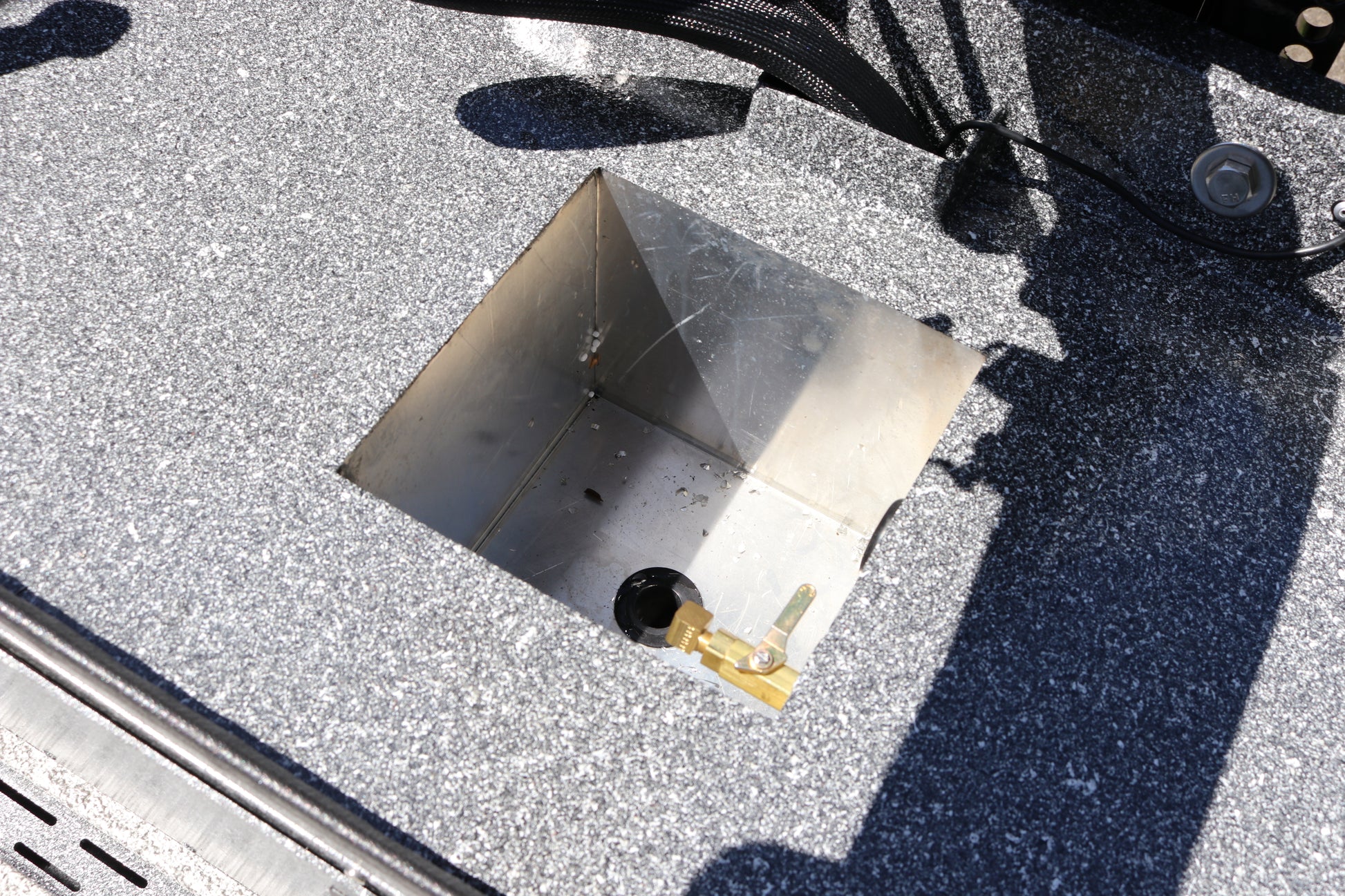

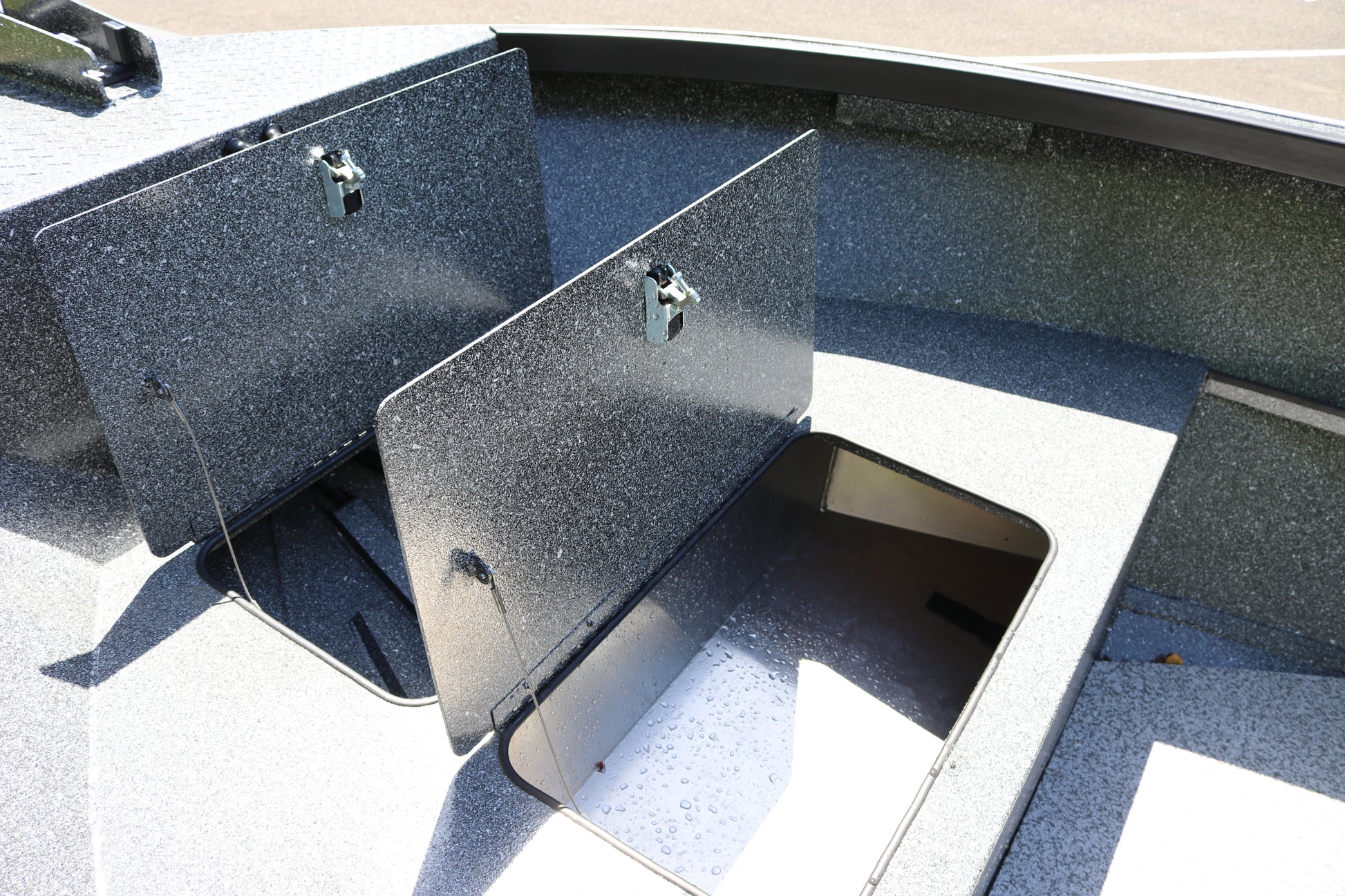

-Welded fish box in bow with lid

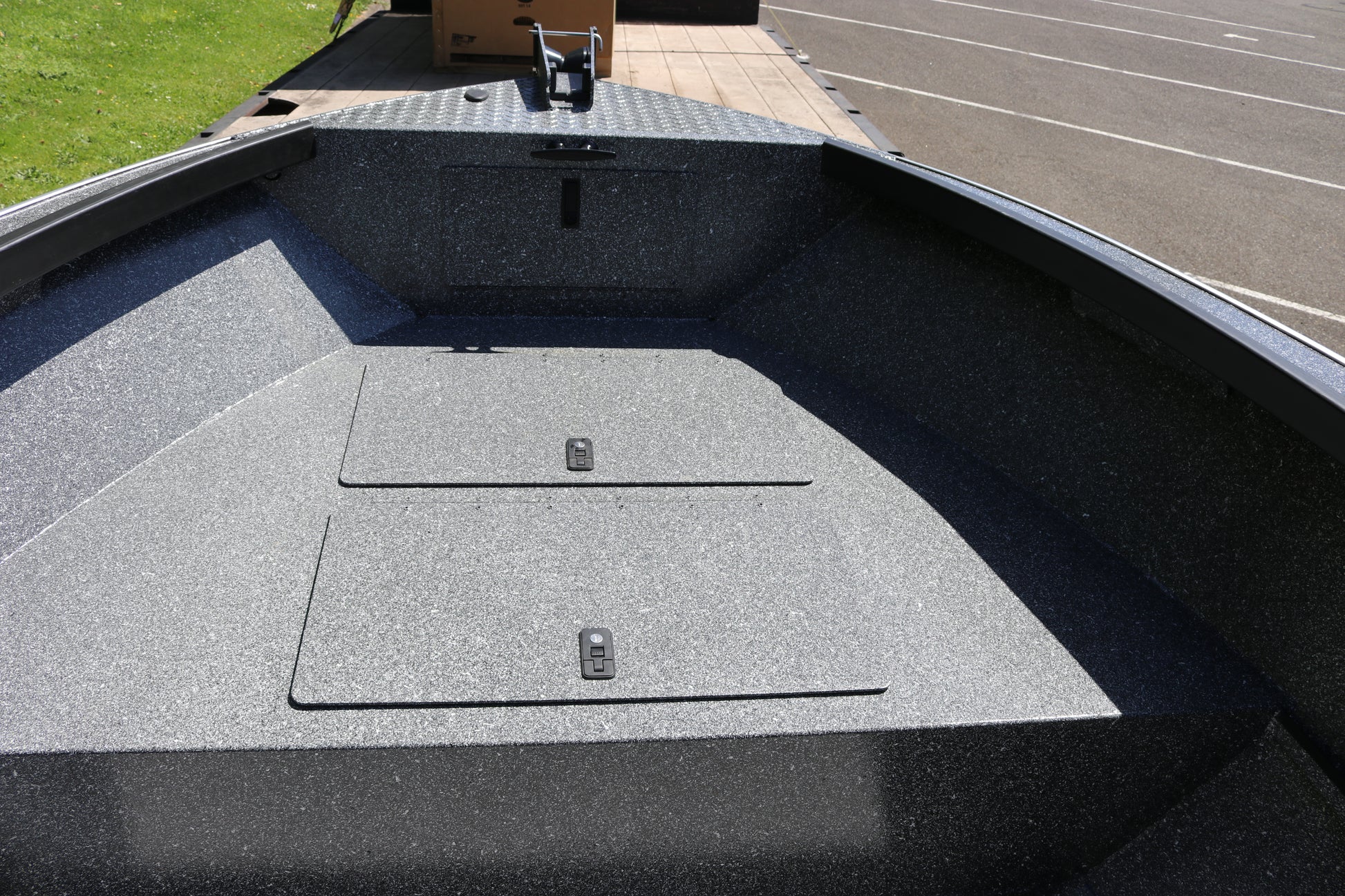

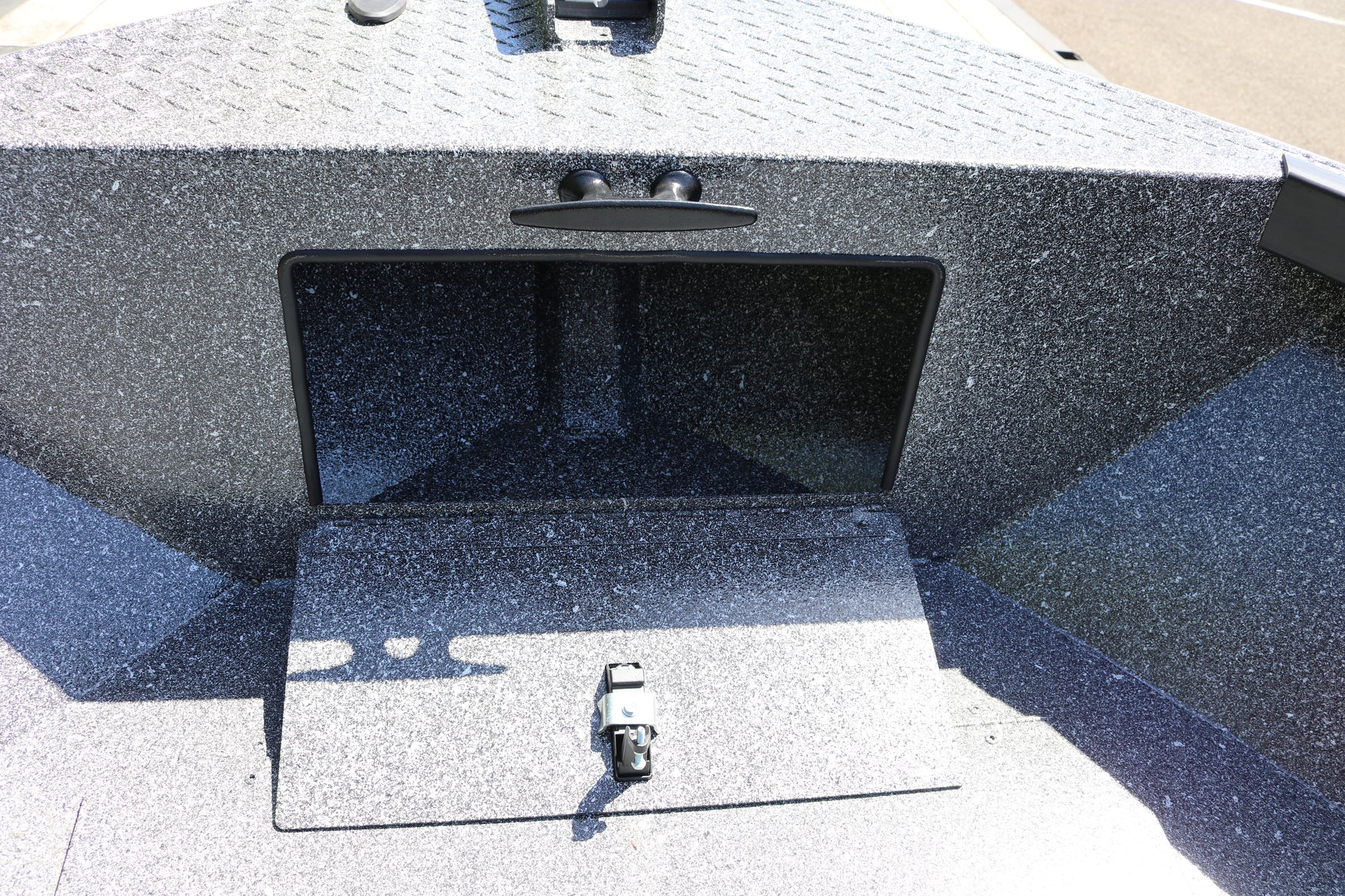

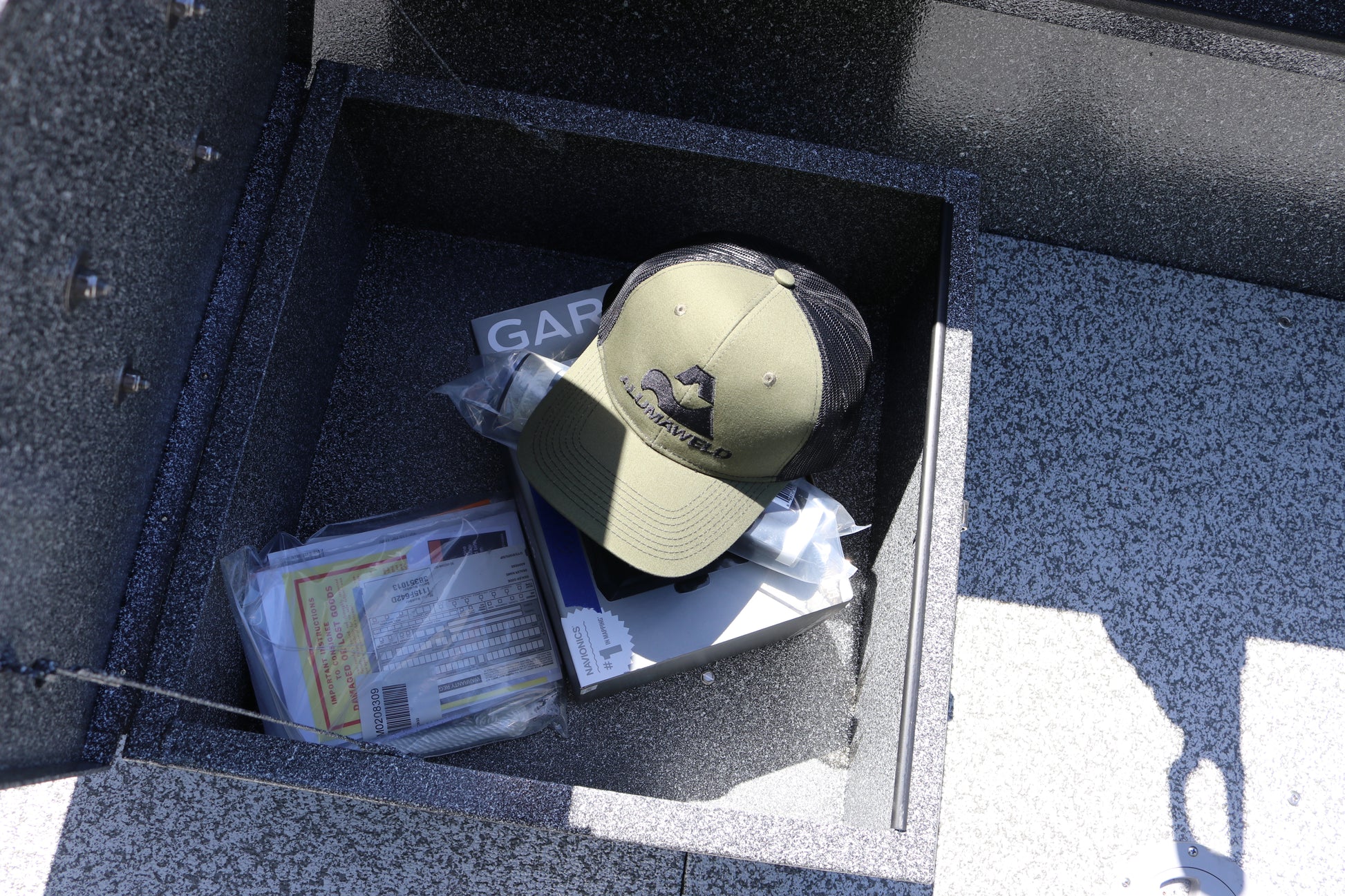

-Foredeck storage locker with locking door

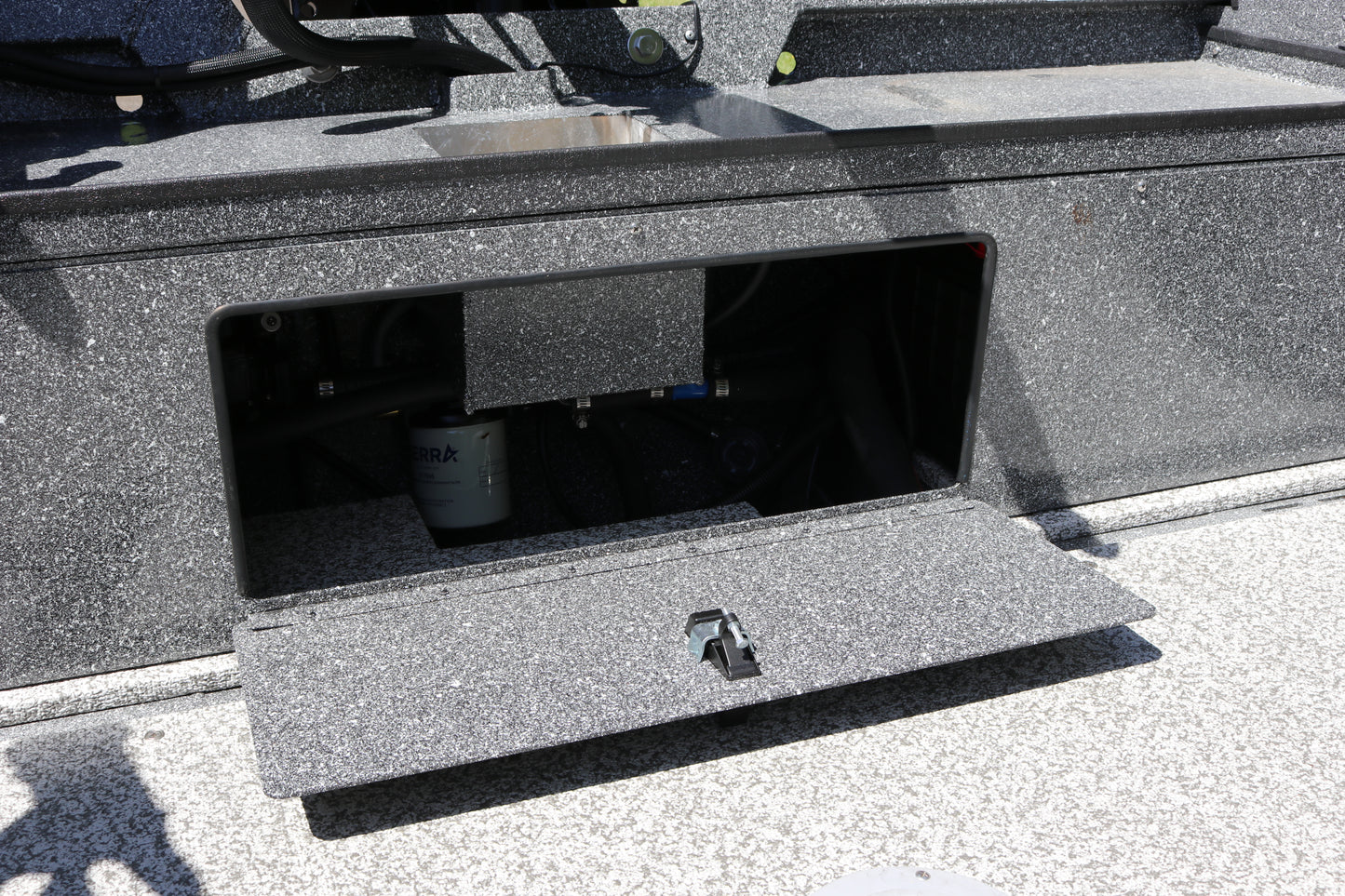

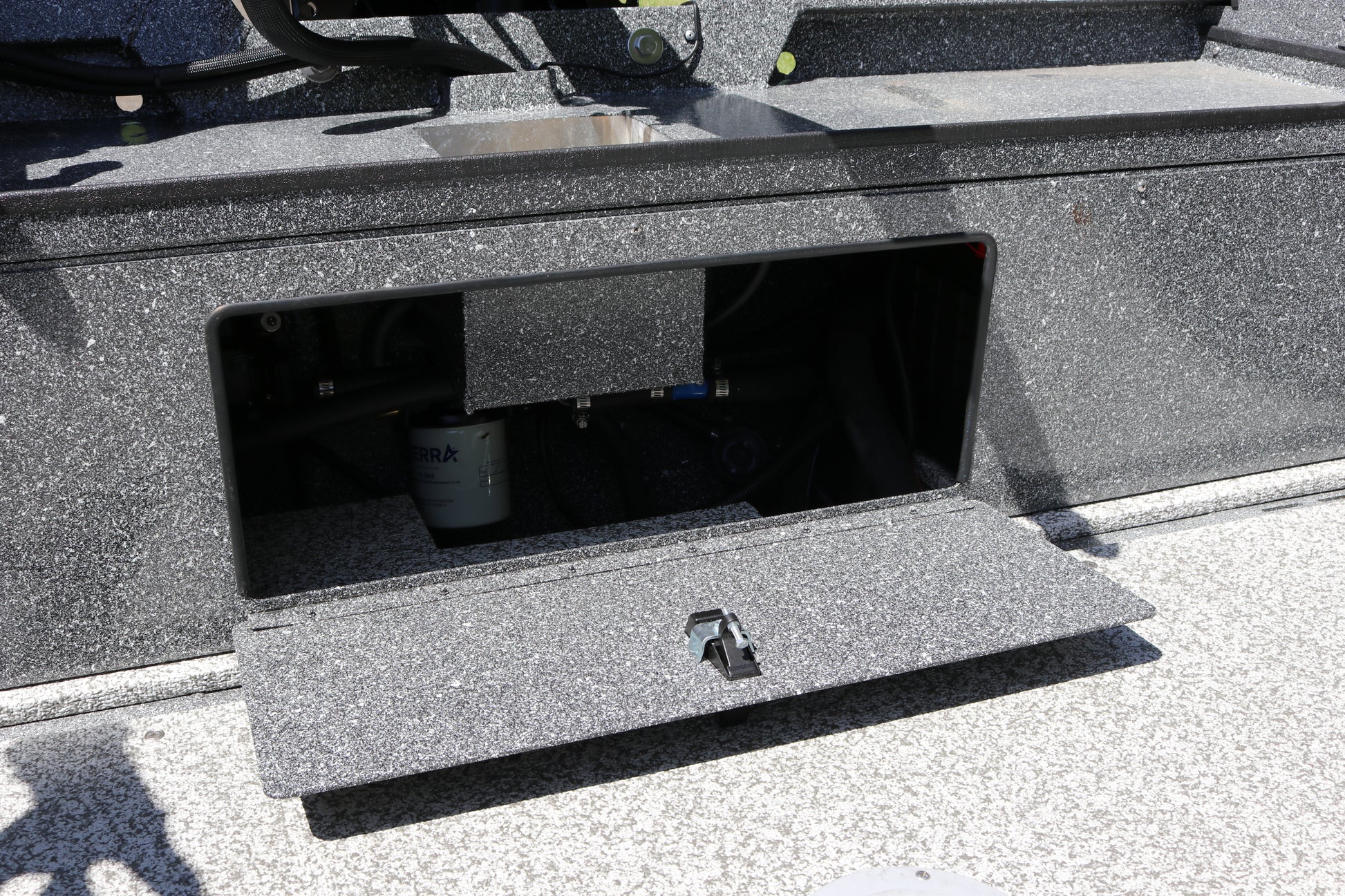

-Aluminum transom rigging compartment with door

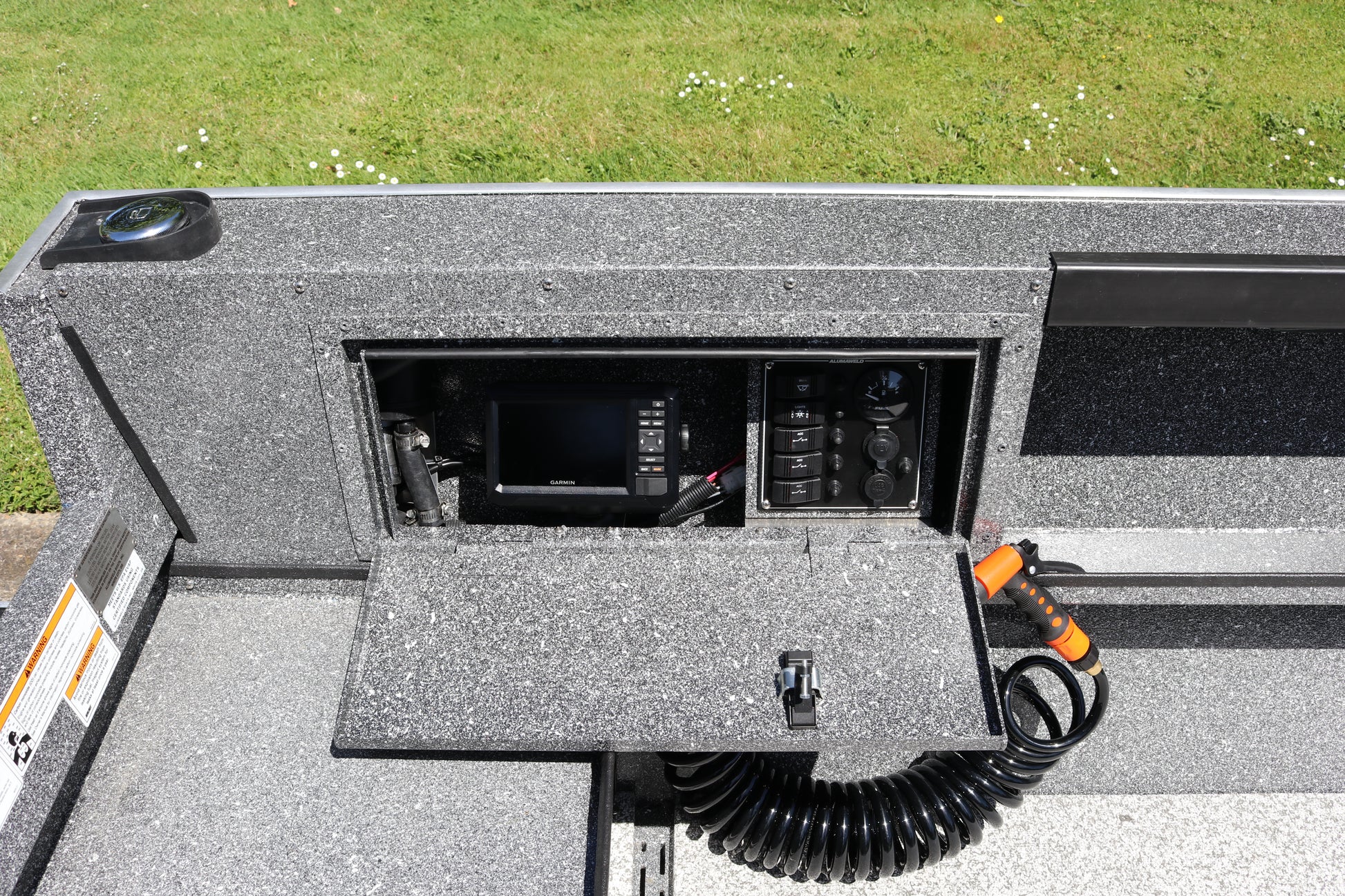

-Deluxe switch panel with five switches, dual USB port, and 12-volt outlet
-Electronics box (24") with lockable door (20')

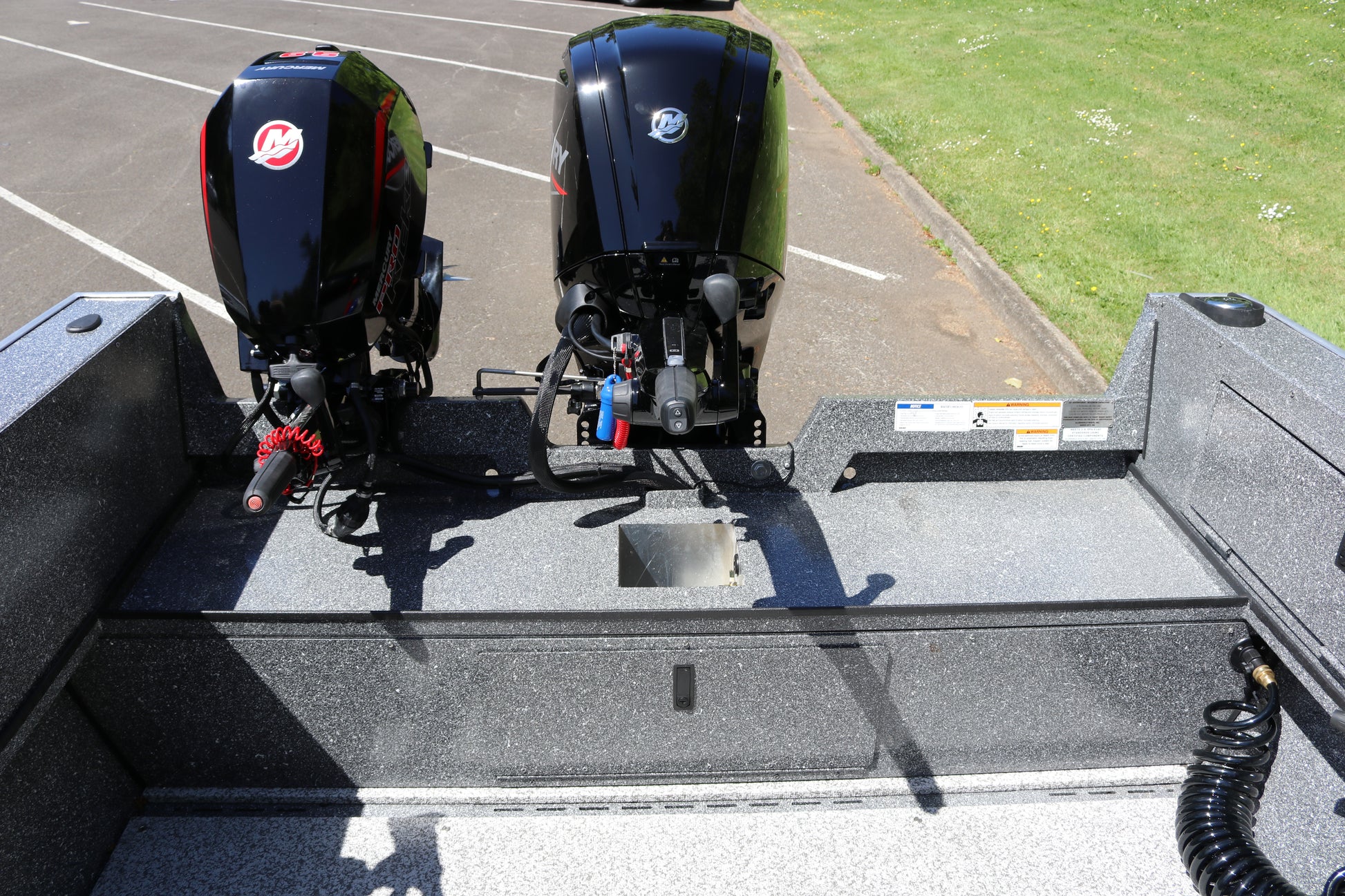

-Extra wide transom tray
-Full length storage trays
-Aluma-coat interior
-Full outside paint with vinyl graphics package
-Armor Tech premium floorboards with Dura Tuff™ nonskid vinyl covering
-Under floor protective coating
-Two lifting / turning strakes
-Electric bilge pump
-Under floor aluminum fuel tank with gauge
-Four bolt-on powder coated cleats
-Continuously welded box girder construction
-Full coaming
-Navigation lights
-Ride master vee bottom

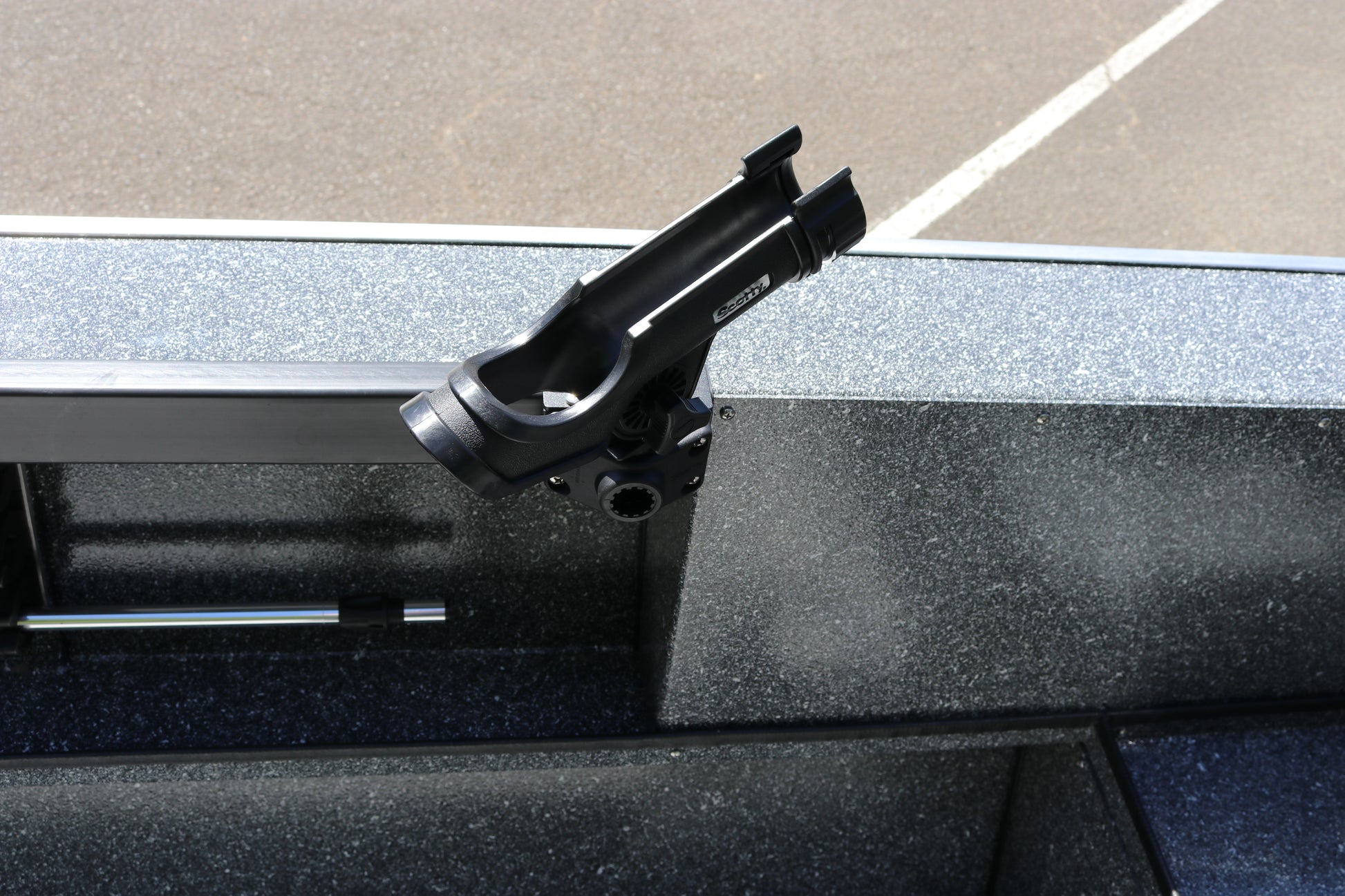

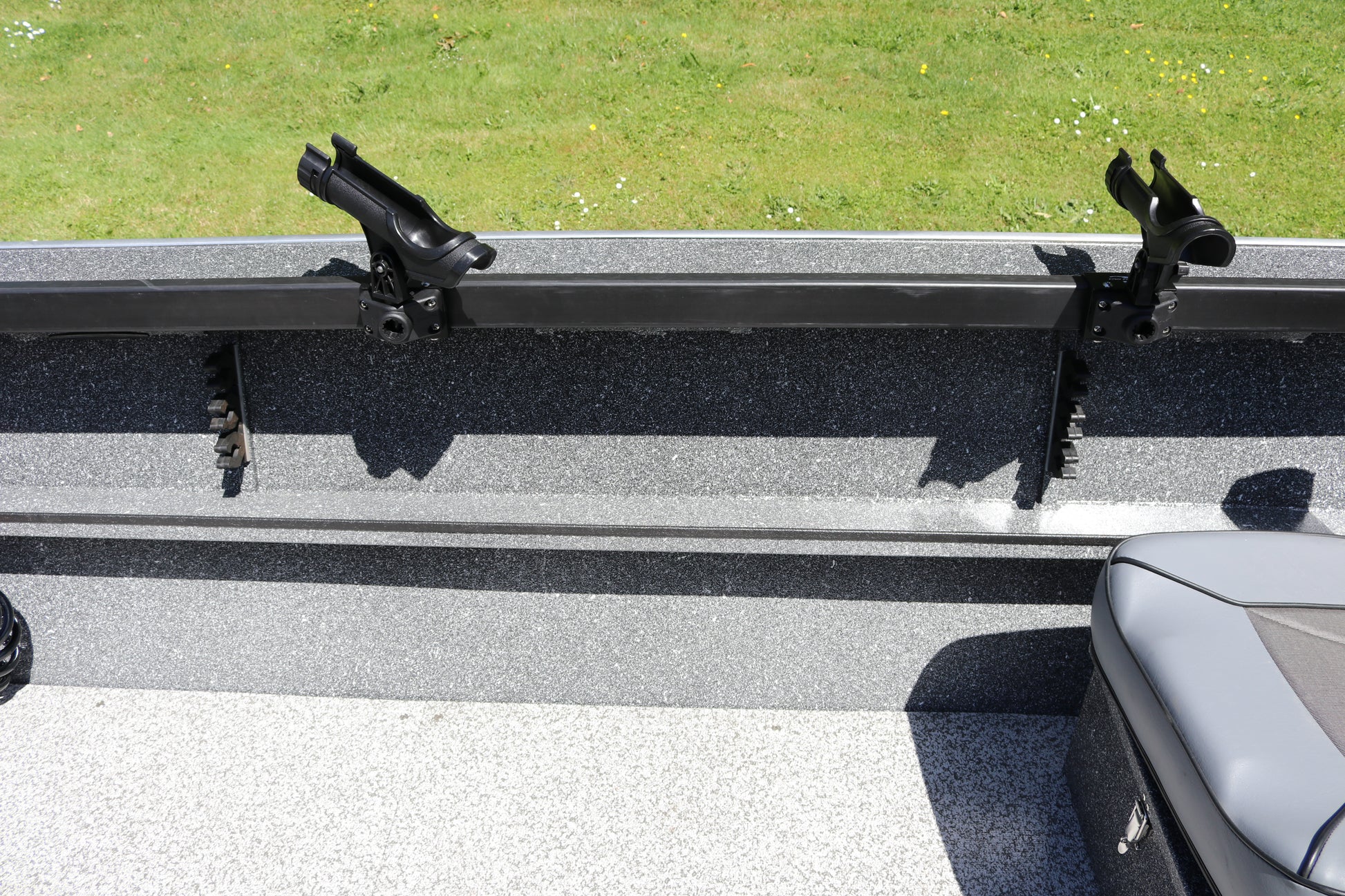

-Rod grippers
-Saddle cut 25" transom
-Slotted chine / gunnel extrusions
-Sound insulation package
-Two bolt-on transducer brackets
-U.S. Coast Guard approved flotation (18')

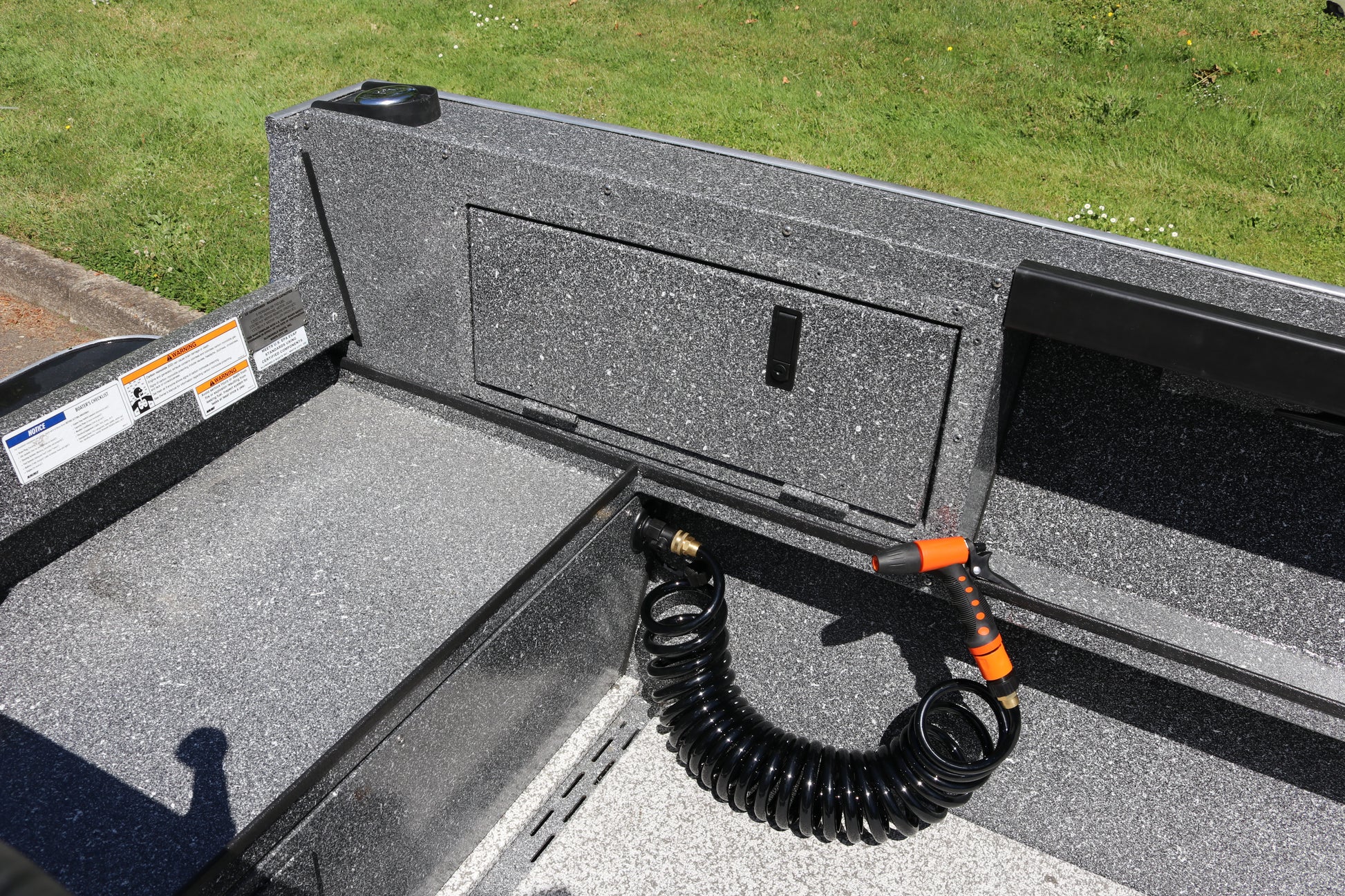

-Washdown pump
-Weld-on aluminum stern eyes and bow chock
-Stainless steel hinges on boxes and lids
-Exclusive lifetime warranty
Share

Alumaweld Boat Comparison
| Horizon 28 | Other Alumaweld Models | ||||
|---|---|---|---|---|---|
| | |||||
| General General | |||||
| Length | Length 20' 1" | 20' 1" | 22' 1" | 21' 5" | 20' 3" |
| Beam | Beam 88.5" | 88.5" | 88.5" | 101" | 93.5" |
| Beam at Chine | Beam at Chine 72" | 72" | 72" | 82" | 72" |
| Inside Freeboard | Inside Freeboard 30" | 30" | 30" | 29" | 26" |
| Side Height | Side Height 32" | 32" | 32" | 33" | 30" |
| Transom Height | Transom Height 25" | 25" | 25" | 31" | 26" |
| Deadrise | Deadrise 14 Deg | 14 Deg | 14 Deg | 14 Deg | 6 Deg |
| Bottom Thickness | Bottom Thickness 0.160 | 0.160 | 0.190 | 0.190 | 0.190 |
| Side Thickness | Side Thickness 0.125 | 0.125 | 0.125 | 0.125 | 0.125 |
| Persons/Capacity | Persons/Capacity 5/750 lbs | 5/750 | 5/750 lbs | 7/1,050 | 6/900 lbs |
| Approx. Weight | Approx. Weight 1,280 lbs | 1,240 | 1,400 lbs | 1,925 lbs | 1,395 lbs |
| Weight Capacity | Weight Capacity 1,500 lbs | 1,500 | 1,500 lbs | 1,850 lbs | 1,700 lbs |
| Fuel Capacity | Fuel Capacity 38 Gal | 38 Gal | 38 Gal | 45 Gal | 35 Gal |
| Max HP Prop/Jet | Max HP Prop/Jet 115/105 HP | 115/80 HP | 150/105 HP | 250/175 HP | 115/105 HP |
| Product type | Product type Boat | Boat | Boat | Boat | Boat |
