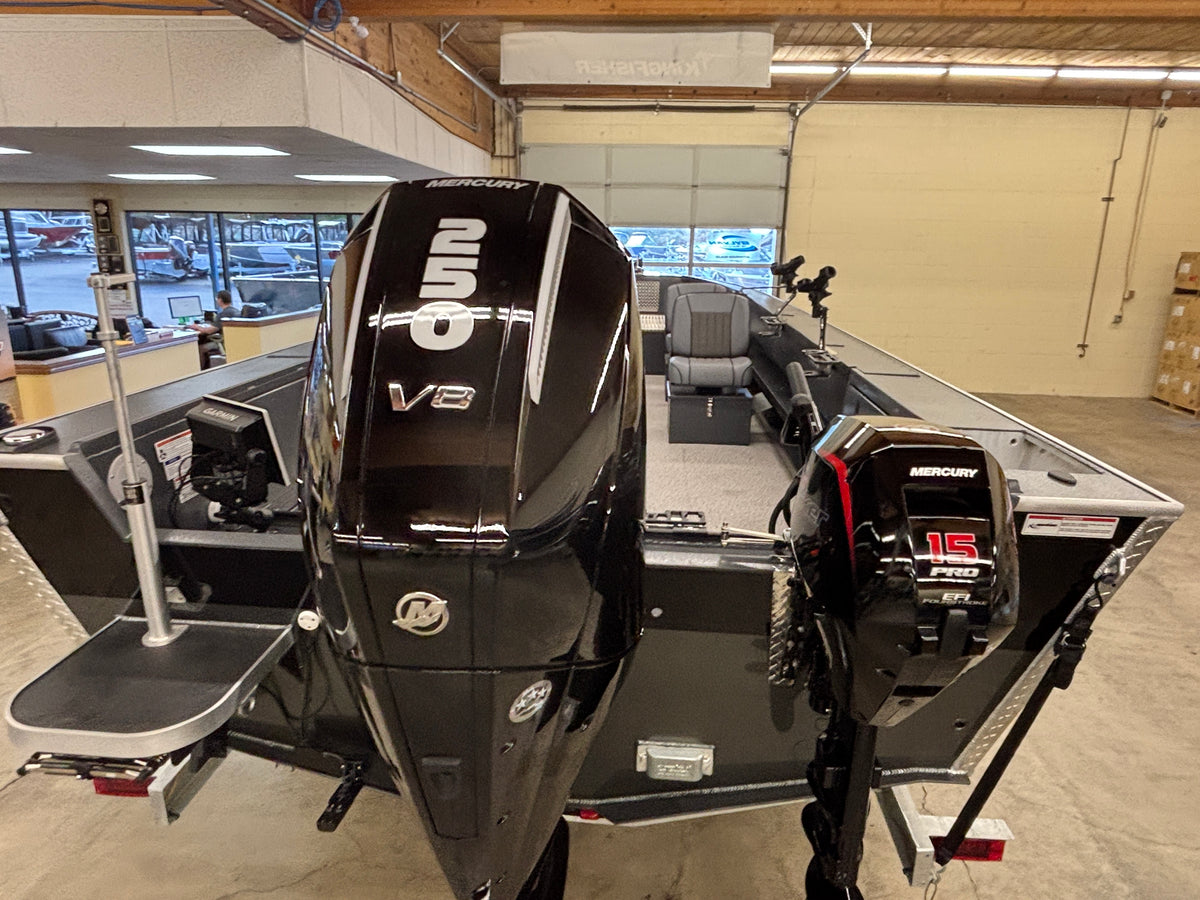

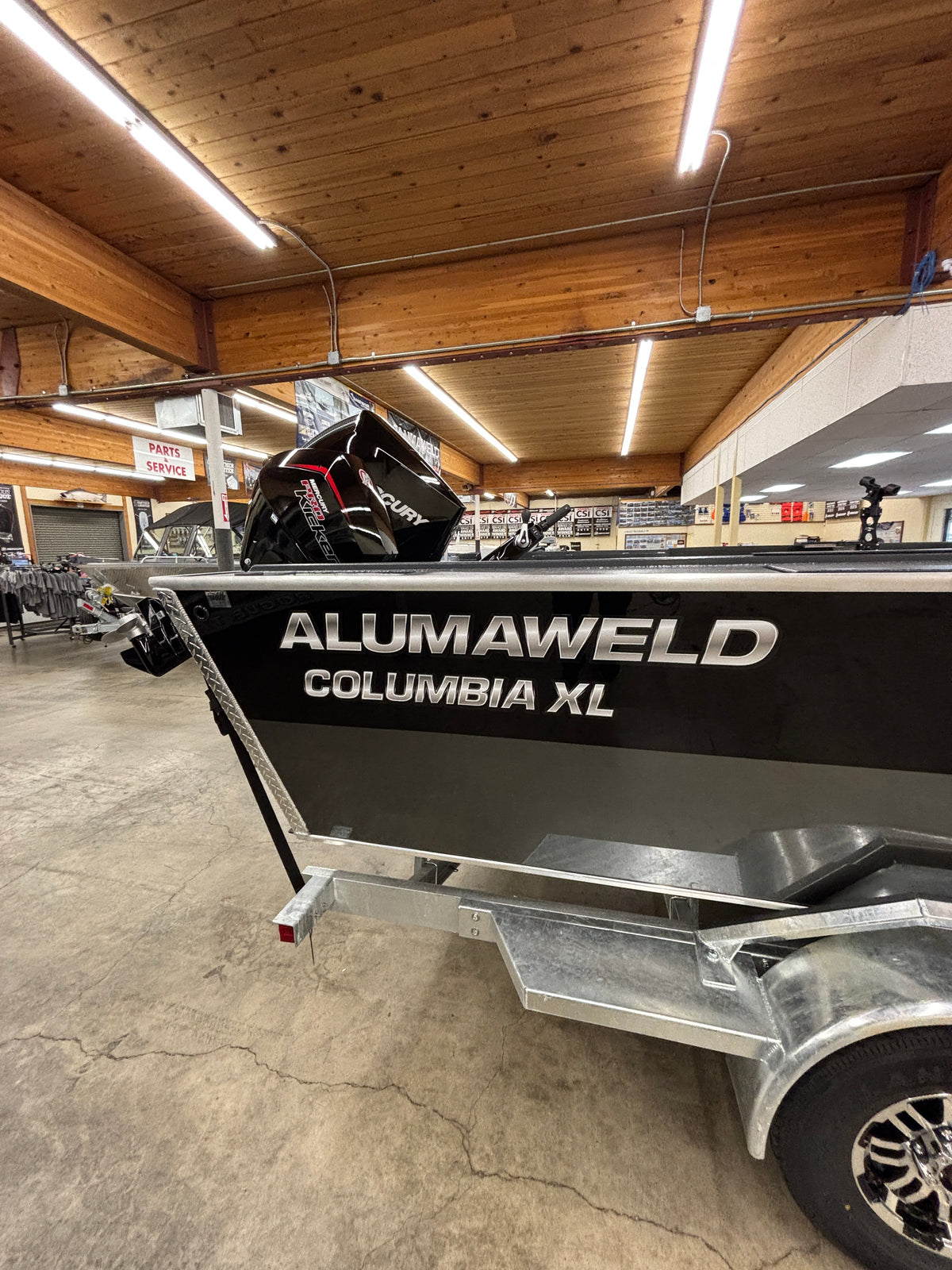

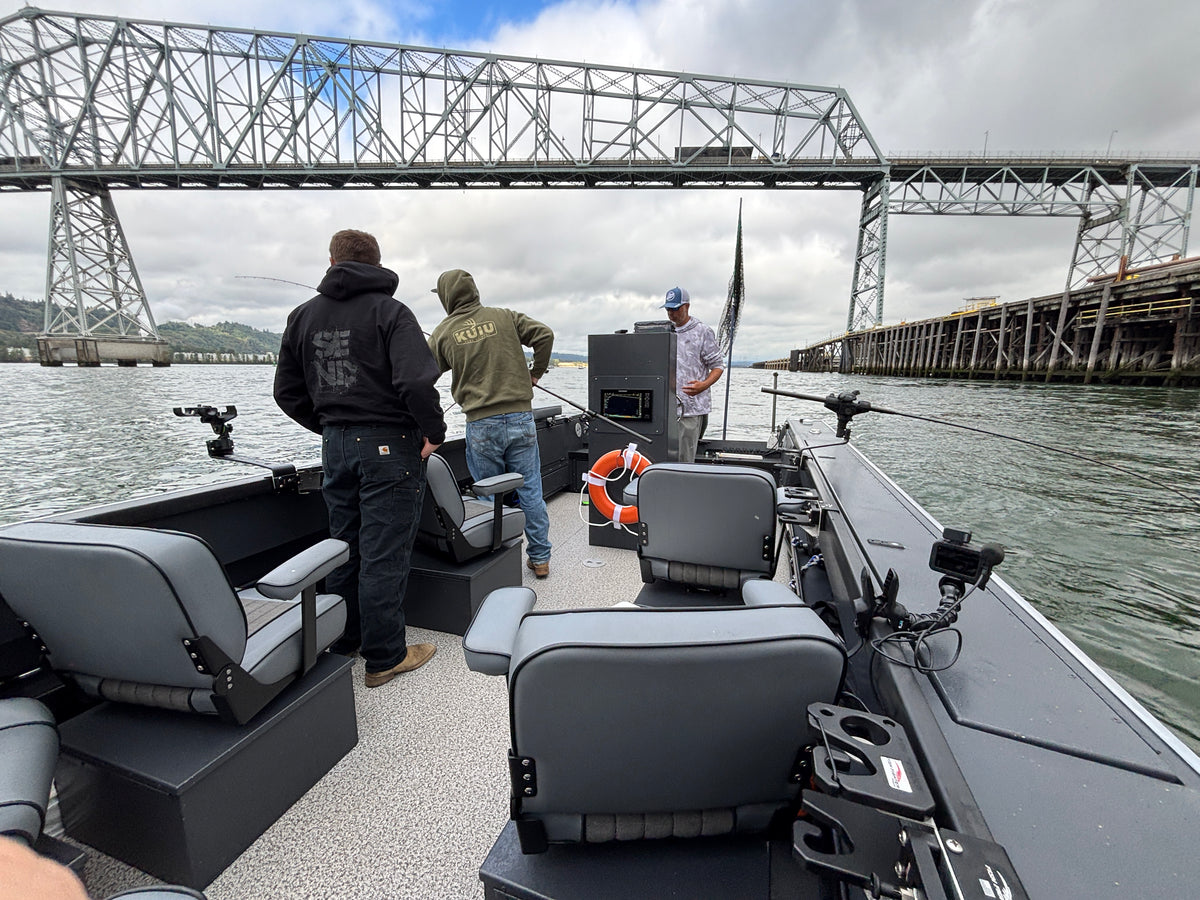

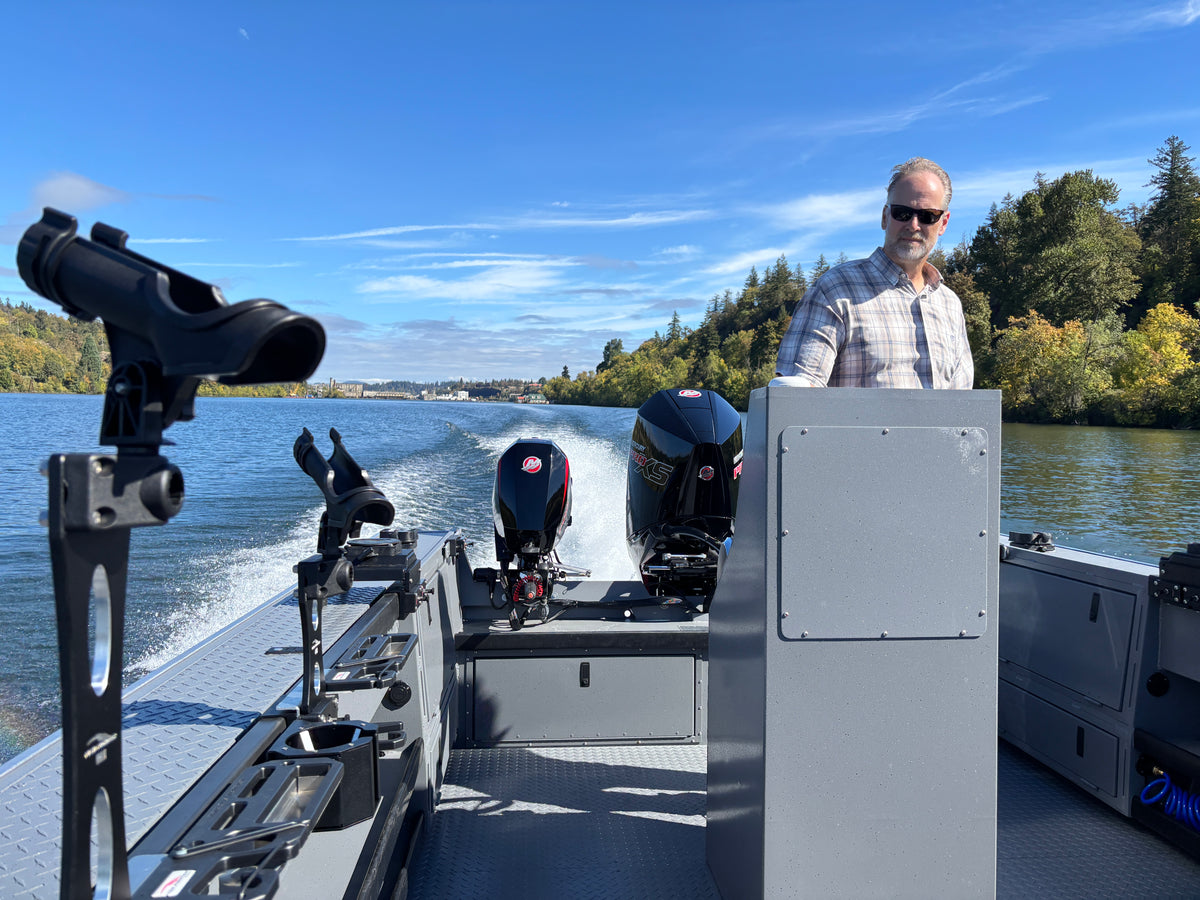

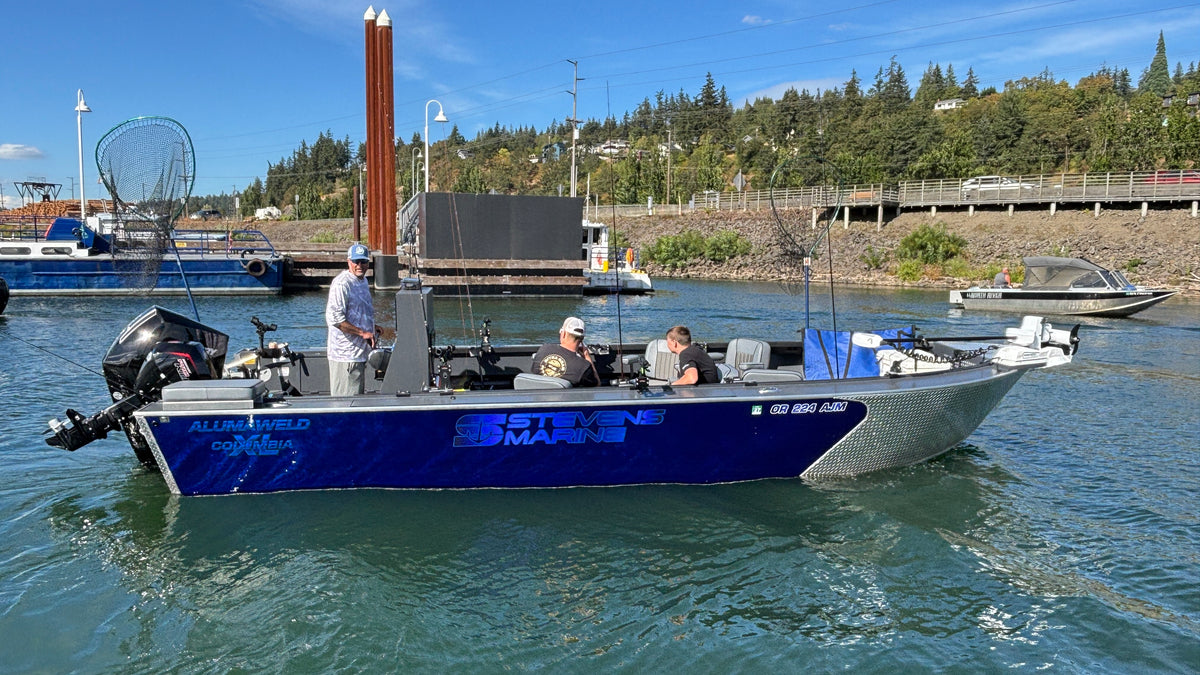

Alumaweld Columbia 28 XL
Alumaweld Columbia 28 XL
XL - 34” Side Height
XL - More Horsepower
XL - Increased Material Thickness
XL - X-tra Wide 13” Coaming
XL - 24’, 26’, 28’
Specifications
Hull Center Length: 26’ 9"
Beam: 109”
Beam at Chine: 90"
Inside Freeboard: 31"
Side Height: 34”
Transom Height: 30”
Deadrise: 14 degrees RMV
Bottom Thickness: .250
Side Thickness: .160
Transom Thickness: .190
Approx. Weight: 2,050 lbs
Persons/Capacity: 9/1,350 lbs
Weight Capacity: 2,120 lbs
Fuel Capacity: 60 Gal
Max HP Prop/Jet: 350/175
Standard Features

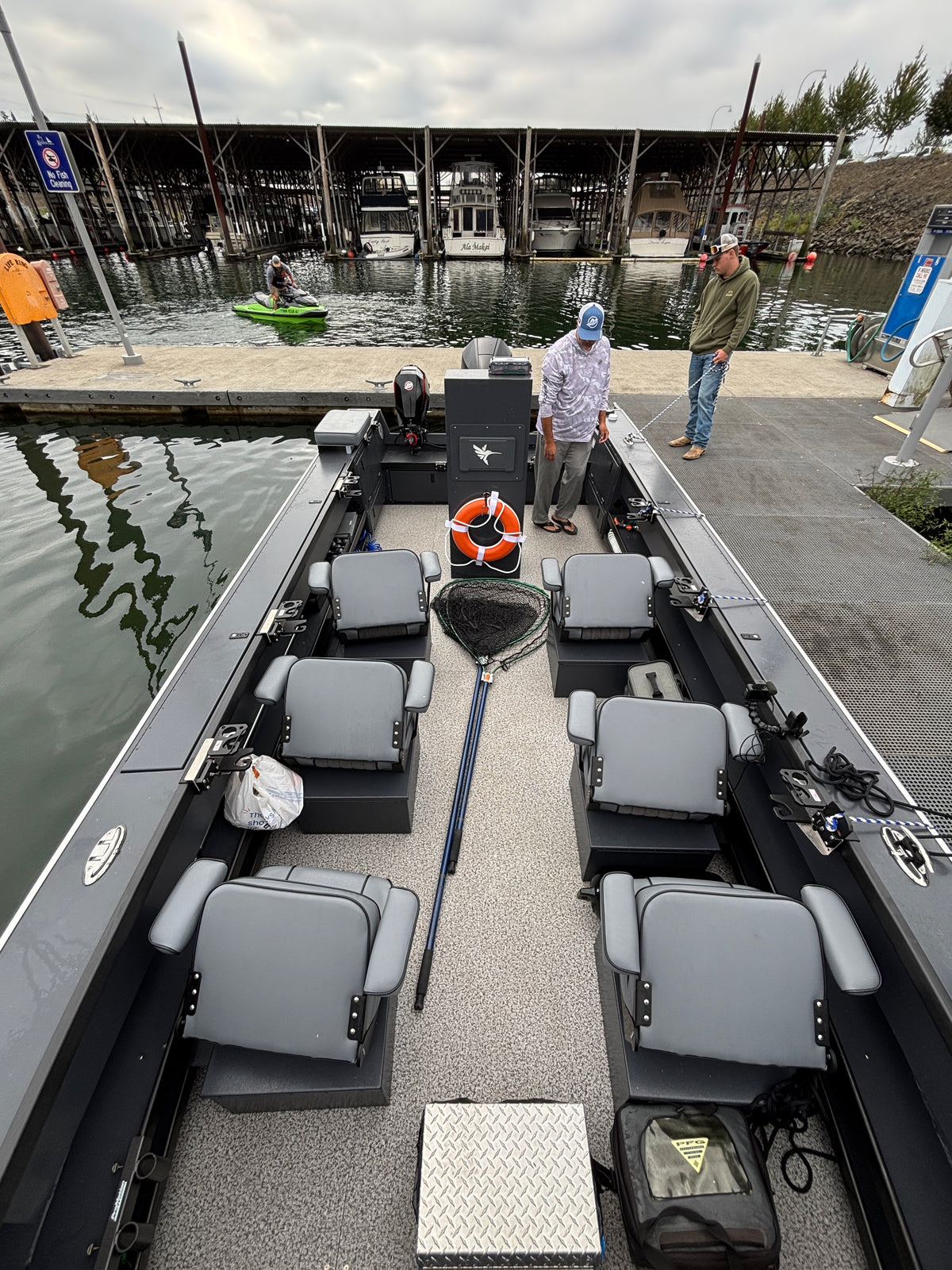

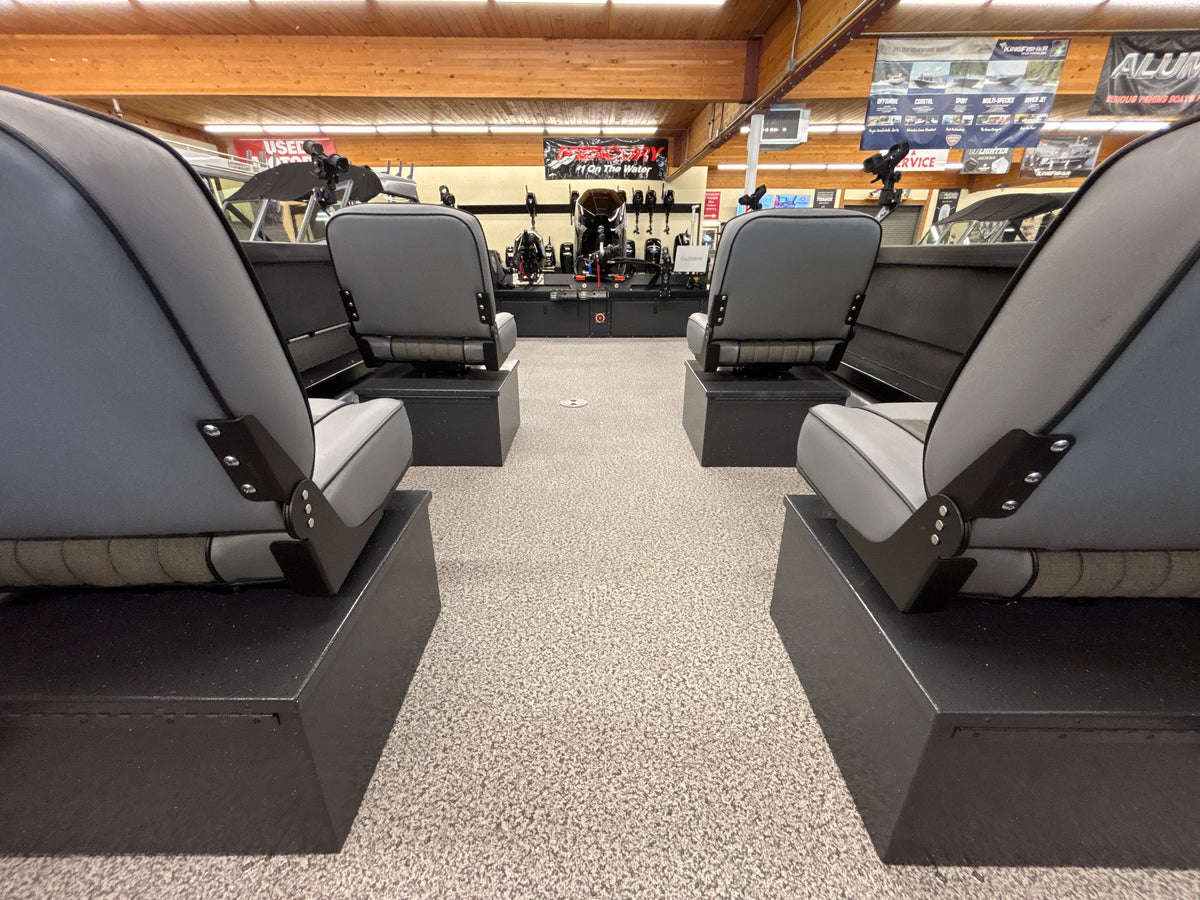

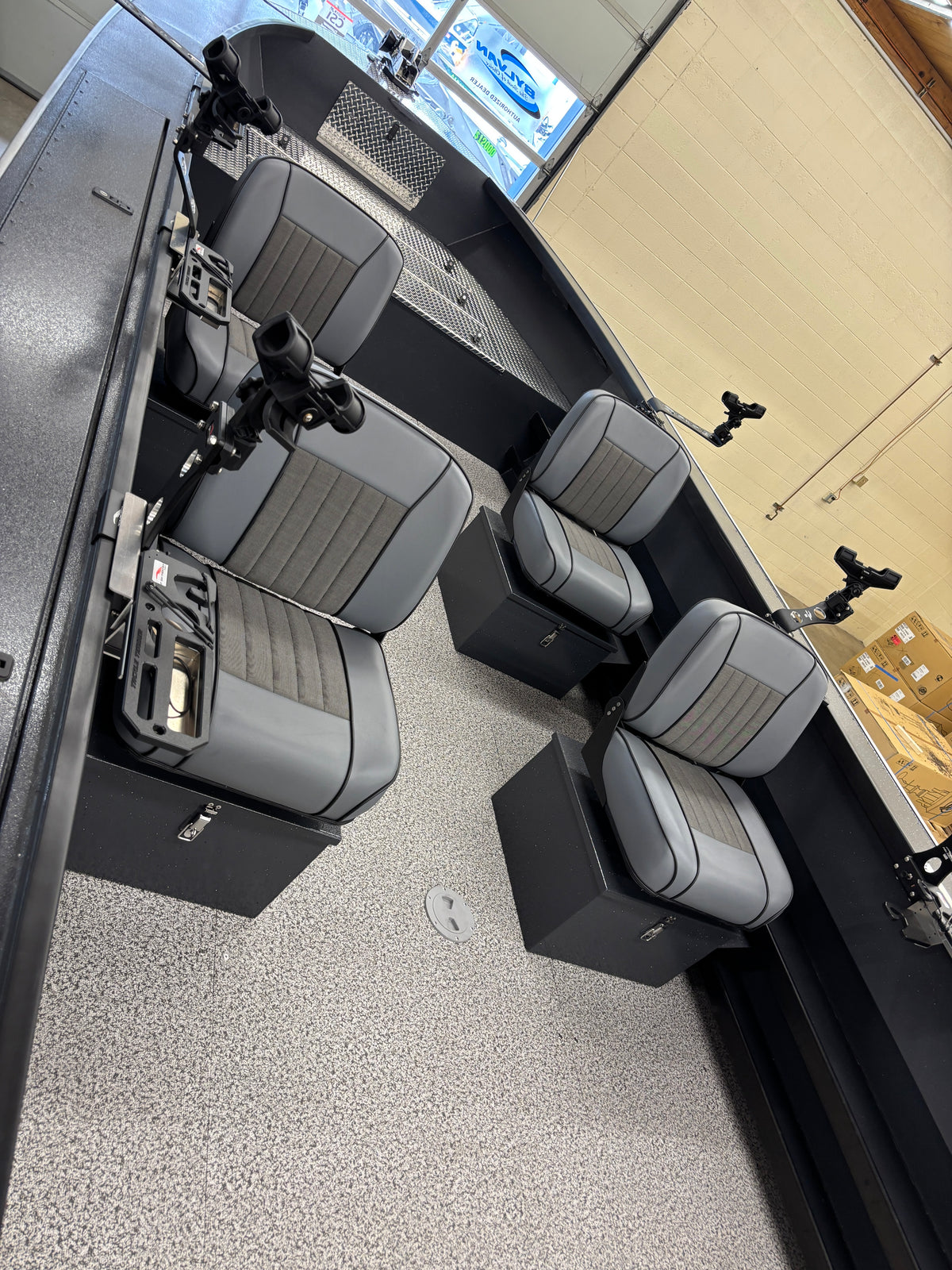

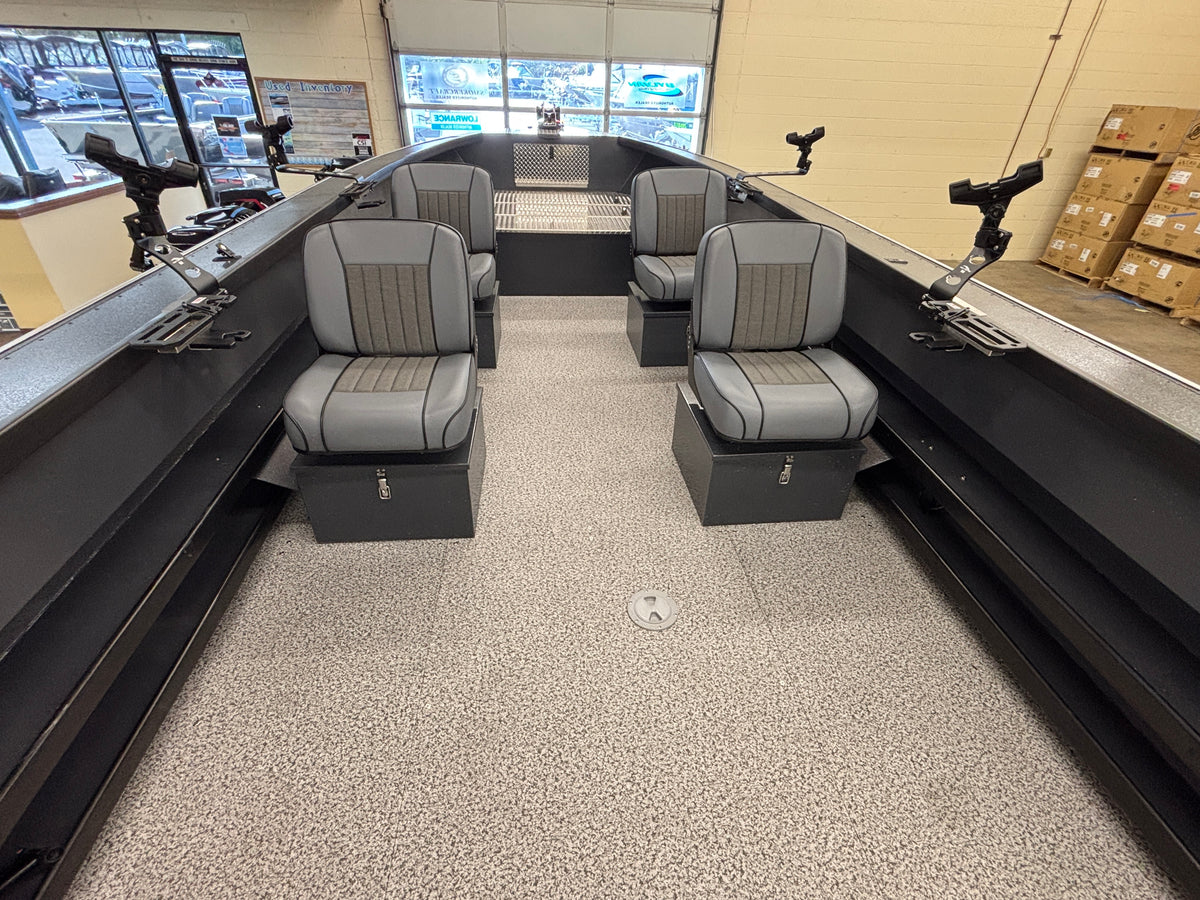

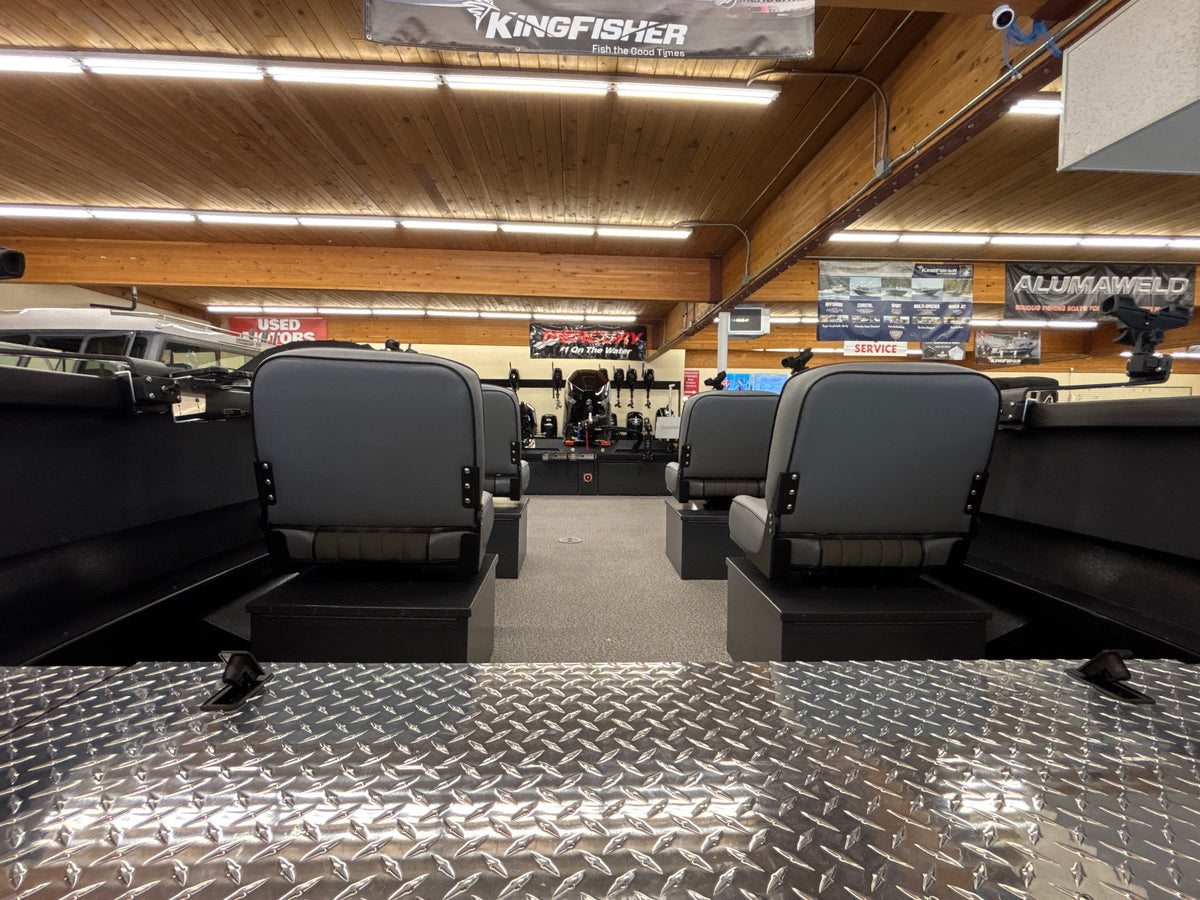

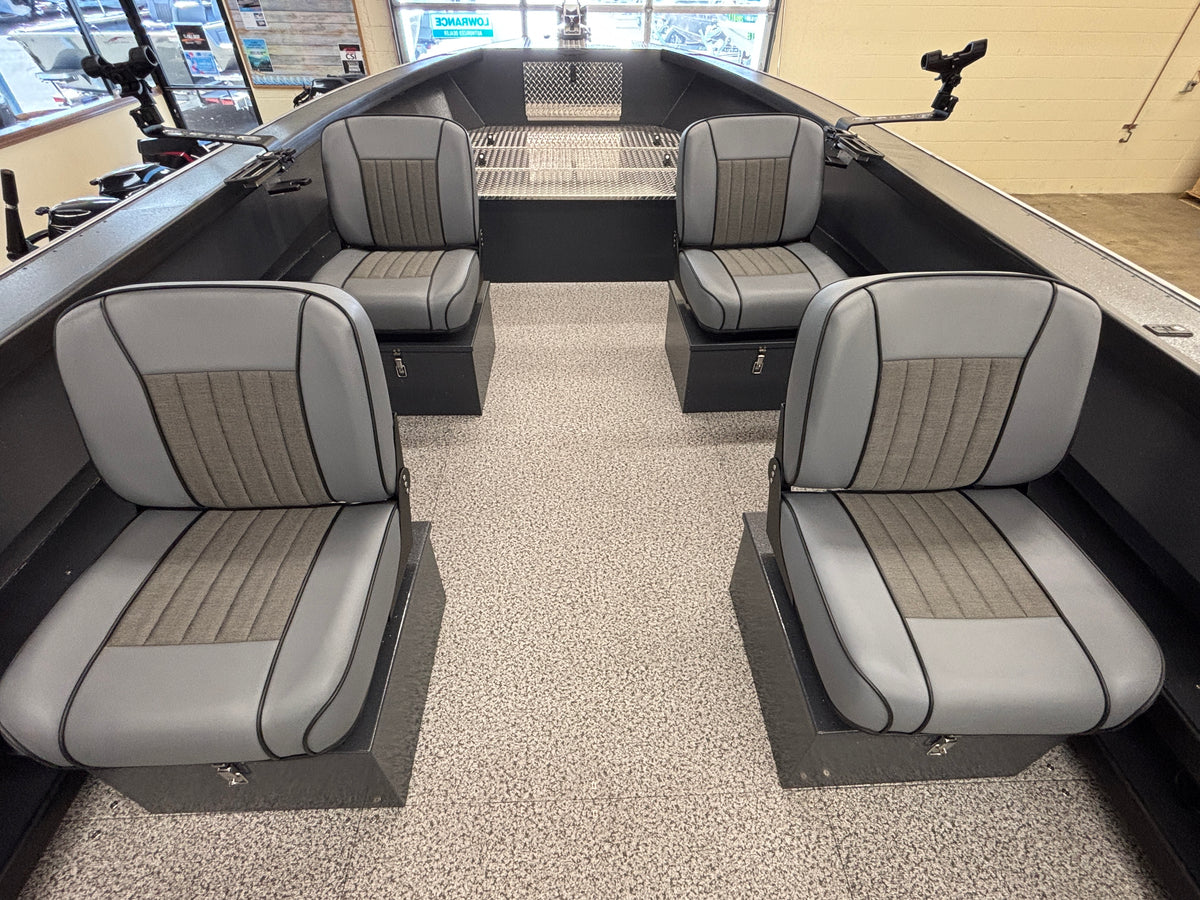

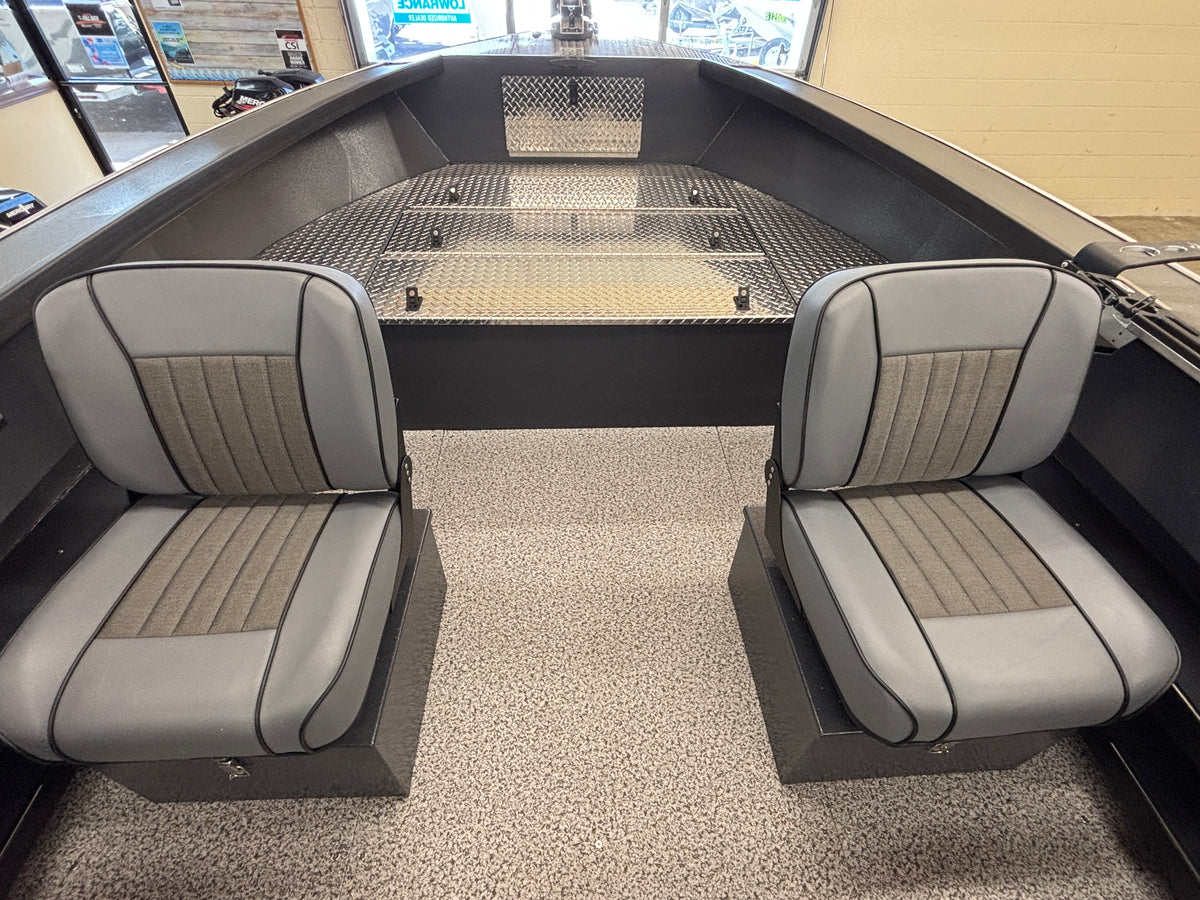

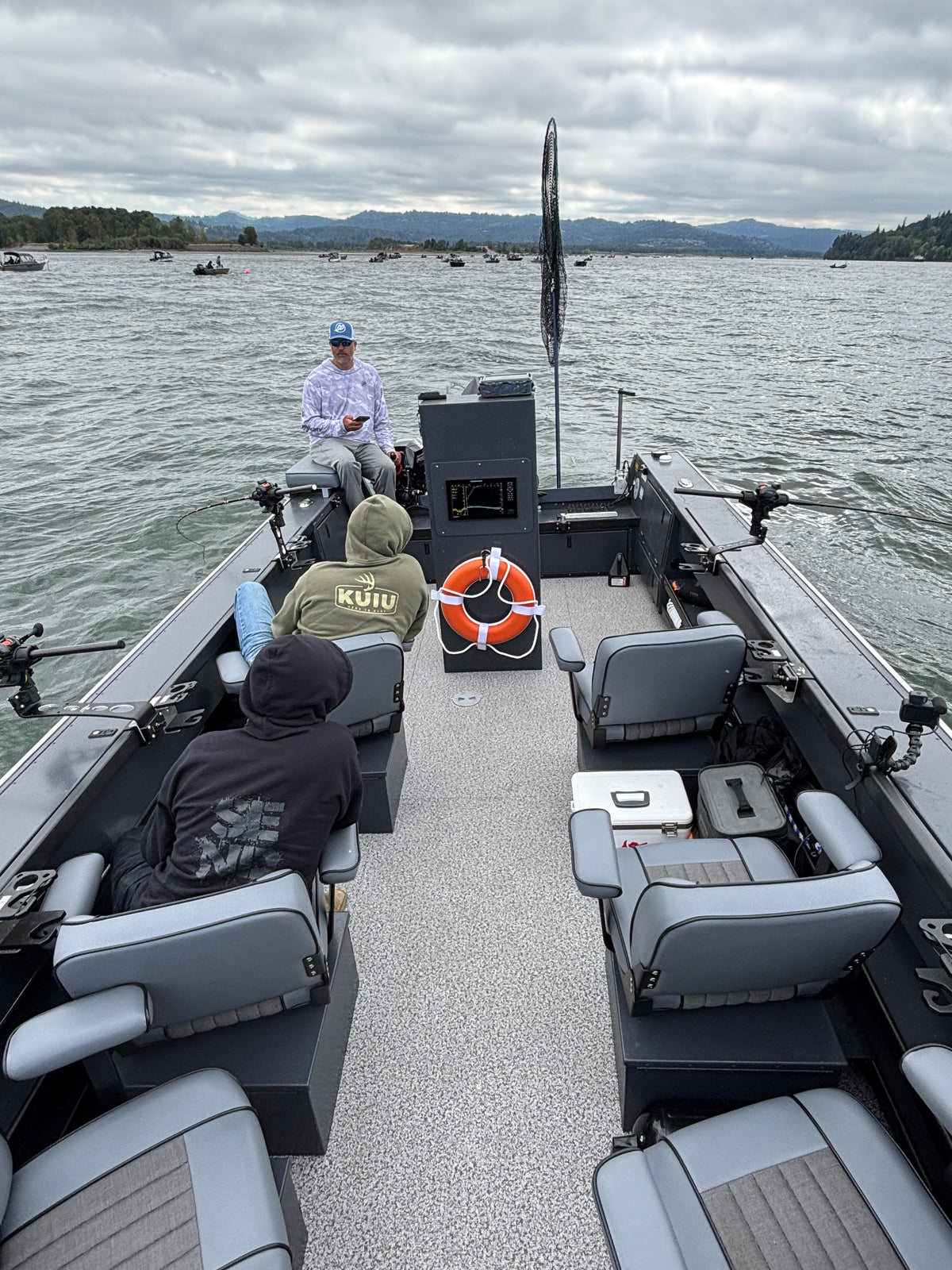

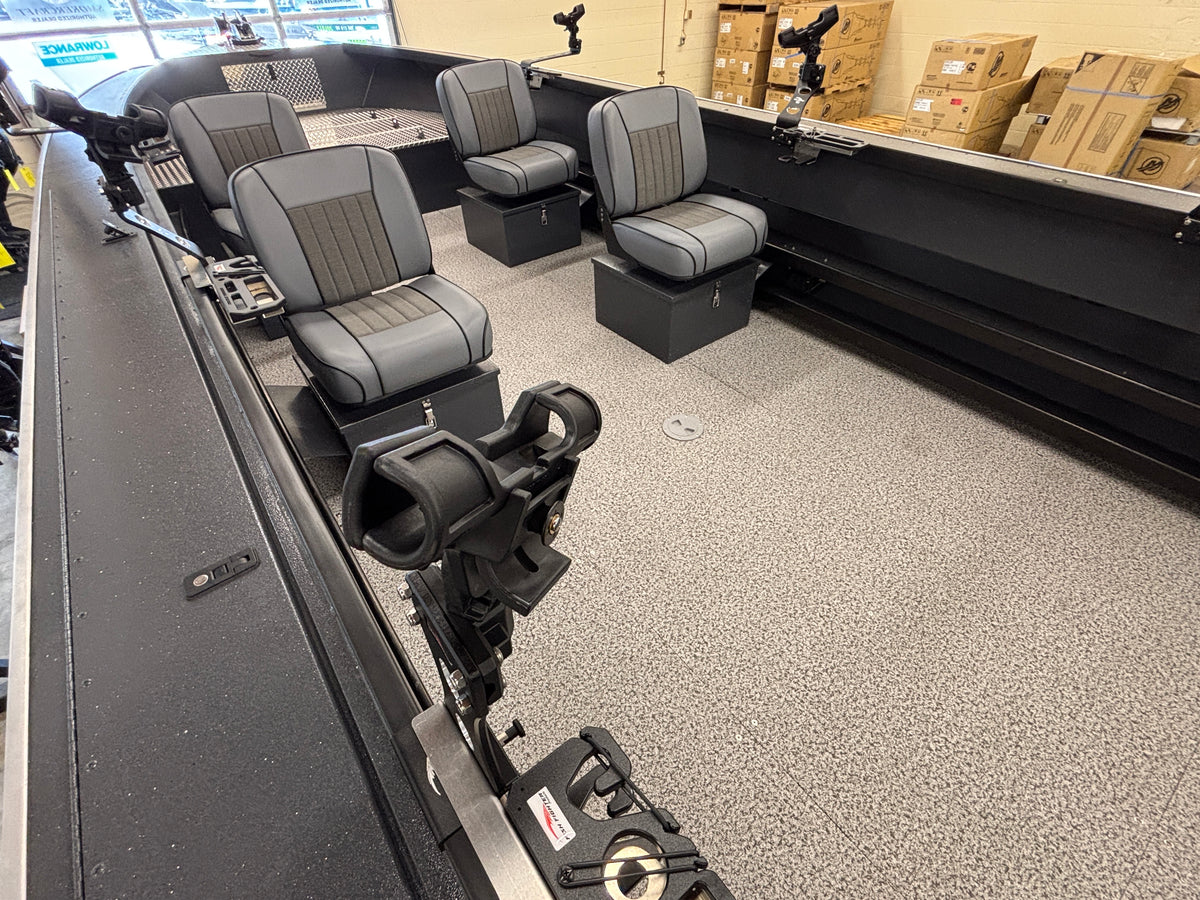

-Four deluxe comfort seats on adjustable aluminum storage boxes

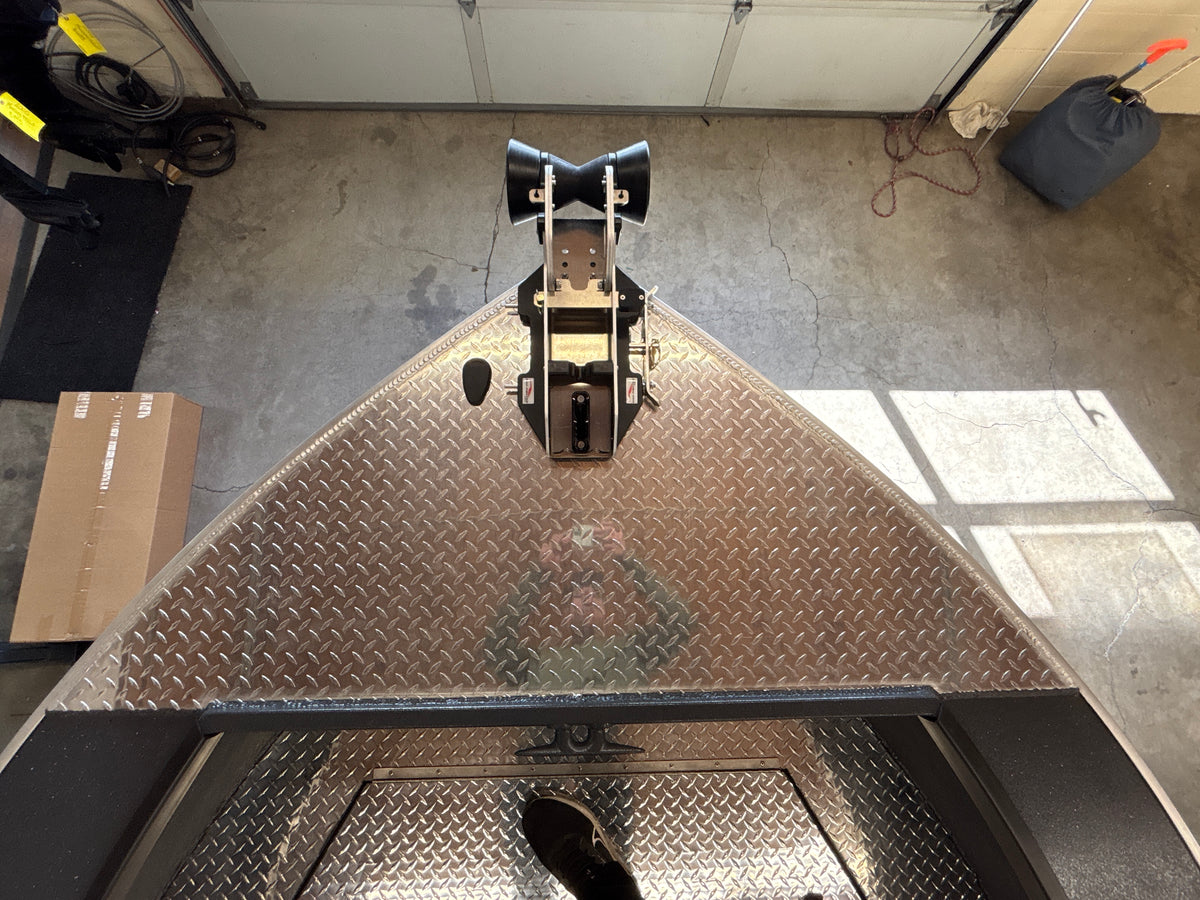

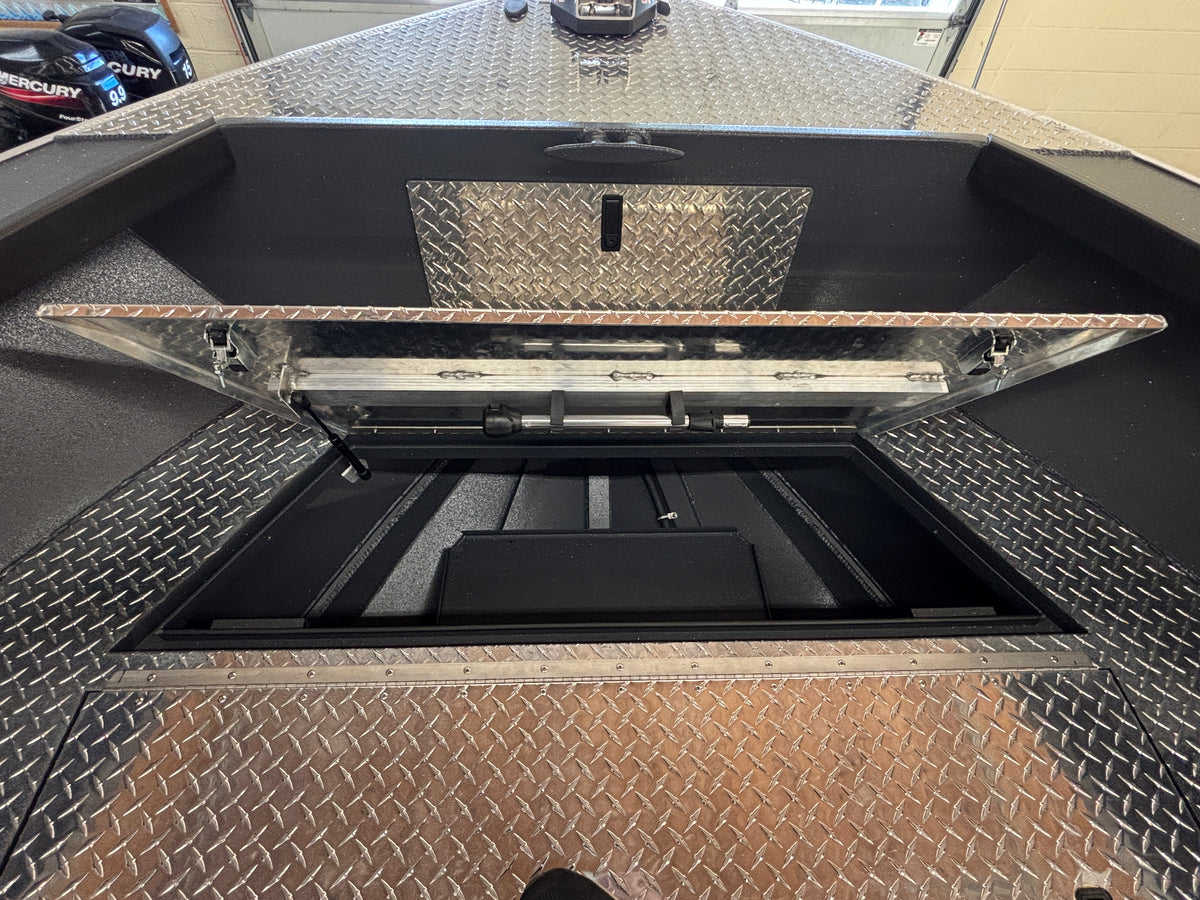

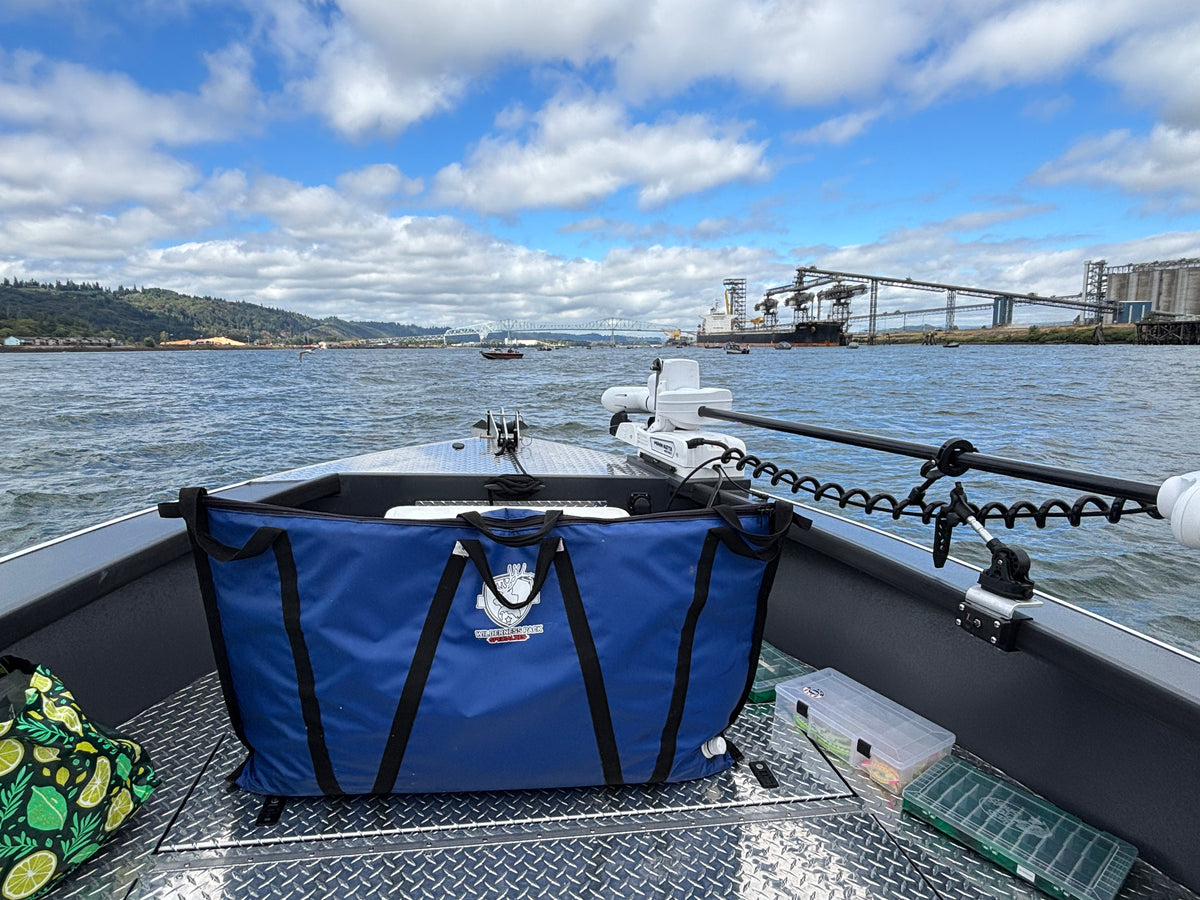

-XL foredeck storage locker with locking door

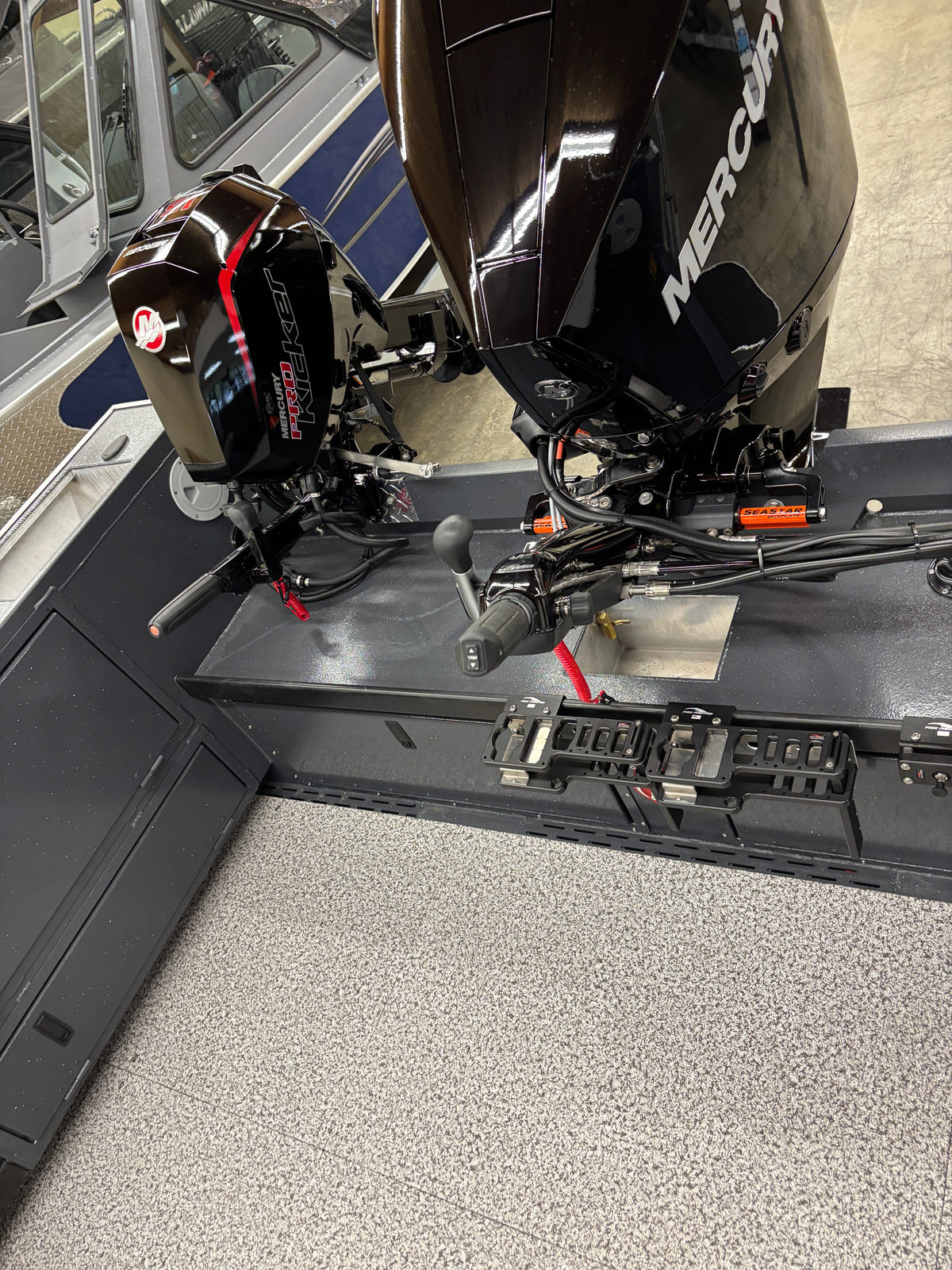

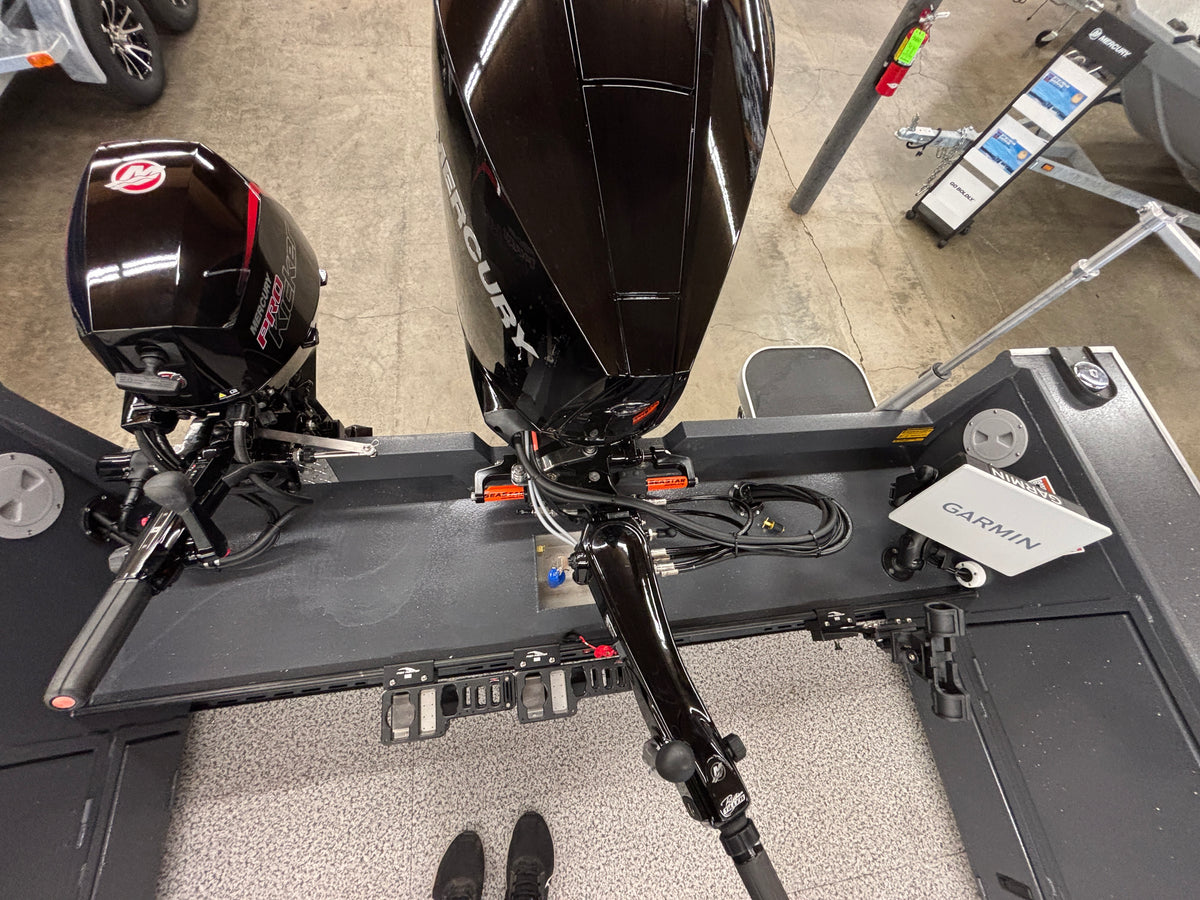

-Pro transom rigging compartment with two doors, SouthCo latches, and hot box

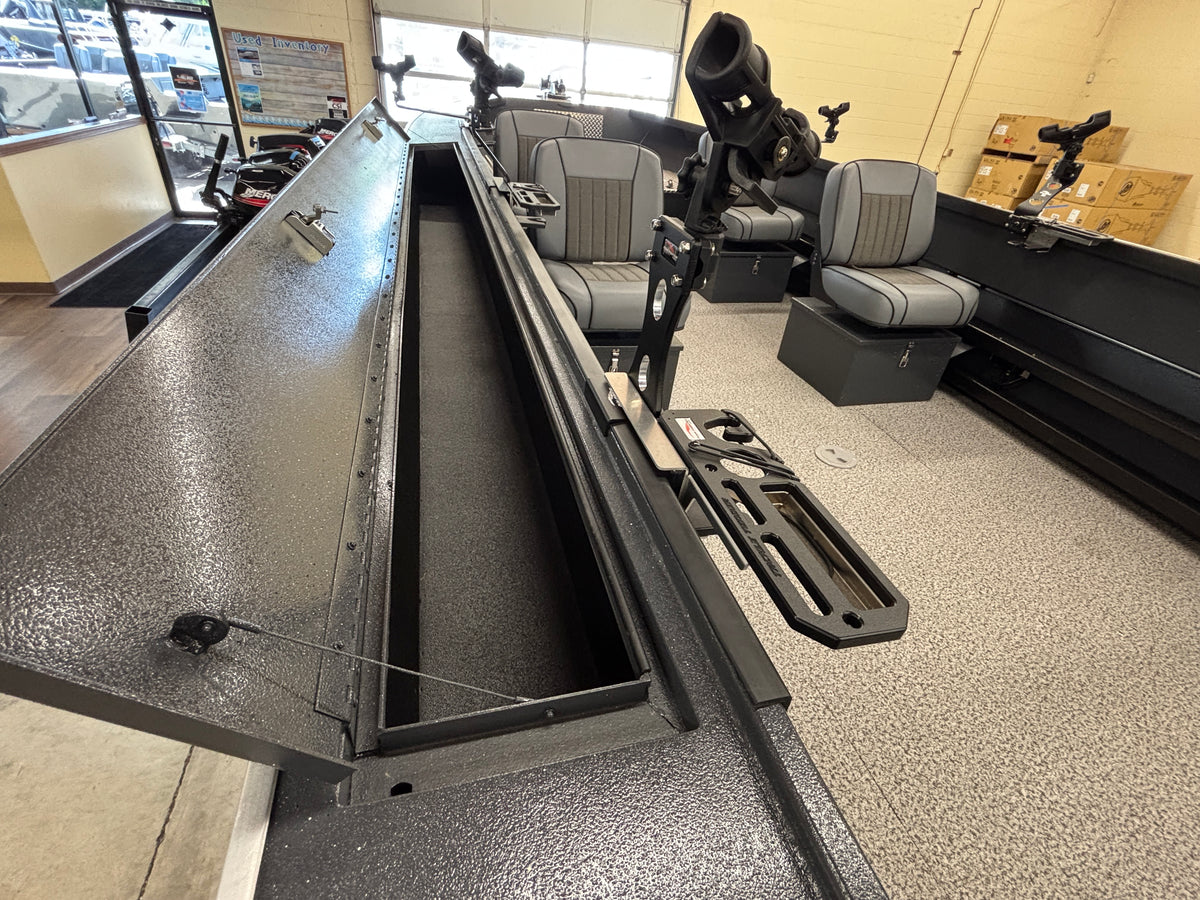

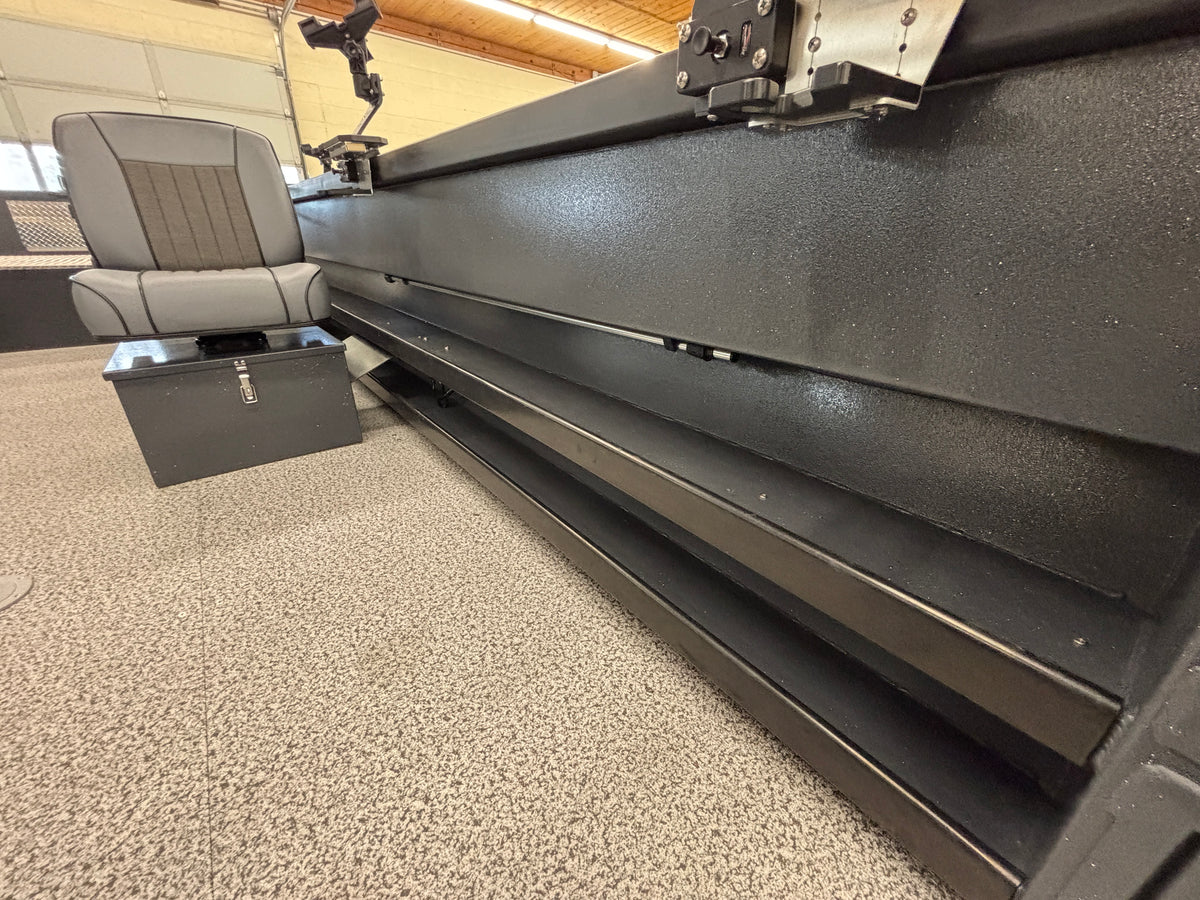

-Full length storage trays

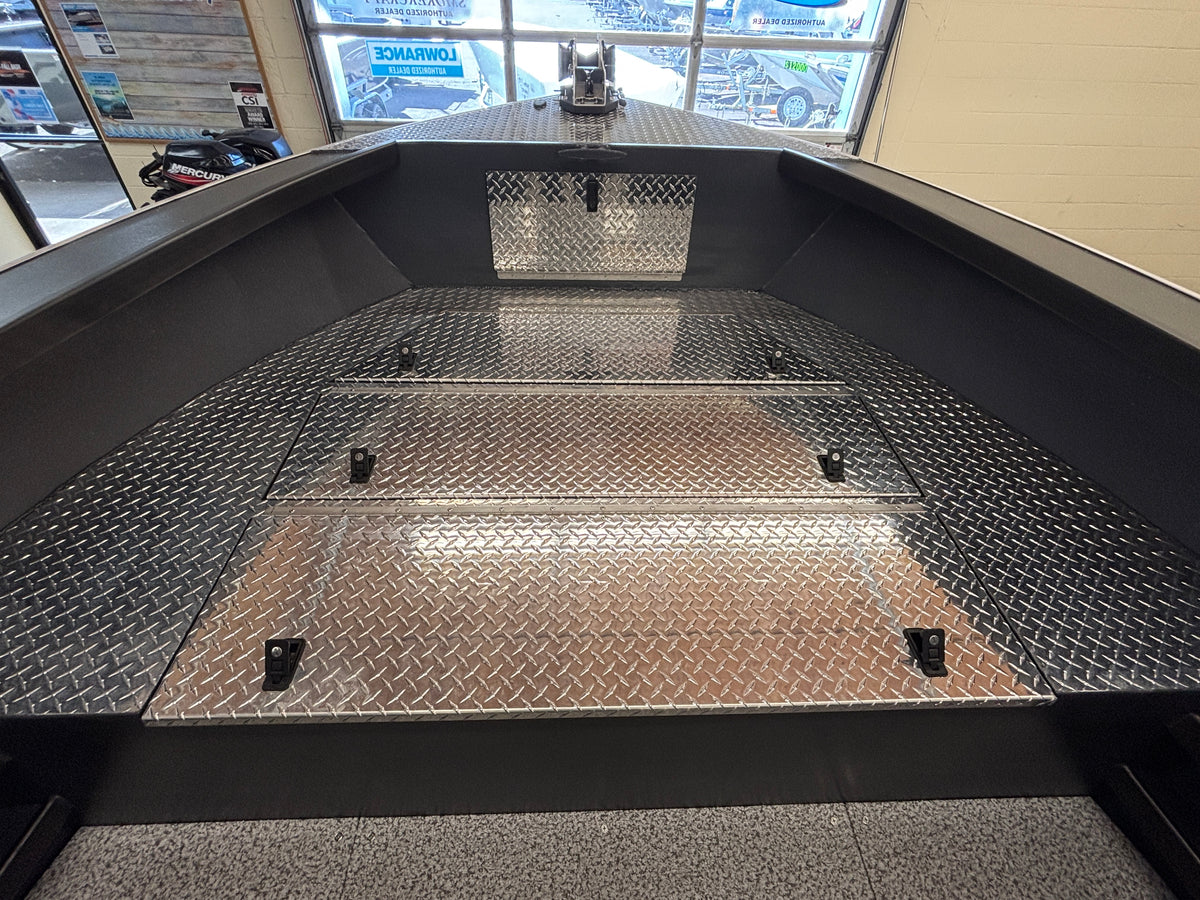

-Columbia Three Compartment Step Deck:
Rope Locker w/Southco Latch
Dry Storage w/Southco Latch
Fish Box

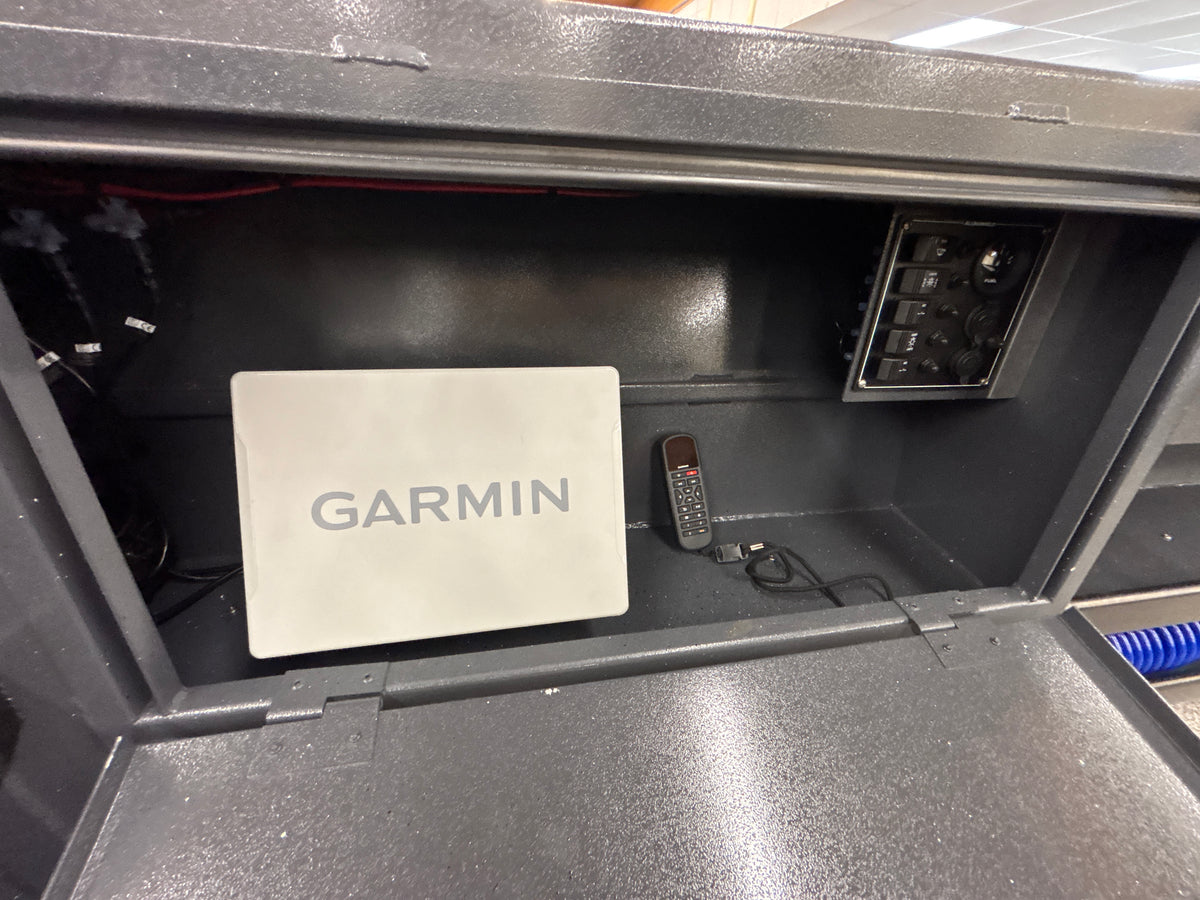

-Deluxe switch panel with dual USB port and 12-volt outlet

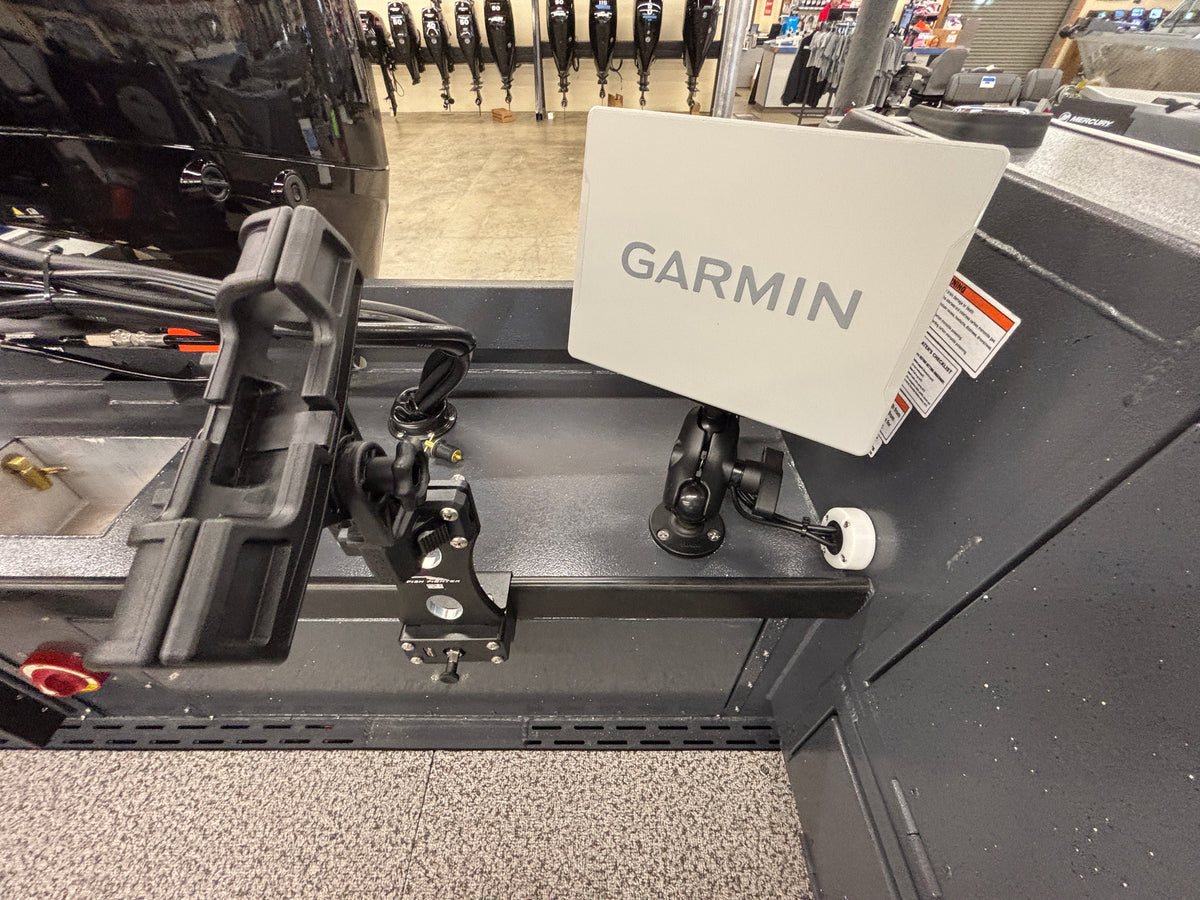

-Depth finder box with removable locking doors (port and starboard)
-Aluma-Coat interior paint

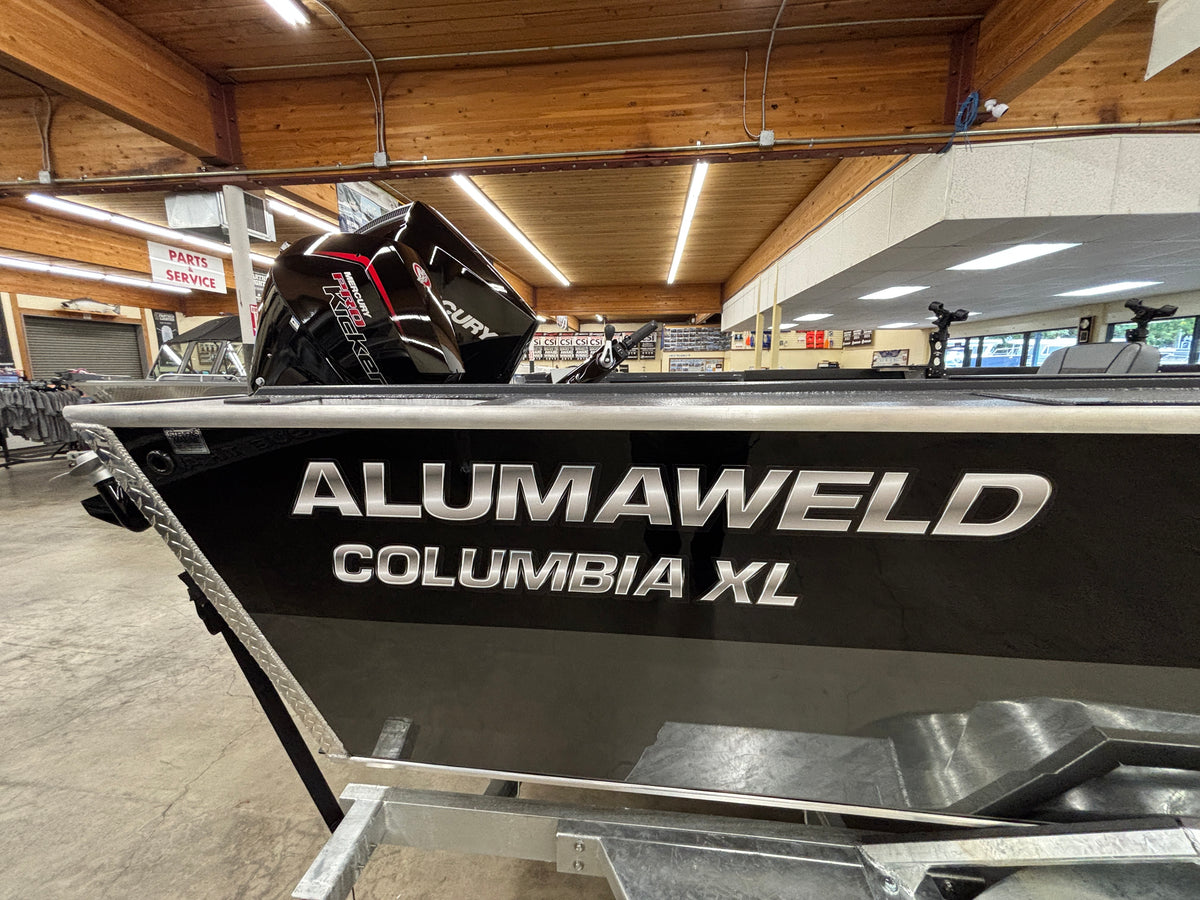

-Full outside paint (single color/single stage) with vinyl graphics
-Armor Tech™ premium floorboards with Dura Tuff™ non-skid vinyl covering
-Under floor protective coating
-Six full length lifting / turning strakes
-Washdown pump with hose
-2000 GPH electric bilge pump w/ auto switch
-Built in aluminum fuel tank with gauge
-Weld-on zinc anode
-Running / mooring lights
-Saddle cut transom w/cover cover lay

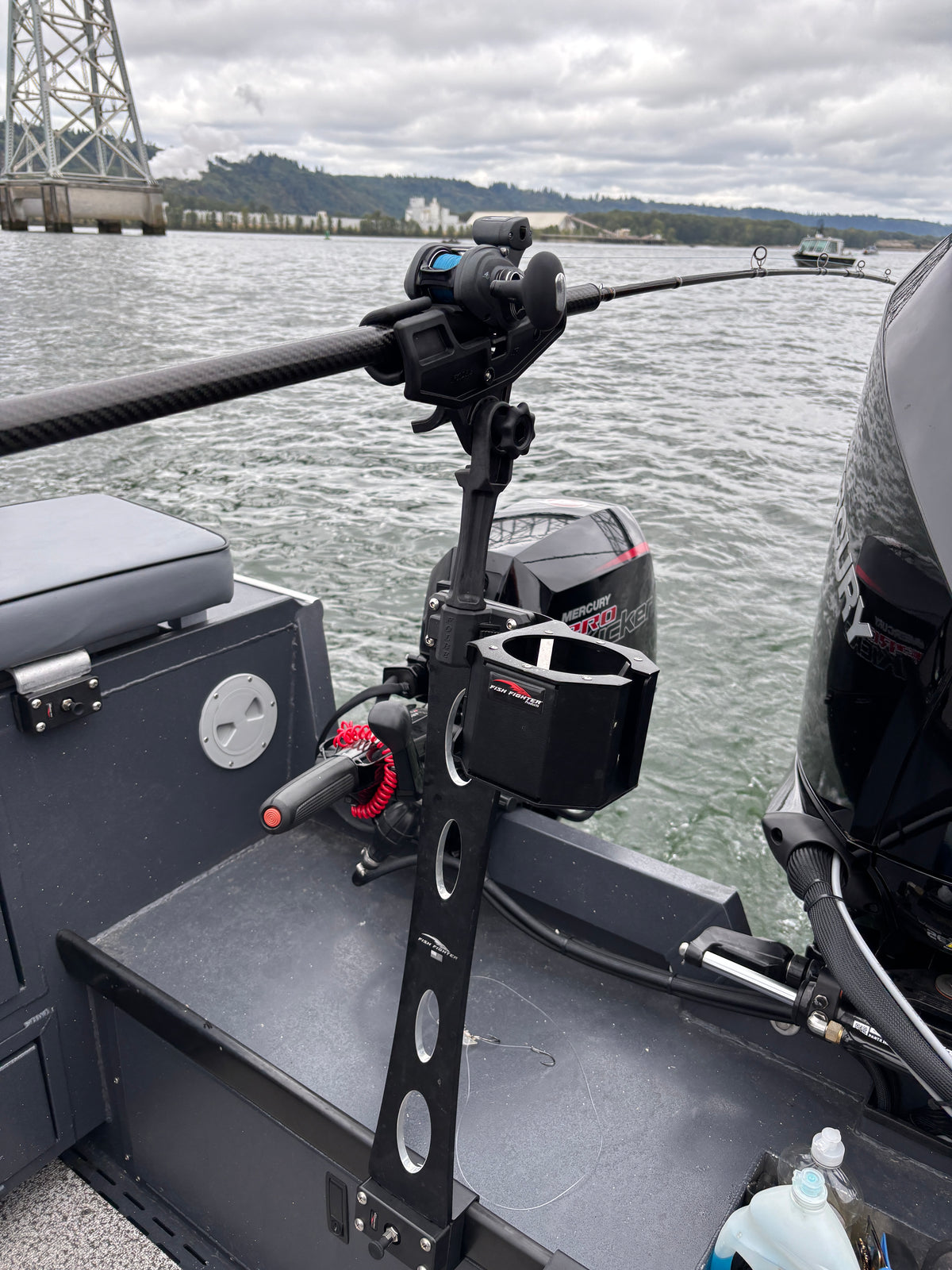

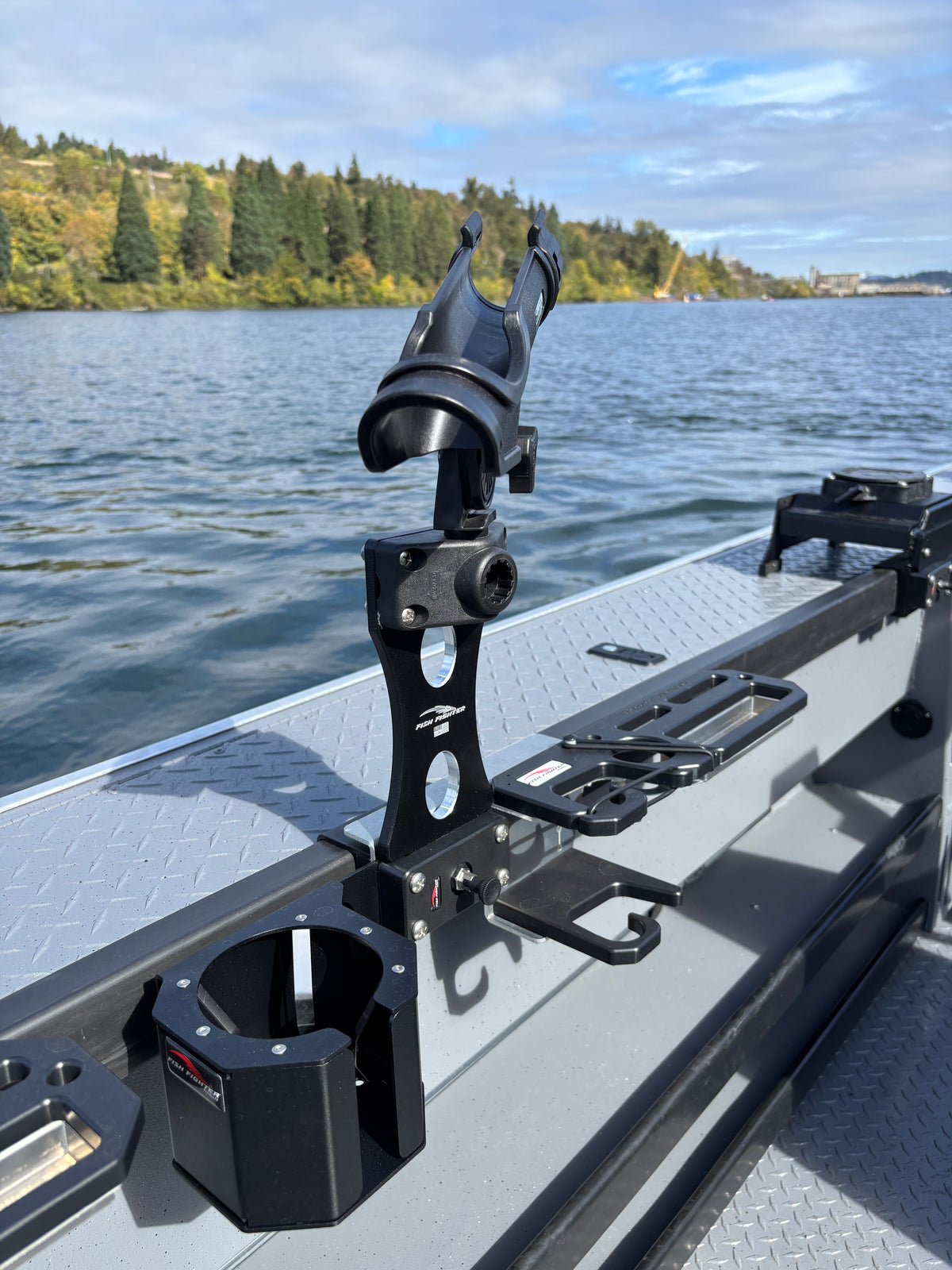

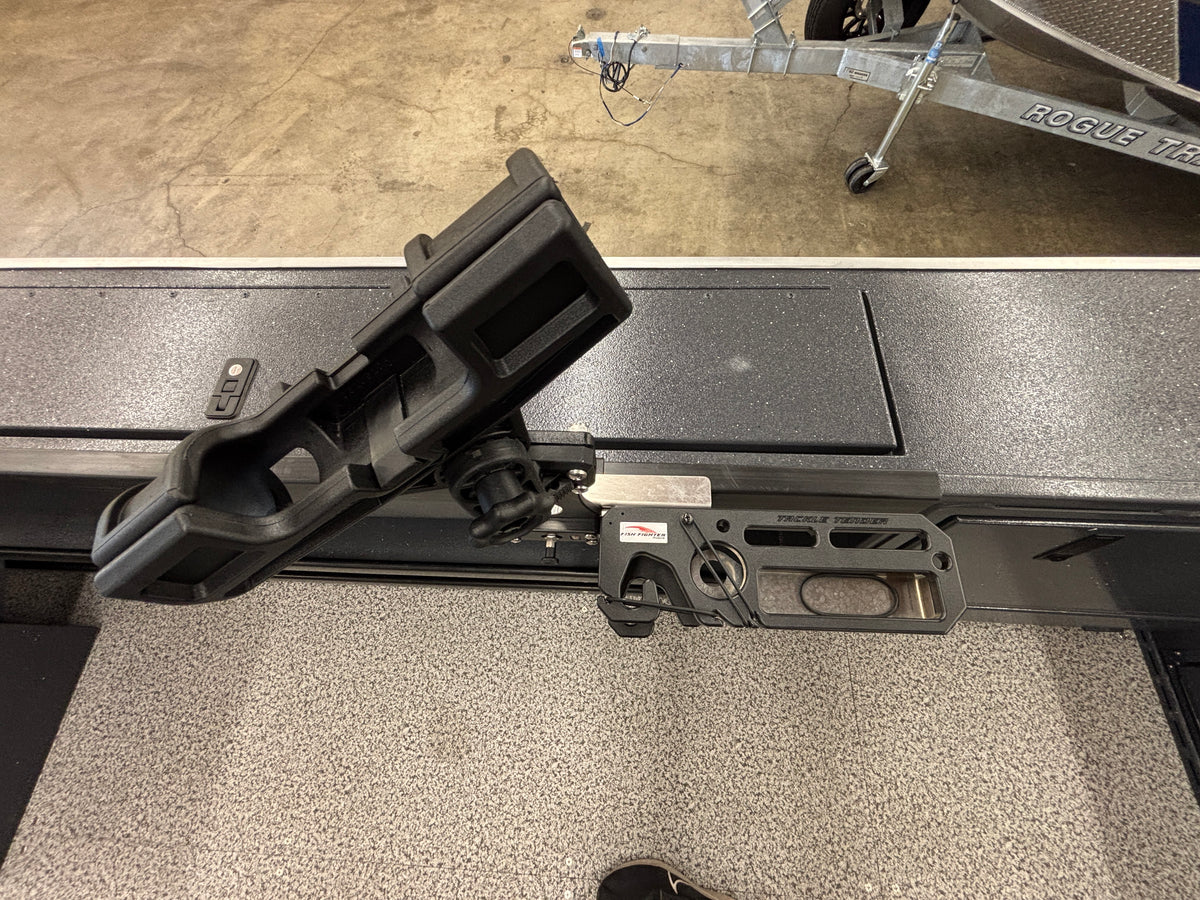

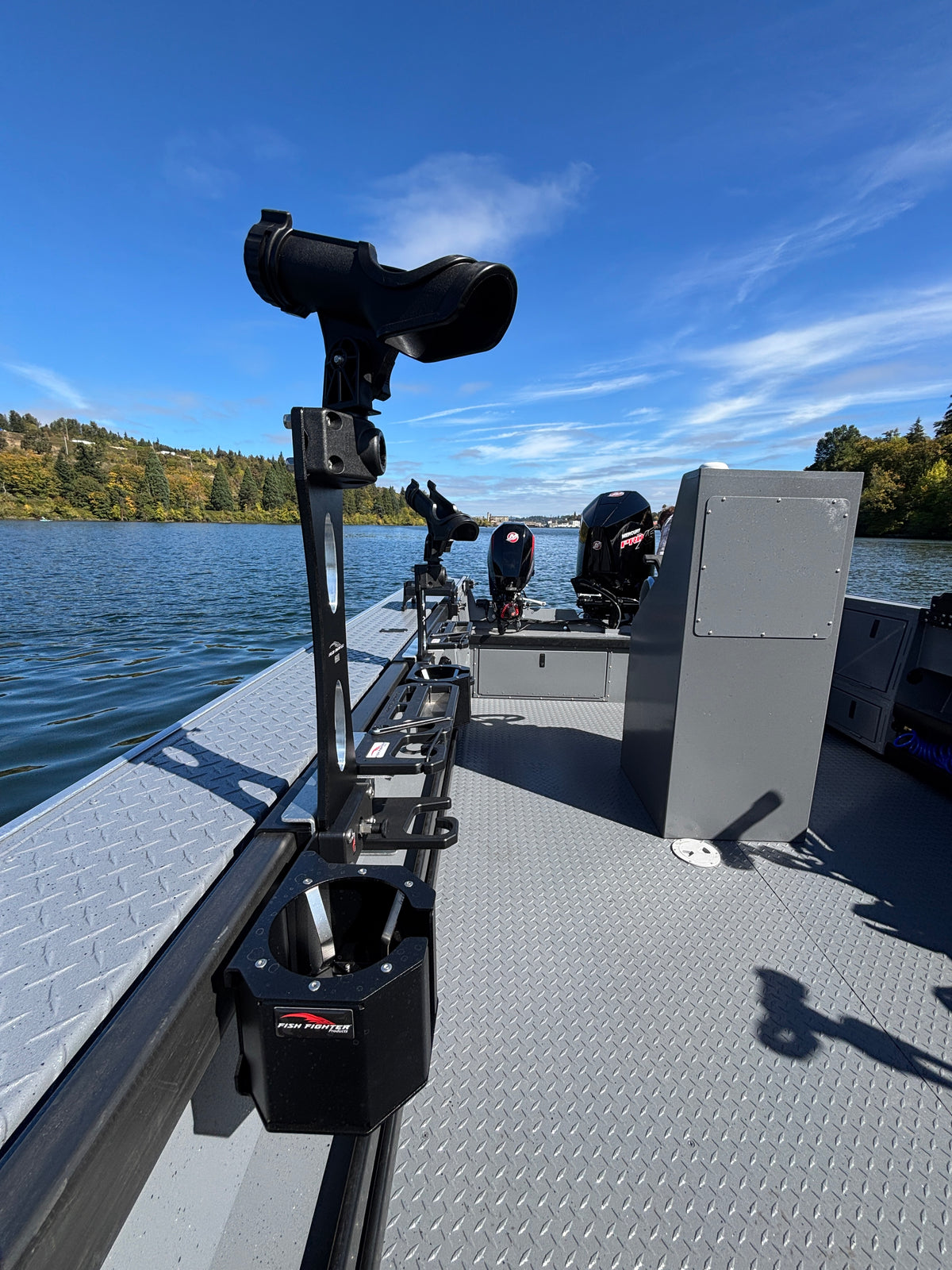

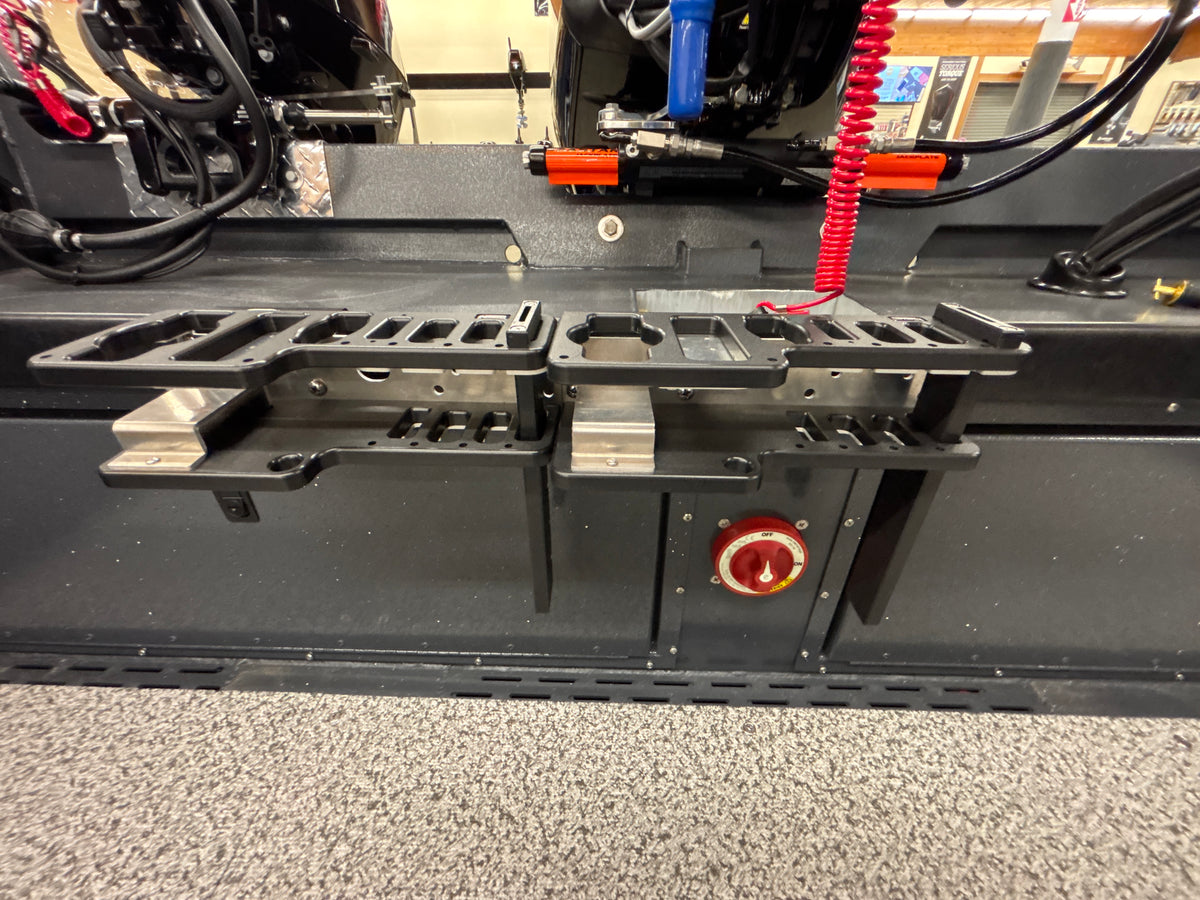

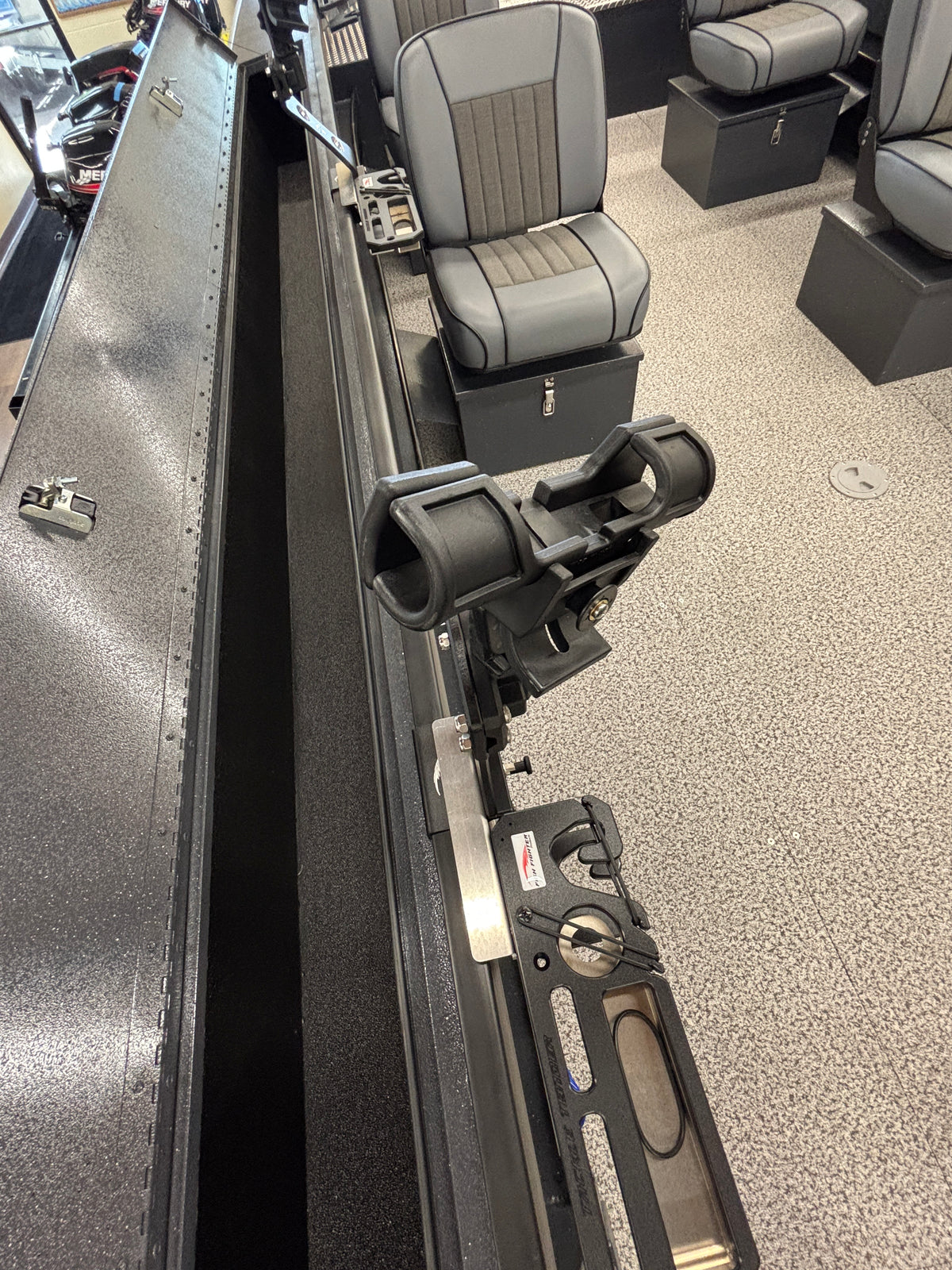

-Rod grippers (four position)
-Continuously welded box girder construction
-Four weld-on gunnel cleats
-Full 13" coaming gunnel with gunnel rubber, including wide trays
-Slotted chine and gunnel extrusions
-Two bolt-on transducer brackets
-Weld-on aluminum stern eyes and double bow eye
-Bold-on powder coated cleat on inner foredeck
-Stainless steel hinges on boxes and storage lids
-Exclusive lifetime warranty
Share
Alumaweld Boat Comparison
| Horizon 28 | Other Alumaweld Models | ||
|---|---|---|---|
| | |||
| General General | |||
| Length | Length 27' 9" | 23' 9" | 25' 9" |
| Beam | Beam 109" | 109" | 109" |
| Beam at Chine | Beam at Chine 90" | 90" | 90" |
| Inside Freeboard | Inside Freeboard 31" | 31" | 31" |
| Side Height | Side Height 34" | 34" | 34" |
| Transom Height | Transom Height 31" | 31" | 31" |
| Deadrise | Deadrise 14 Deg | 14 Deg | 14 Deg |
| Bottom Thickness | Bottom Thickness 0.250 | 0.250 | 0.250 |
| Side Thickness | Side Thickness 0.160 | 0.160 | 0.160 |
| Persons/Capacity | Persons/Capacity 9/1,350lbs | 7/1,050lbs | 7/1,050 to 9/1,350 |
| Approx. Weight | Approx. Weight 2,050lbs | 1,925lbs | 1,925 to 2,050 |
| Weight Capacity | Weight Capacity 2,120lbs | 1,850lbs | 1,850 to 2,120 |
| Fuel Capacity | Fuel Capacity 60 Gal | 60 Gal | 60 Gal |
| Max HP Prop/Jet | Max HP Prop/Jet 300/175 HP | 300/175 HP | 300/175 HP |
| Product type | Product type Boat | — | Boat |
