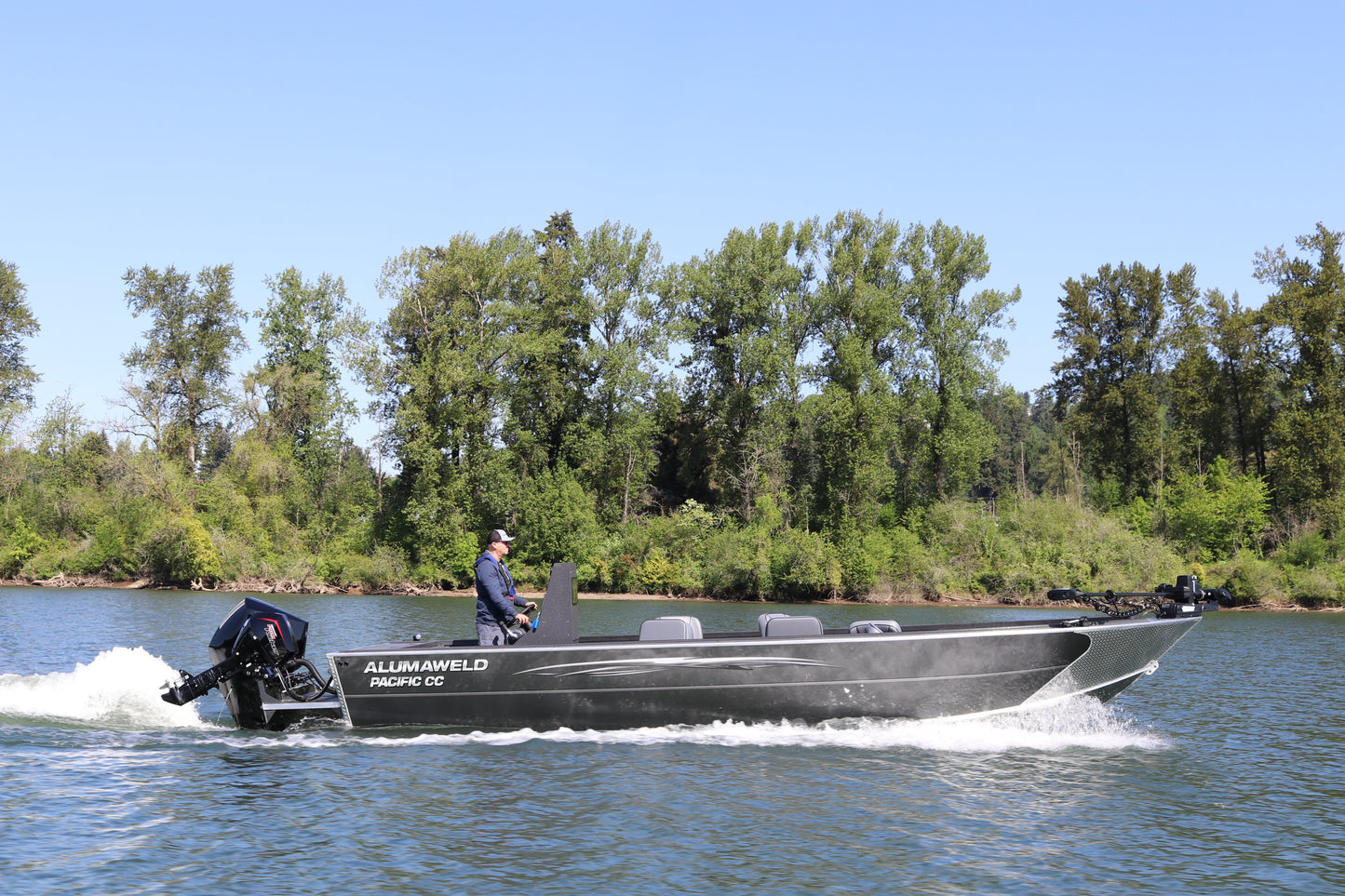

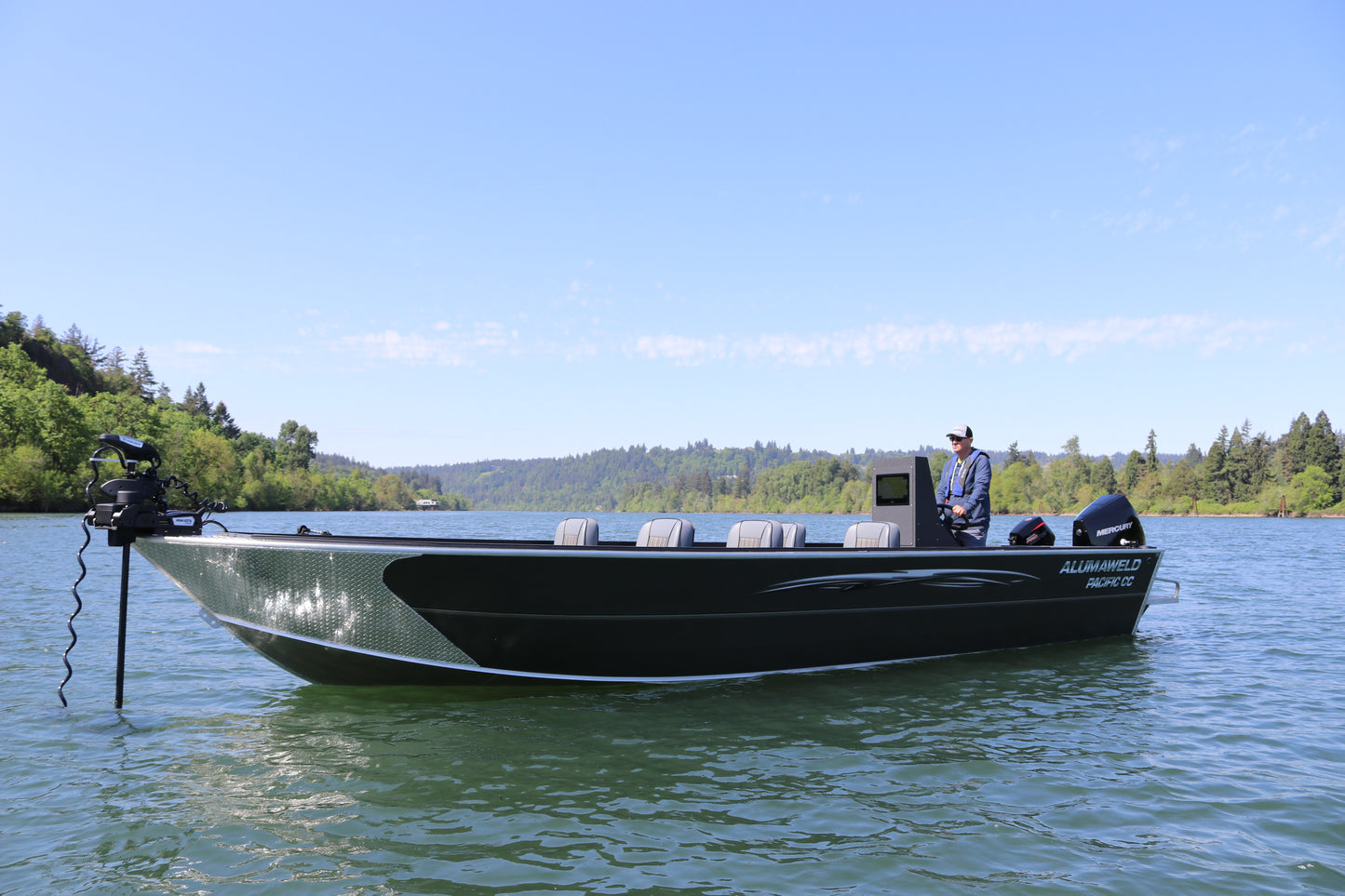

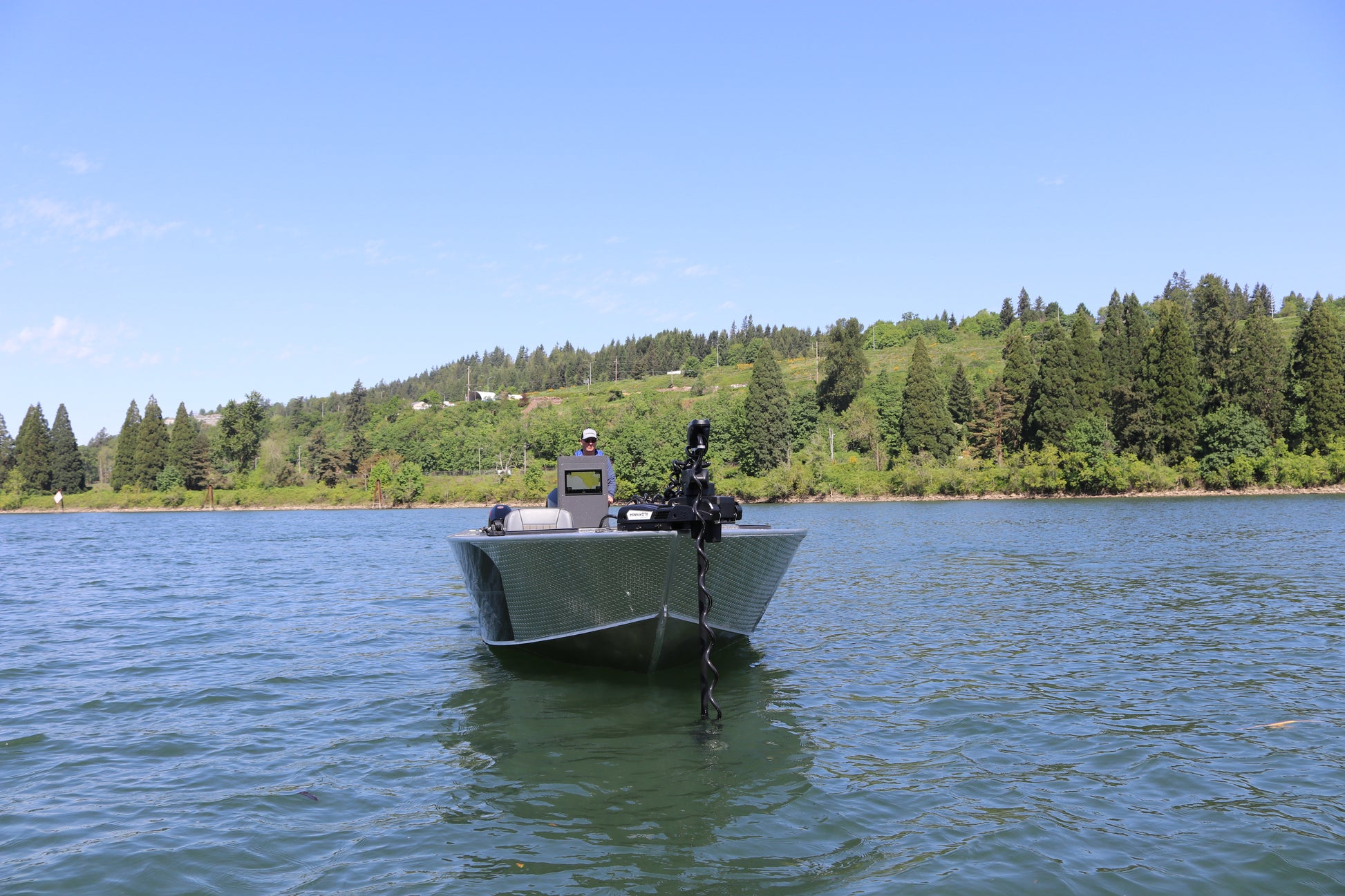

Alumaweld Pacific CC 26
Alumaweld Pacific CC 26

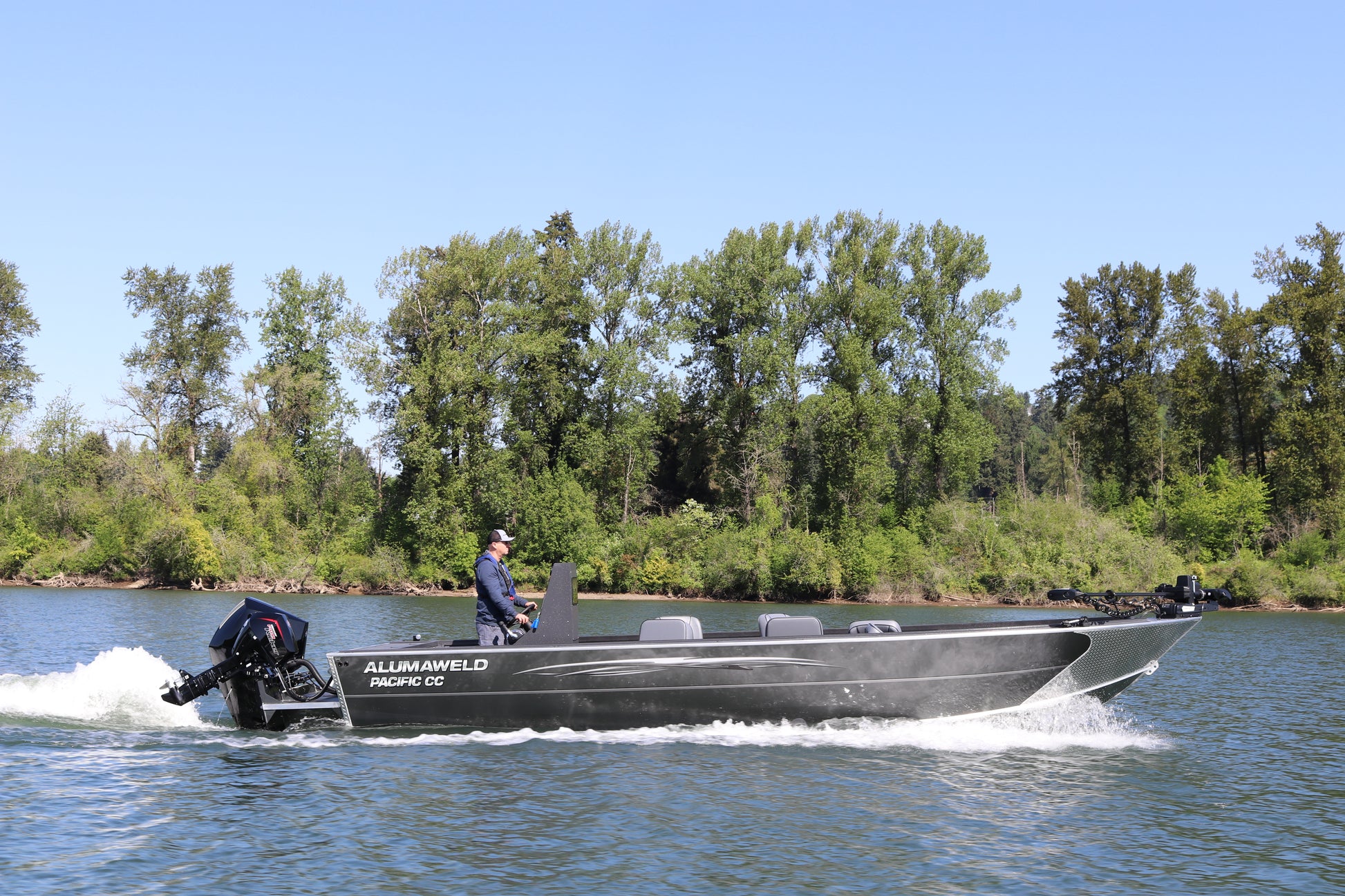

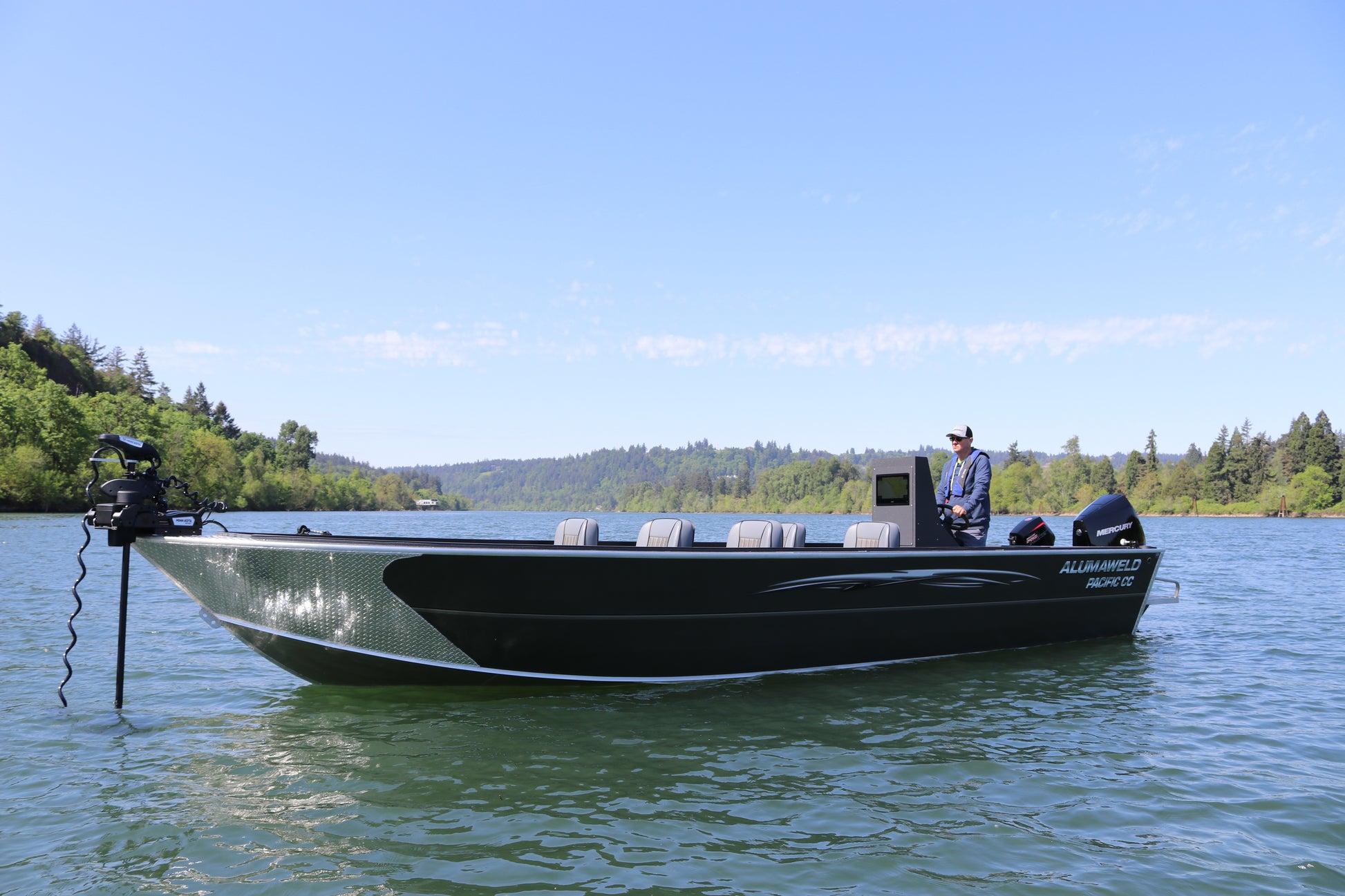

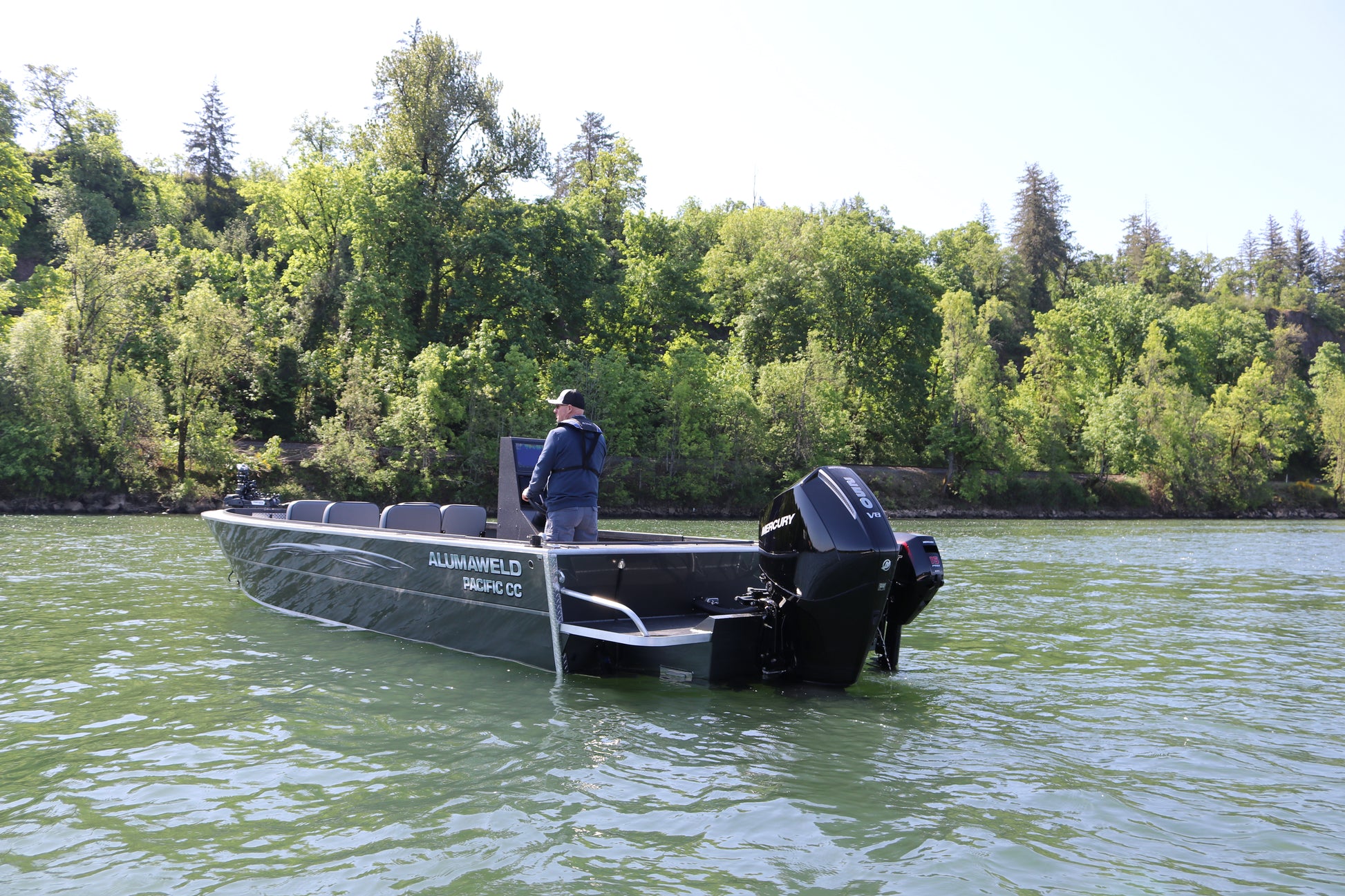

The wide-open platform of the Pacific paired with the deep 18° vee and offshore bracket makes it the perfect machine for salmon, sturgeon, steelhead, bottom fish, halibut, etc. Whether you are fishing the open ocean, rivers or bays, the Pacific slices through the rough water. Available in the XD (Extra Deep) and the standard CC. It’s designed for big-water fishing pursuit.
Specifications
Hull Center Length: 28' 3"
Beam: 99.5"
Beam At Chine: 82"
Inside Freeboard: 29"
Side Height: 33"
Transom Height: 30"
Deadrise: 18 degrees
Bottom Thickness: .250
Side Thickness: .160
Transom Thickness: .250
Approx. Weight: 2,970 lbs
Persons / Capacity: 9/1,350 lbs
Weight Capacity: 2,400 lbs
Fuel Capacity: 80 Gal
Max Hp Prop/Jet: 300/ (2) 200's
Standard Features

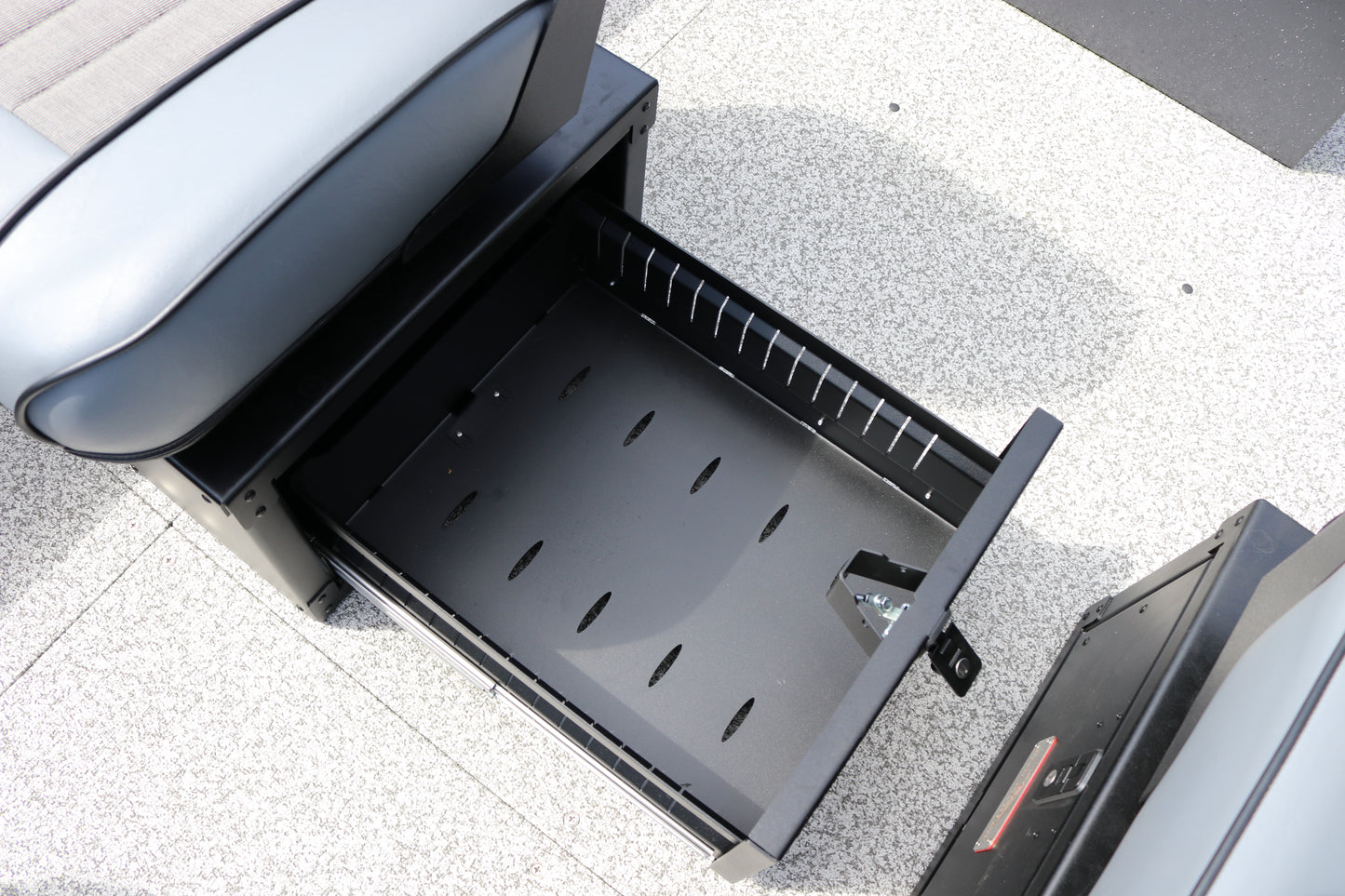

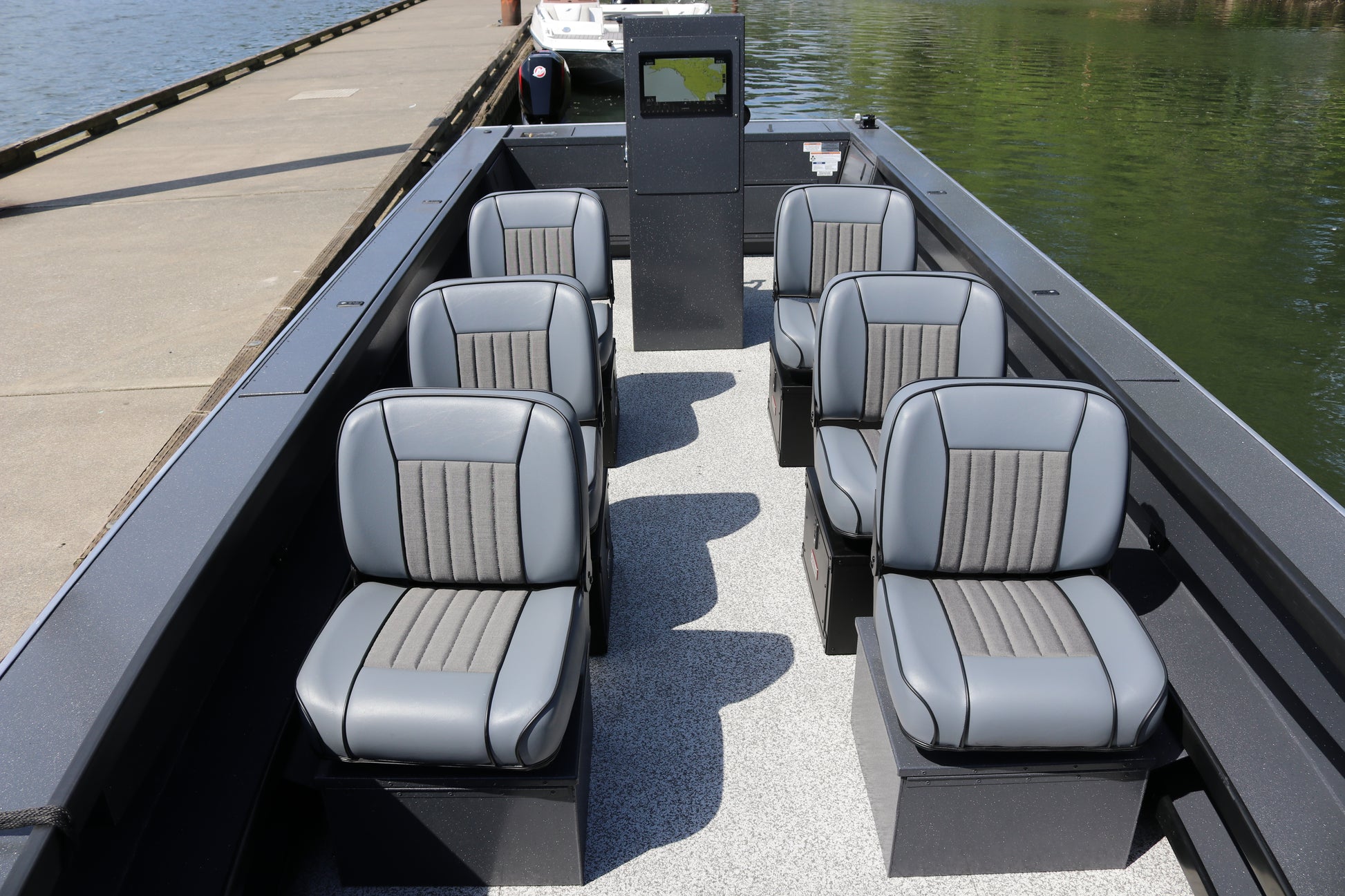

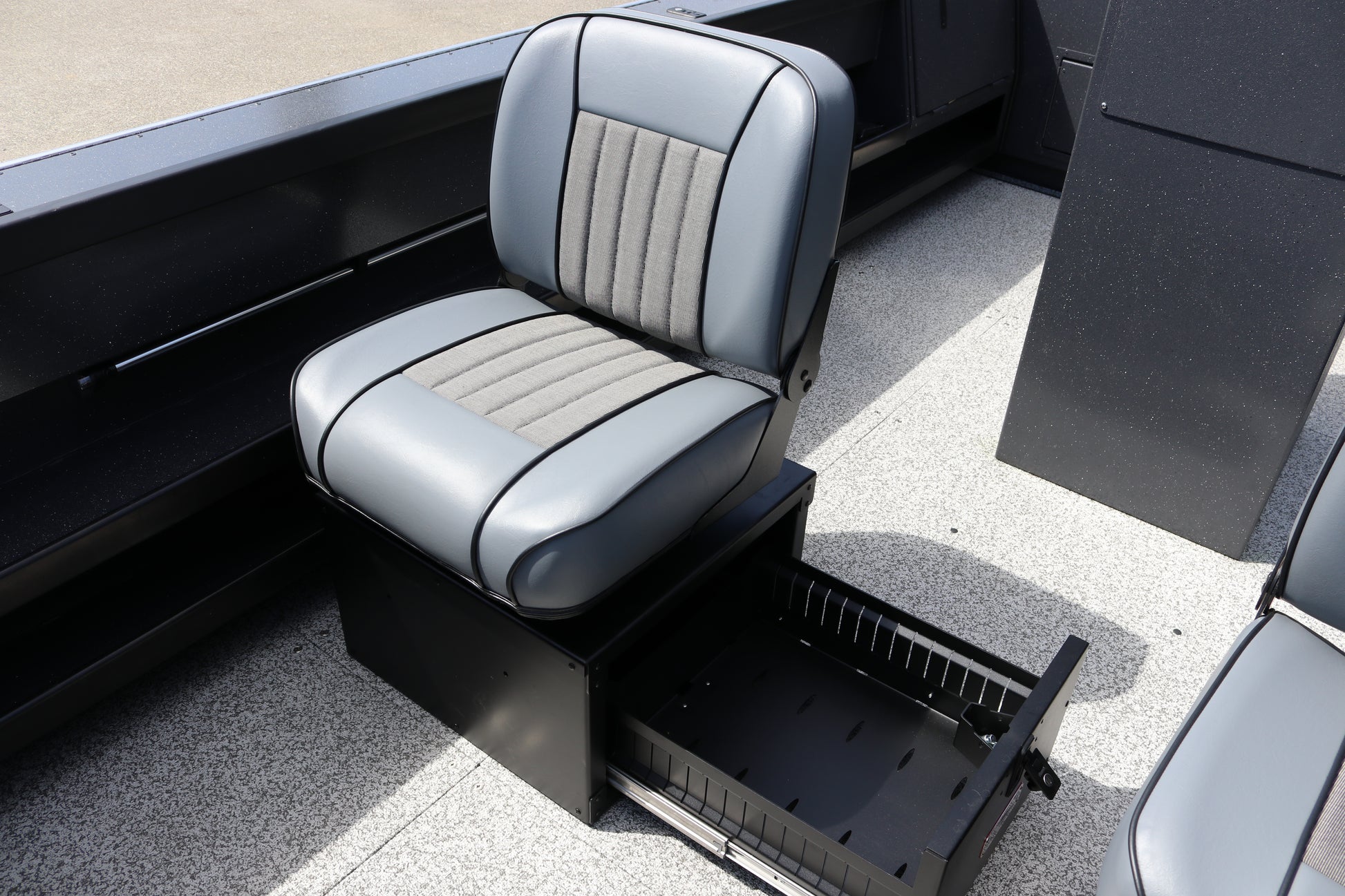

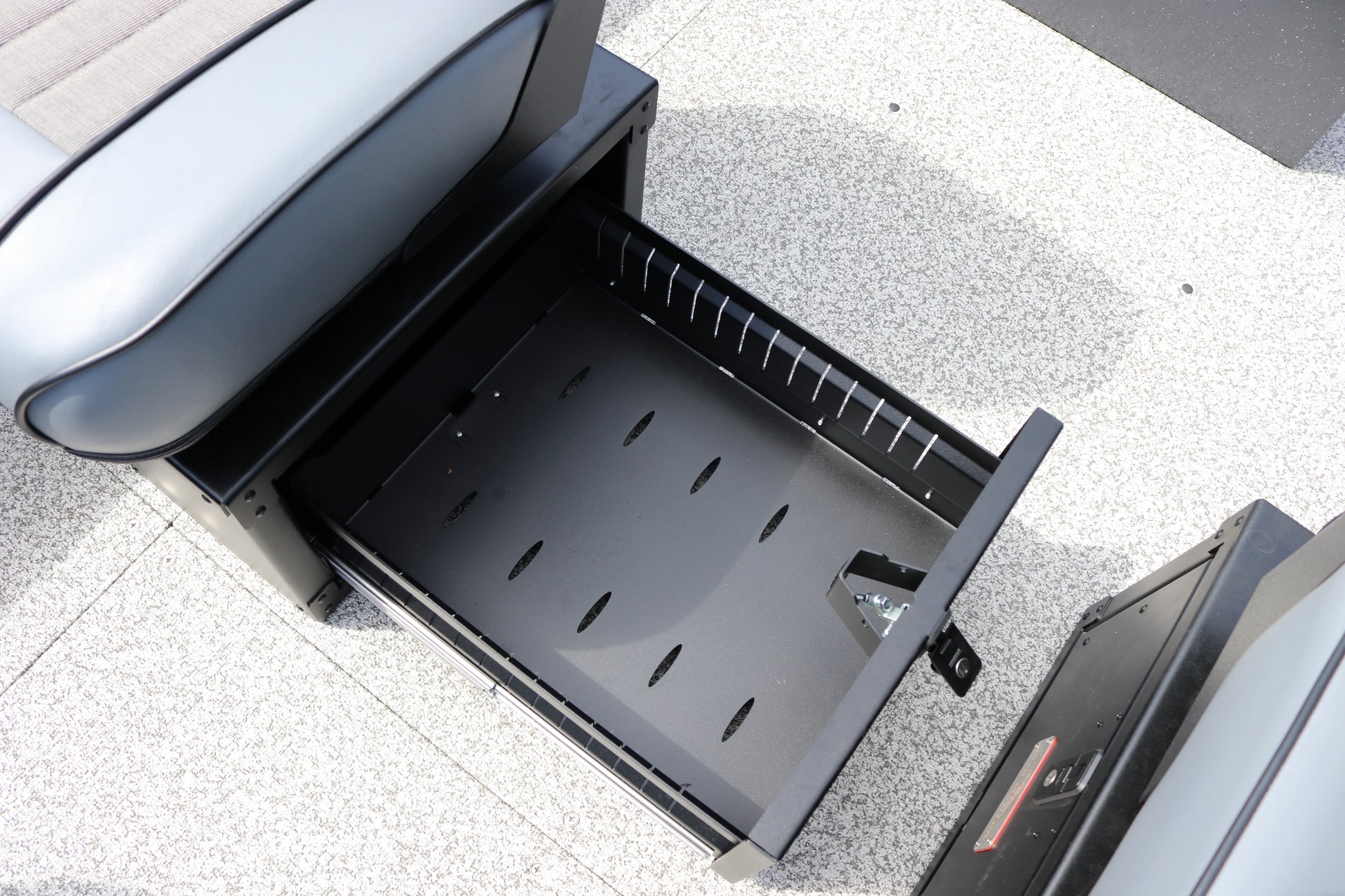

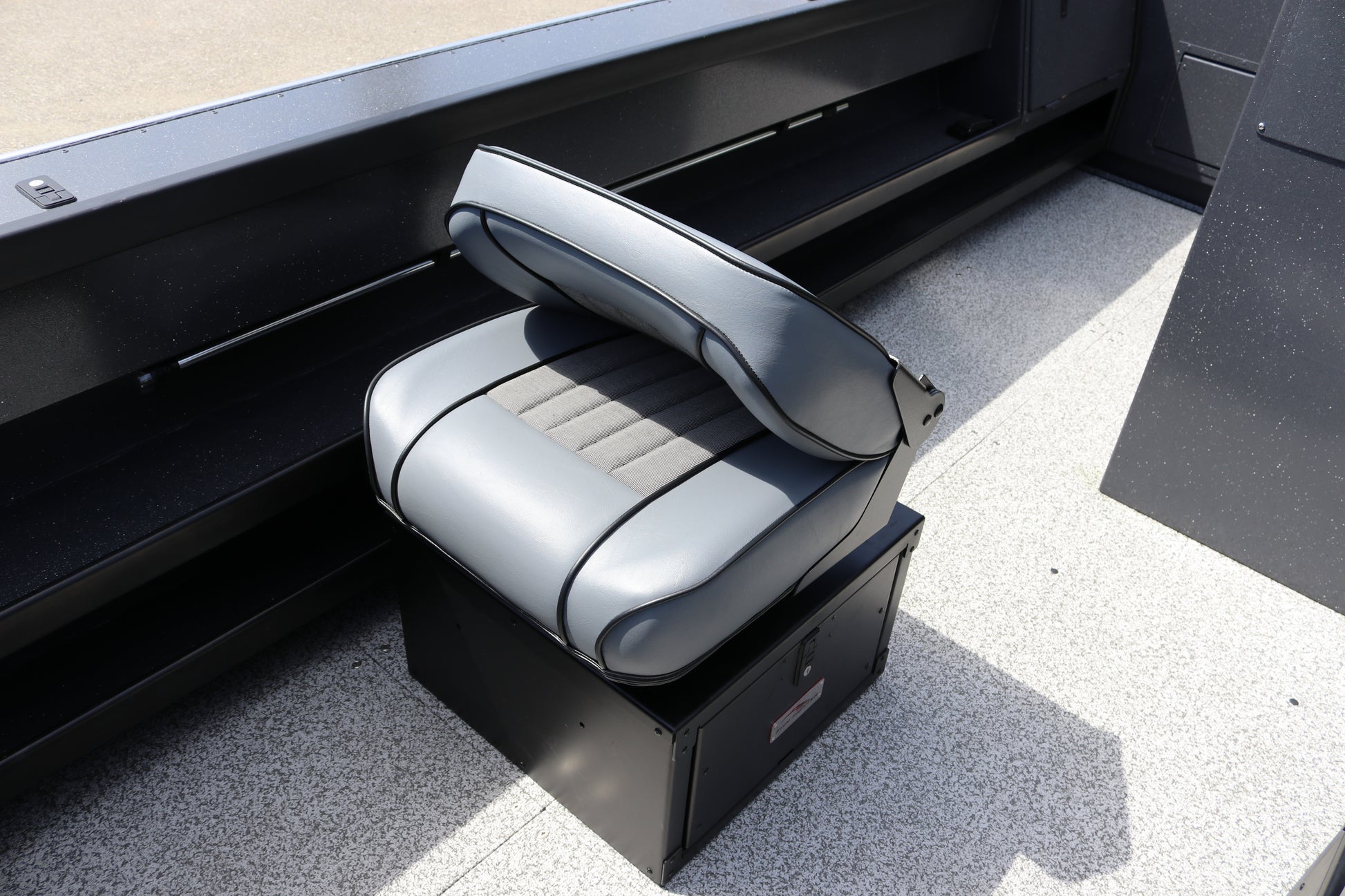

-Four deluxe comfort seats on adjustable aluminum storage boxes

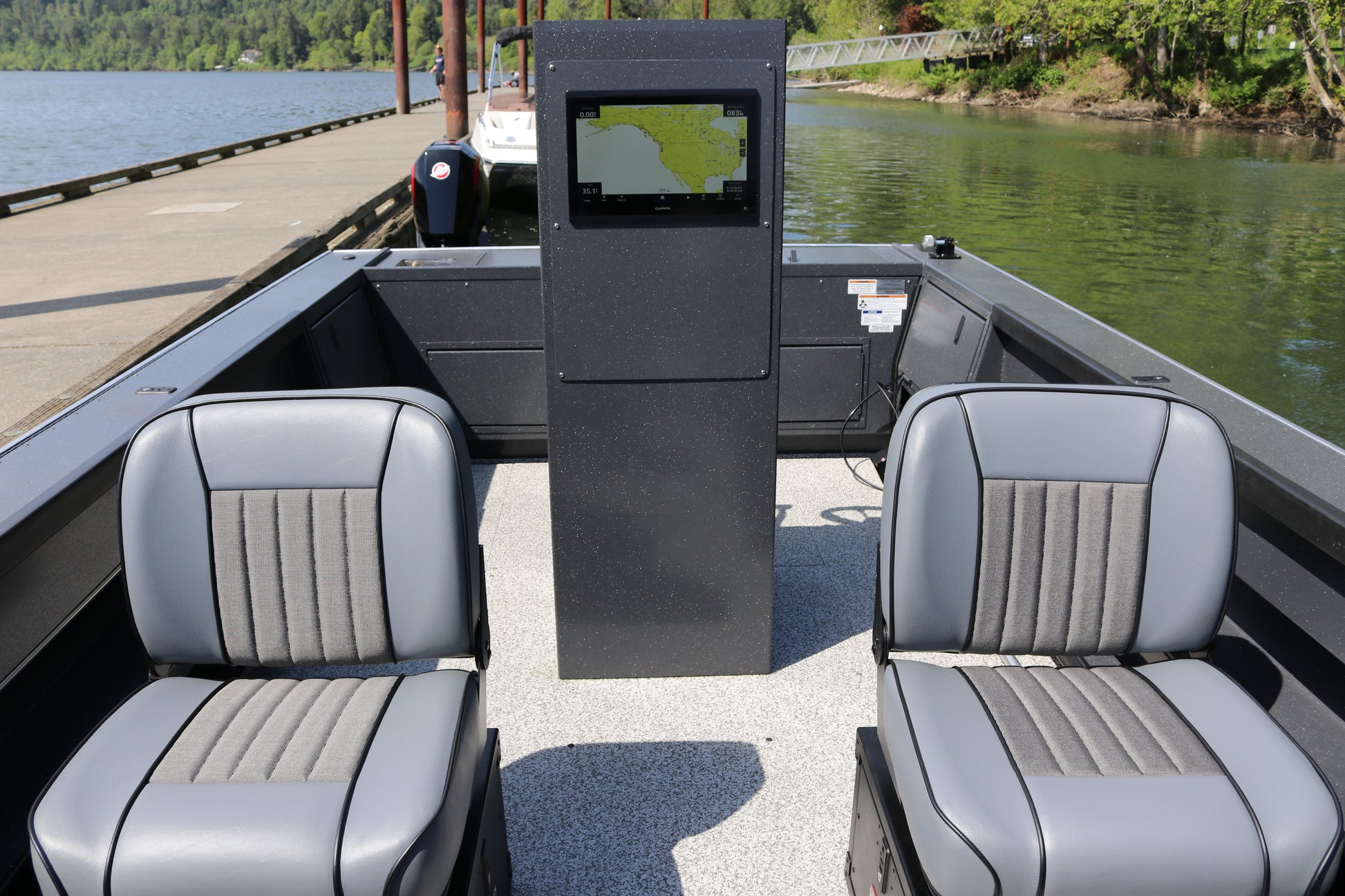

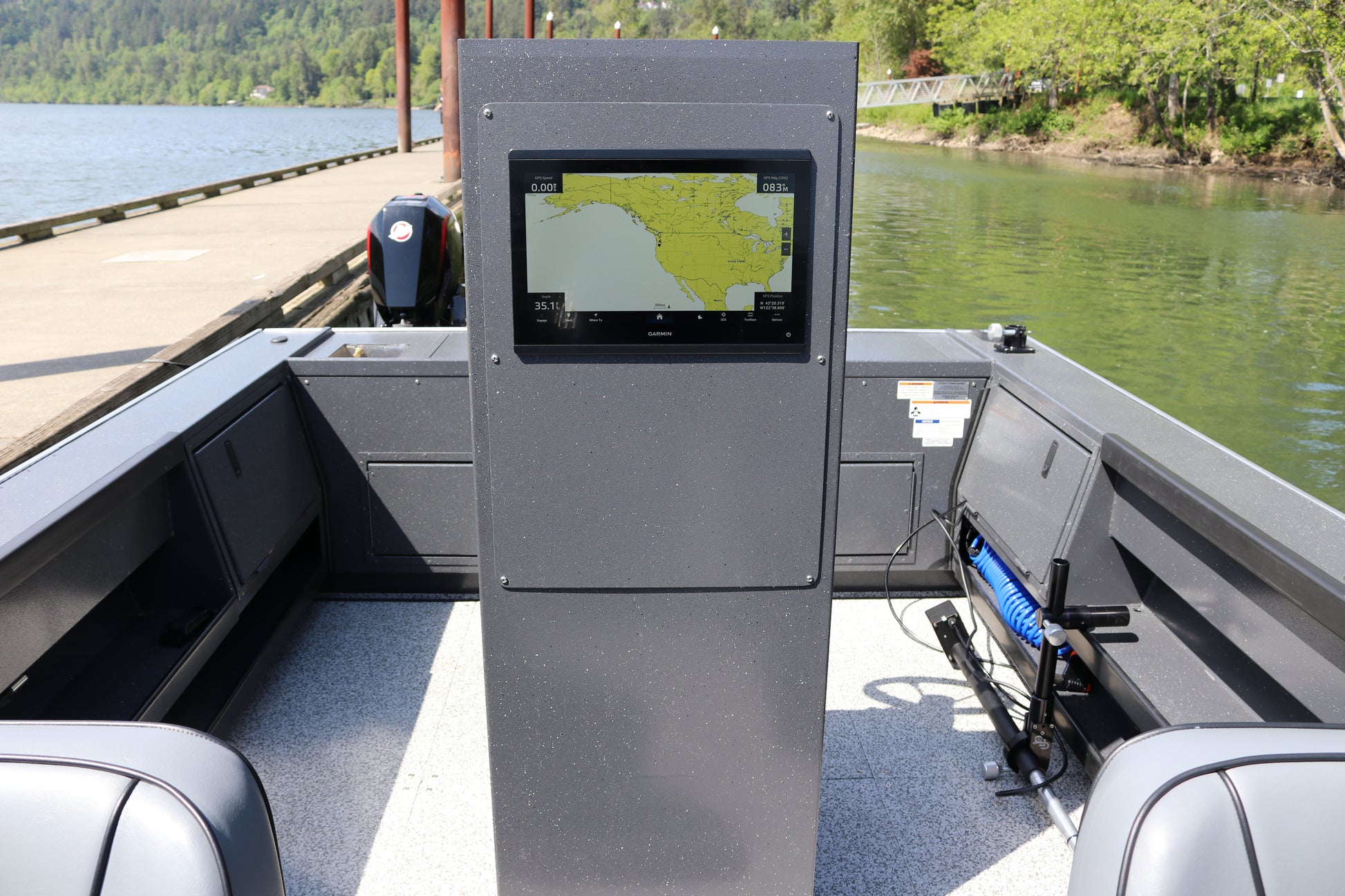

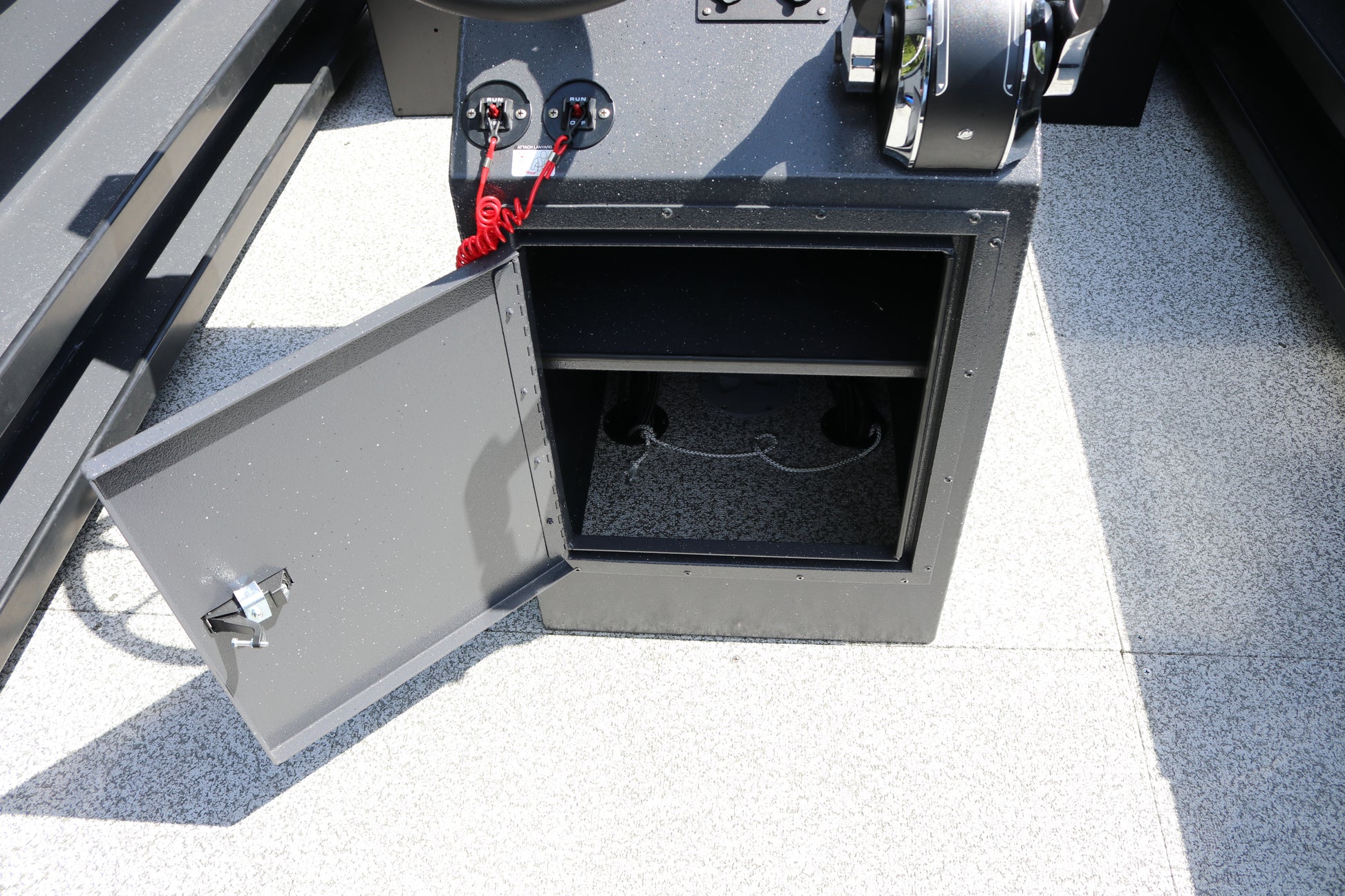

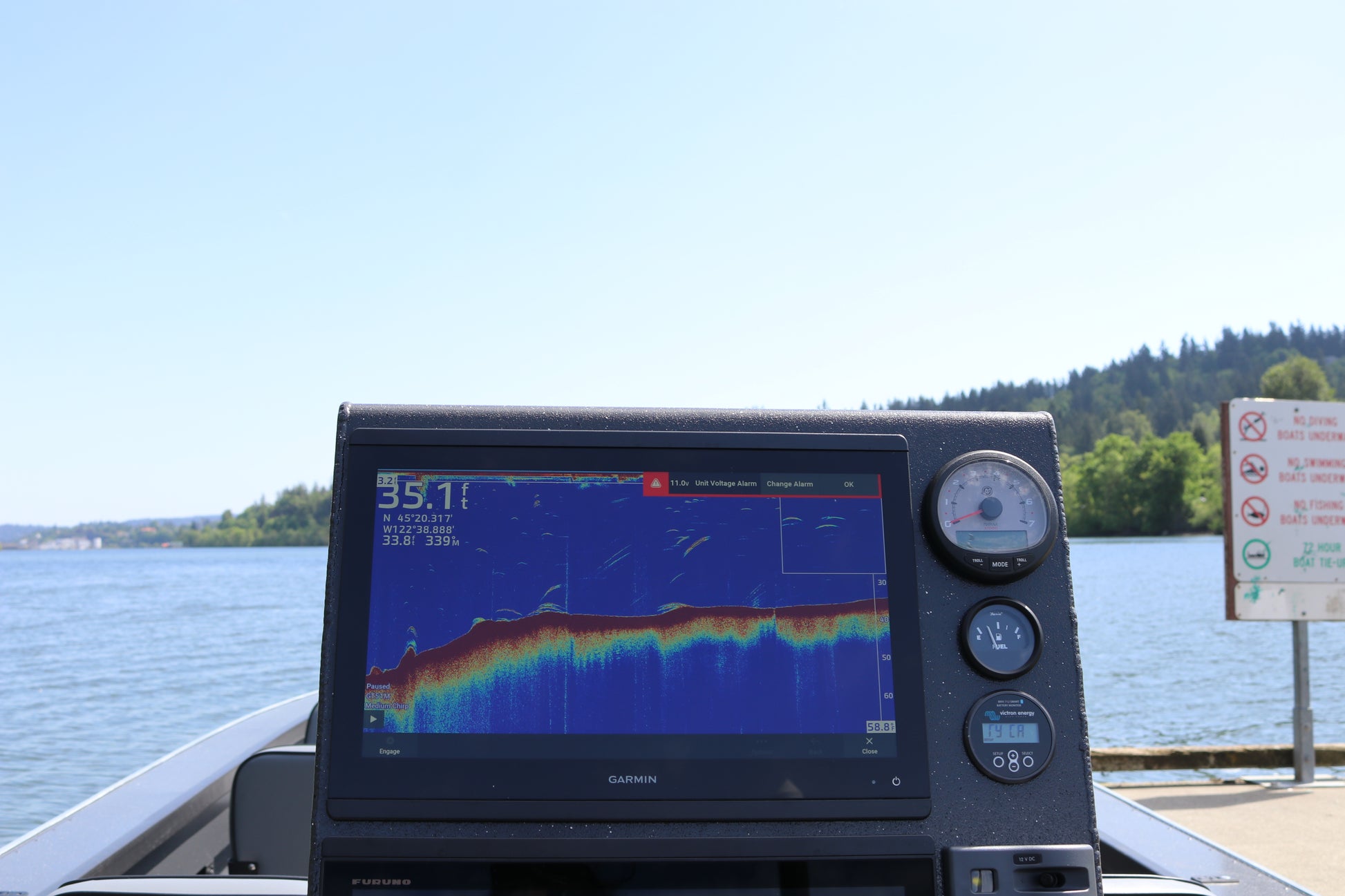

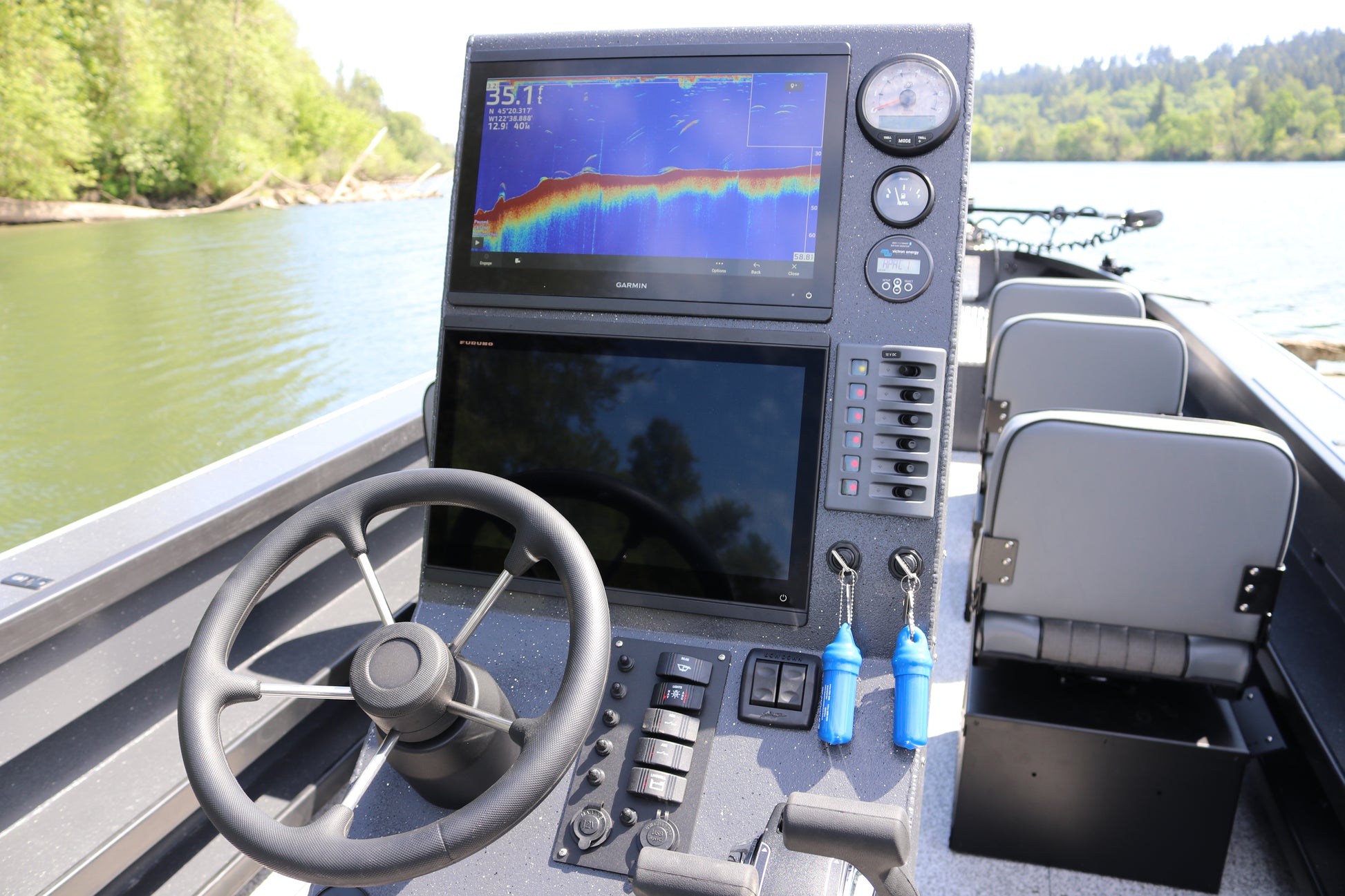

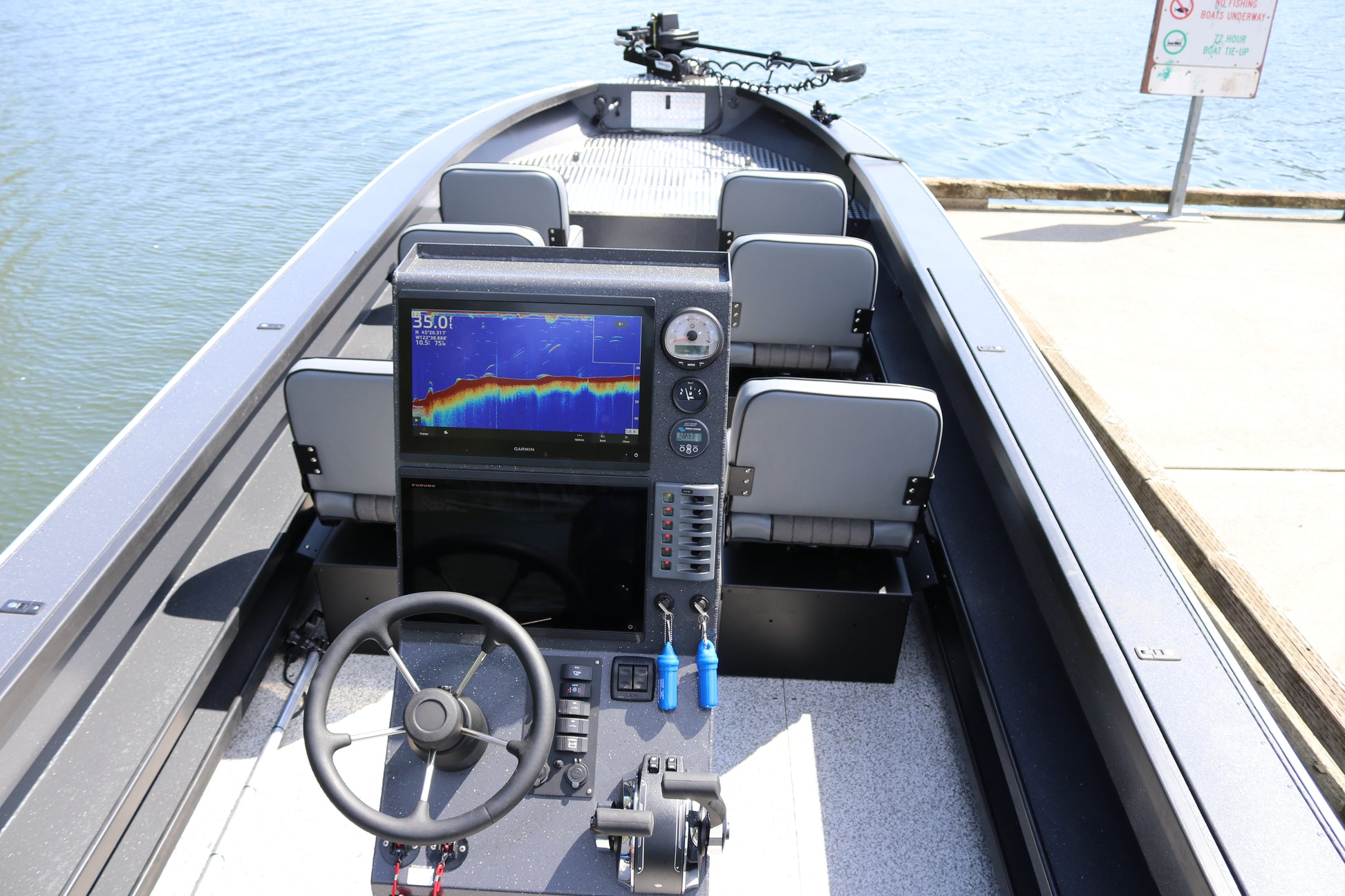

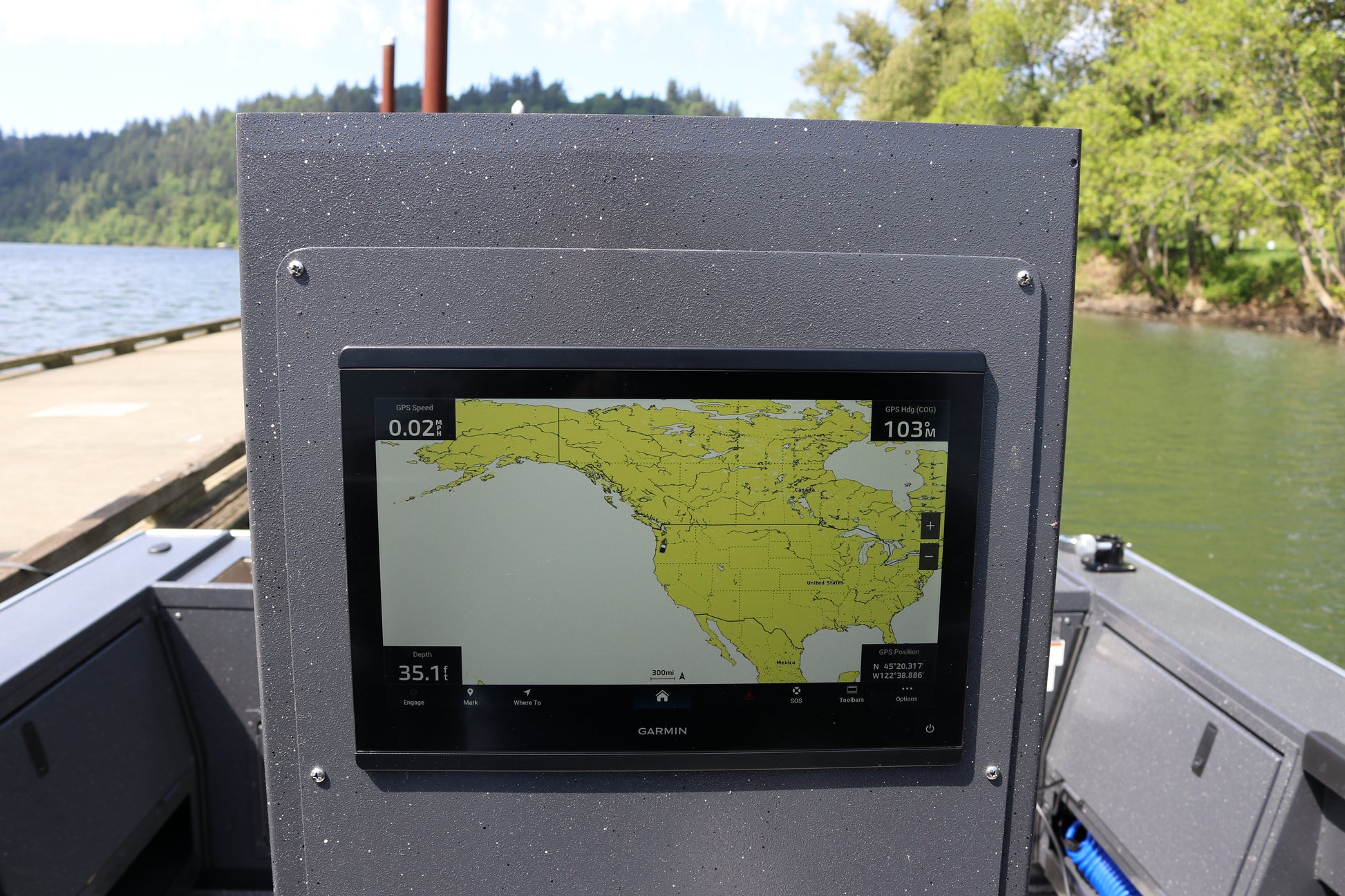

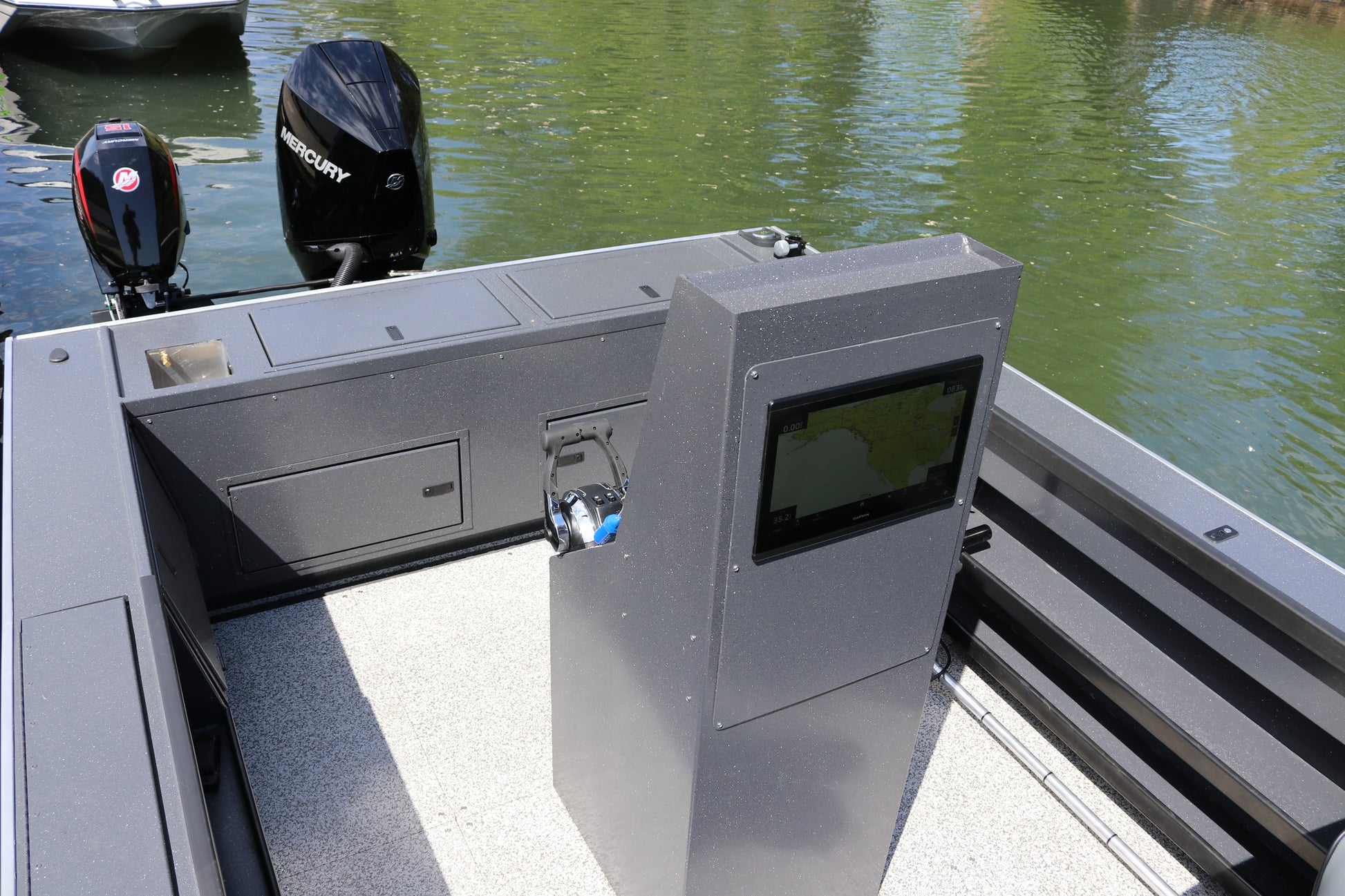

-50” stand up console with lockable storage

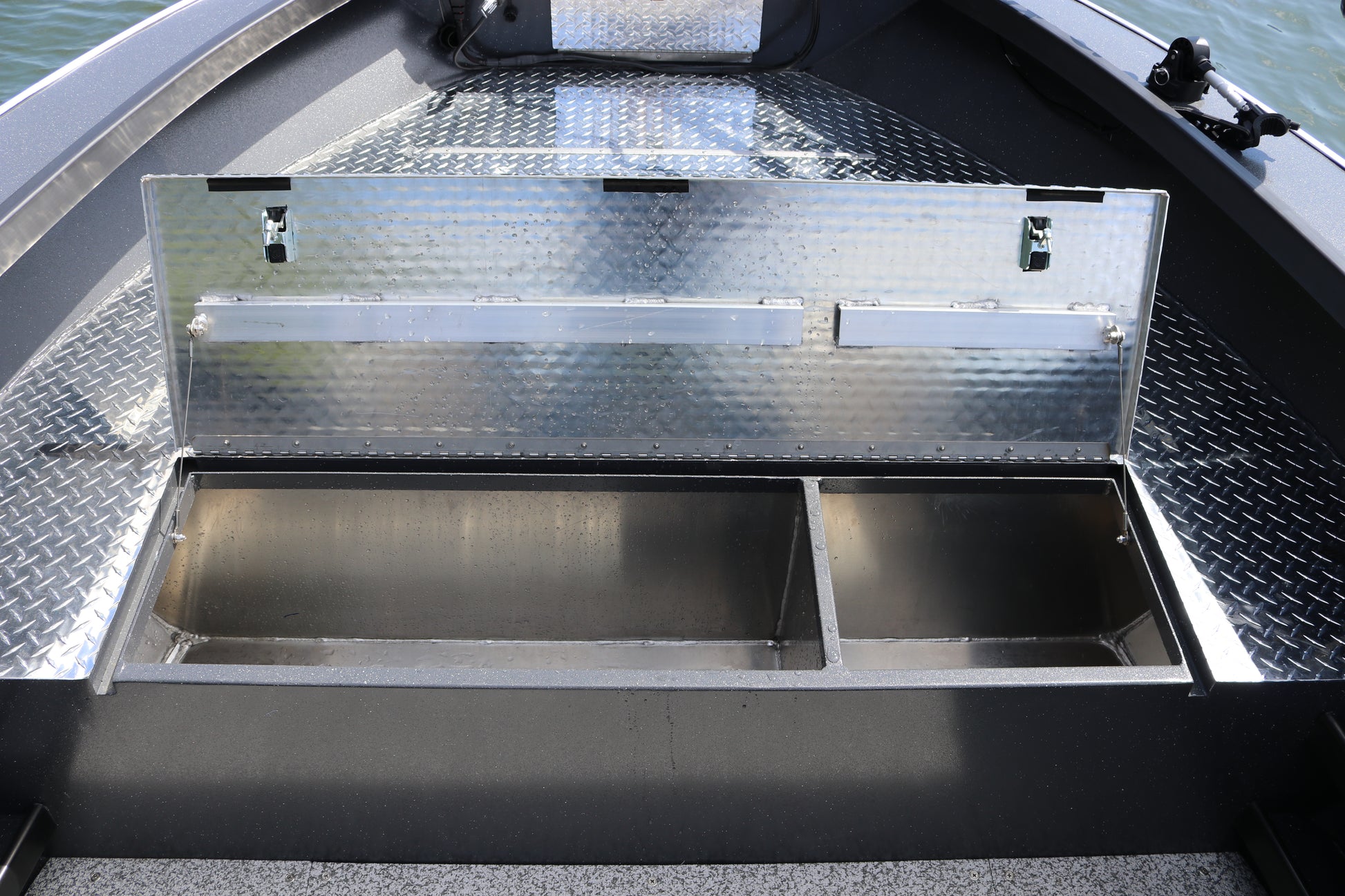

-Large step deck with storage compartment, oversized fish box and channeled lids

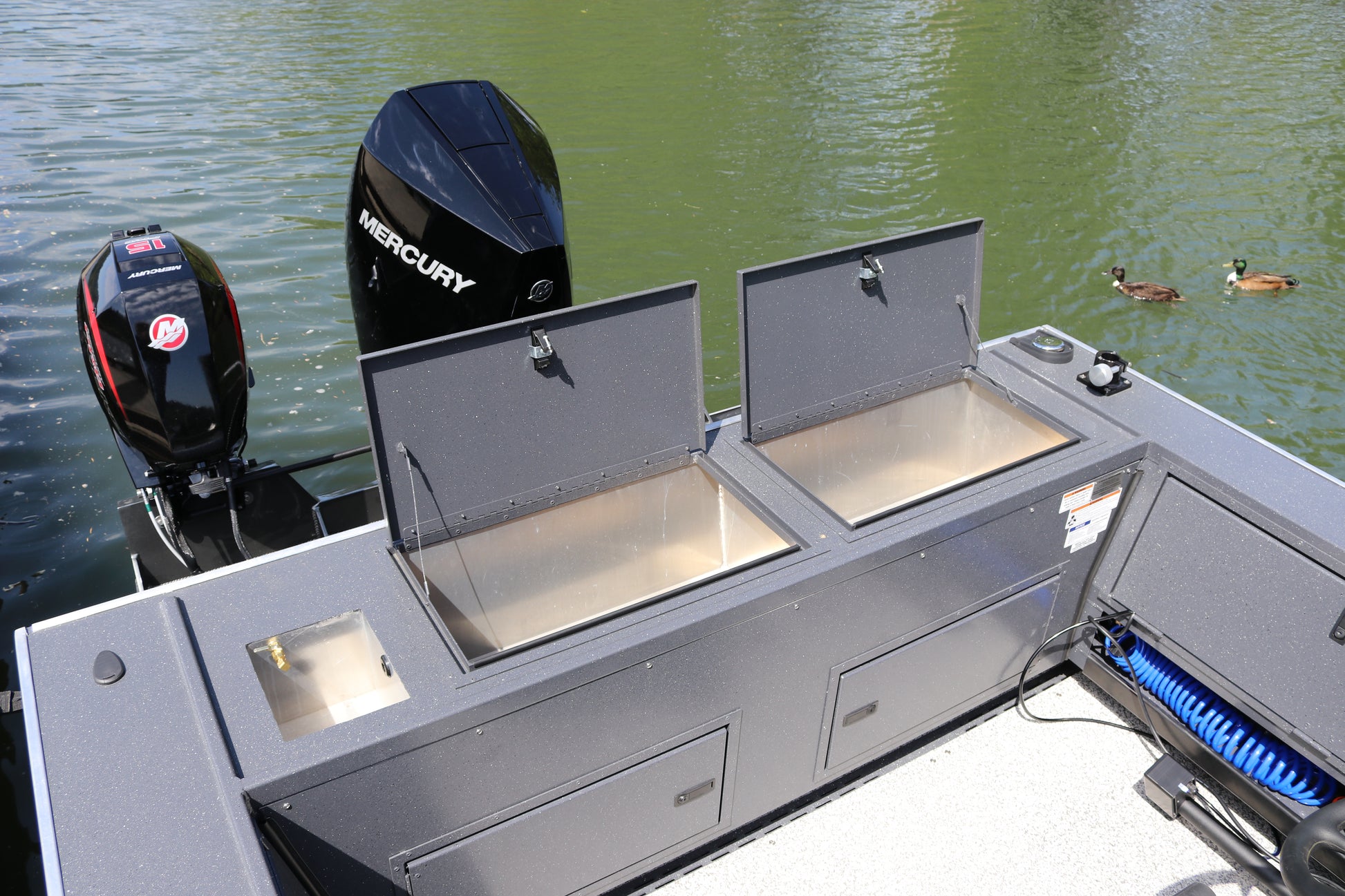

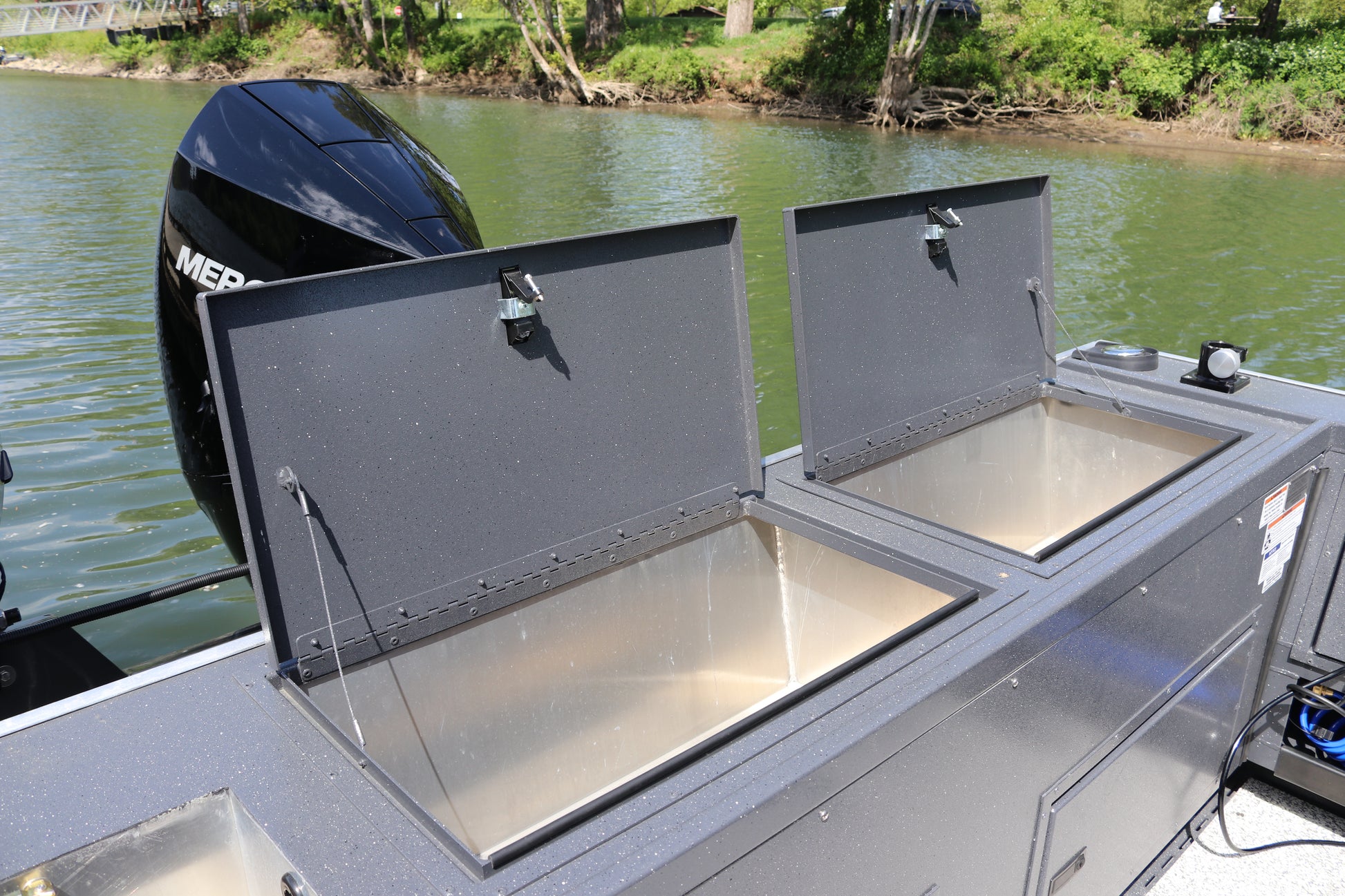

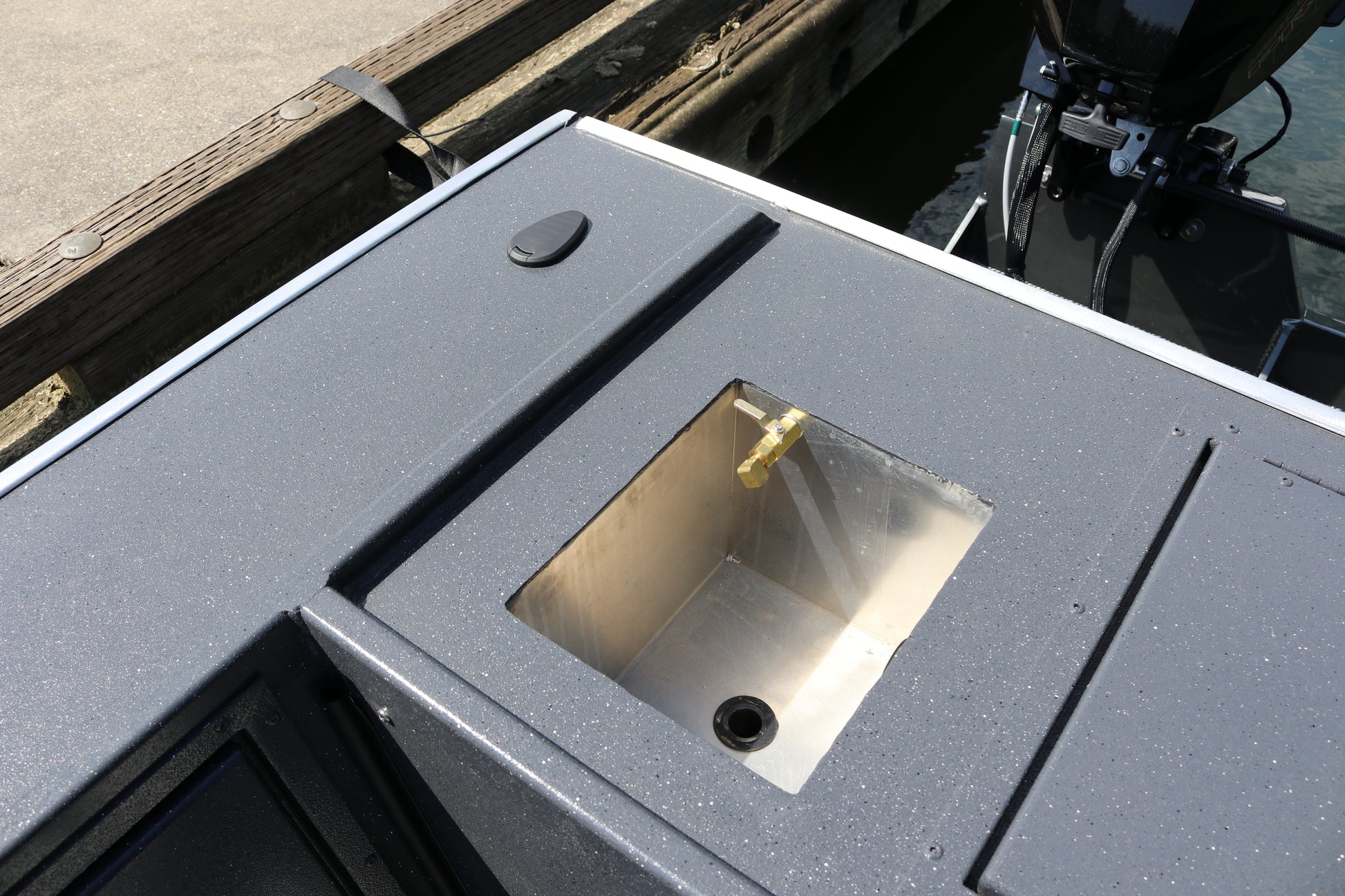

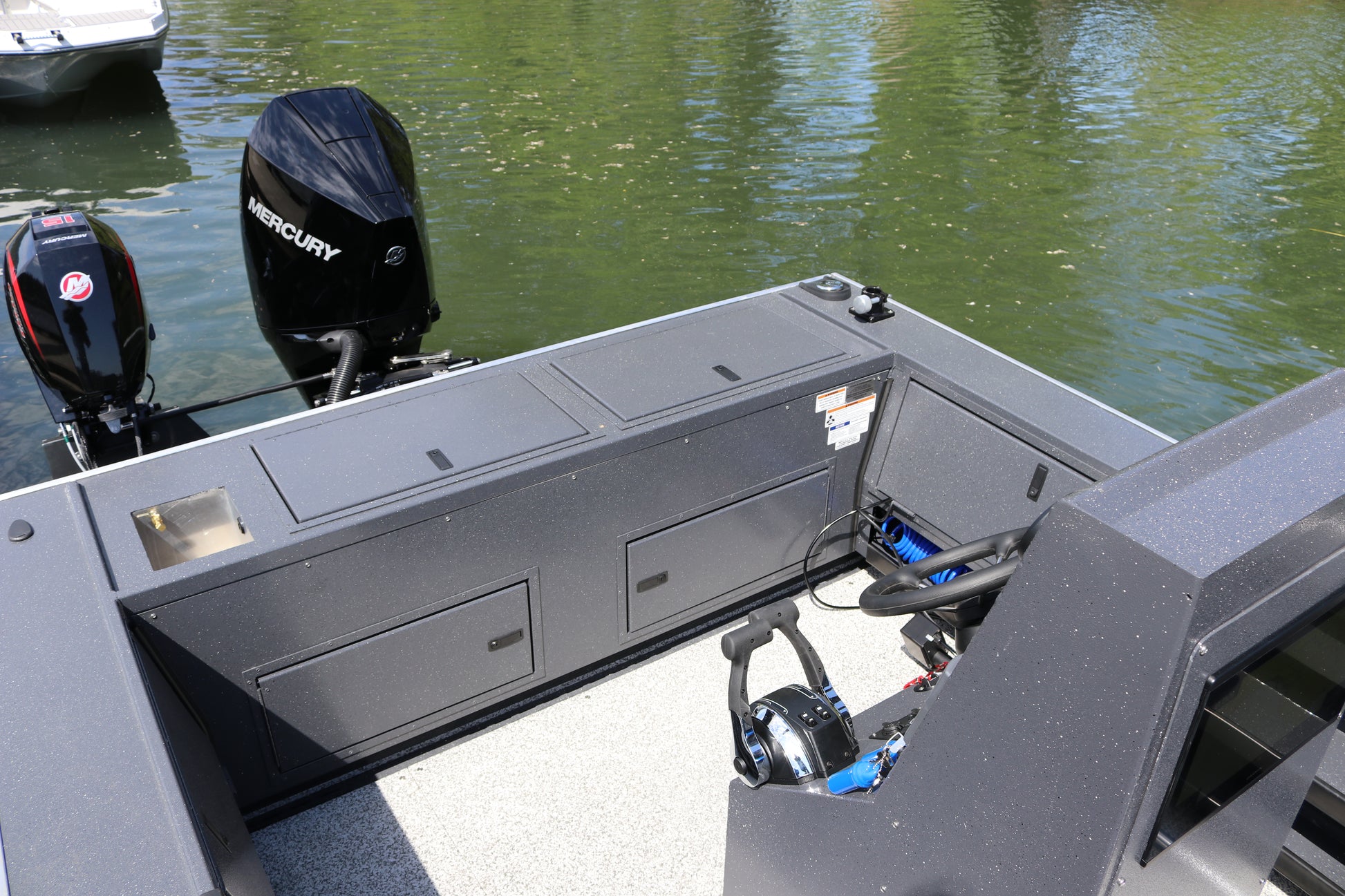

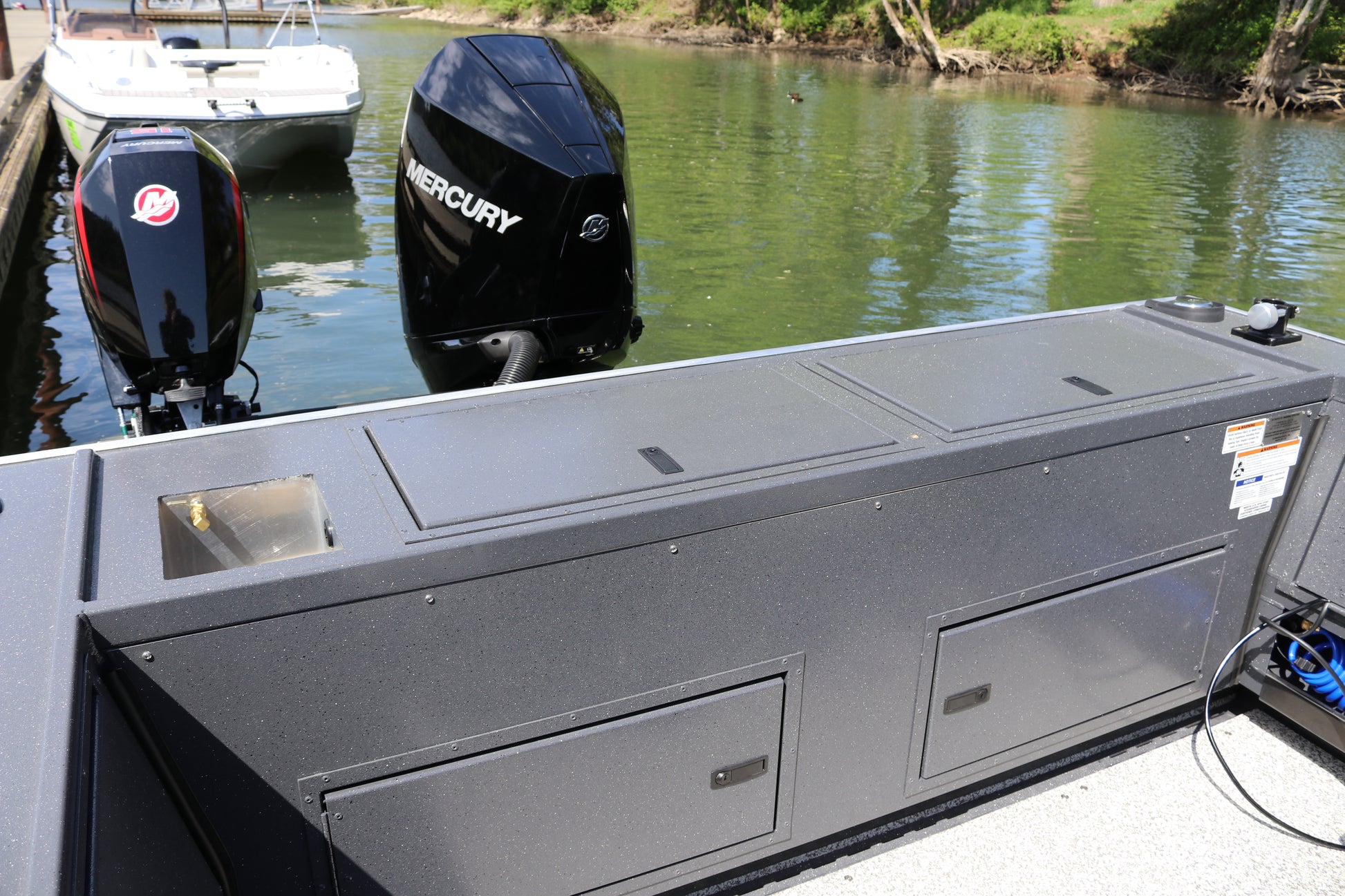

-Transom fish box and storage box with lids and hot box

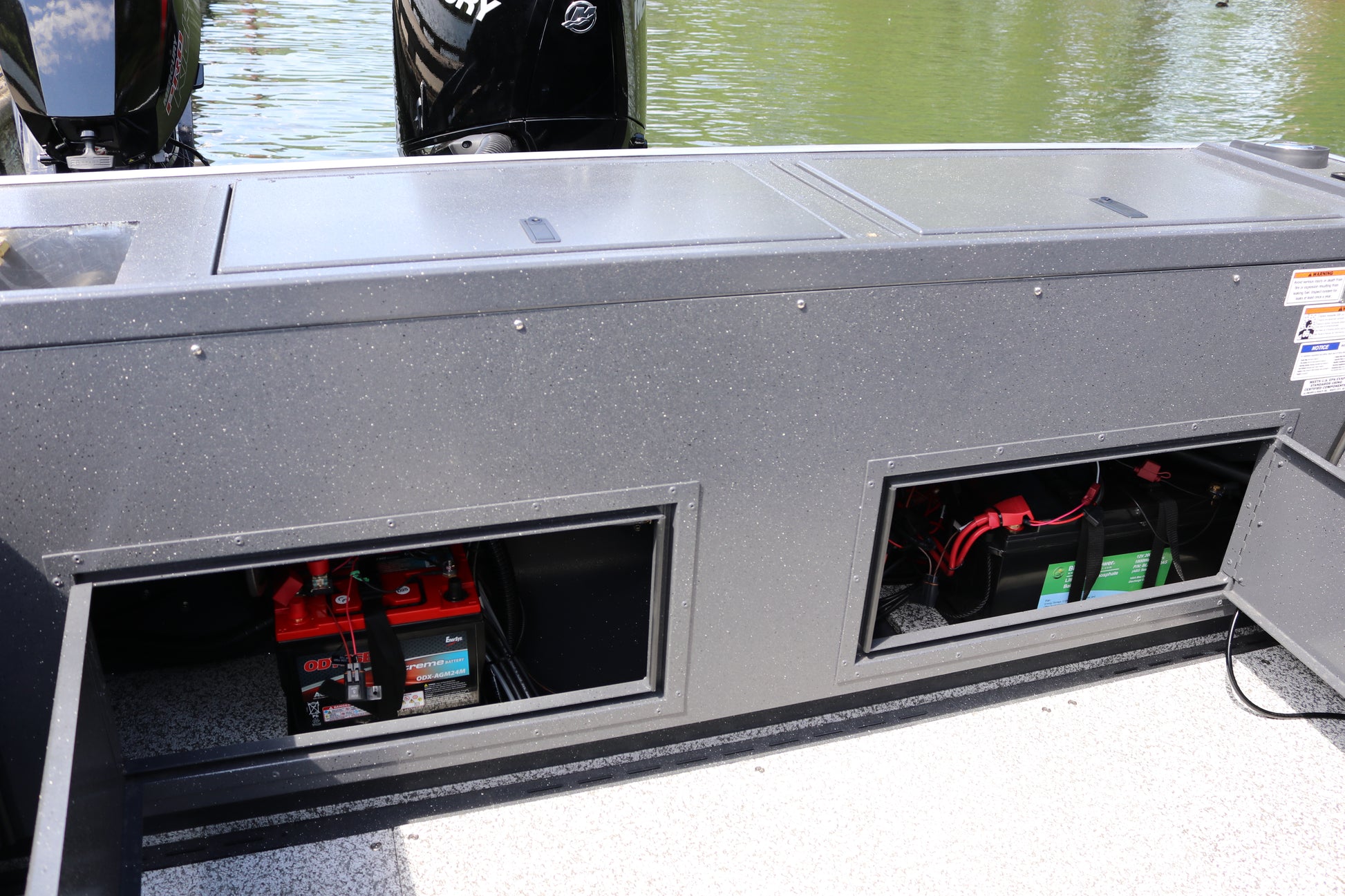

-Transom storage enclosure with two channeled aluminum doors and toe kick

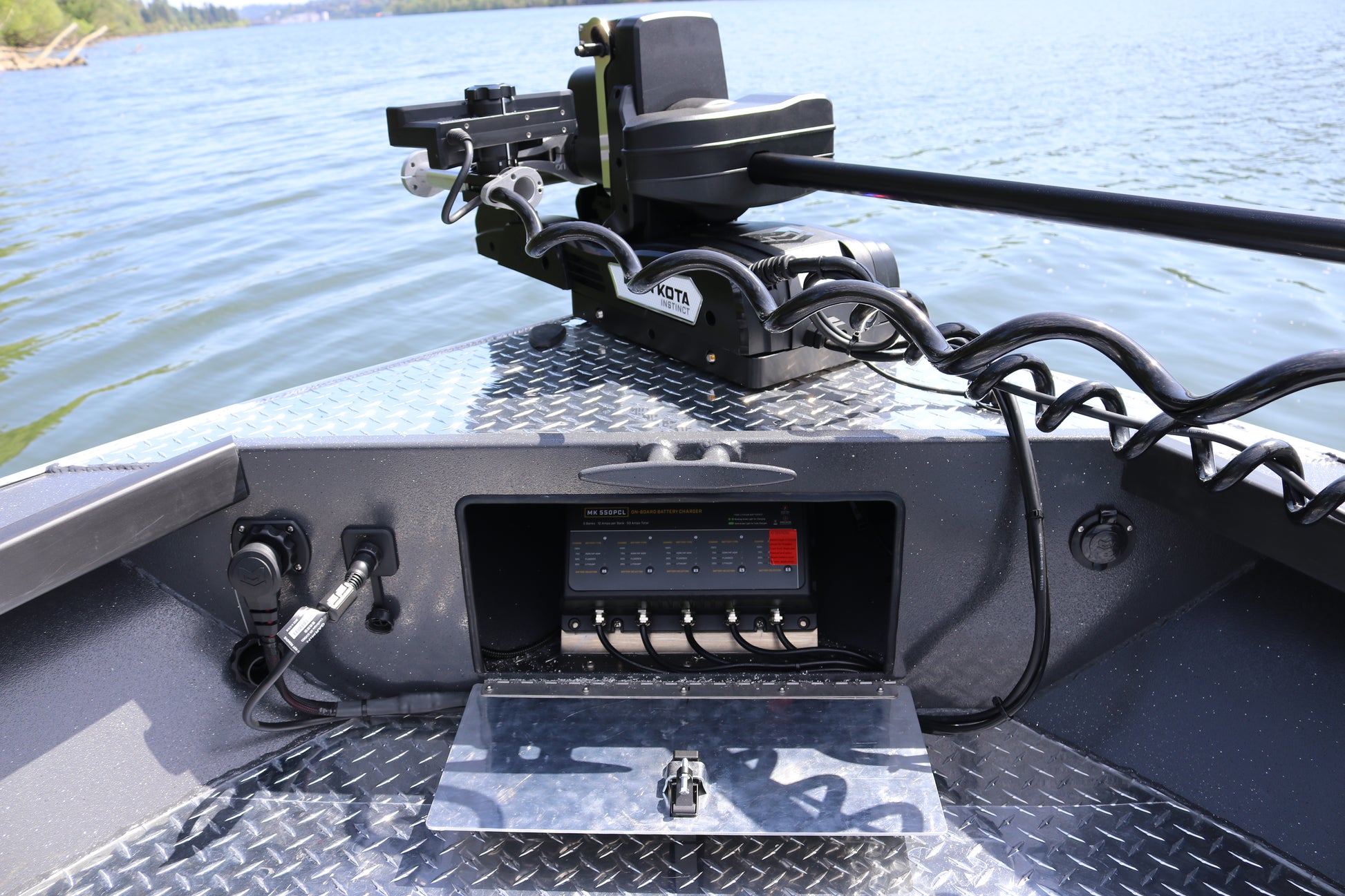

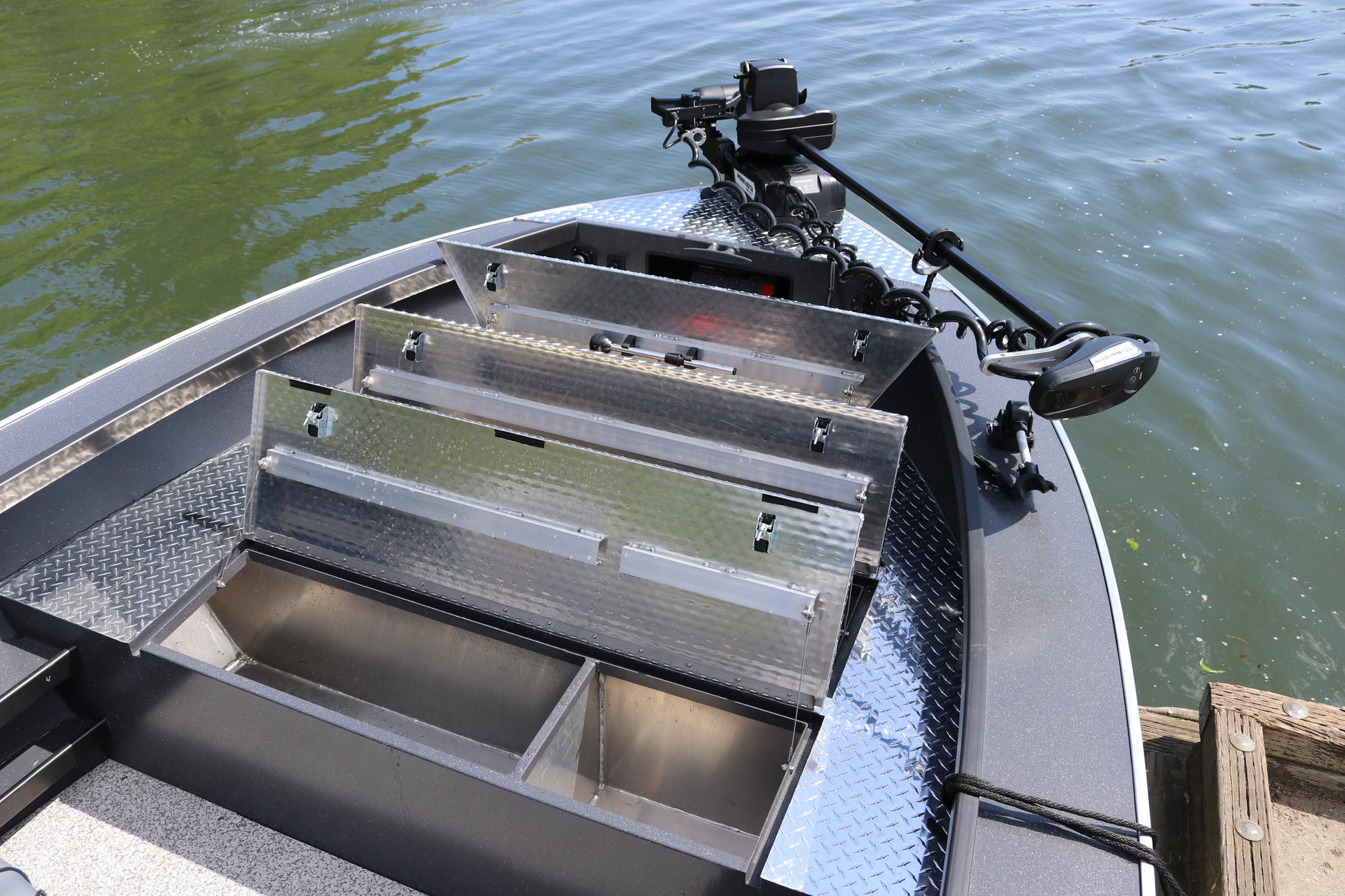

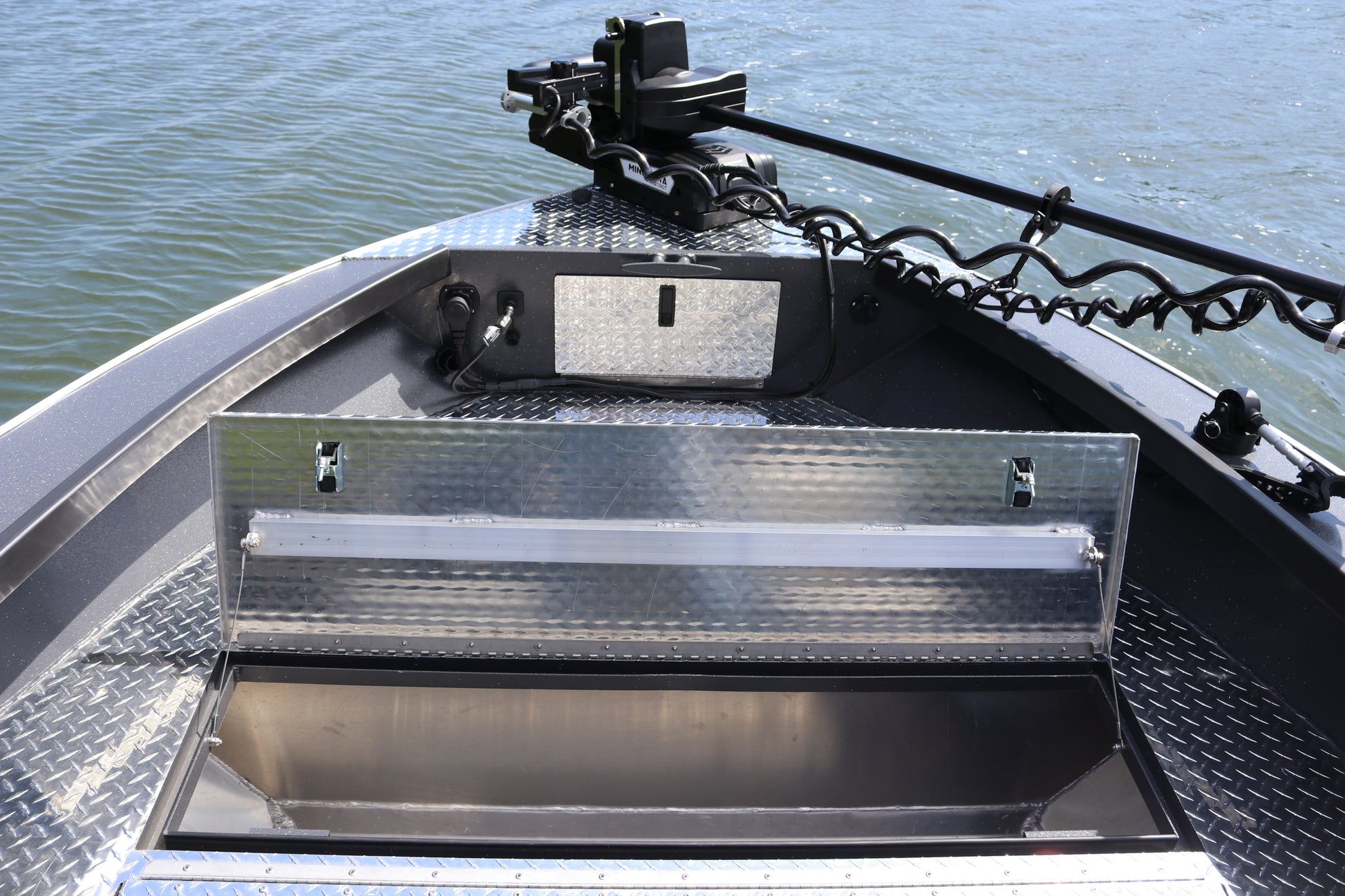

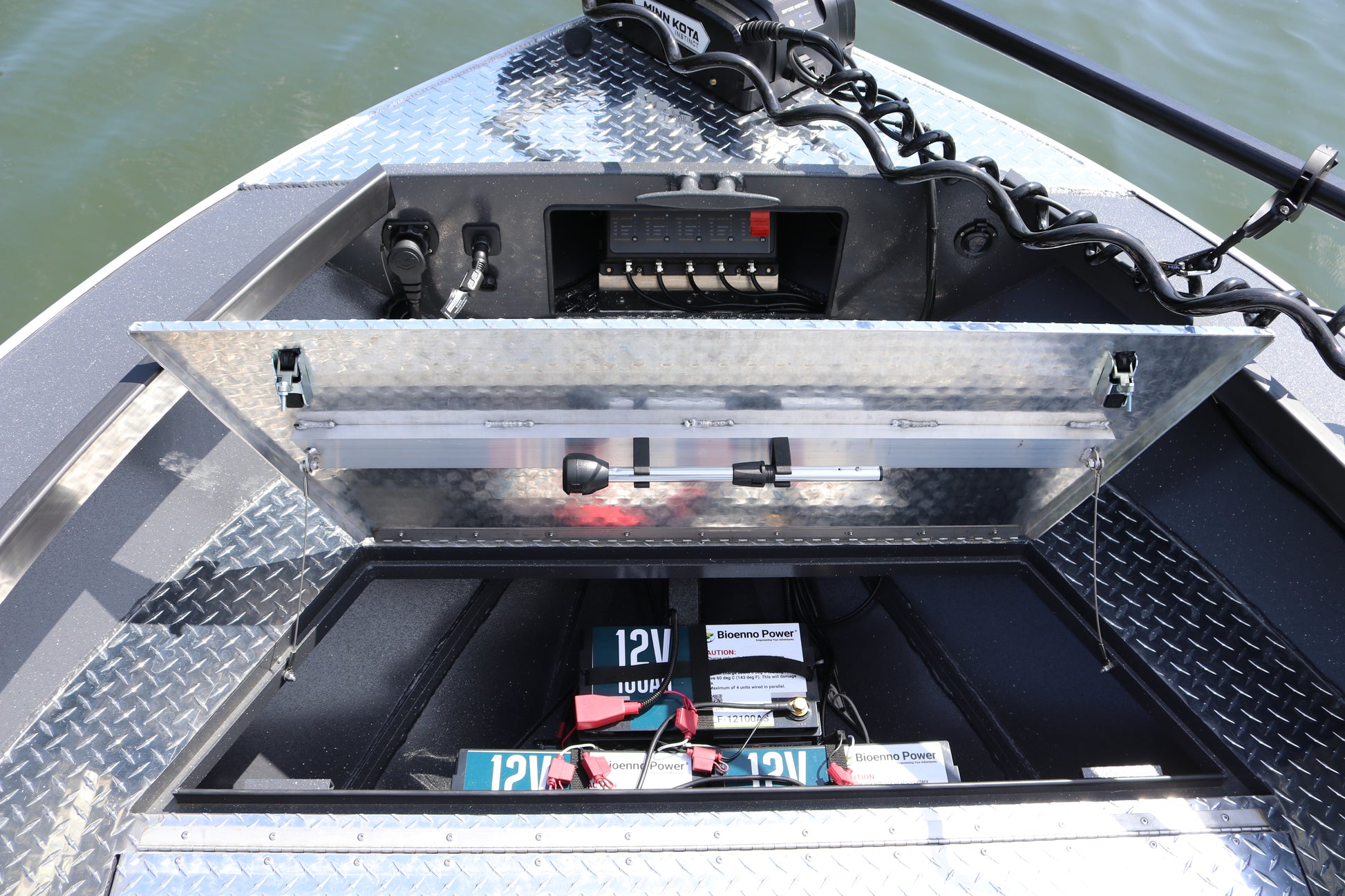

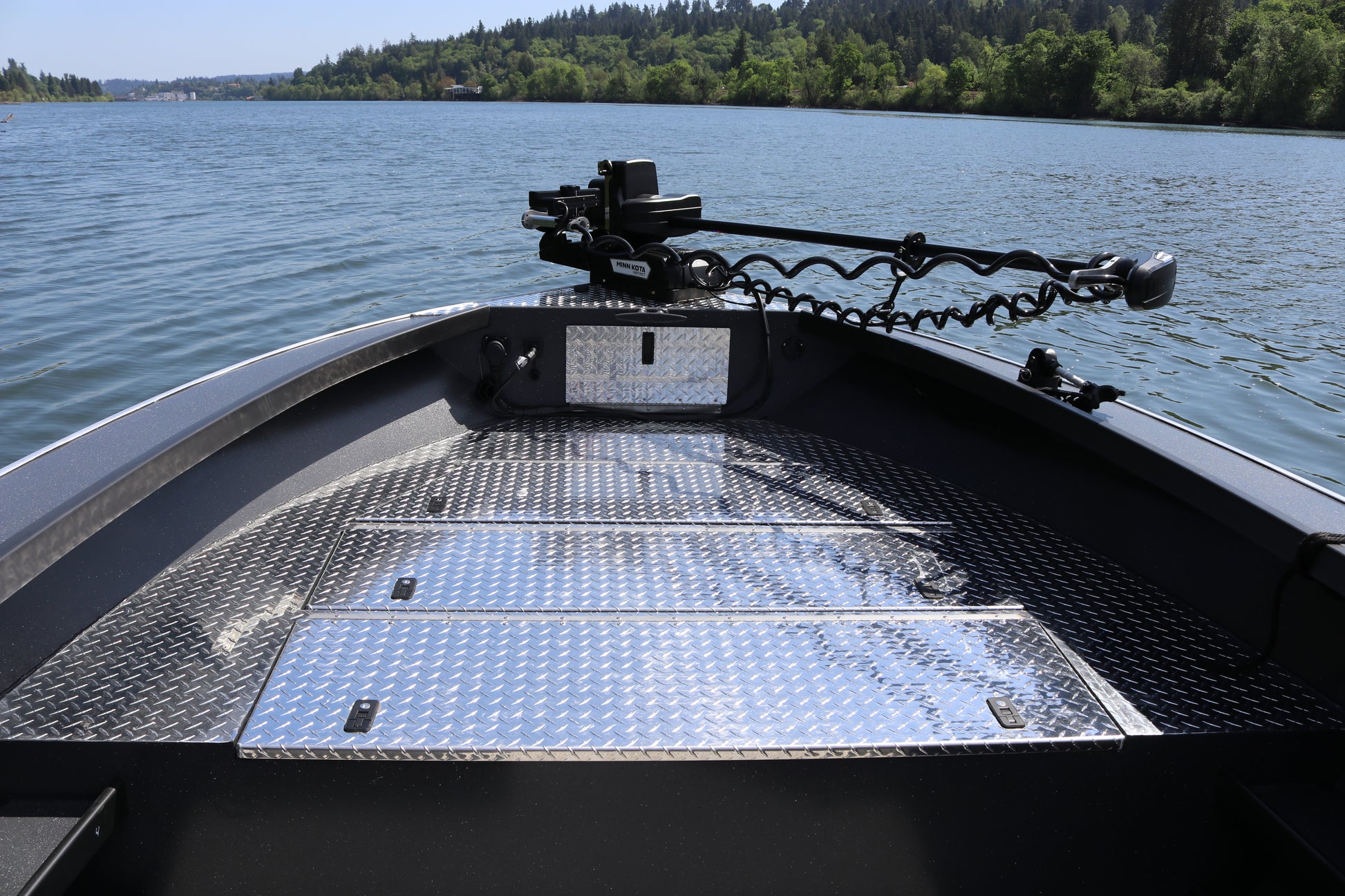

-Foredeck storage locker with locking door

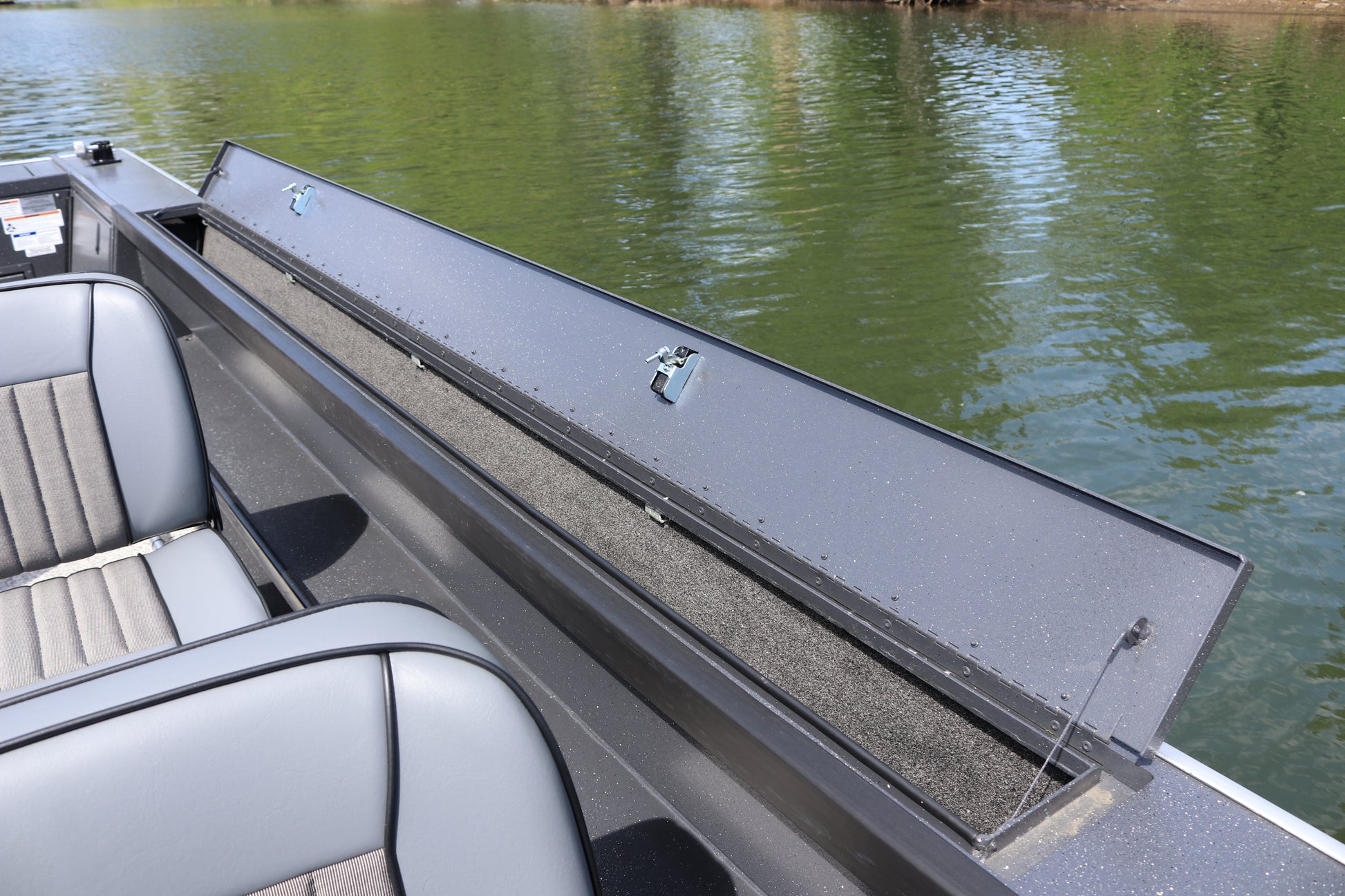

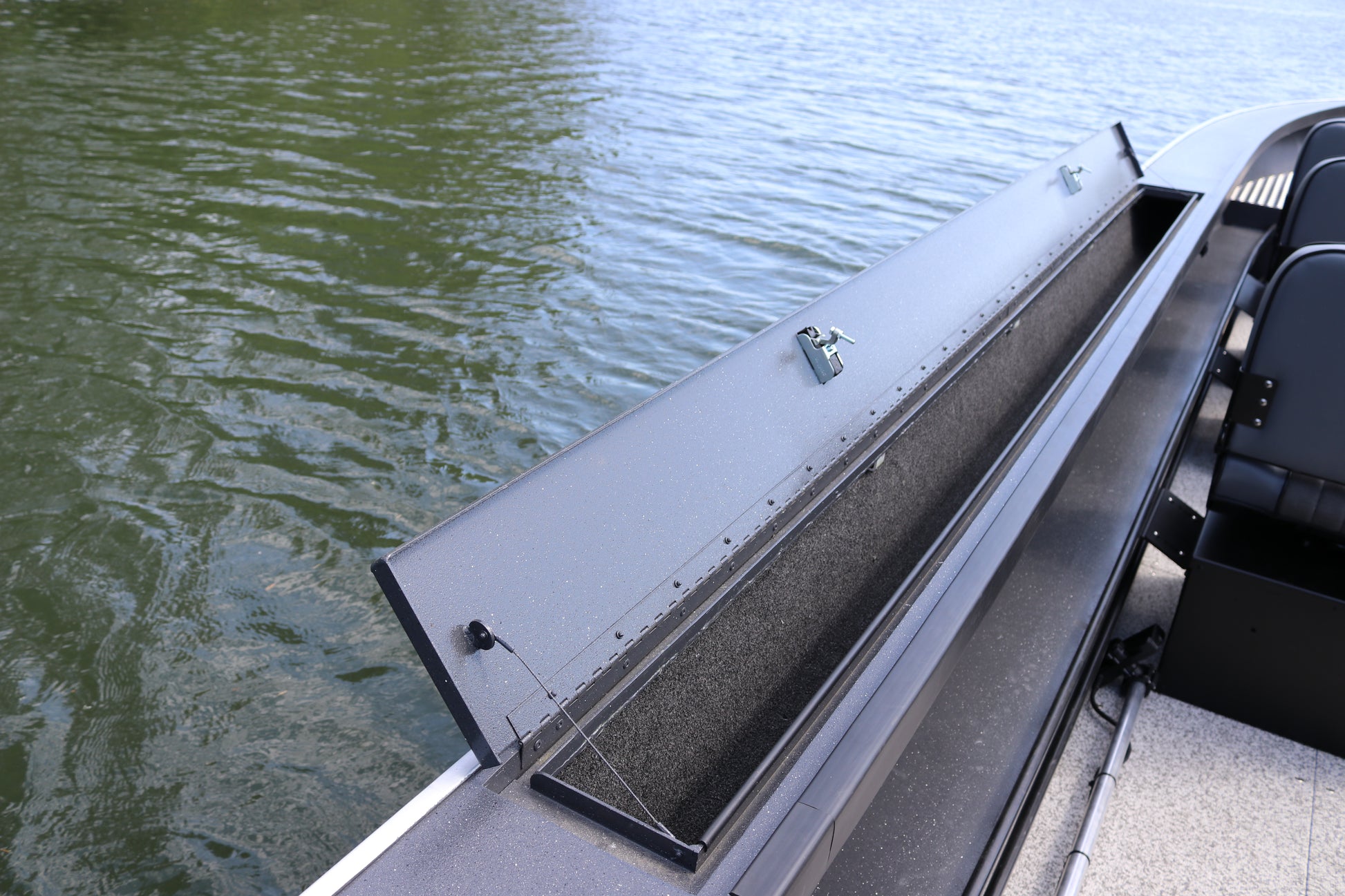

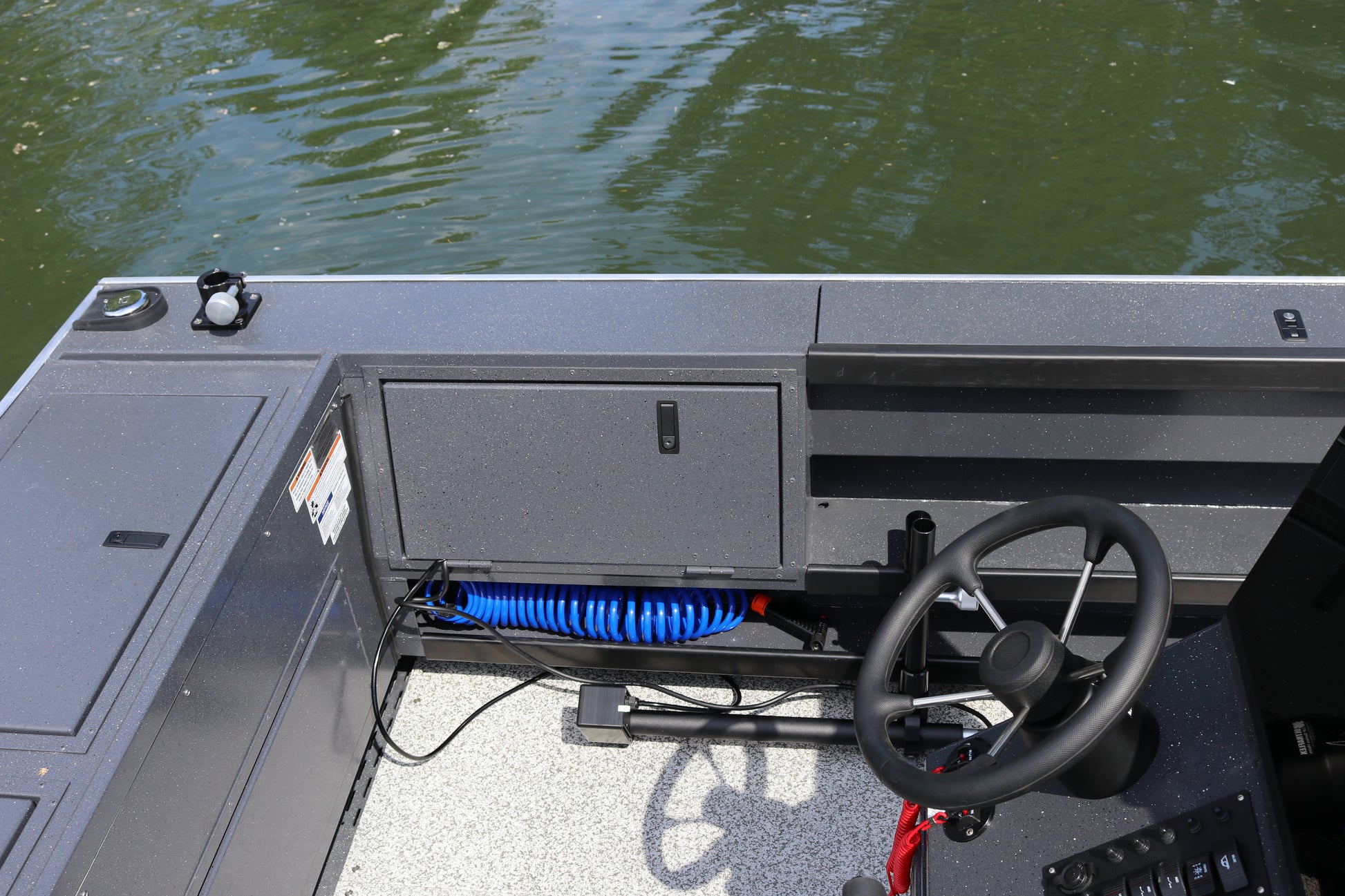

-Full coaming gunnel and full-length storage trays
-Deluxe switch panel with dual USB port and 12-volt outlet
-Aluma-coat interior
-Full outside paint (single color/single stage) with vinyl graphics
-Armor Tech premium floorboards with Dura Tuff non-skid vinyl covering
-Six lifting/turning stakes
-2000 GPH electric bilge pump with auto switch
-Built-in aluminum fuel tank with gauge
-Weld-on zinc anode

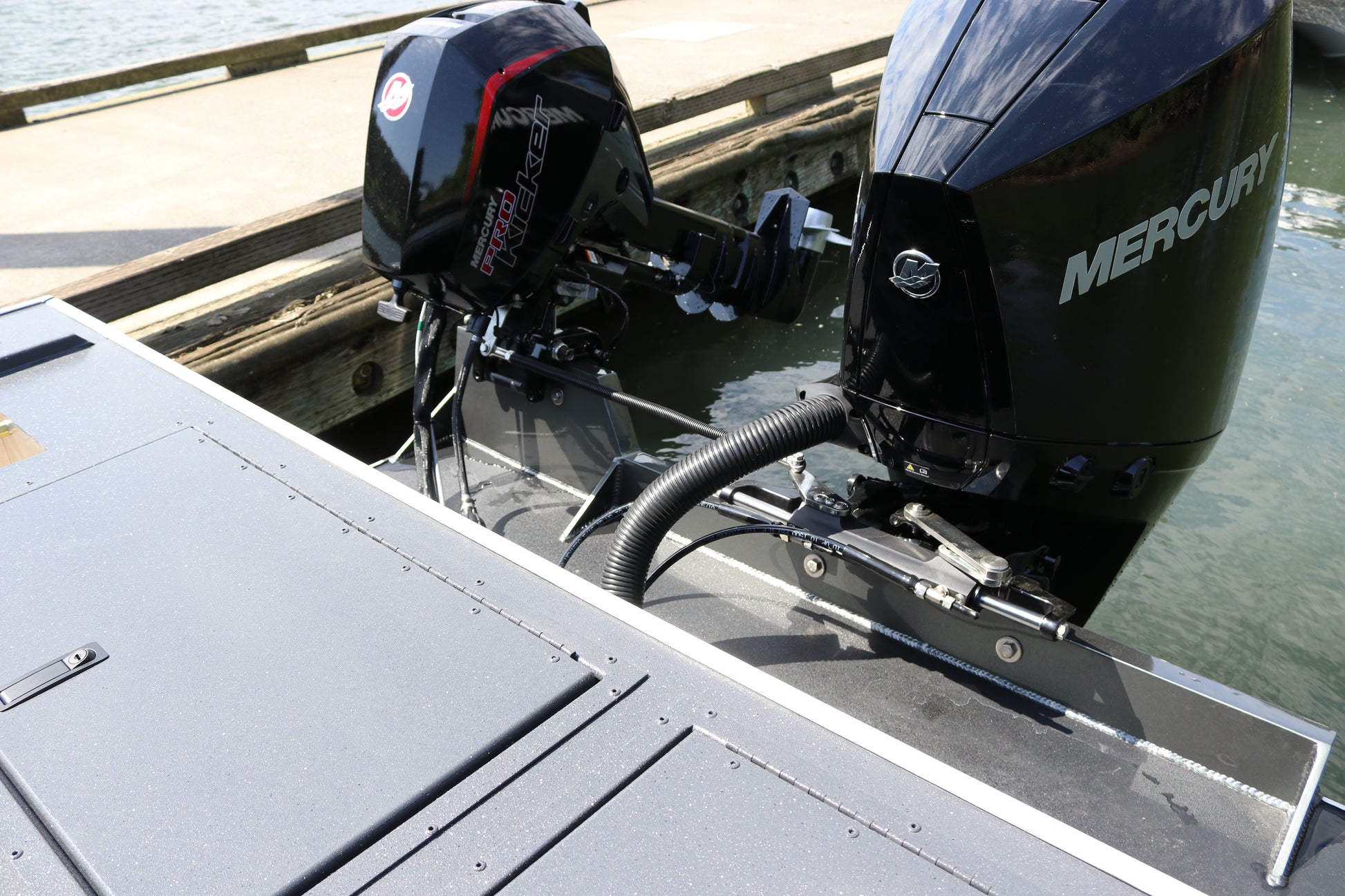

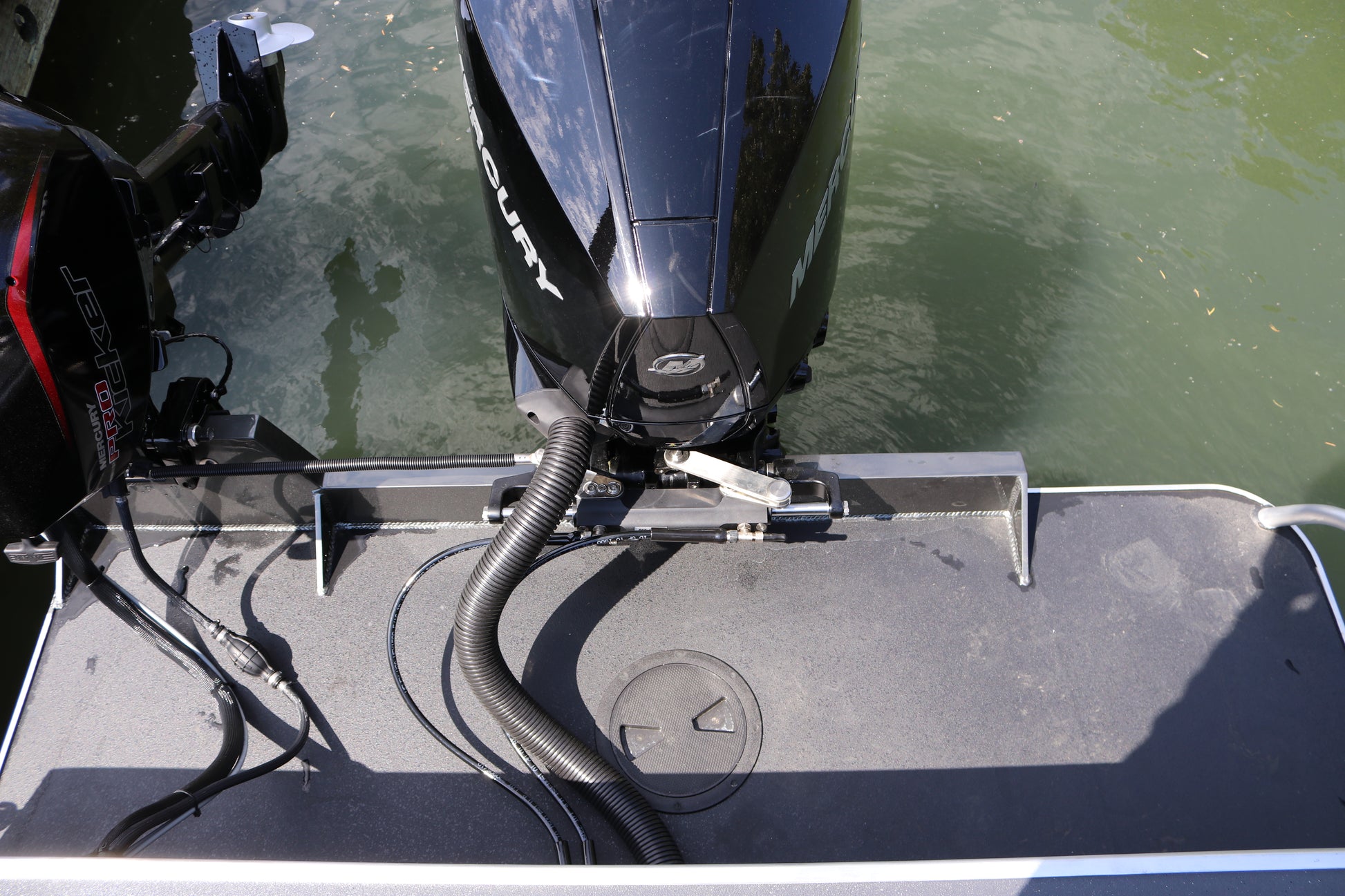

-Heavy duty Alumadrive outboard bracket

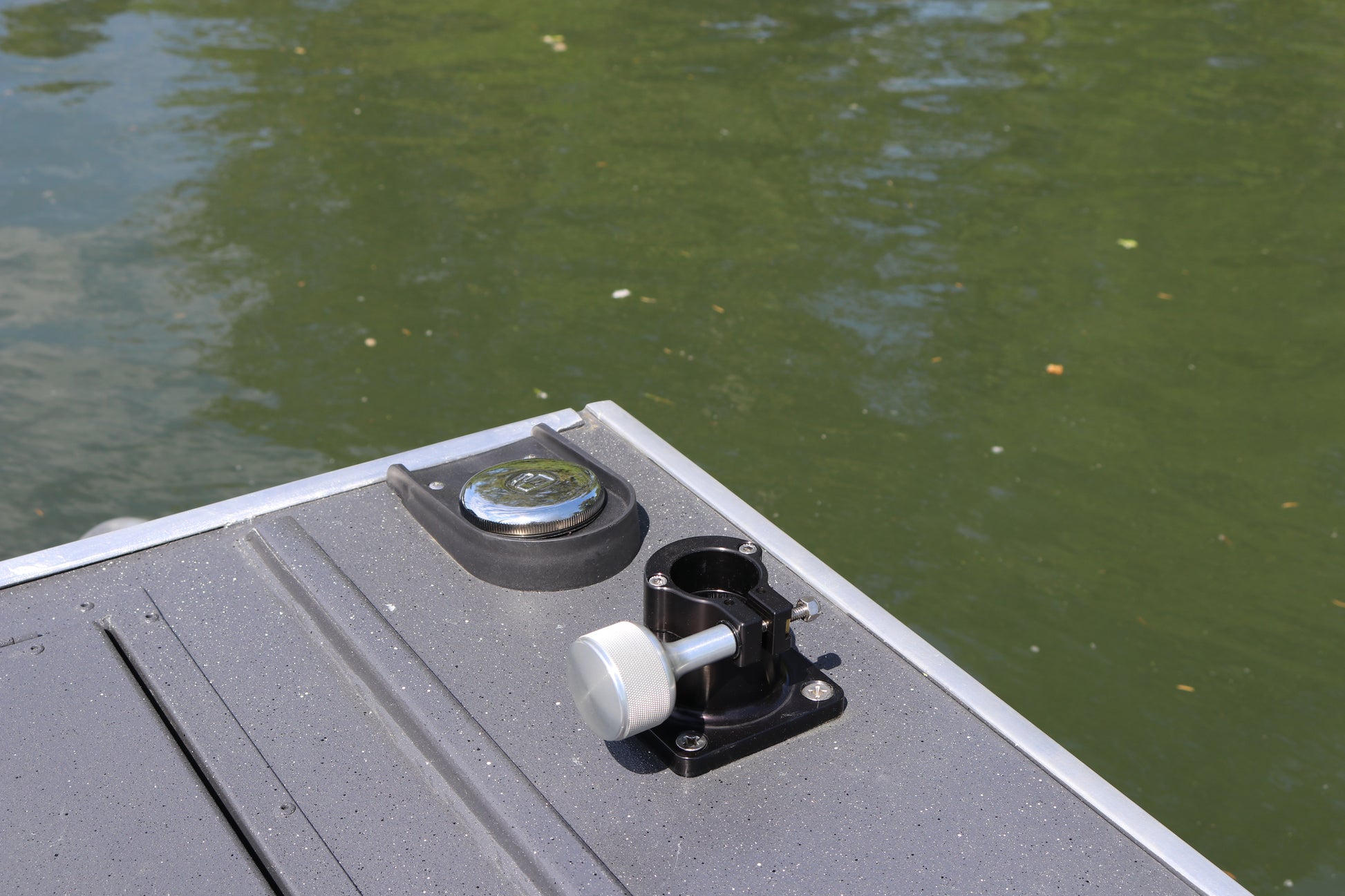

-Rod grippers
-Running/mooring lights
-Welded-on aluminum stern eyes and double bow eye
-Washdown pump
-Four weld-on cleats
-Exclusive lifetime warranty
Share

Alumaweld Boat Comparison
| Horizon 28 | Other Alumaweld Models | |||
|---|---|---|---|---|
| | ||||
| General General | ||||
| Length | Length 28' 3" | 25' 5" | 23" 9' (24' XL), 25' 9" (26' XL), 27' 9" (28' XL) | 28' 5" |
| Beam | Beam 101" | 101" | 109" | 101" |
| Beam at Chine | Beam at Chine 82" | 82" | 90" | 82" |
| Inside Freeboard | Inside Freeboard 29" | 29" | 31" | 31" |
| Side Height | Side Height 33" | 33" | 34" | 36" |
| Transom Height | Transom Height 25"/30" | 31" | 31" | 25"/30" |
| Deadrise | Deadrise 18 Deg | 14 Deg | 14 Deg | 18 Deg |
| Bottom Thickness | Bottom Thickness 0.250 | 0.190 | 0.250 | 0.250 |
| Side Thickness | Side Thickness 0.160 | 0.125 | 0.160 | 0.160 |
| Persons/Capacity | Persons/Capacity 9/1,350 lbs | 9/1,350 lbs | 7/1,050 to 9/1,350 | 9/1,350 lbs |
| Approx. Weight | Approx. Weight 2,970 lbs | 2,050 lbs | 1,925 to 2,050 | 2,800 lbs |
| Weight Capacity | Weight Capacity 2,400 lbs | 2,120 lbs | 1,850 to 2,120 | 2,400 lbs |
| Fuel Capacity | Fuel Capacity 120 Gal | 60 Gal | 60 Gal | 120 Gal |
| Max HP Prop/Jet | Max HP Prop/Jet 500 HP | 250/175 HP | 300/175 HP | 500 HP |
| Product type | Product type Boat | Boat | Boat | Boat |
