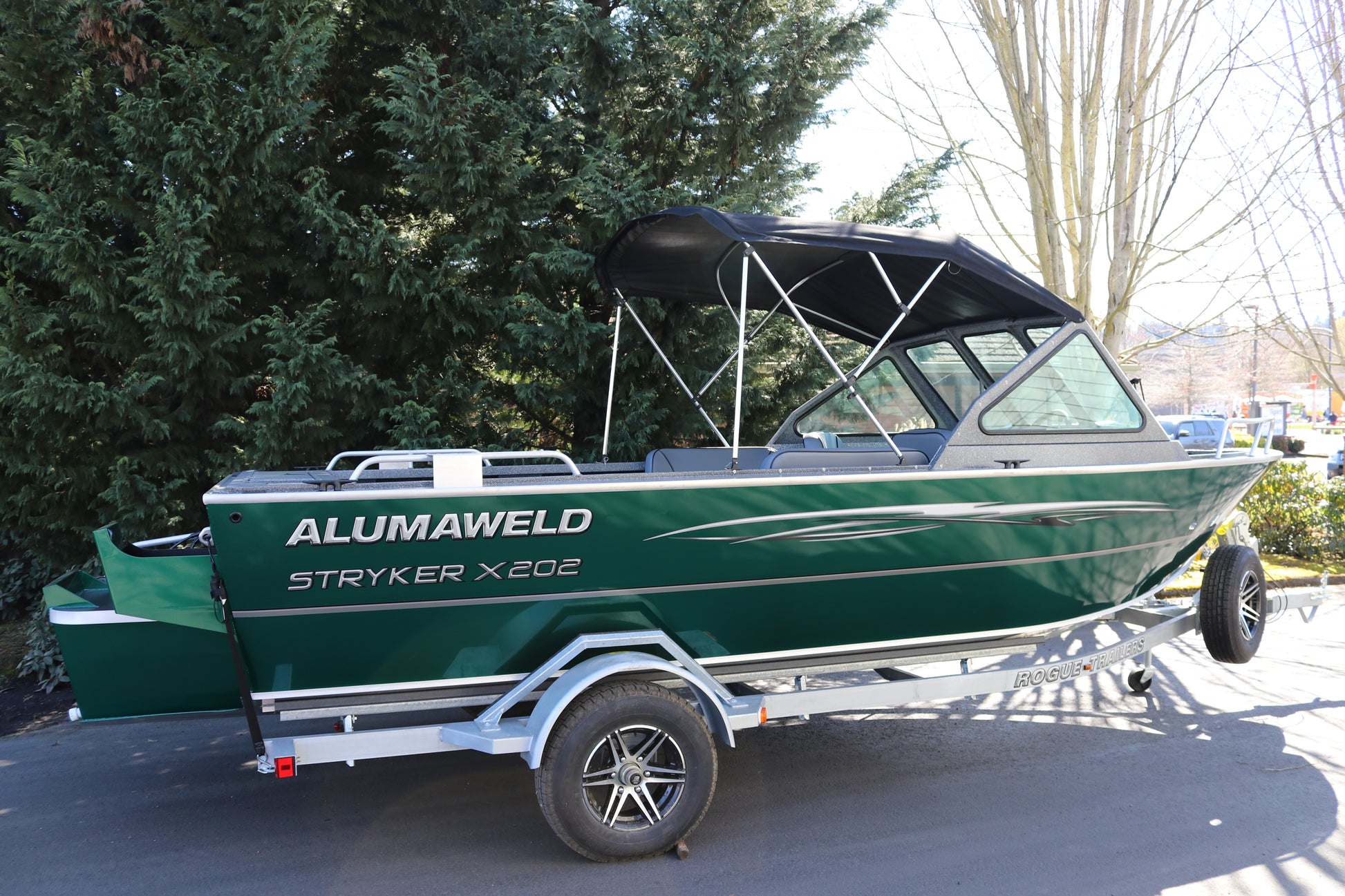

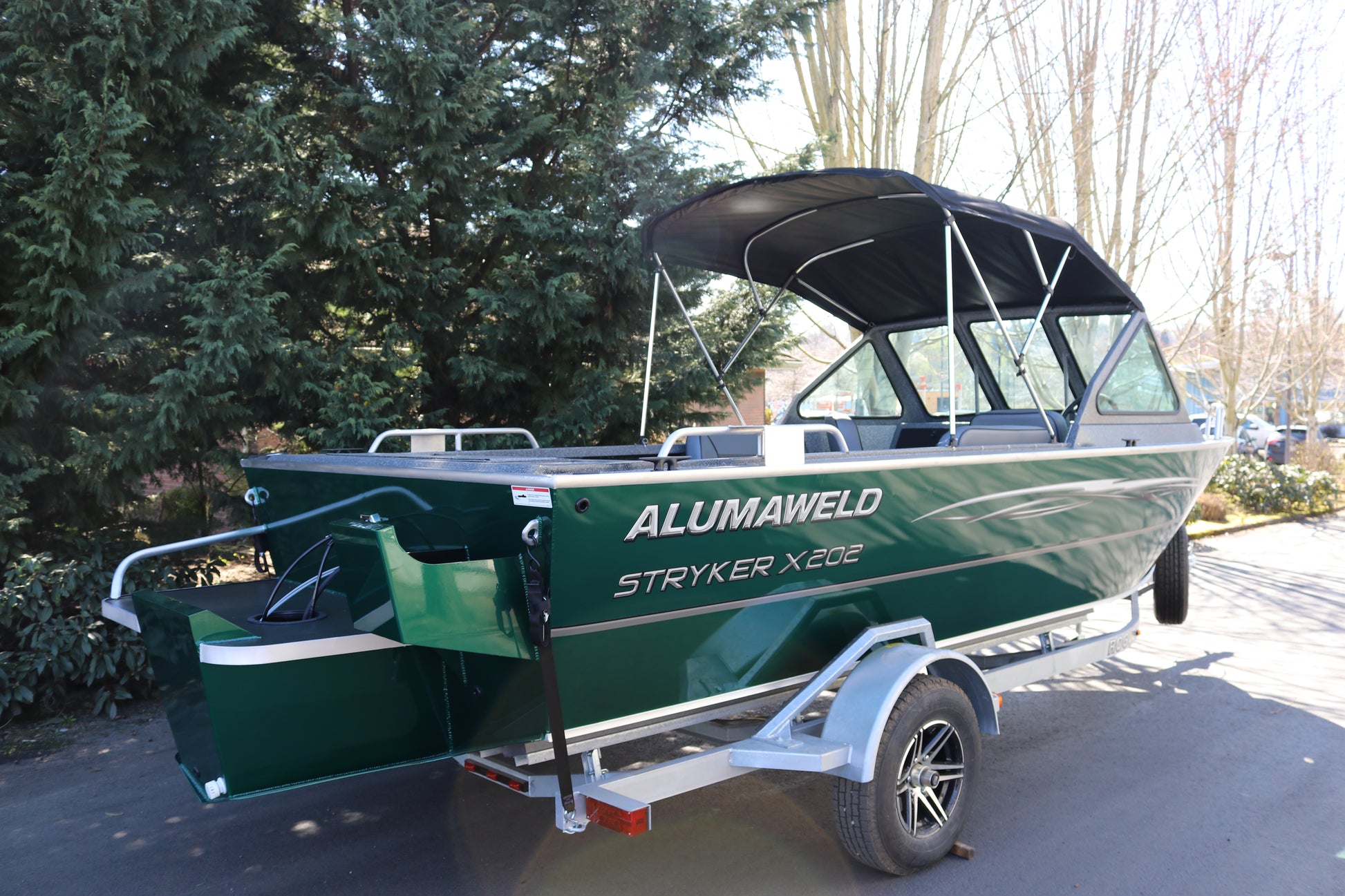

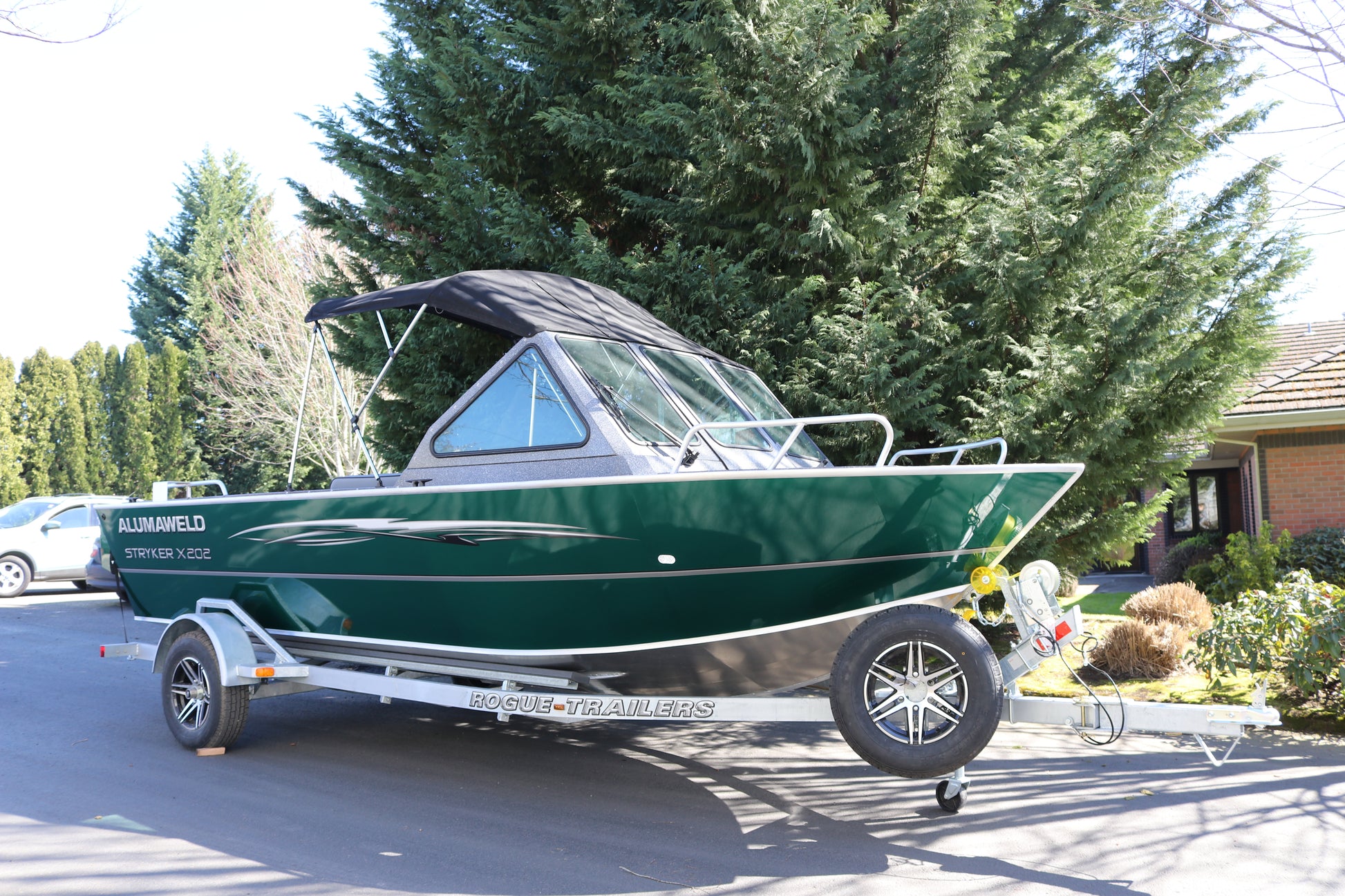

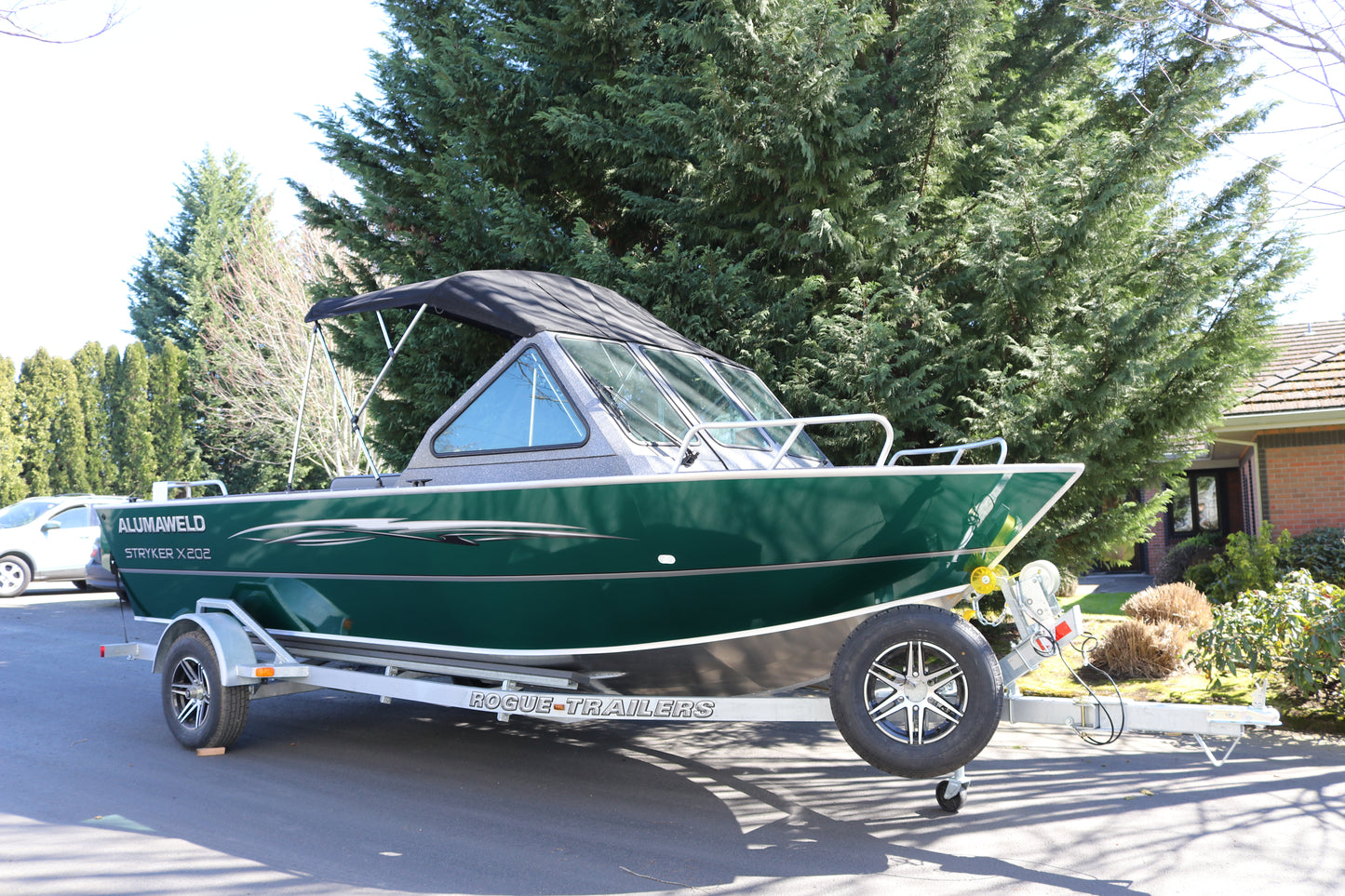

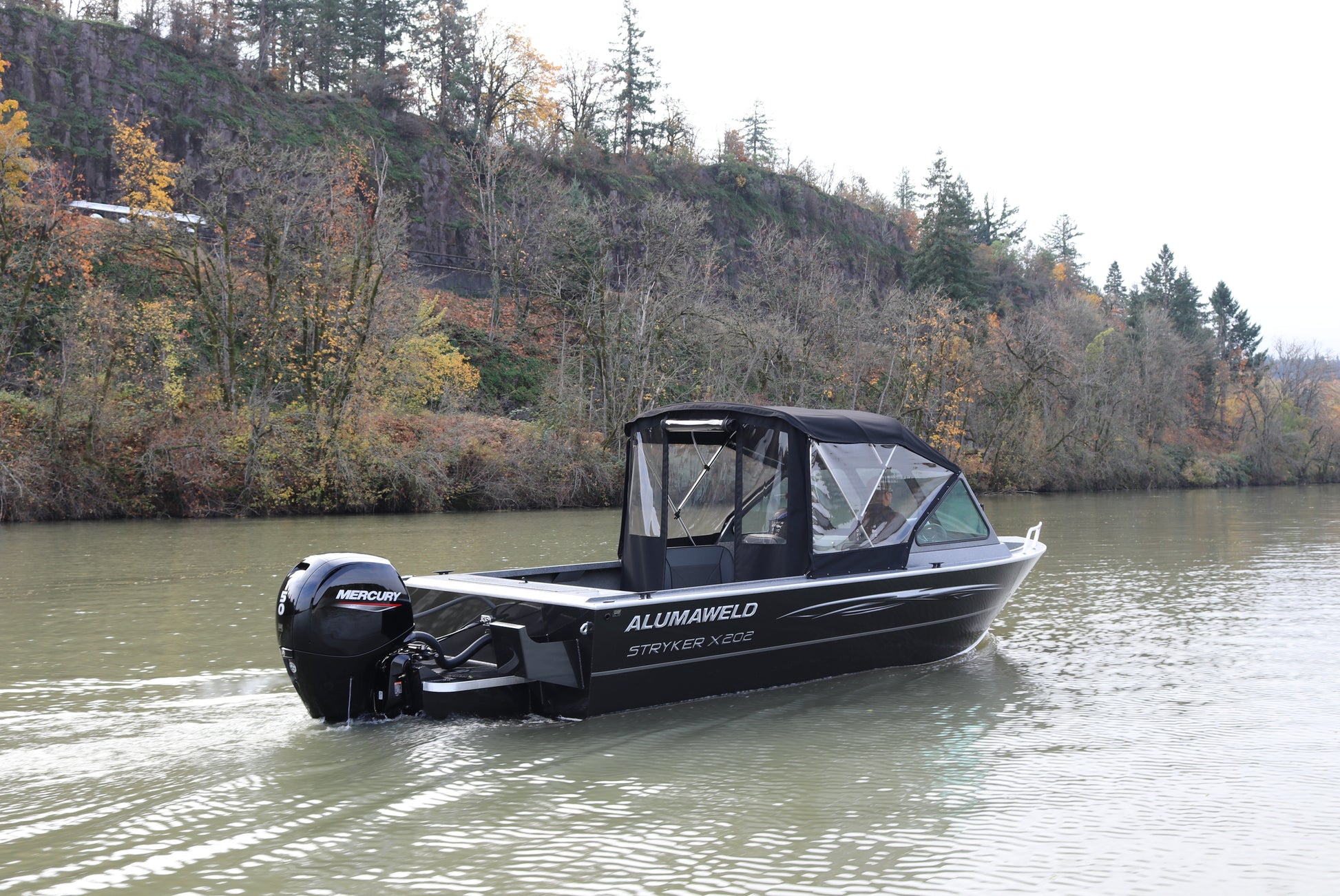

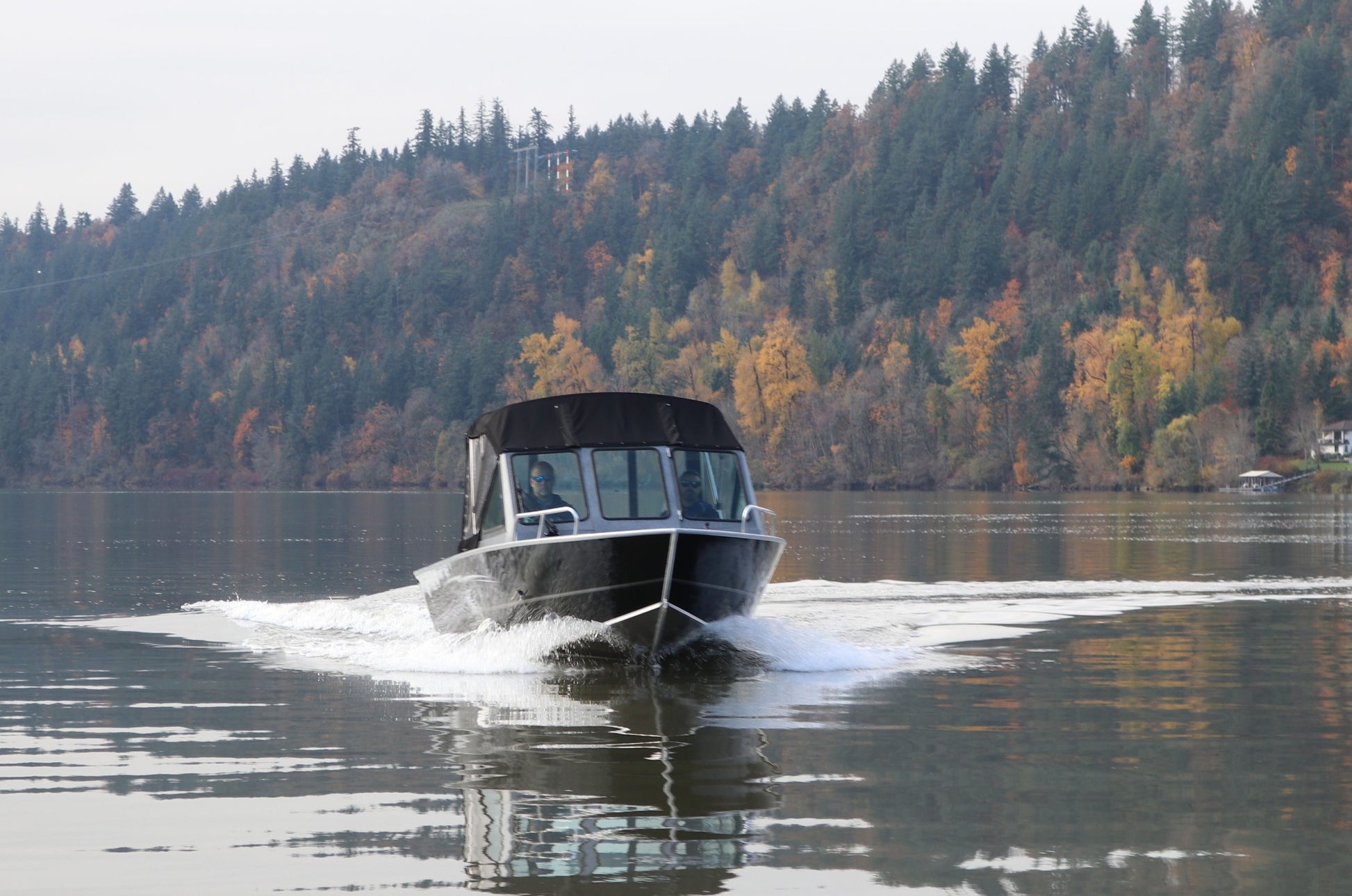

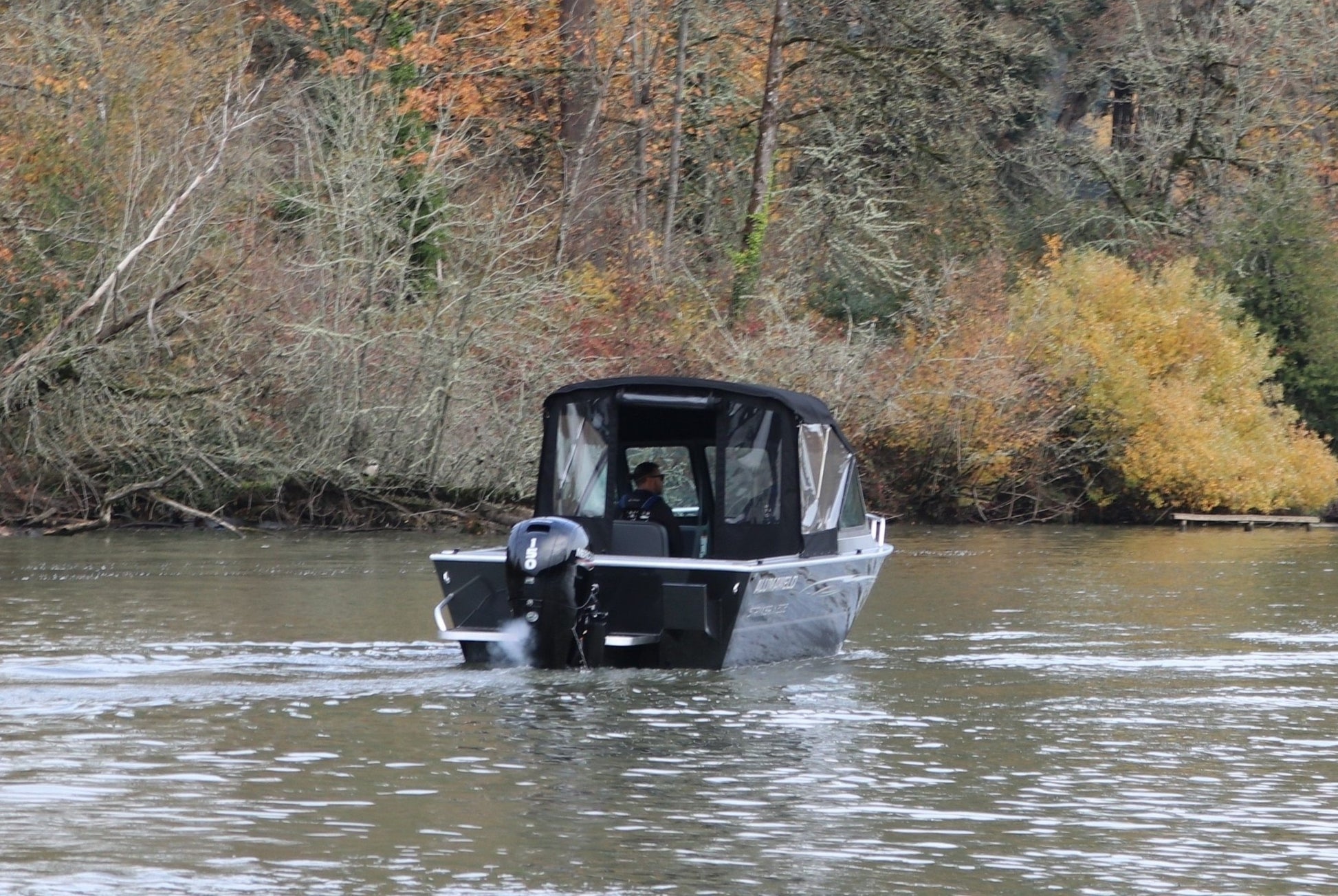

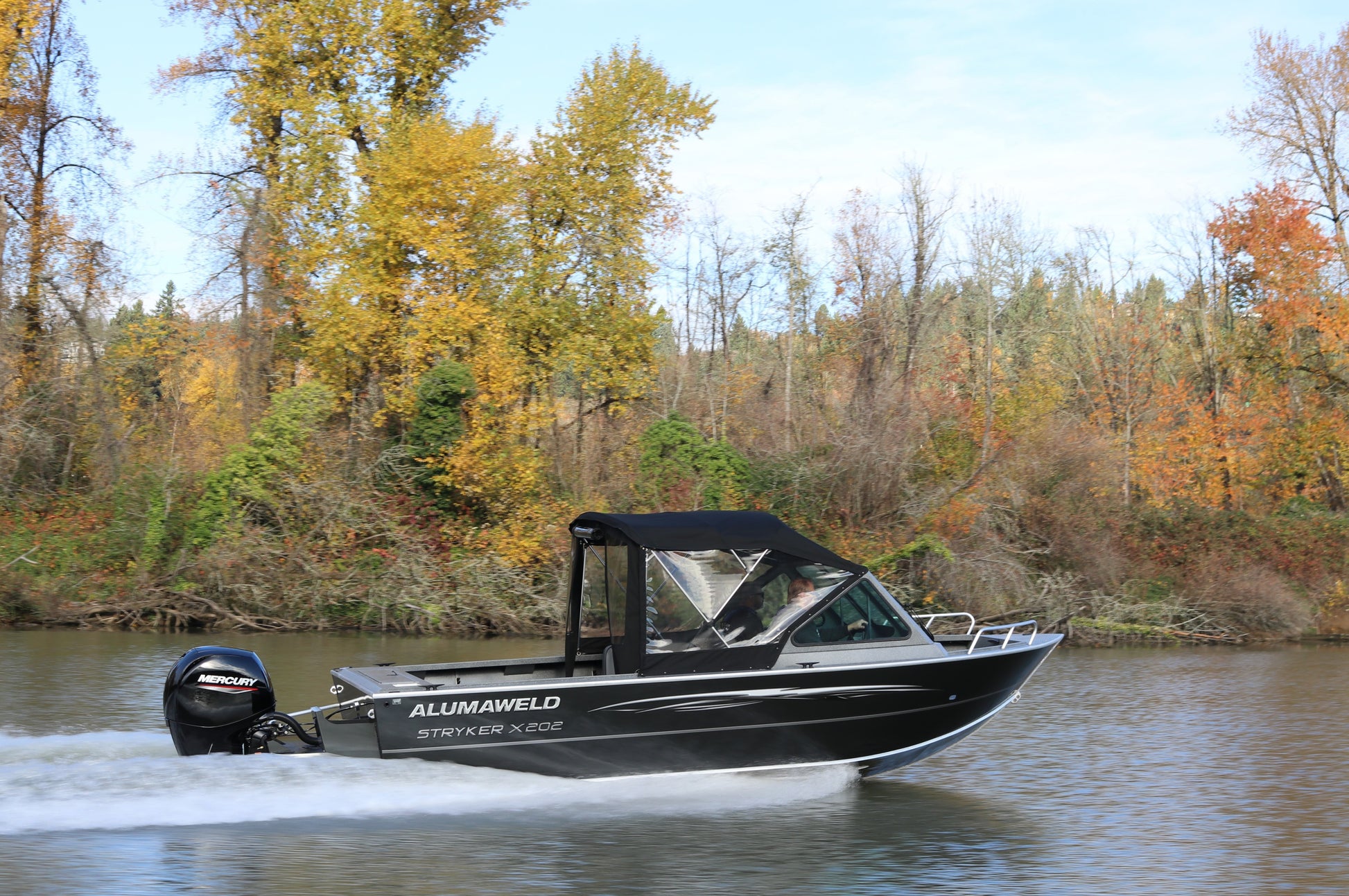

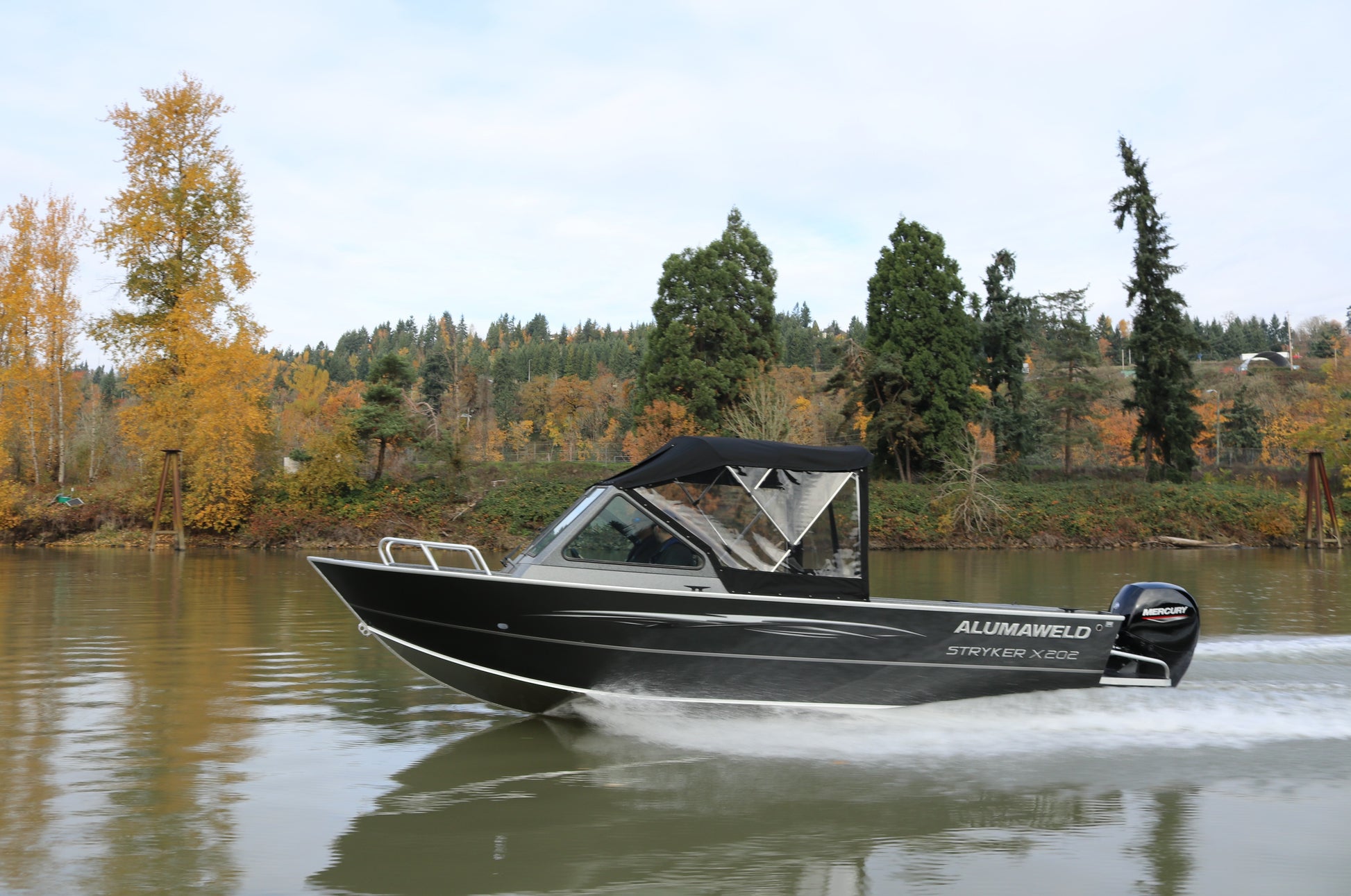

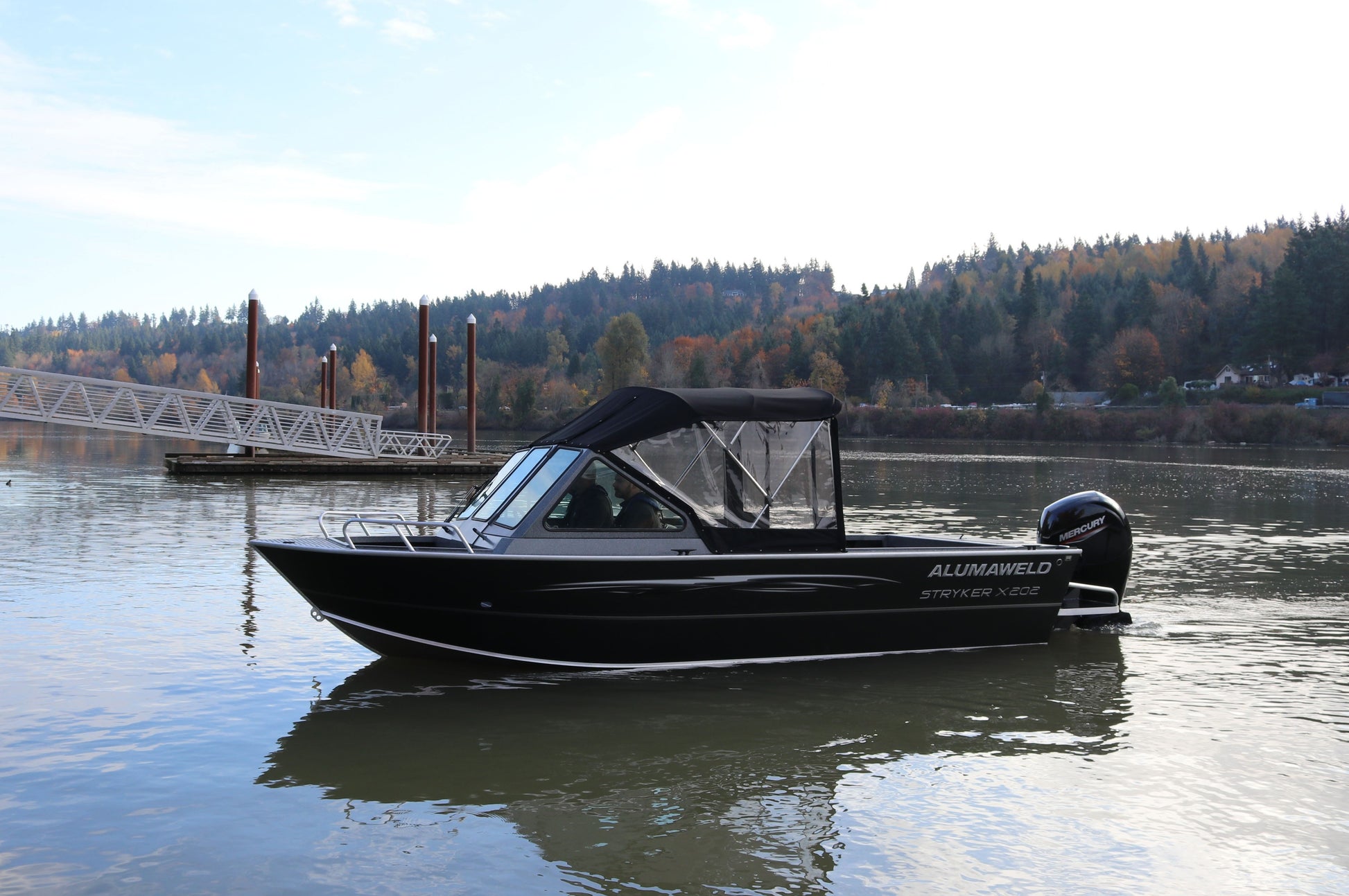

Alumaweld Stryker X202

Alumaweld Stryker X202

Crafted with the Pacific Northwest in mind, the Stryker X features elements such as high-sides for a secure ride and a unique Alumadrive™ outboard extension bracket. Enjoy ample storage space and a smooth ride. Designed for unforgettable adventures in the PNW and beyond.

Specifications
Hull Center Length: 22' 3"
Beam: 89"
Beam At Chine: 72"
Inside Freeboard: 29.75"
Side Height: 33.5"
Transom Height: 25"
Deadrise: 18 degrees
Bottom Thickness: .190
Side Thickness: .125
Transom Thickness: .250
Approx. Weight: 1,685 lbs
Persons/Capacity: 6/900 lbs
Weight Capacity: 1,700 lbs
Fuel Capacity: 38 Gal
Max Hp Prop/Jet: 150

Standard Features

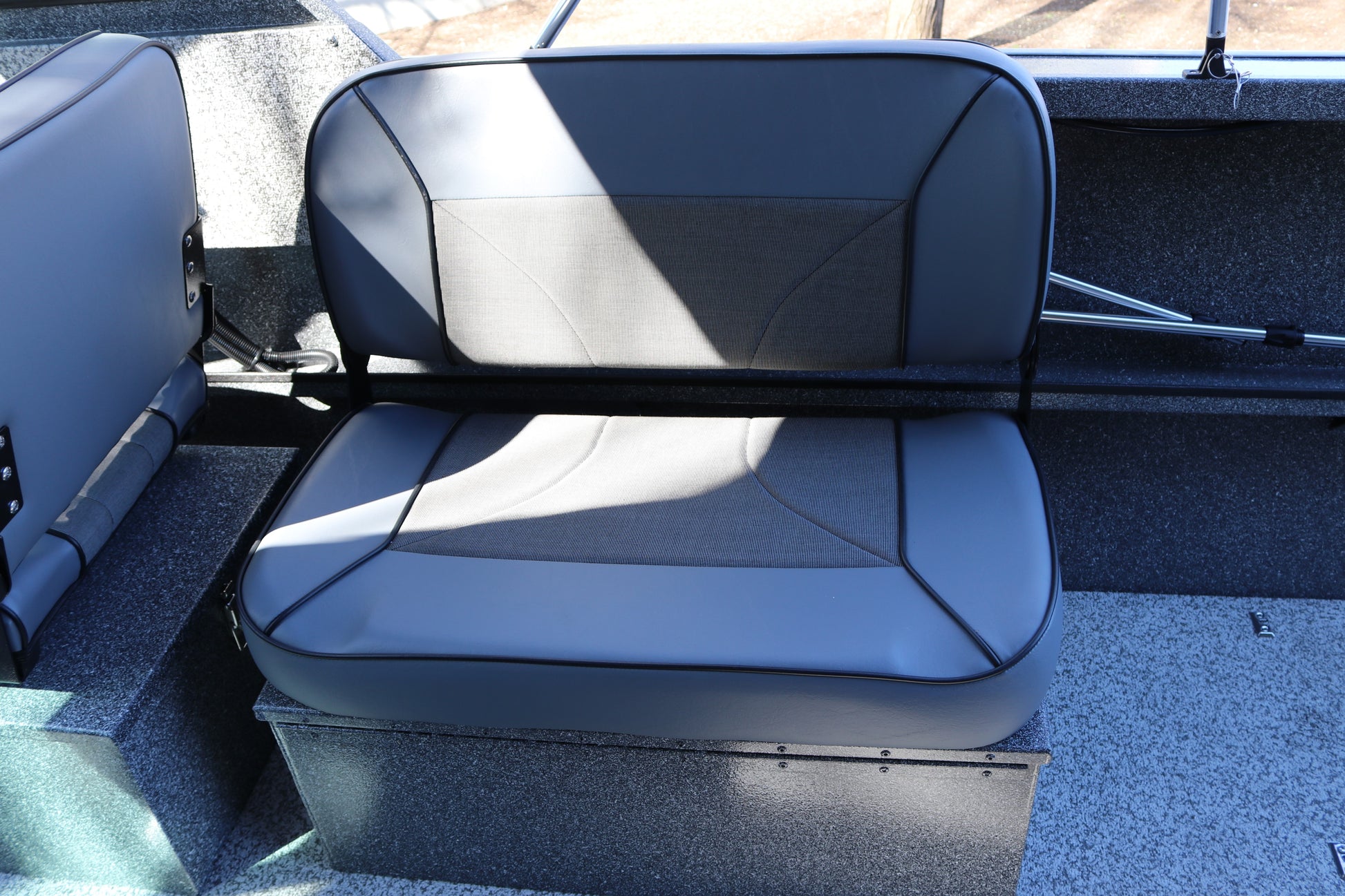

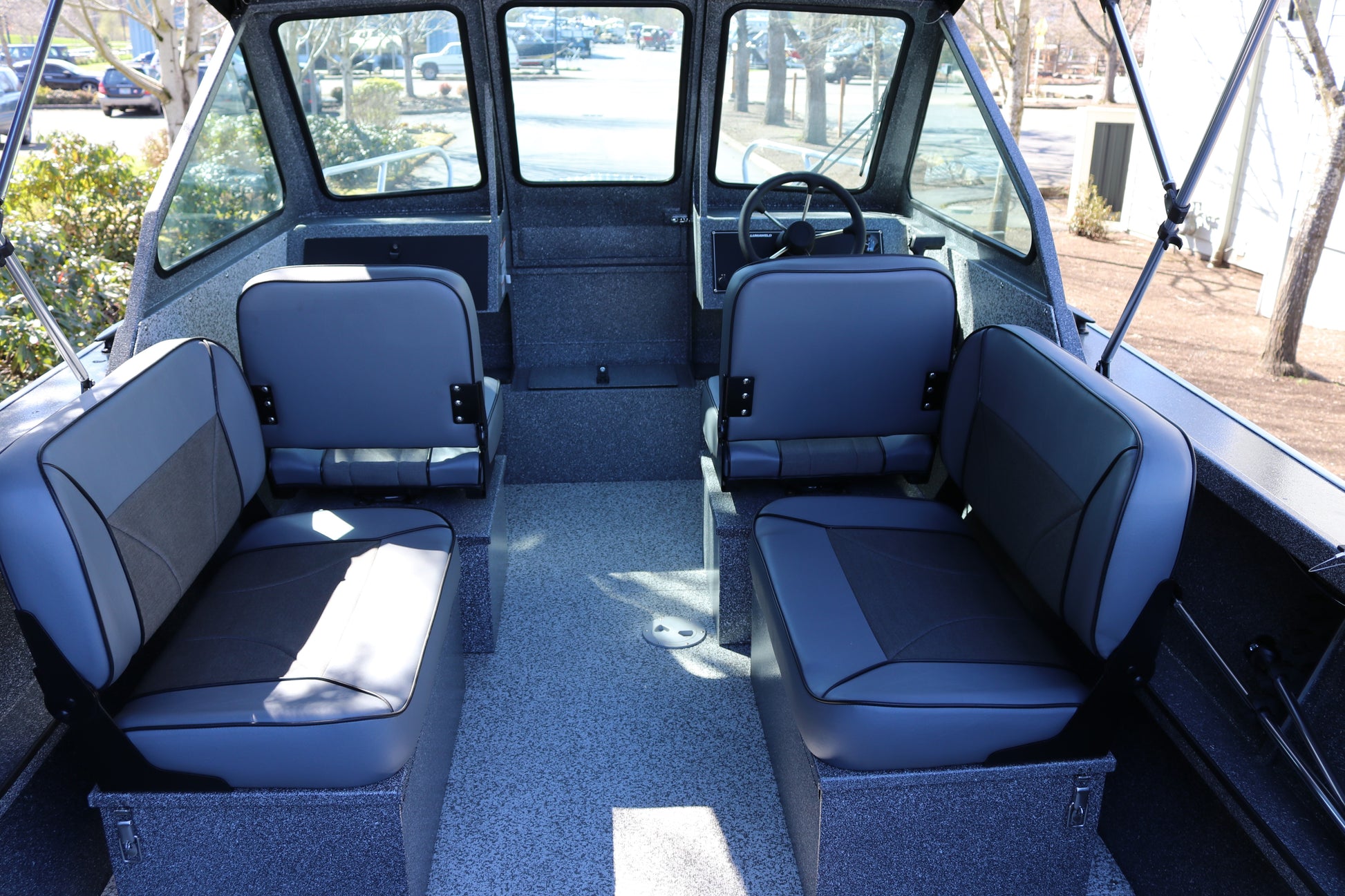

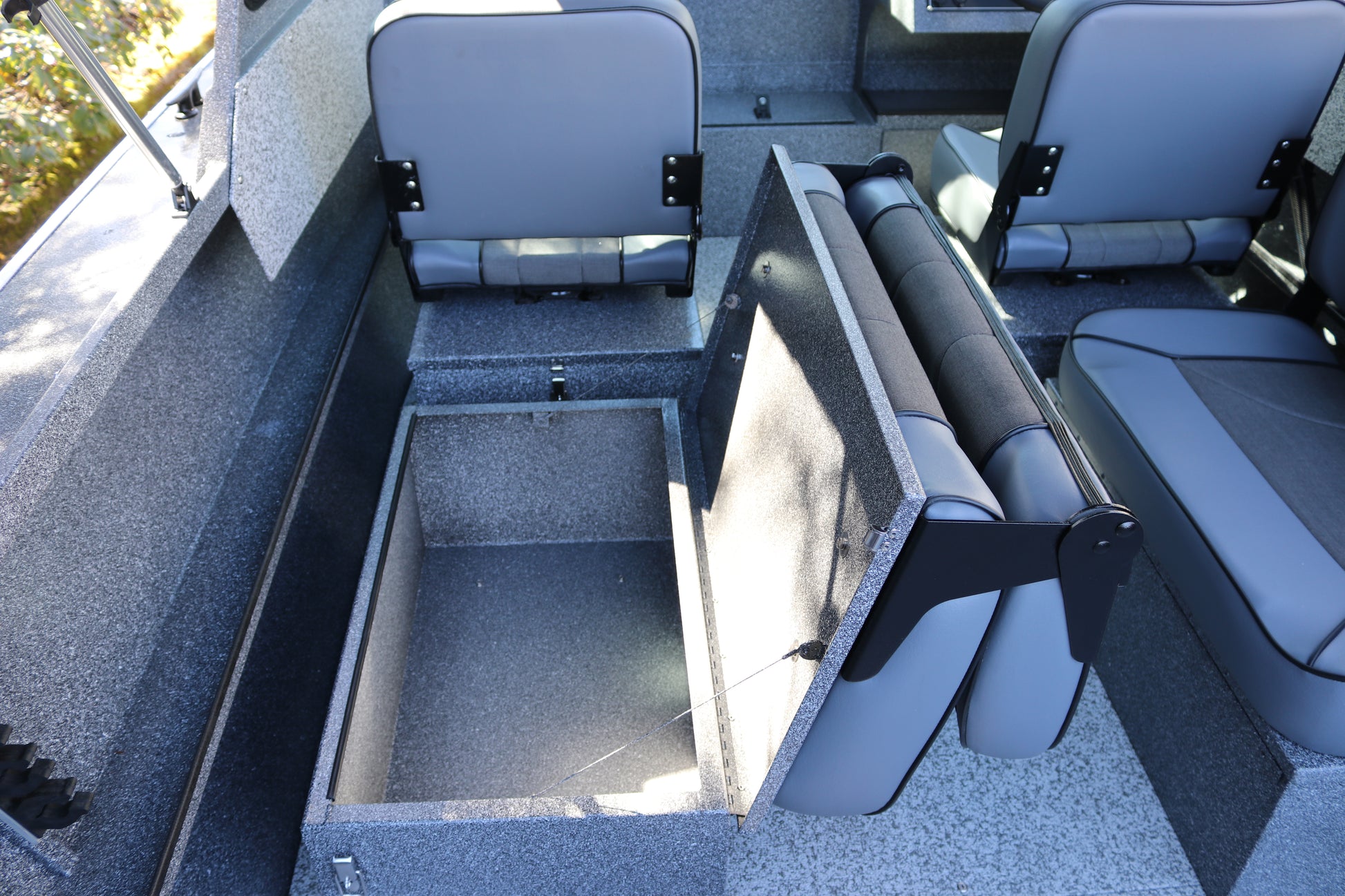

-Two comfort seats on aluminum boxes

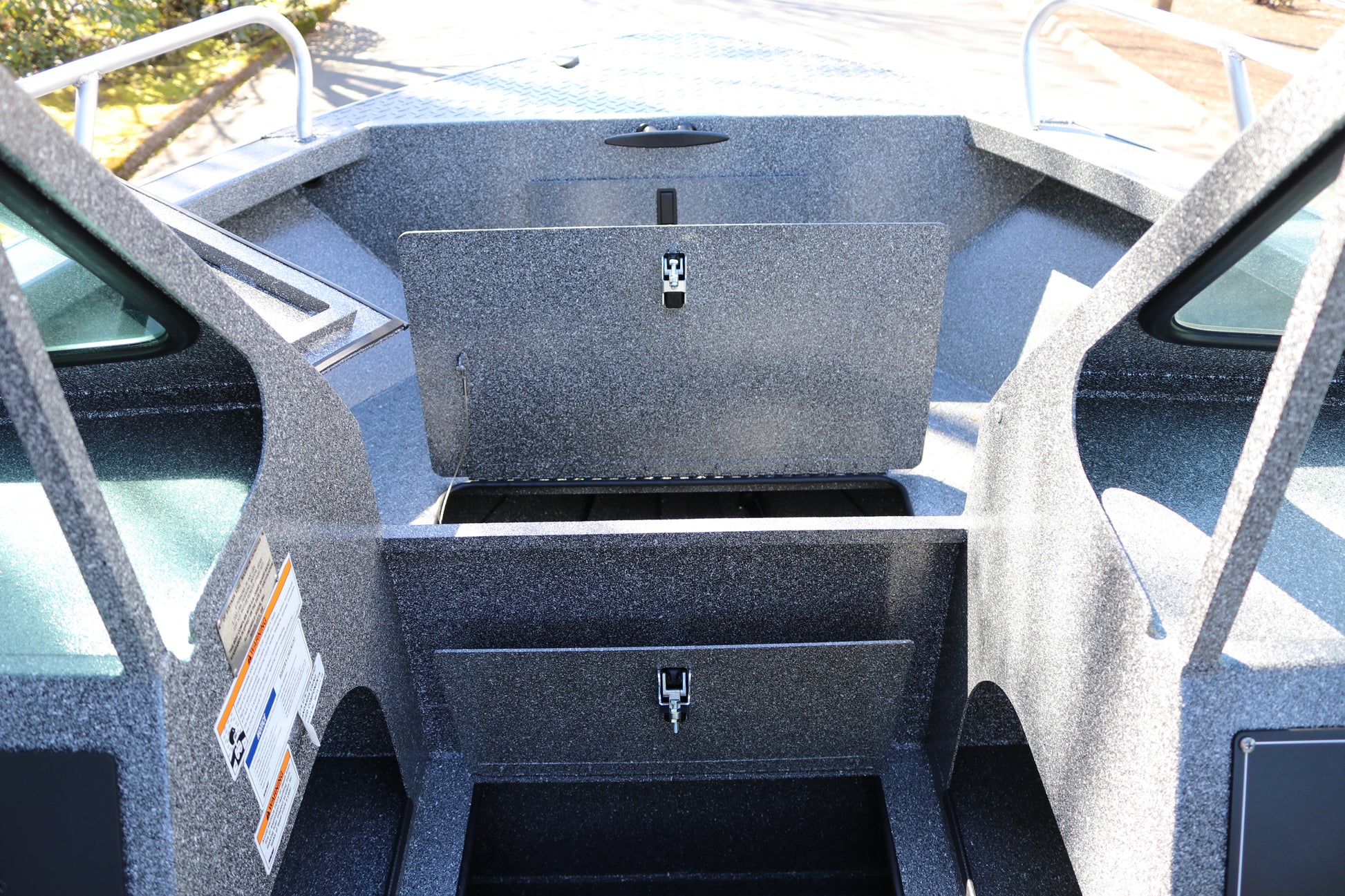

-Foredeck storage locker with locking door
-Three bow custom top with side curtains, back drop and bag

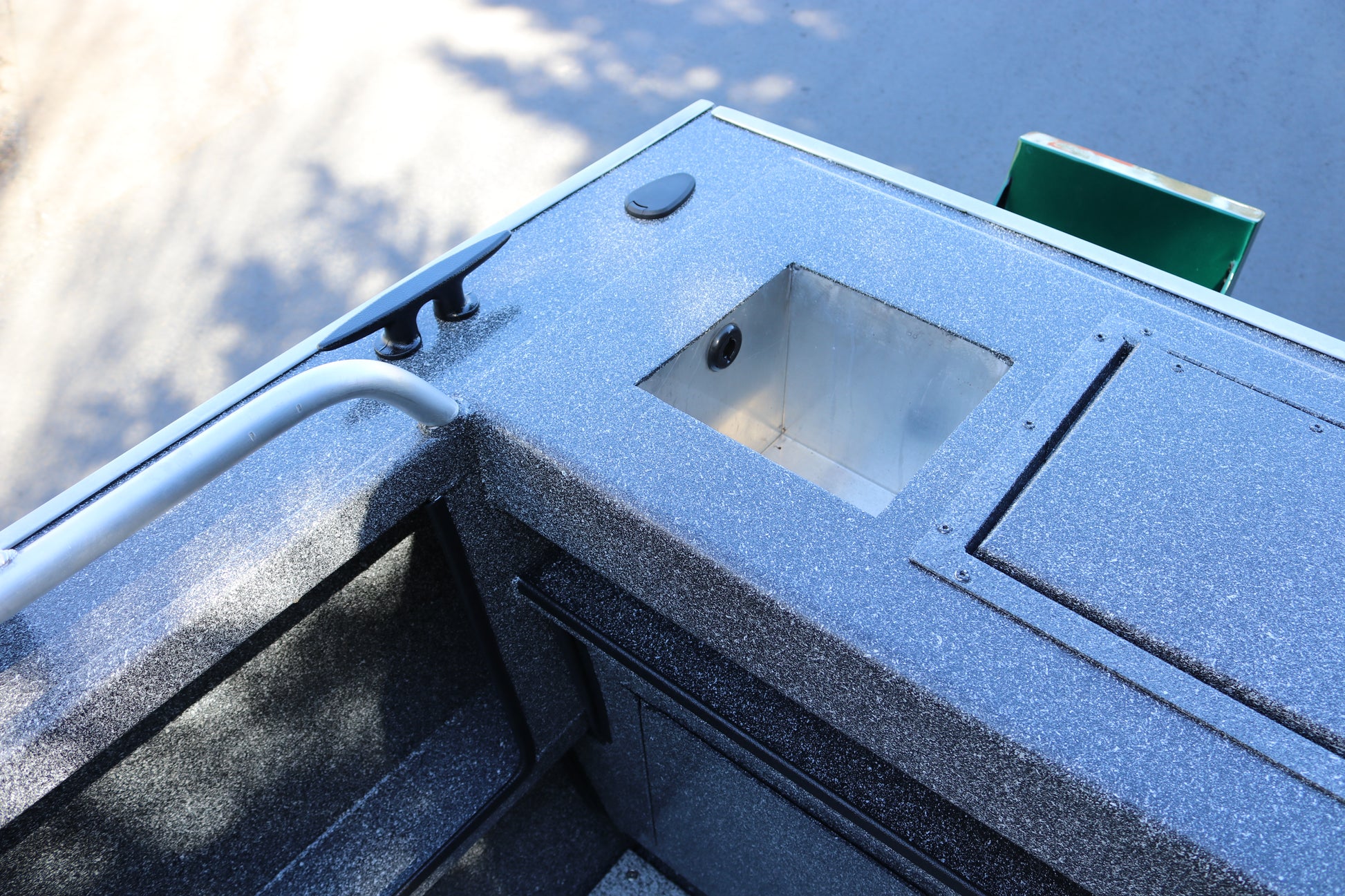

-Welded storage box in bow with lid

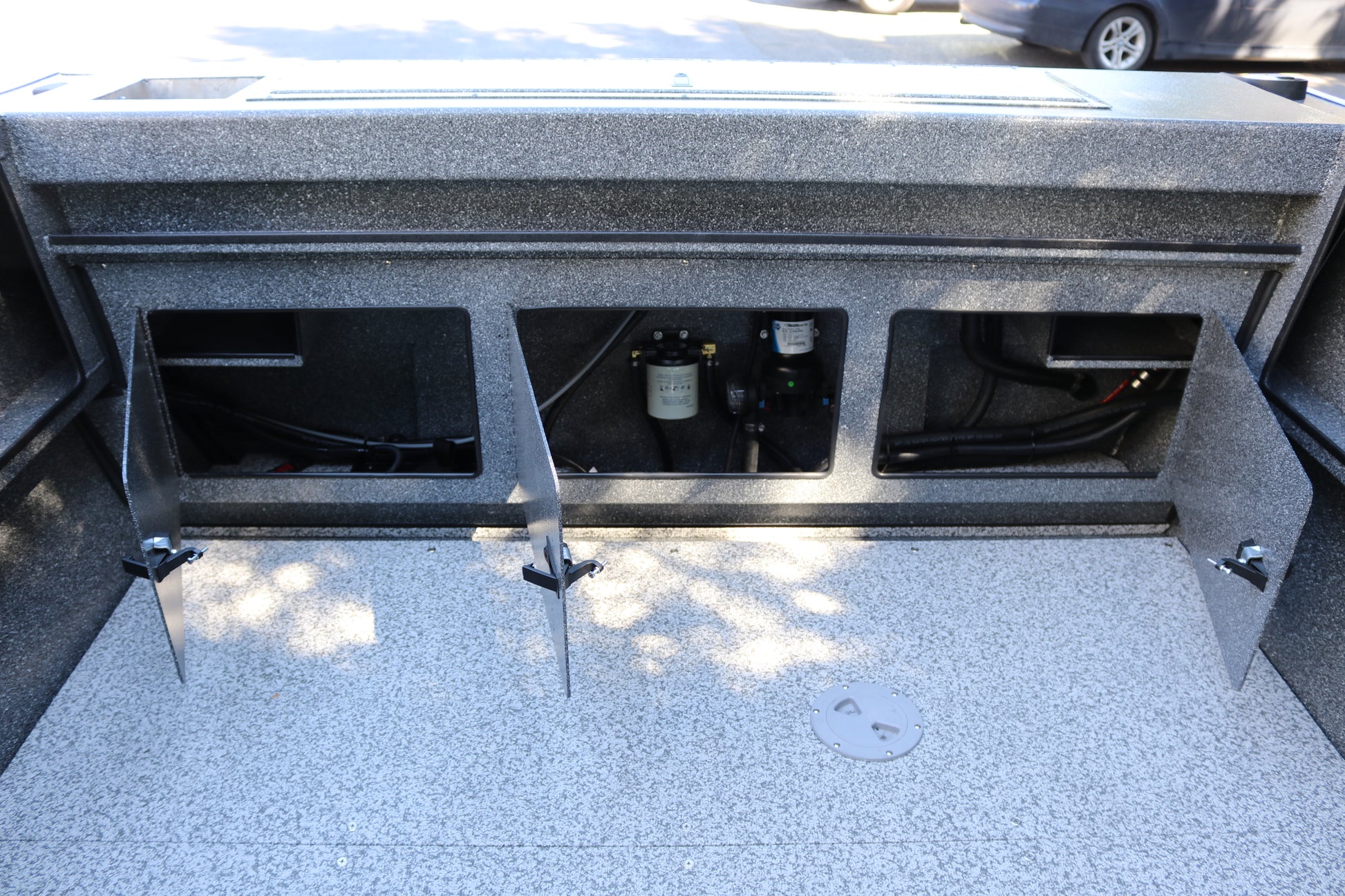

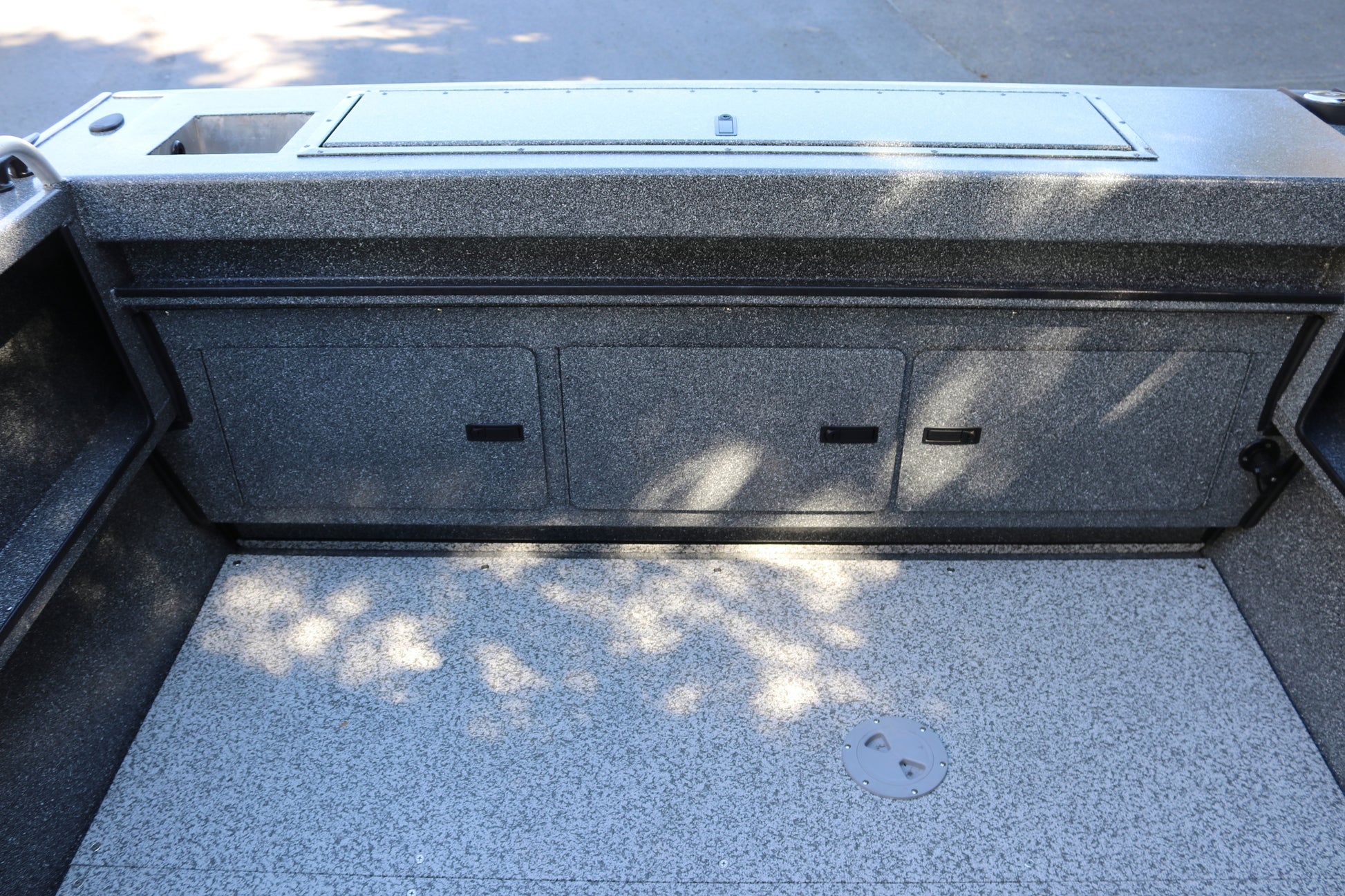

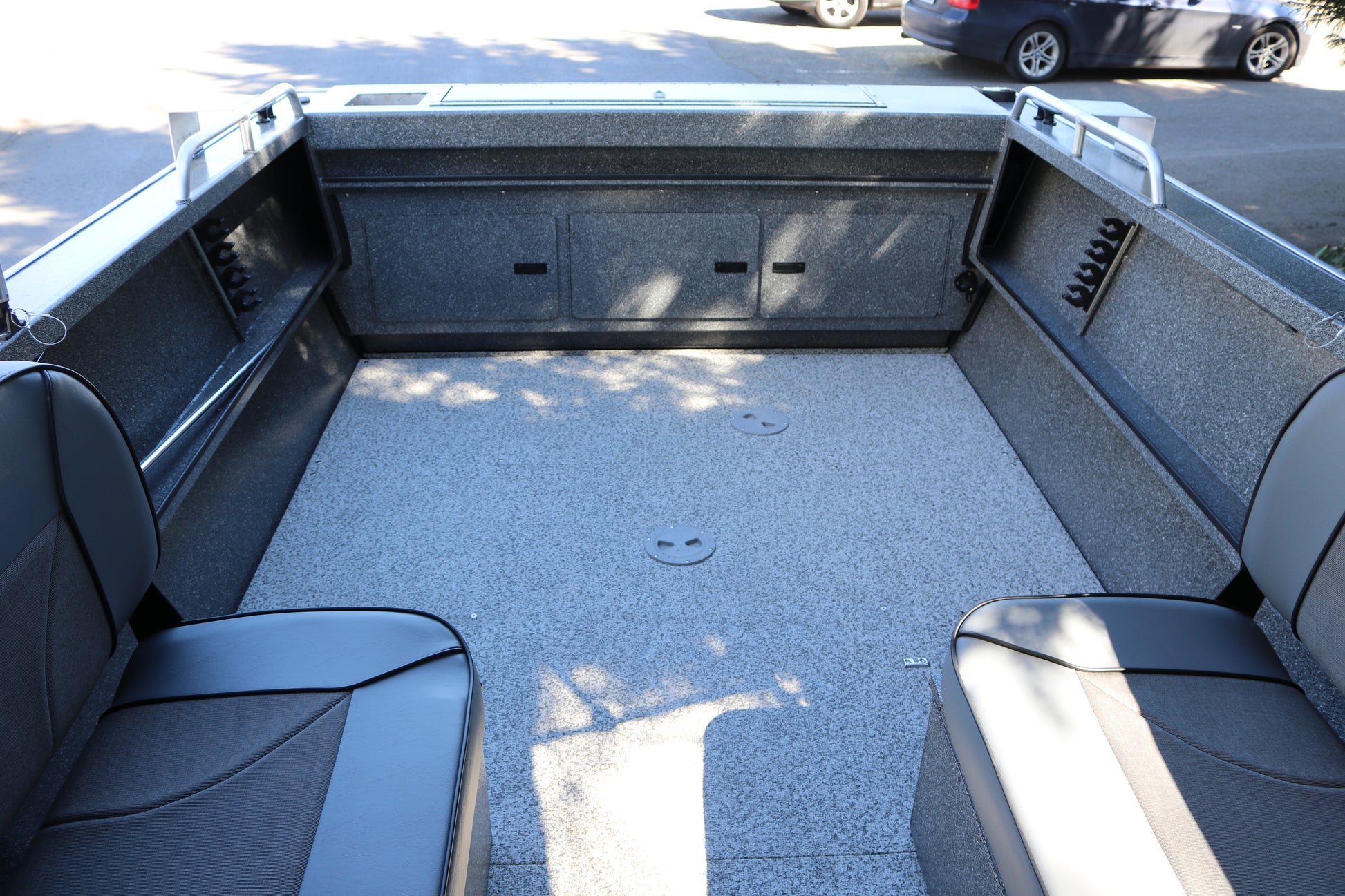

-Fish box in aft deck with lid
-Aluminum transom doors with transom drain track

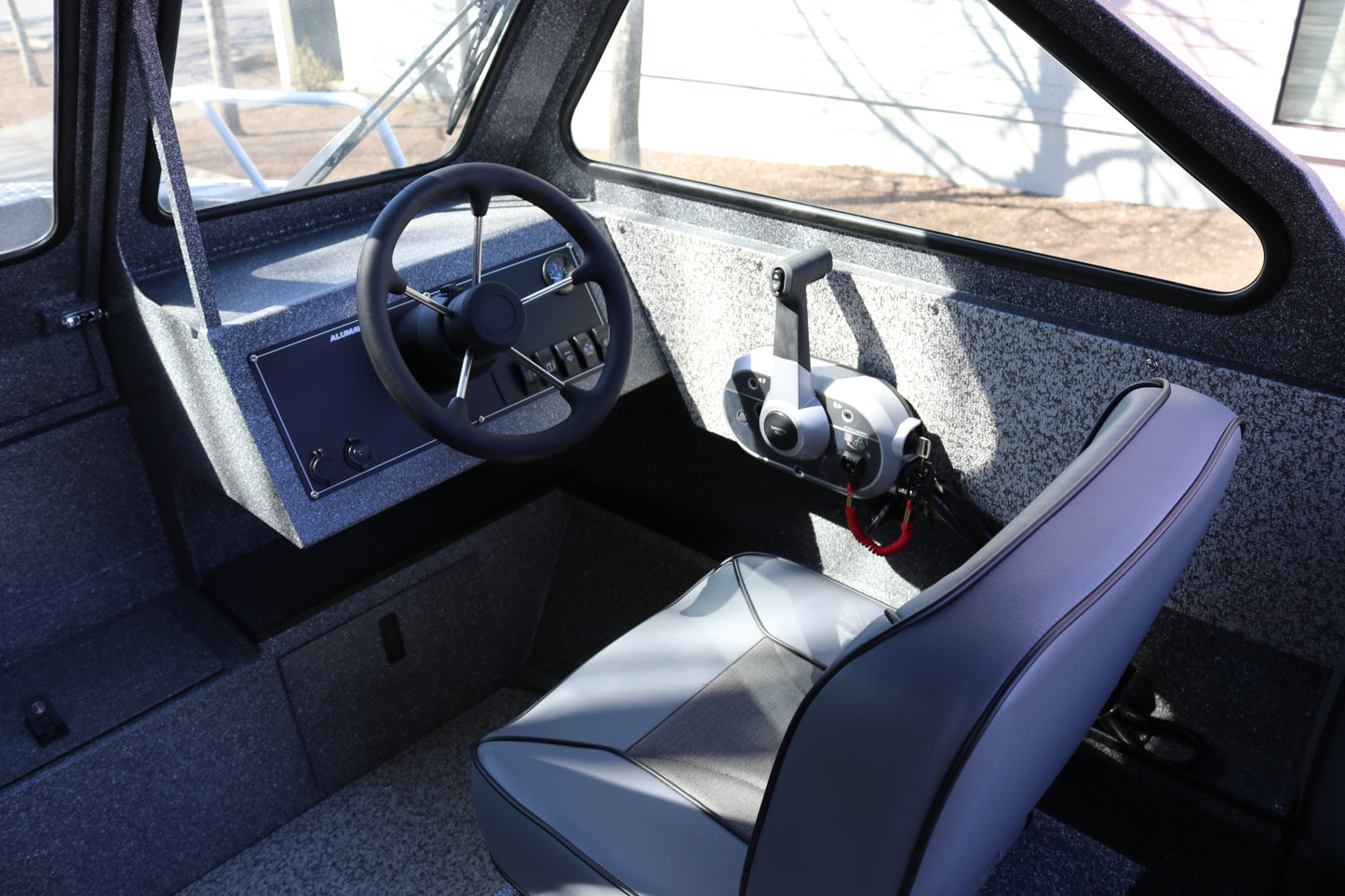

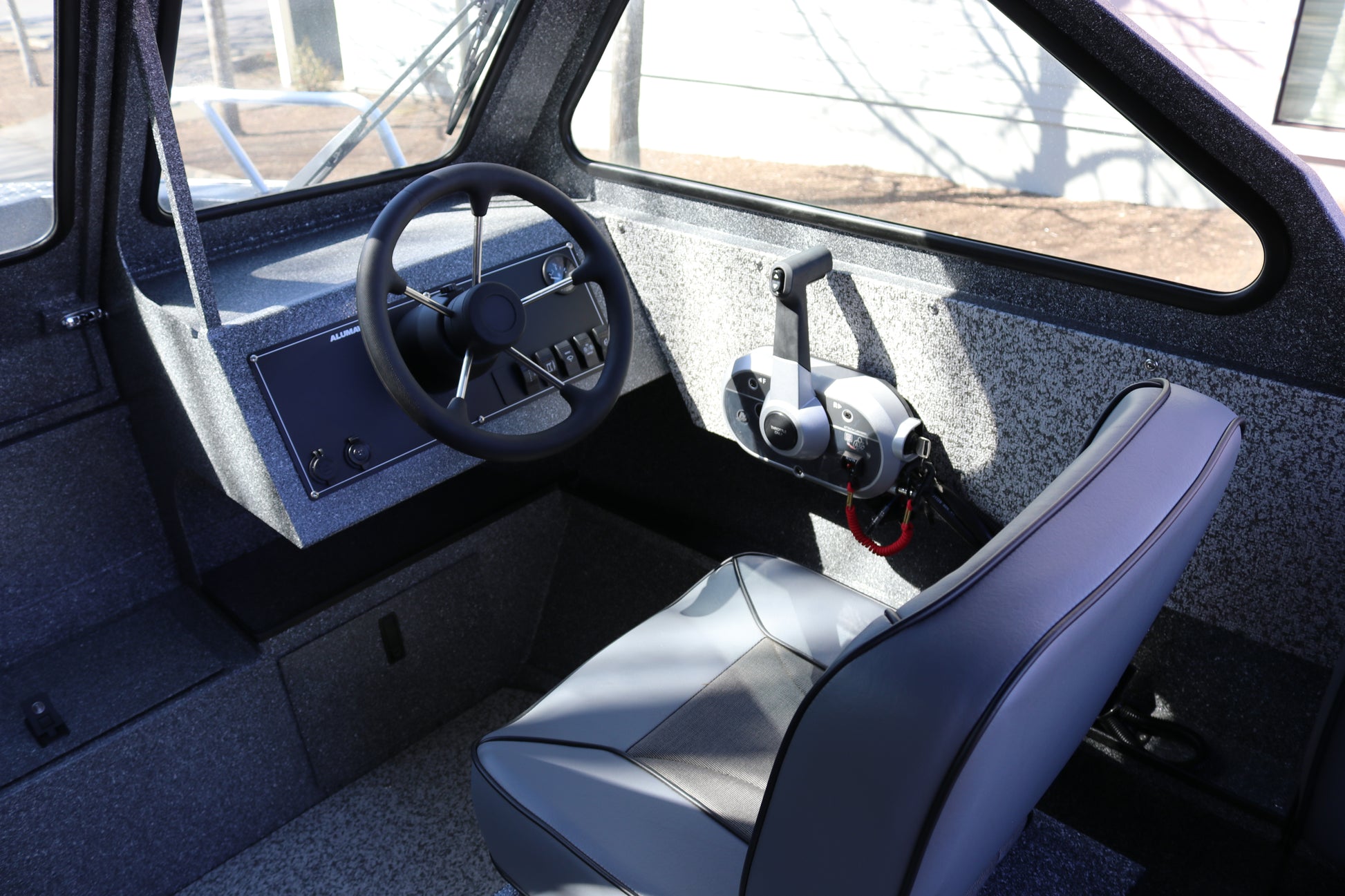

-Five switch panel with dual USB port and 12-volt outlet
-Four spoke steering wheel

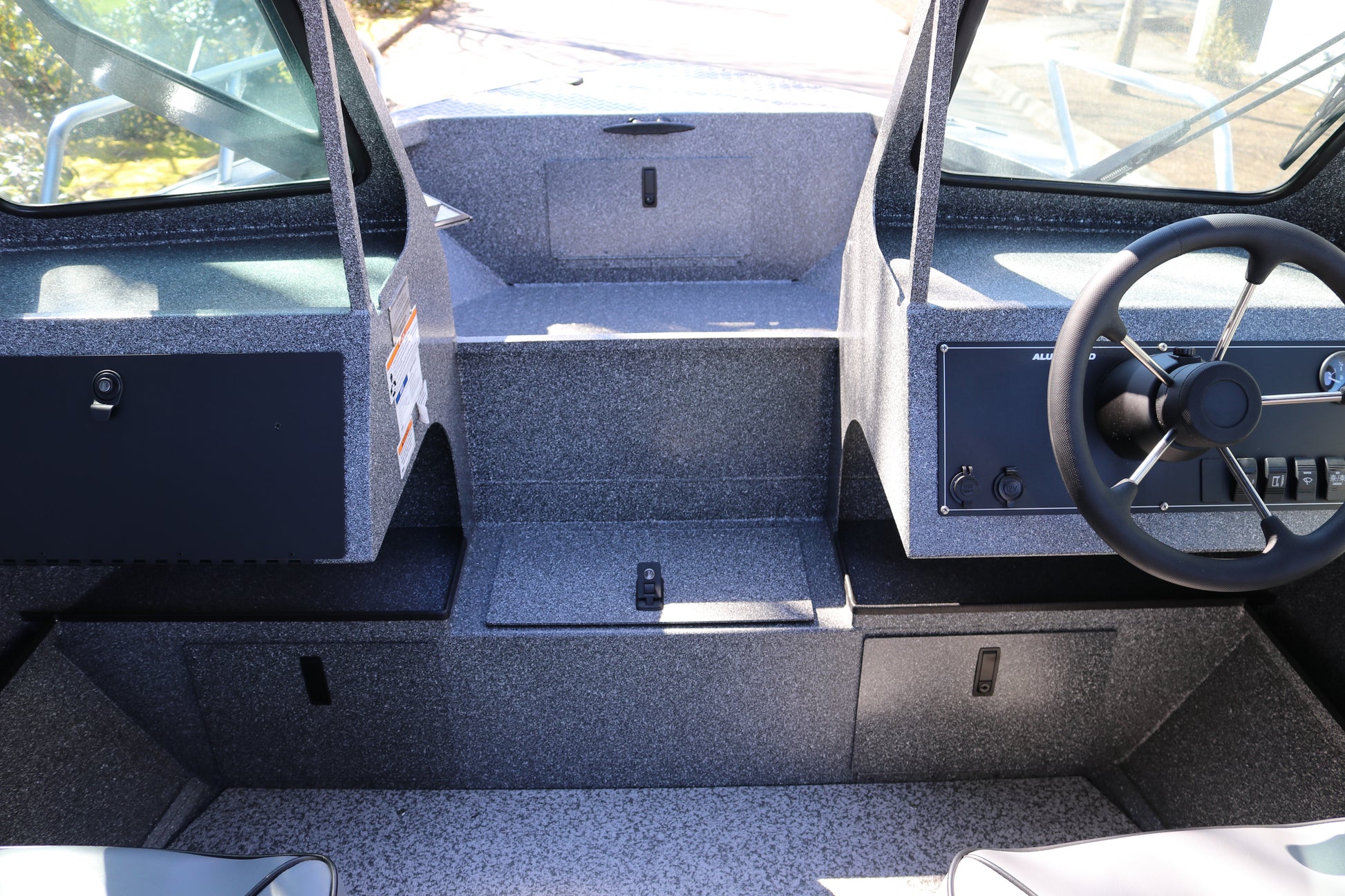

-Welded walk-through windshield with lower walk-through aluminum door and starboard wiper
-Aluma-coat interior
-Full outside paint (single color/single stage) with vinyl graphics
-Armor Tech premium floorboards with Dura Tuff™ nonskid vinyl covering
-Under floor protective coating
-Two lifting / turning strakes
-Electric bilge pump
-Built-in aluminum fuel tank with gauge
-Weld-on zinc anode
-Rear channel transom doors
-Rod grippers
-Running / mooring lights

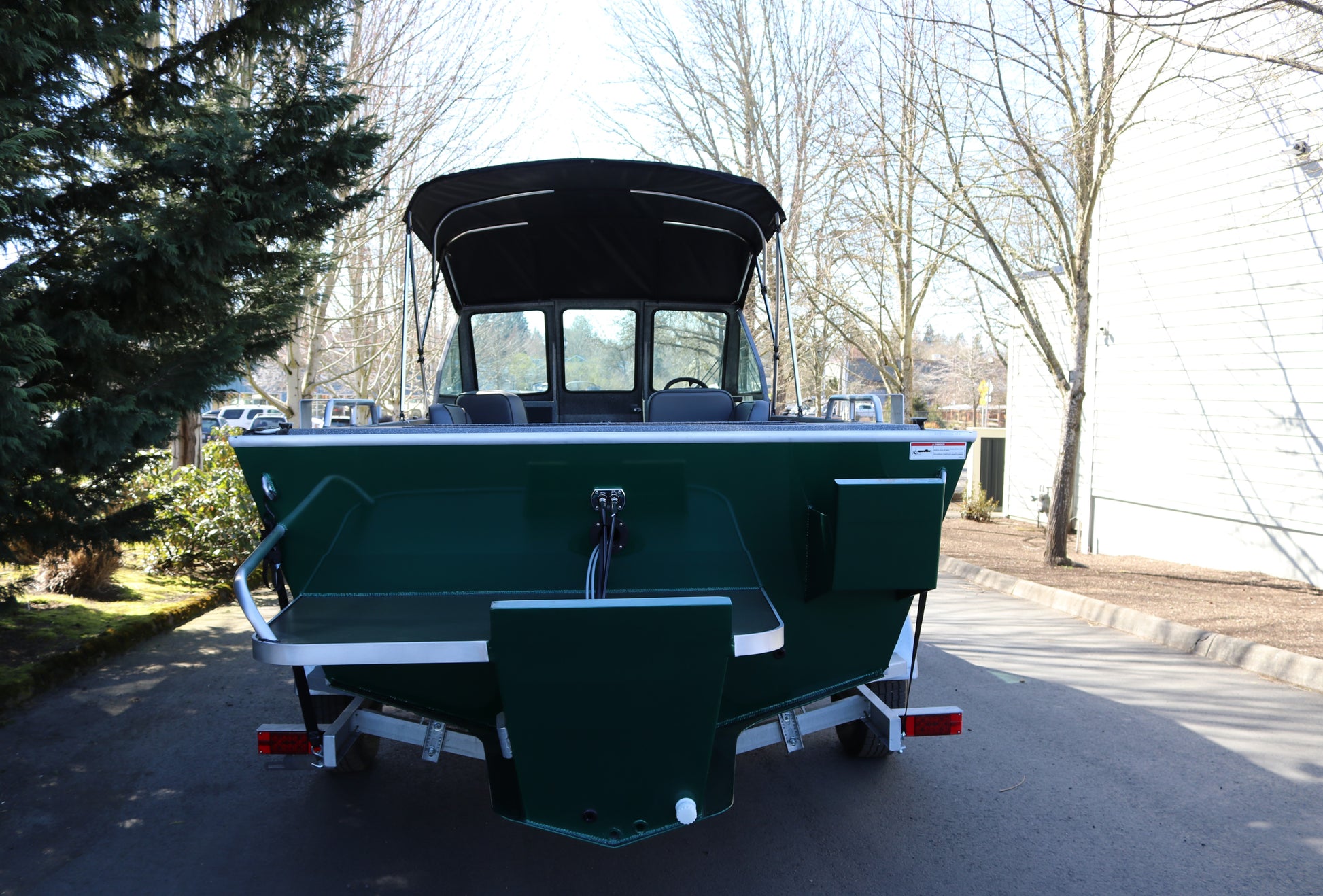

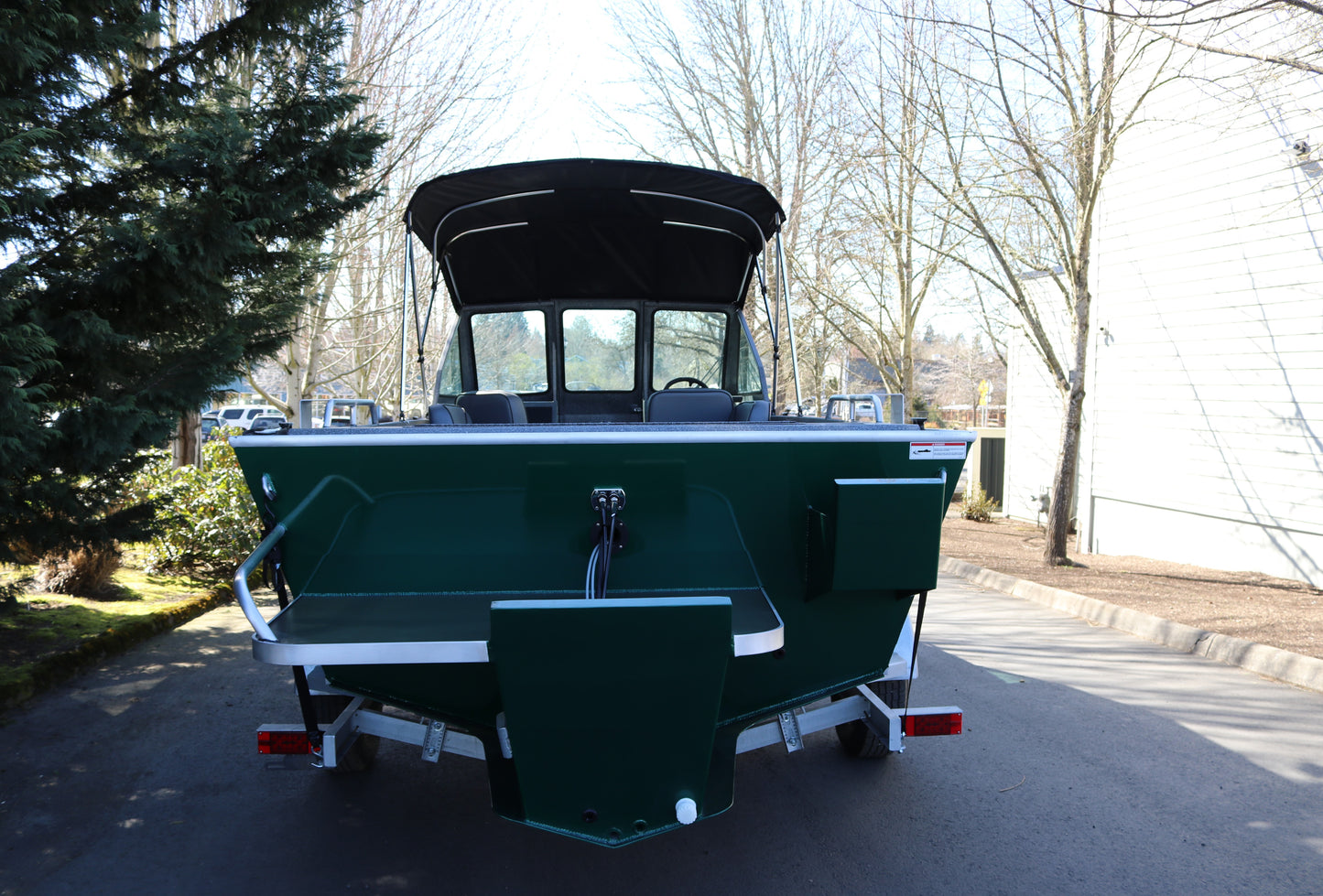

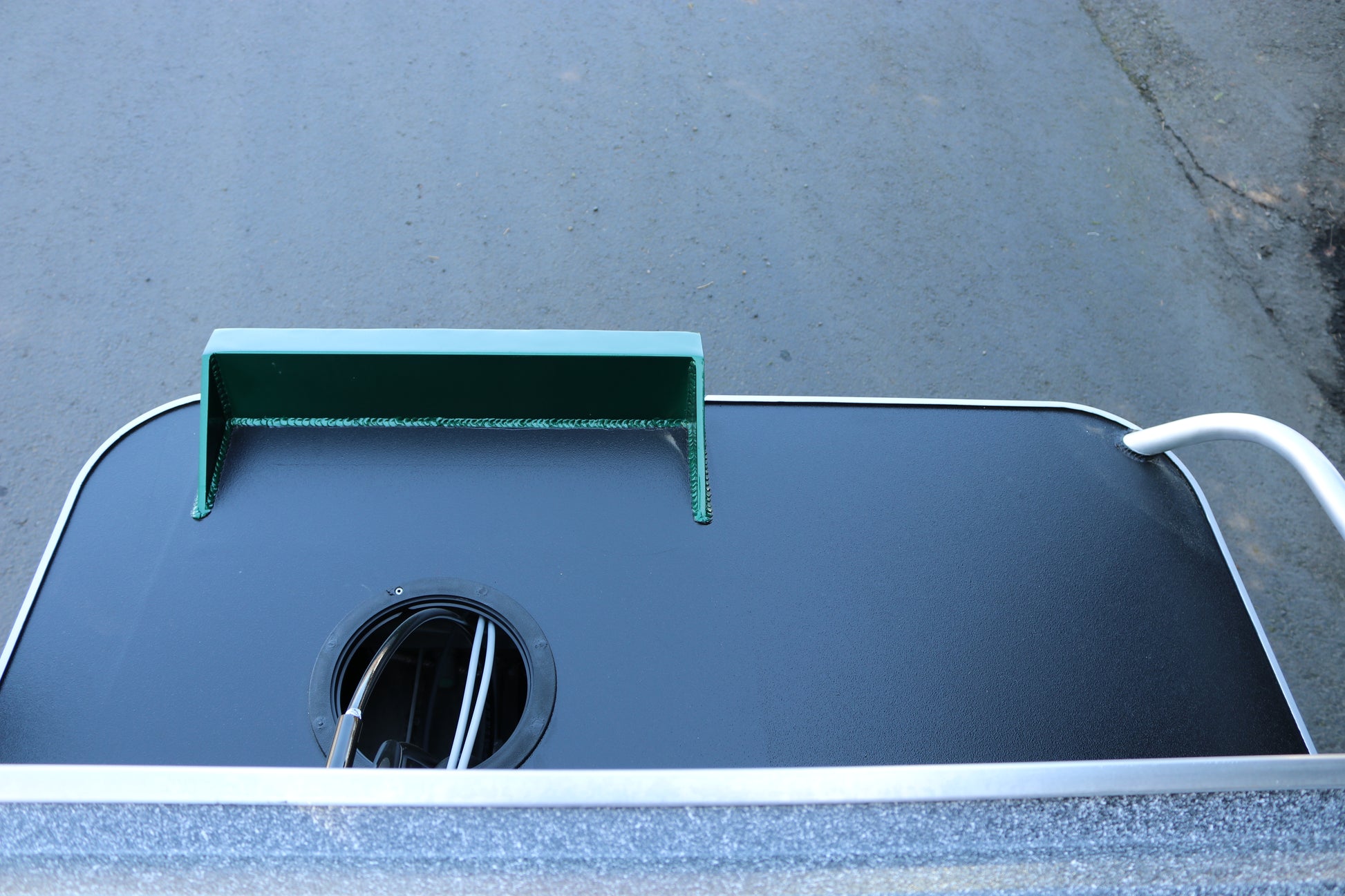

-Single heavy duty Alumadrive™ outboard bracket
-Two bolt-on transducer brackets
-Continuously welded box girder construction
-Washdown pump with hose

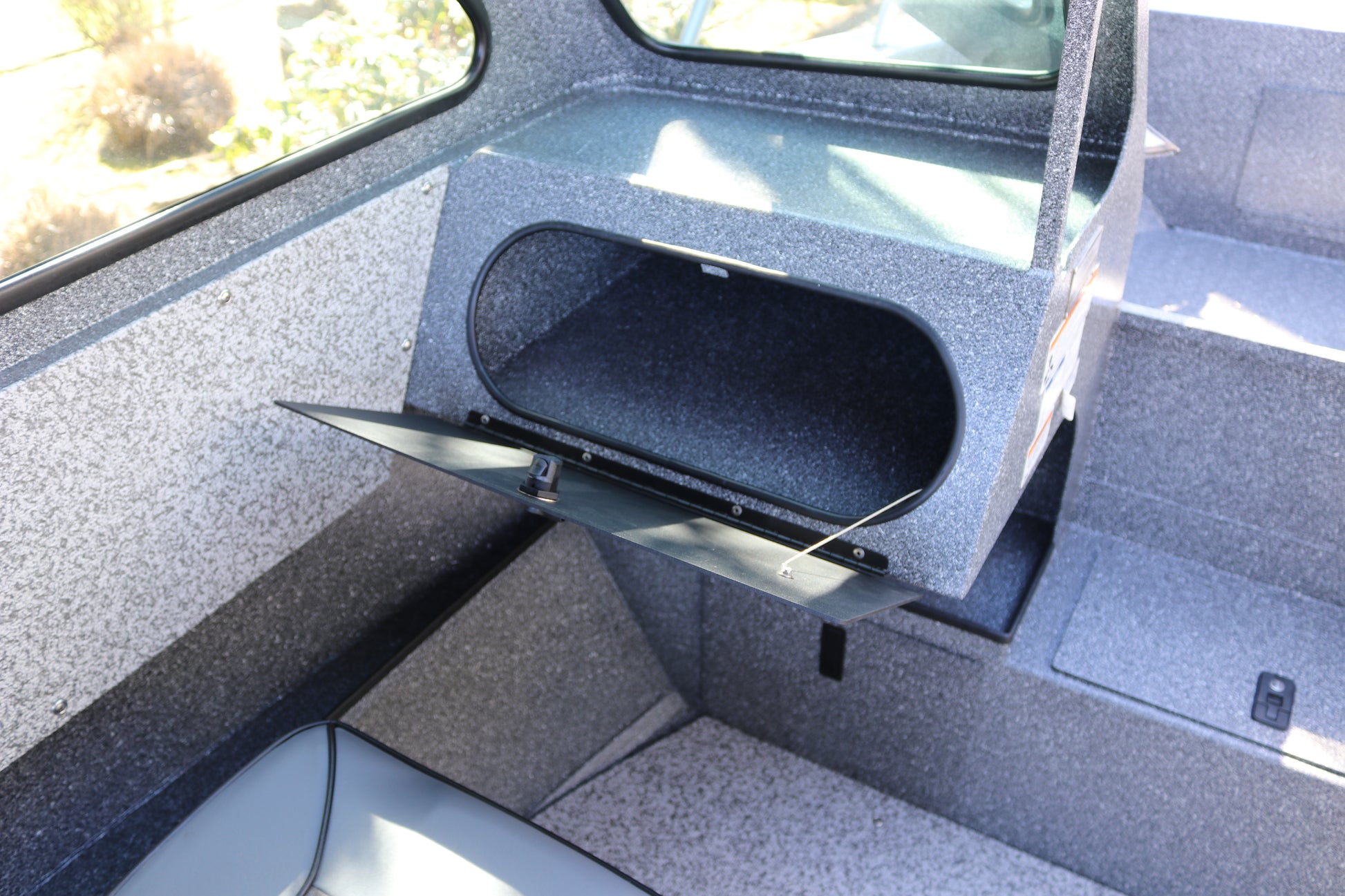

-Welded aluminum glove box with door
-Aluminum bow rails
-Four gunnel cleats
-Bolt-on powder coated cleats
-Weld-on aluminum stern eyes
-Weld-on double bow eye
-Exclusive lifetime warranty

Exterior Colors
Pure WhiteSold out
BlackSold out
RedSold out
BurgundySold out
Dark BlueSold out
Flight GreenSold out
Silver DustSold out
Milano BeigeSold out
Storm Gray MetalSold out
Cali BlueSold out
Intense BlueSold out
Inferno Red MetalSold out
Meadow GreenSold out
Aluma-coat Deck and Interior
WhiteSold out
Light GraySold out
Dark GraySold out
View full details

Alumaweld Boat Comparison

Horizon 28 Other Alumaweld Models
General General
Length Length 22' 3" 26' 5" 20' 3" 22' 3" 20' 1"
Beam Beam 89" 101" 89" 89" 89"
Beam at Chine Beam at Chine 72" 82" 72" 72" 72"
Inside Freeboard Inside Freeboard 29.75" 31" 30.25" 30.25" 27.5"
Side Height Side Height 33.5" 36" 33.5" 33.5" 29"
Transom Height Transom Height 25" 25"/30" 25" 25" 25"
Deadrise Deadrise 18 Deg 18 Deg 14 Deg 14 Deg 14 Deg
Bottom Thickness Bottom Thickness 0.190 0.250 0.190 0.190 0.160
Side Thickness Side Thickness 0.125 0.160 0.125 0.125 0.125
Persons/Capacity Persons/Capacity 6/900 lbs 9/1,350 lbs 7/750 lbs 6/900 lbs 5/750 lbs
Approx. Weight Approx. Weight 1,685 lbs 2,960 lbs 1,550 lbs 1,715 lbs 1,350 lbs
Weight Capacity Weight Capacity 1,700 lbs 2,400 lbs 1,500 lbs 1,900 lbs 1,500 lbs
Fuel Capacity Fuel Capacity 38 Gal 80 Gal 38 Gal 45 Gal 38 Gal
Max HP Prop/Jet Max HP Prop/Jet 150 HP 400 HP 150/105 HP 200/140 HP 115/80 HP
Product type Product type Boat Boat Boat Boat Boat
