Alumaweld Formula Vee 26

Alumaweld Formula Vee 26

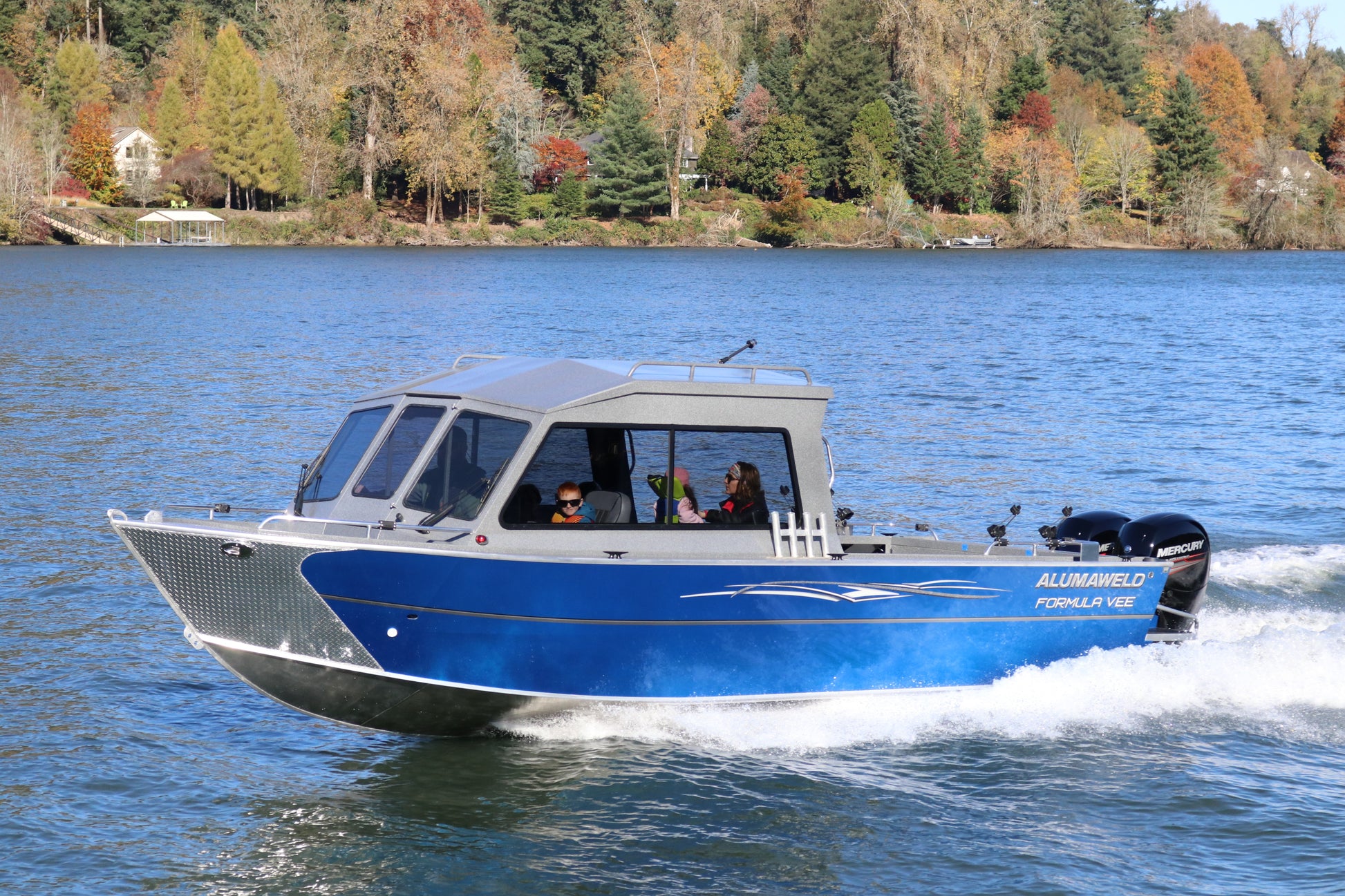

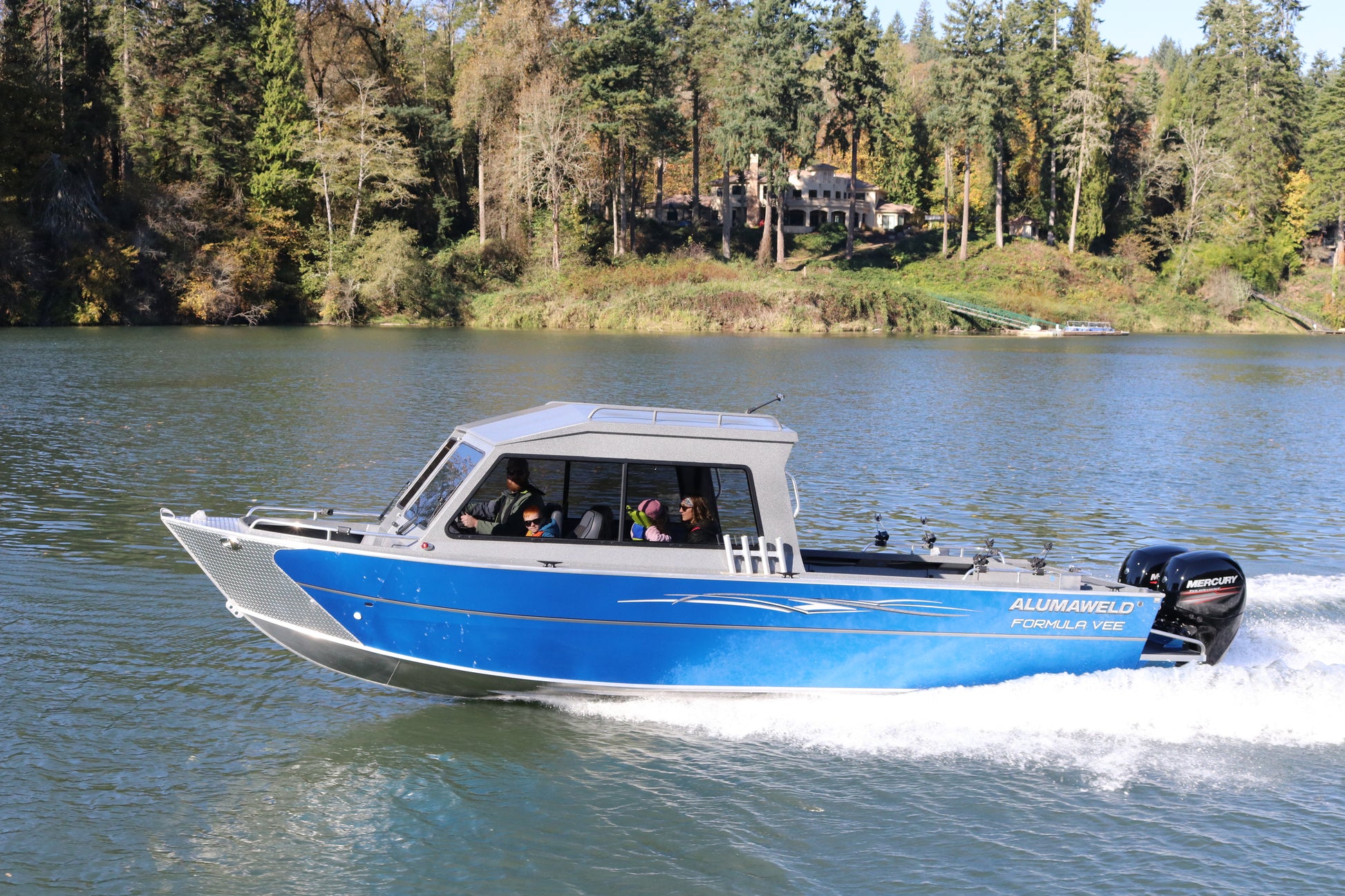

Experience boating at its finest with the Formula Vee. This superbly crafted boat offers rugged durability for year-round fishing and hunting adventures. Available in 24’ and 26’ lengths, the Formula Vee can be easily customized with a variety of options to fit your needs.

Specifications
Hull Center Length: 28'5"
Beam: 101"
Beam at the Chine: 82"
Inside Freeboard: 31"
Side Height: 36"
Transom Height: 30"
Deadrise: 18 degrees
Bottom Thickness: .250
Side Thickness: .160
Transom Thickness: .250
Approx. Weight: 3,210 lbs
Persons/Capacity: 9/1,350 lbs
Weight Capacity: 2,400 lbs
Fuel Capacity: 80 Gal.
Max HP Prop/Jet: 300

Standard Features
-Two deluxe guide seats on lockable storage boxes
-Fish box in step deck
-Dual fish boxes with lids in transom deck
-Foredeck storage locker with locking door
-Full length storage trays
-Between console step storage
-Three stainless steel bow black canvas top with side curtains and back drop
-Welded walk-through windshield with lower walk-through door with starboard side wiper
-Aluminum transom rigging compartment with doors, toe kick and floor drains
-Aluma-coat interior
-Full outside paint (single color/single stage) with vinyl graphics
-Armor Tech premium floorboards with Dura Tuff non-skid vinyl covering
-Under floor protective coating
-Six full length lifting/turning stakes
-Electric bilge pump with auto switch
-Built-in aluminum fuel tank with gauge
-Welded-on zinc anode
-Momo steering wheel/no-feedback steering
-Rod grippers
-Running/mooring lights
-Saddle cut transom
-Slotted chine extrusions
-Sound insulation package
-Switch panel with circuit breakers, fuse block, dual USB port, and 12-volt outlet
-Two bolt-on transducer brackets
-Alumadrive bracket
-Welded aluminum bow rails
-Bolt-on powder coated cleats
-Continuously welded box grinder construction
-Welded aluminum glove box with lockable door
-Welded-on aluminum stern eyes
-Welded-on cleat on inner foredeck
-Welded-on double bow eye
-Stainless steel hinges on boxes and storage lids
-Exclusive lifetime warranty

Exterior Colors
Storm Gray Metal
Pure White
Black
Intense Blue
Red
Inferno Red Metal
Silver Dust
Burgundy
Meadow Green
Dark Blue
Milano Beige
Flight Green
Cali Blue
Aluma-coat Deck and Interior
White
Light Gray
Dark Gray
View full details

Alumaweld Boat Comparison

Horizon 28 Other Alumaweld Models
Alumaweld Formula Vee 26
Alumaweld Formula Vee 26
Alumaweld Horizon 26
Alumaweld Horizon 26
Alumaweld Horizon 28
Alumaweld Horizon 28
Alumaweld Intruder 22
Alumaweld Intruder 22
Alumaweld Intruder 24
Alumaweld Intruder 24
General General
Length Length 28' 5" 28' 10" 30' 10" 24' 9" 26' 9"
Beam Beam 101" 101" 101" 99.5" 99.5"
Beam at Chine Beam at Chine 82" 82" 82" 82" 82"
Inside Freeboard Inside Freeboard 31" 31" 31" 29" 29"
Side Height Side Height 36" 36" 36" 33" 33"
Transom Height Transom Height 25"/30" 25"/30" 25"/30" 25" 25"/30"
Deadrise Deadrise 18 Deg 18 Deg 18 Deg 18 Deg 18 Deg
Bottom Thickness Bottom Thickness 0.250 0.250 0.250 0.190 0.250
Side Thickness Side Thickness 0.125 0.160 0.160 0.125 0.160
Persons/Capacity Persons/Capacity 9/1,350 lbs 9/1,350 lbs 9/1,350 8/1,200 lbs 9/1,350 lbs
Approx. Weight Approx. Weight 3,210 lbs 3,850 lbs 4,200 lbs 2,475 lbs 2,665 lbs
Weight Capacity Weight Capacity 2,400 lbs 2,400 lbs 2,400 lbs 1,900 lbs 2,400 lbs
Fuel Capacity Fuel Capacity 120 Gal 80 Gal 80 - 120 Gal 60 Gal 80 Gal
Max HP Prop/Jet Max HP Prop/Jet 500 HP 400 HP 500 HP 225 HP 250 HP
Product type Product type Boat Boat Boat Boat Boat
