Alumaweld Horizon 28

Alumaweld Horizon 28

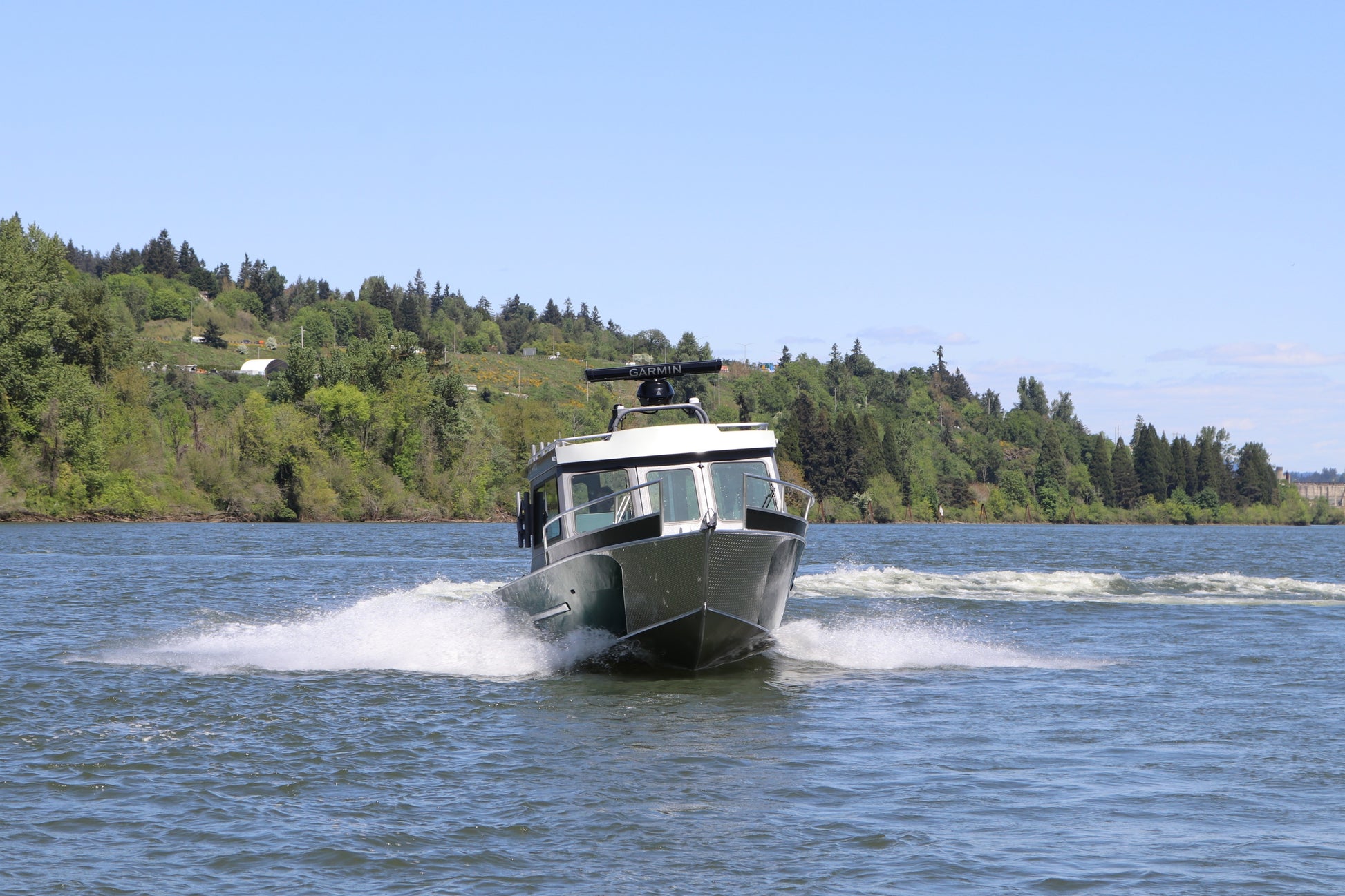

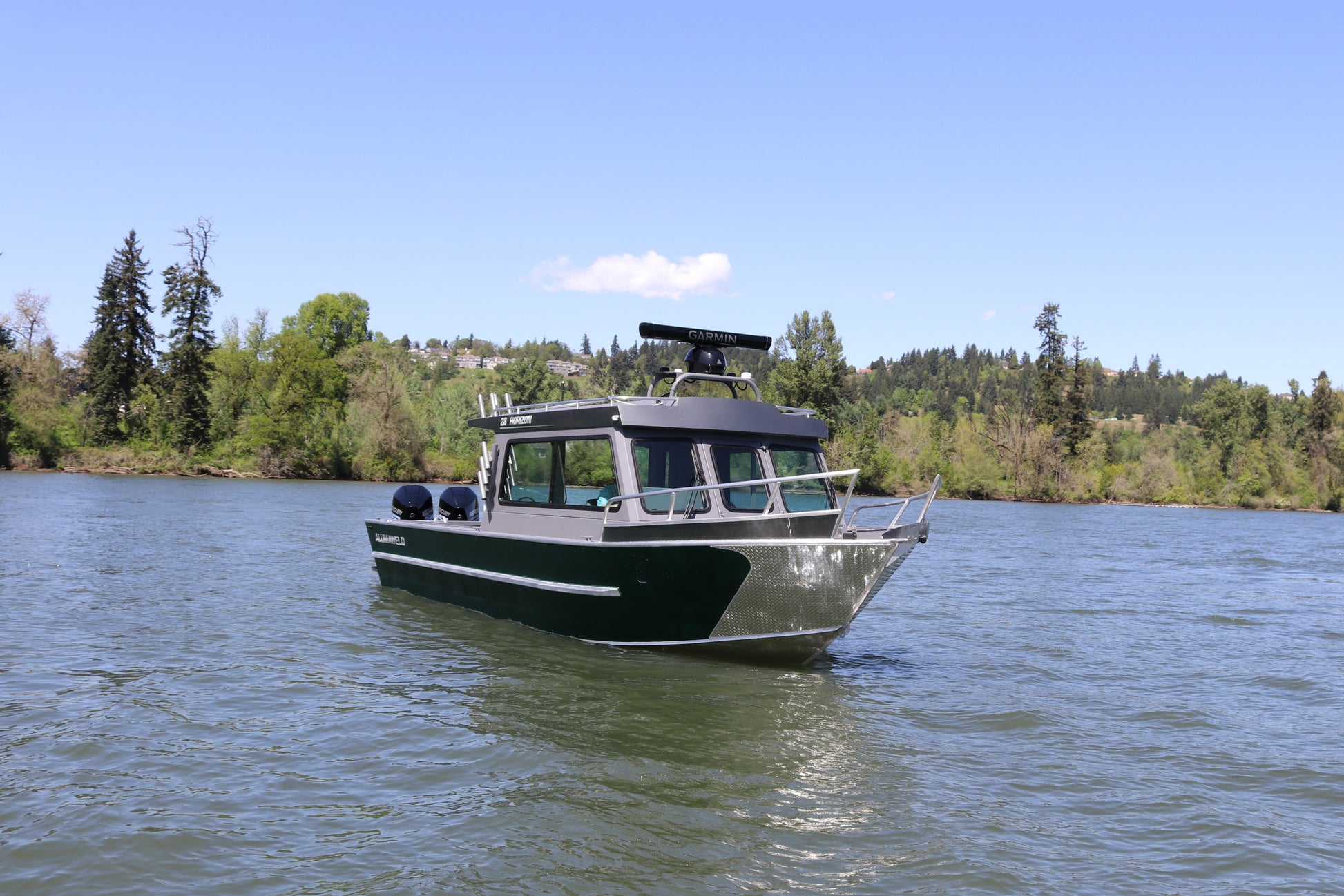

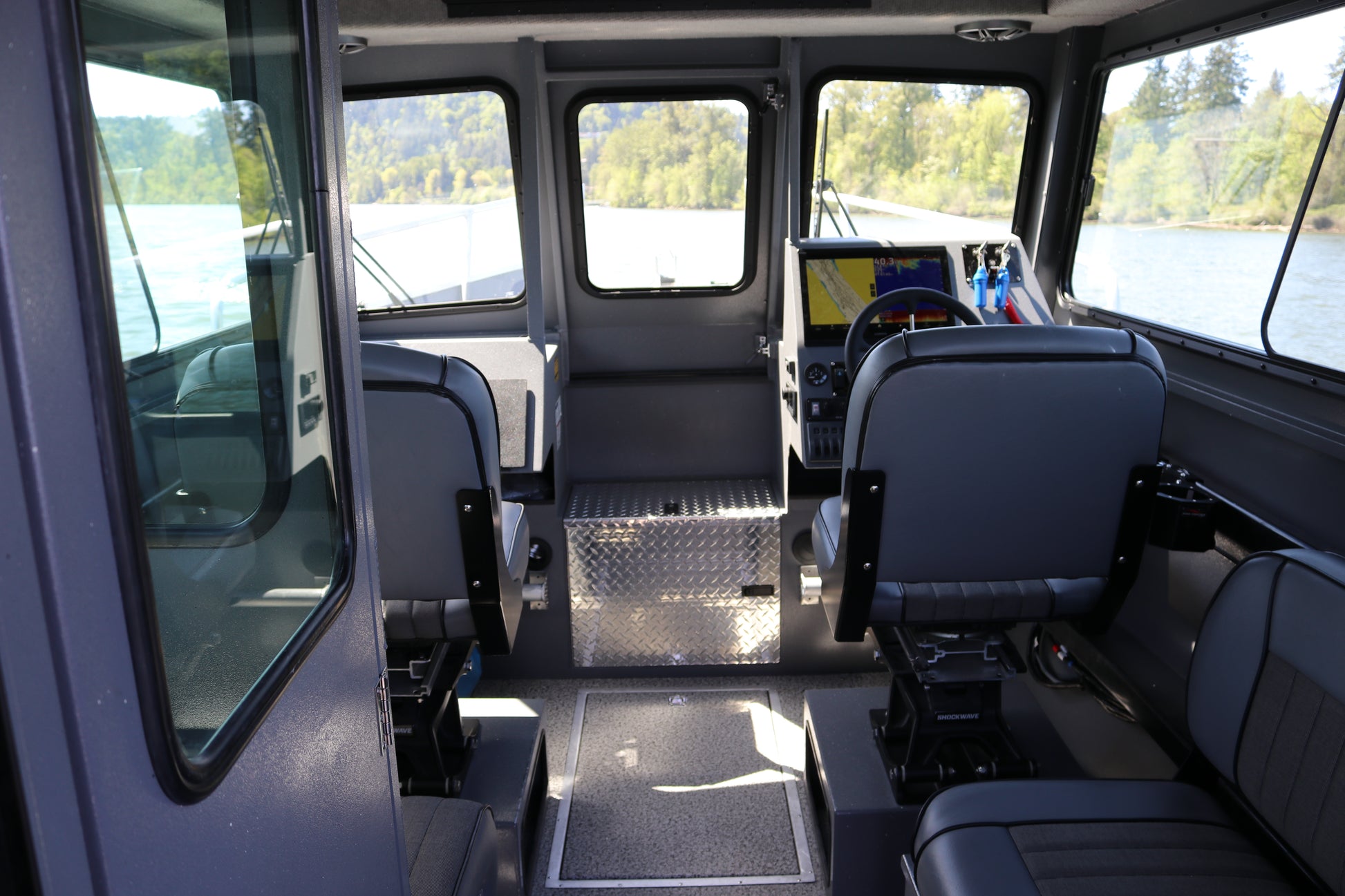

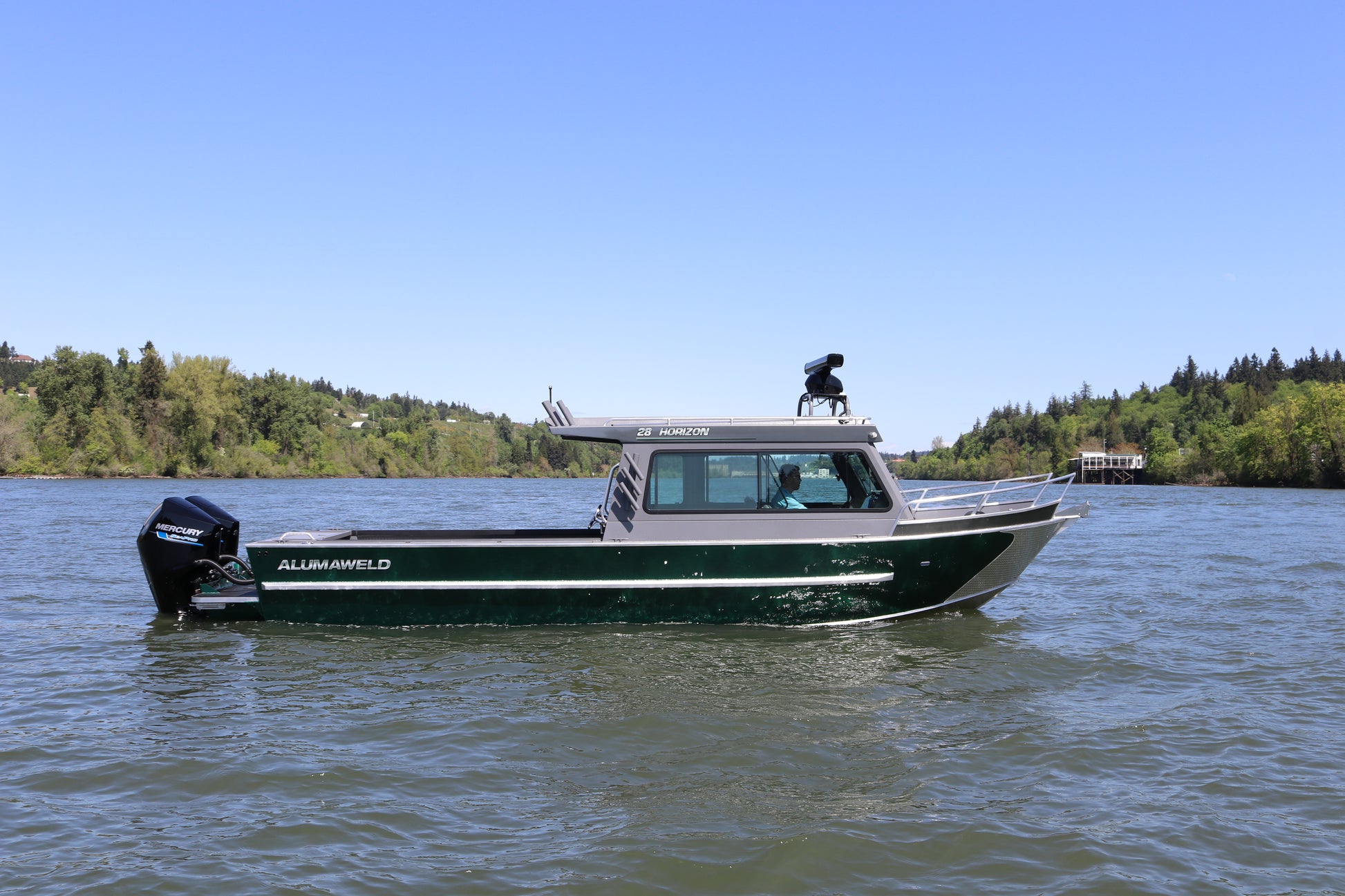

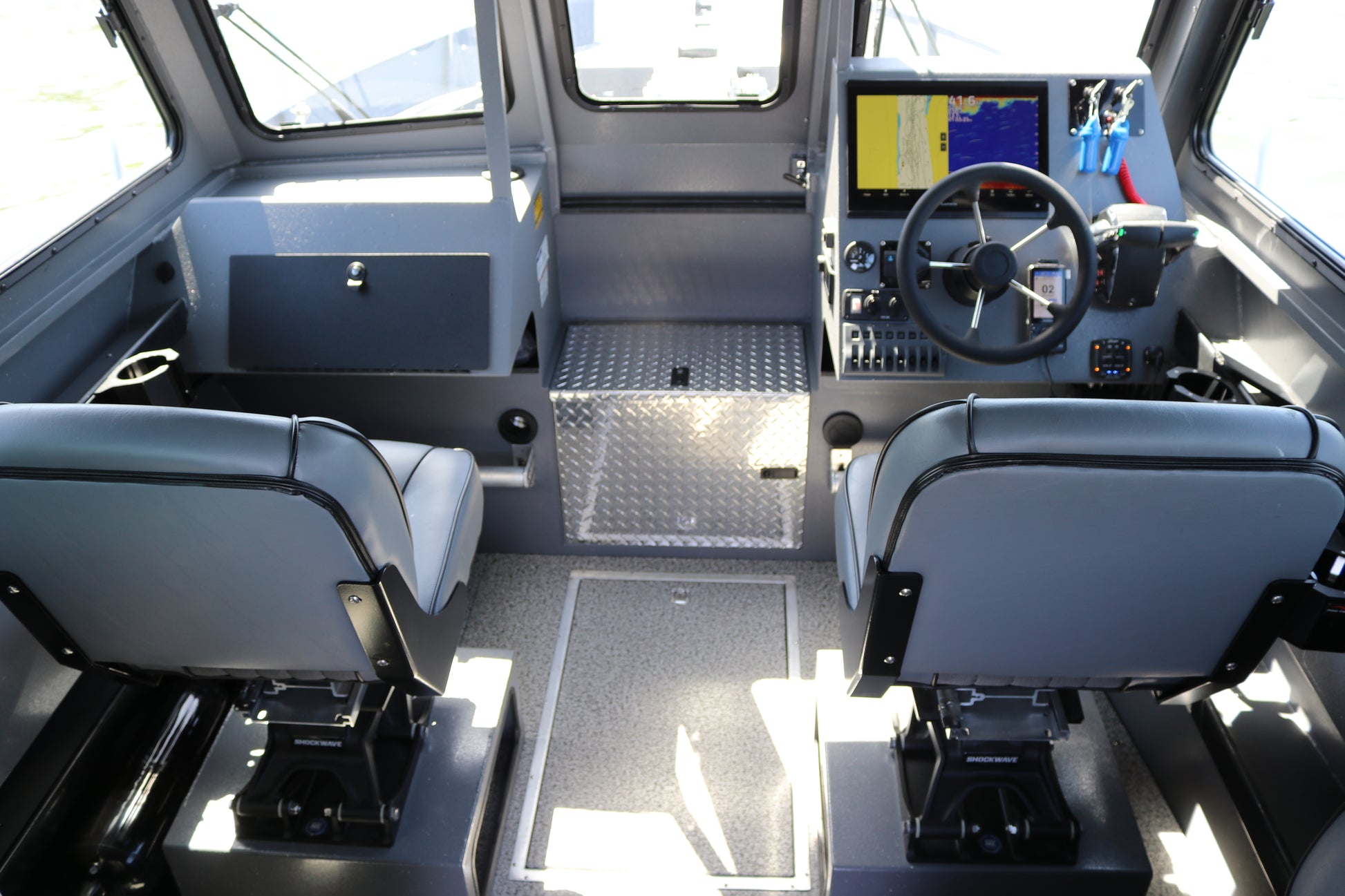

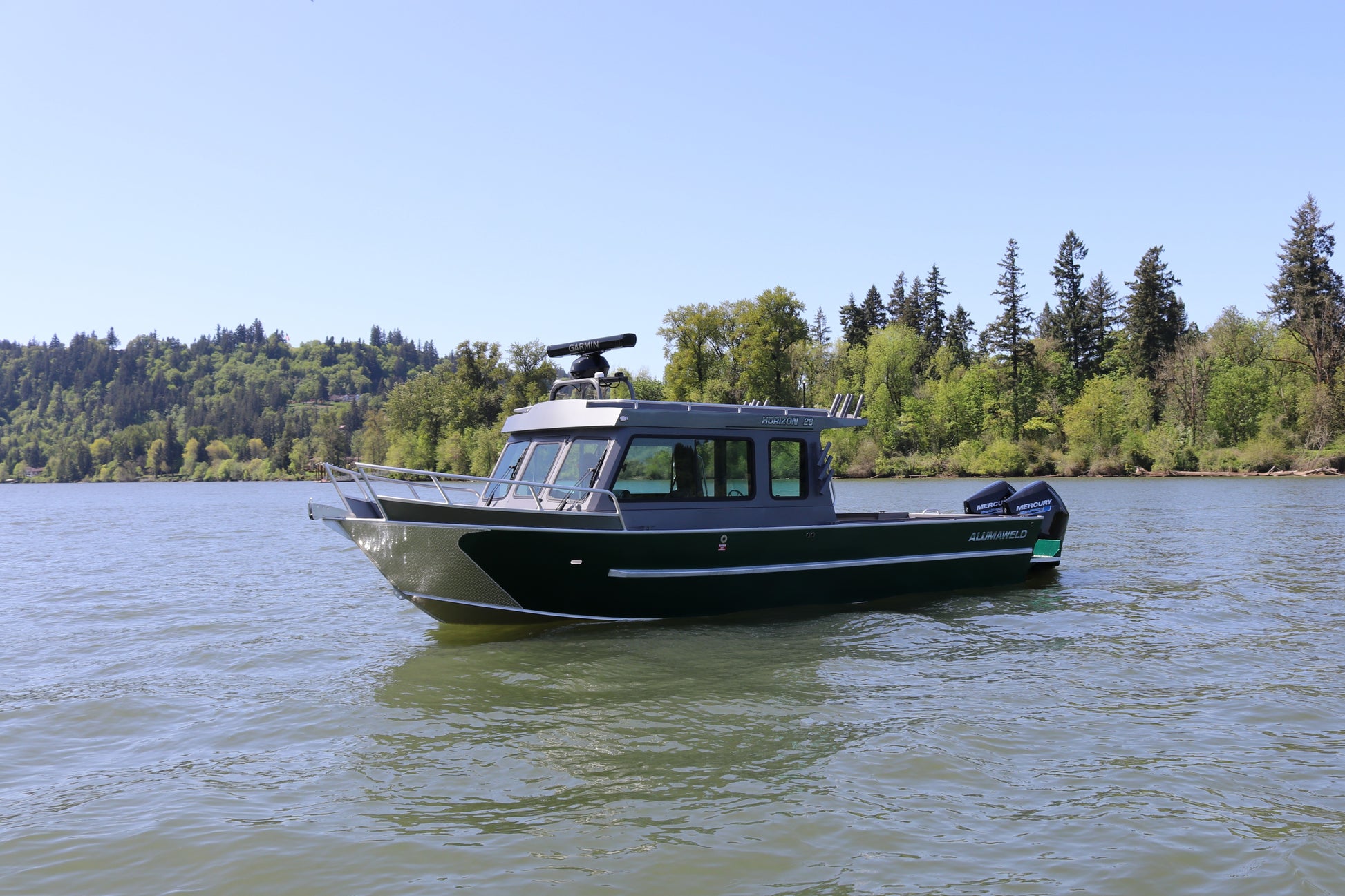

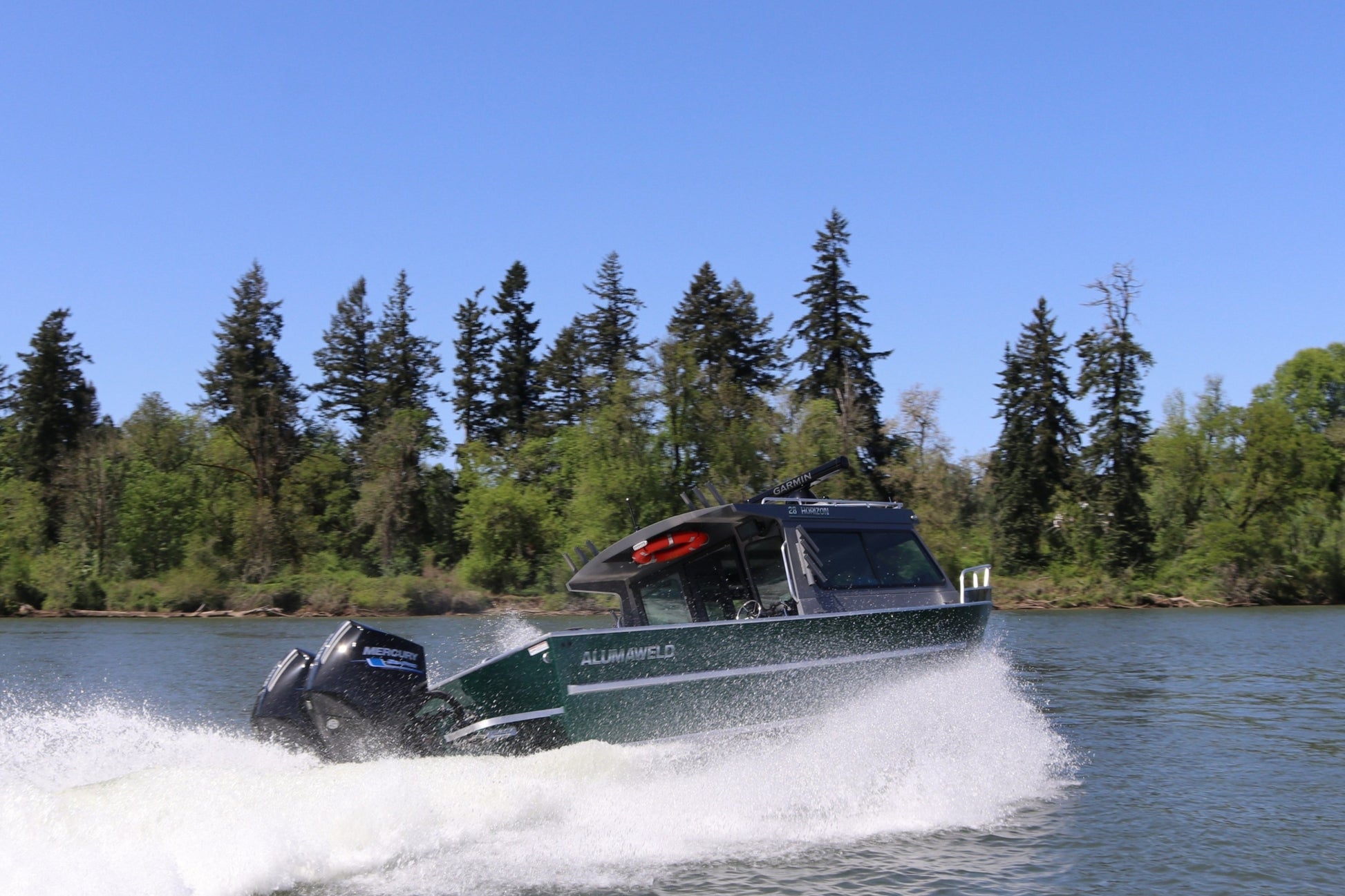

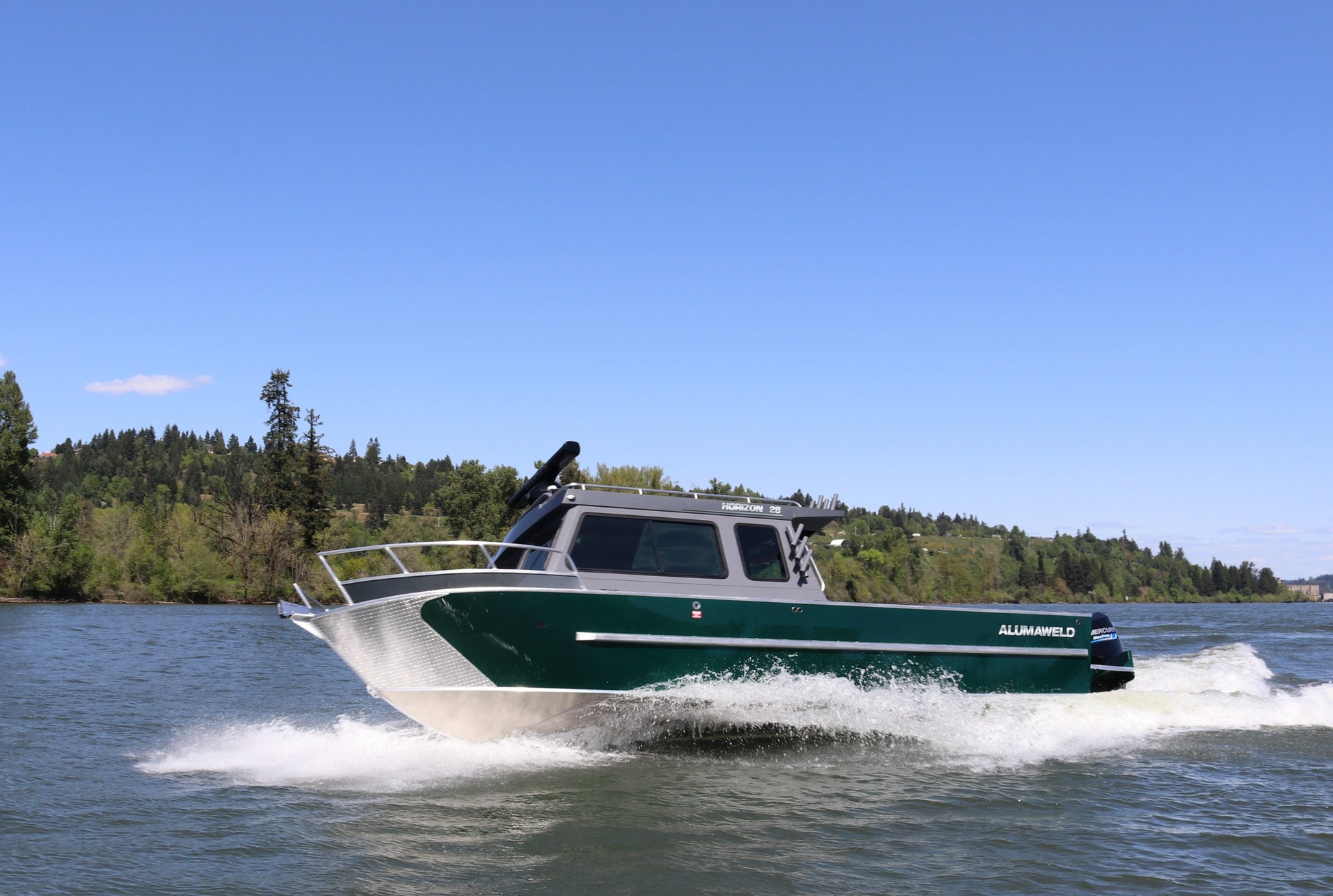

The new Horizon 28 HT from Alumaweld is here! Combining unmatched performance and lots of options for customization. It has an innovative hard top cabin design, transom access door, and a roomy cabin. This boat provides comfort for an extraordinary adventure.

Specifications
Hull Center Length: 30' 10"
Beam: 101"
Beam At Chine: 82"
Inside Freeboard: 31"
Side Height: 36"
Transom Height: 30"/25"
Deadrise: 18 degrees
Bottom Thickness: .250
Side Thickness: .160
Transom Thickness: .250
Approx. Weight: 4,200 lbs
Persons / Capacity: 9/1,350 lbs
Weight Capacity: 2,400 lbs
Fuel Capacity: 120 Gal
Max Hp Prop/Jet: 500

Standard Features

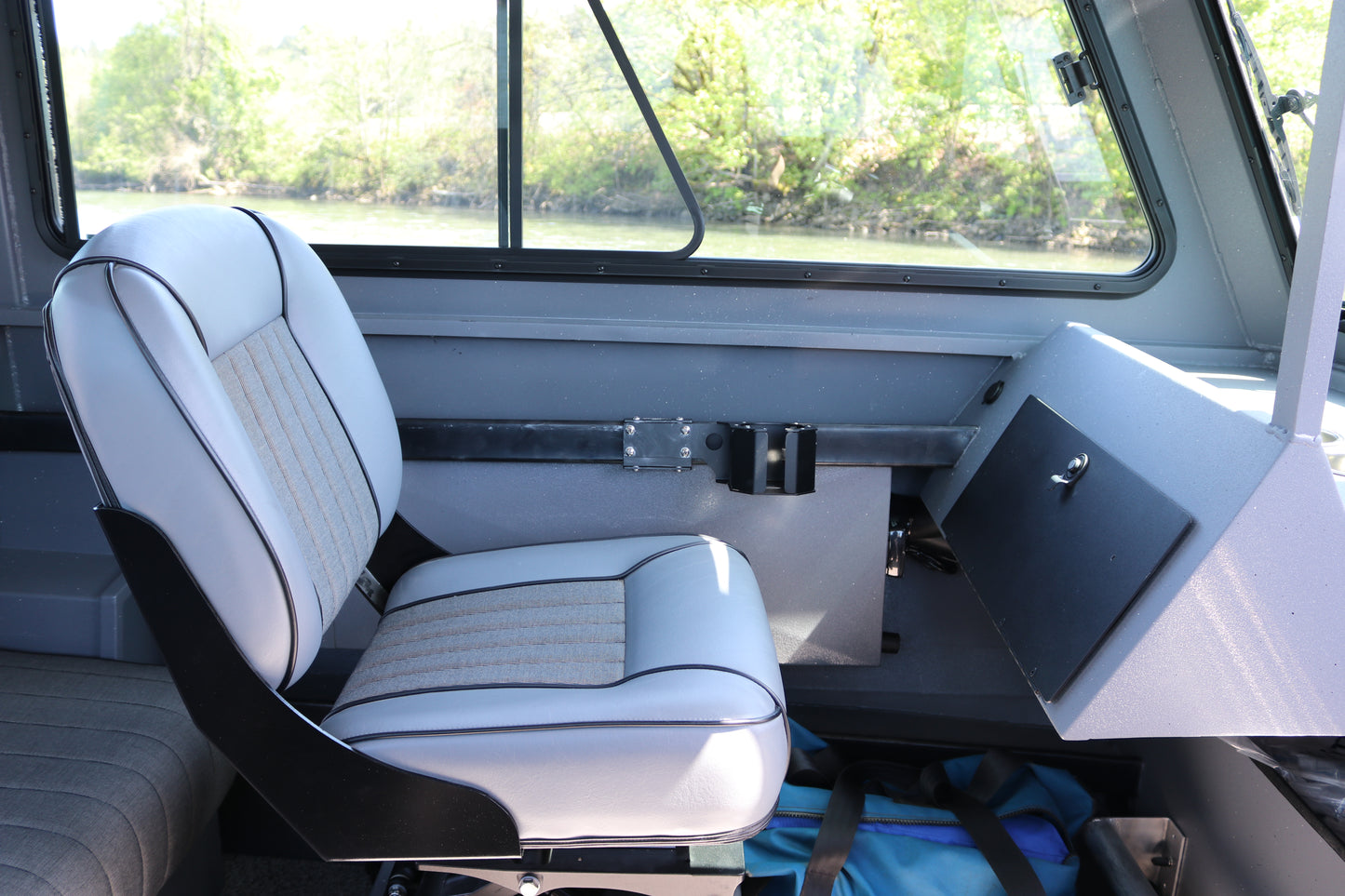

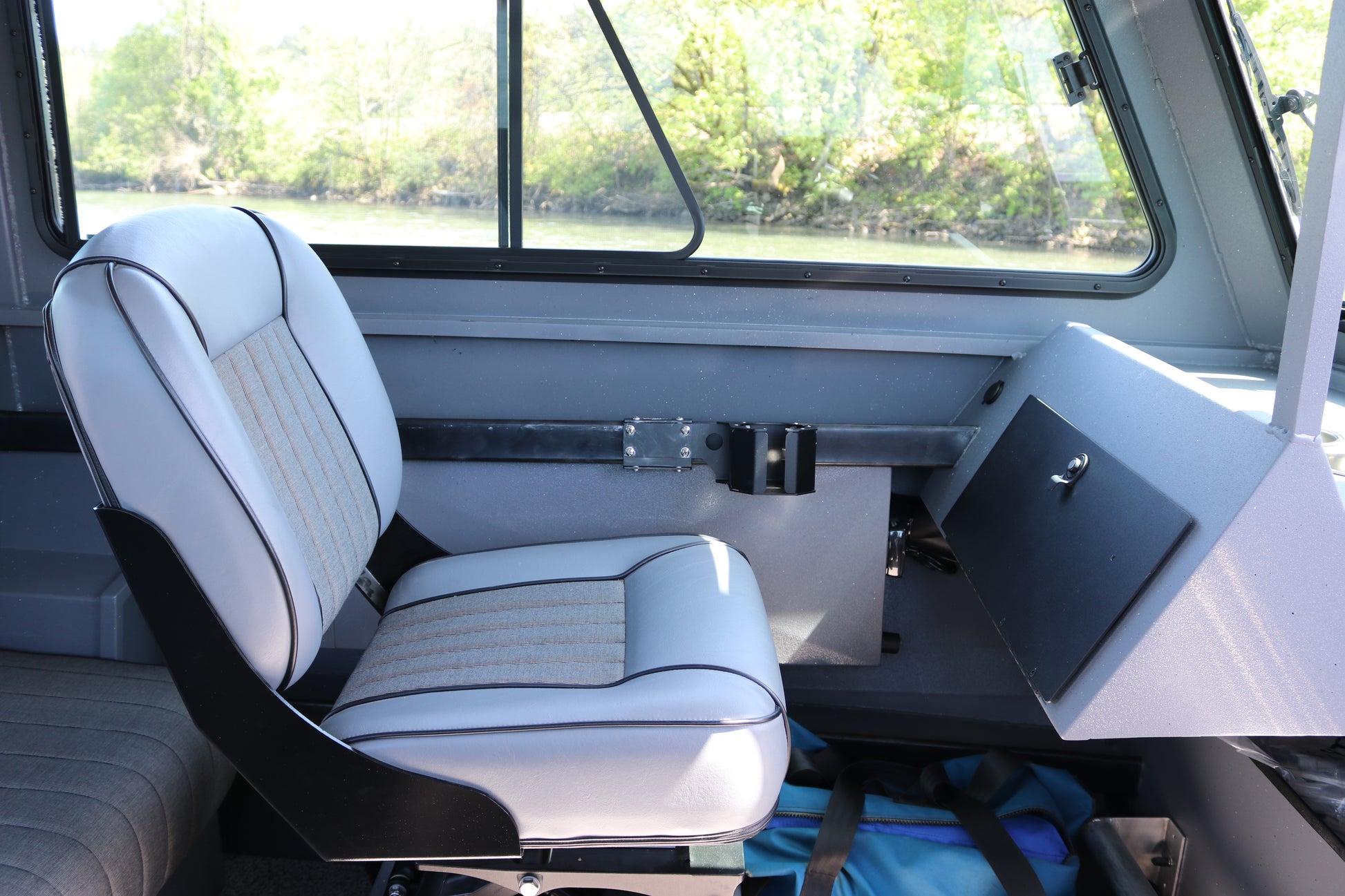

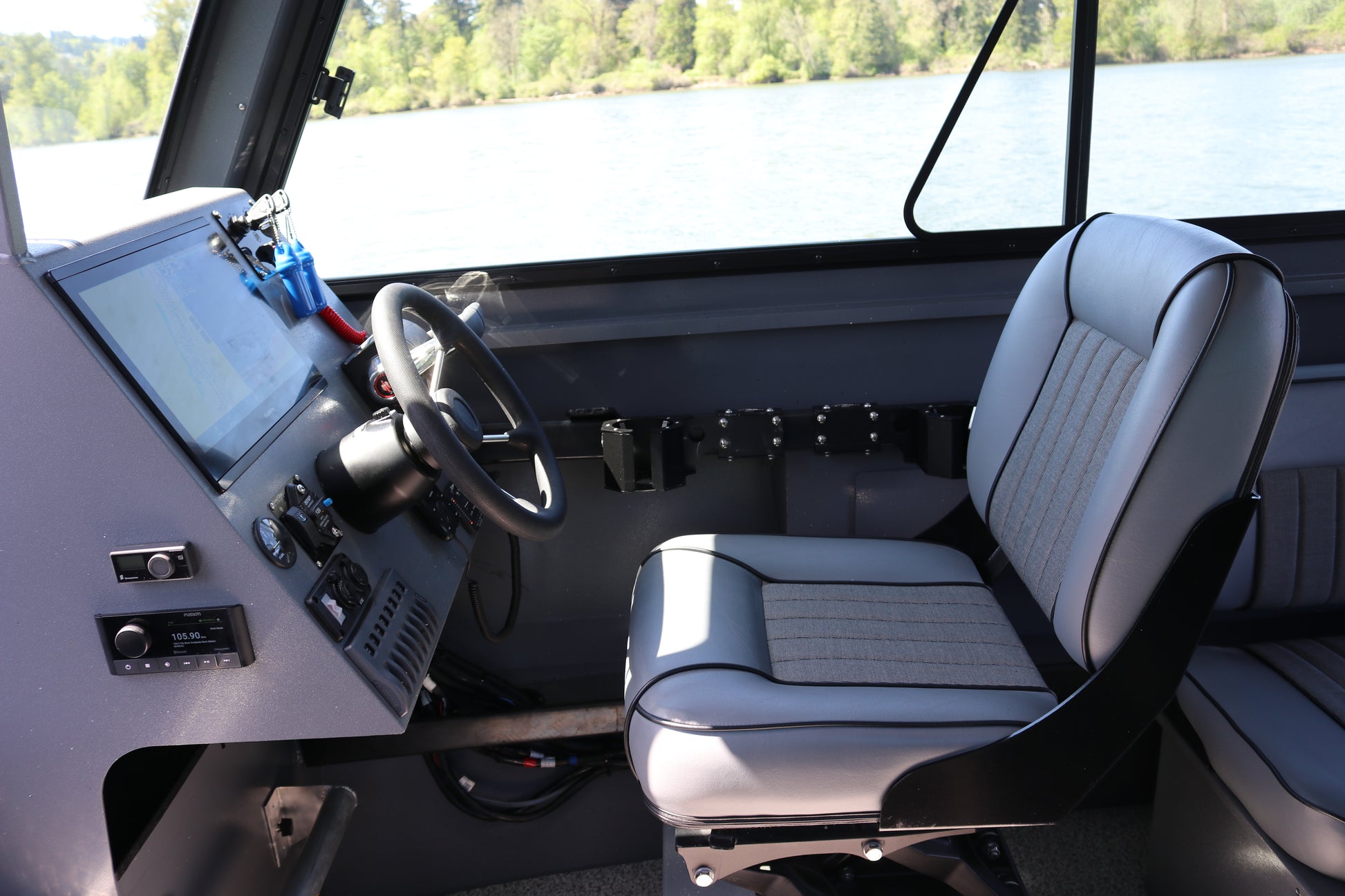

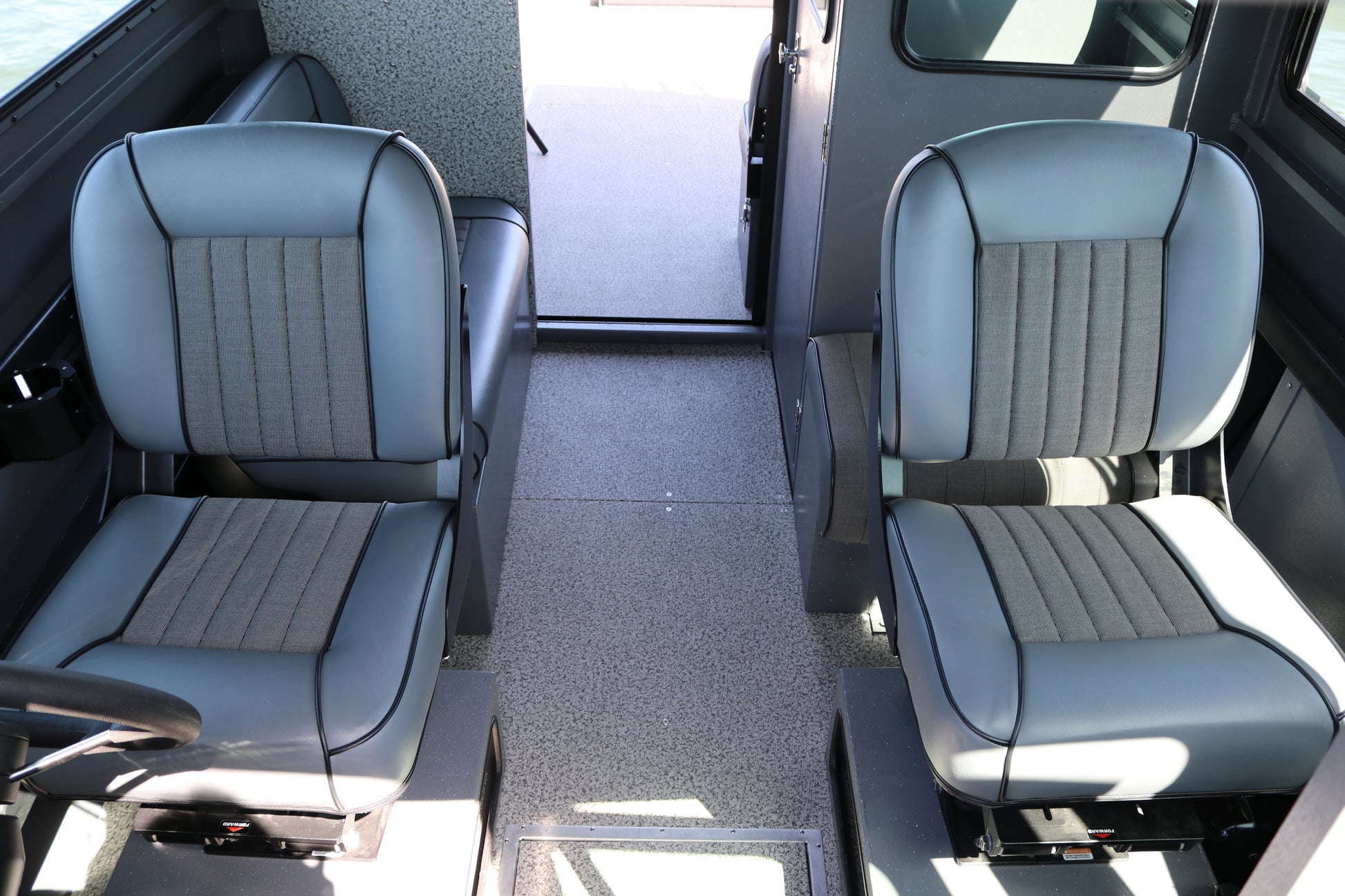

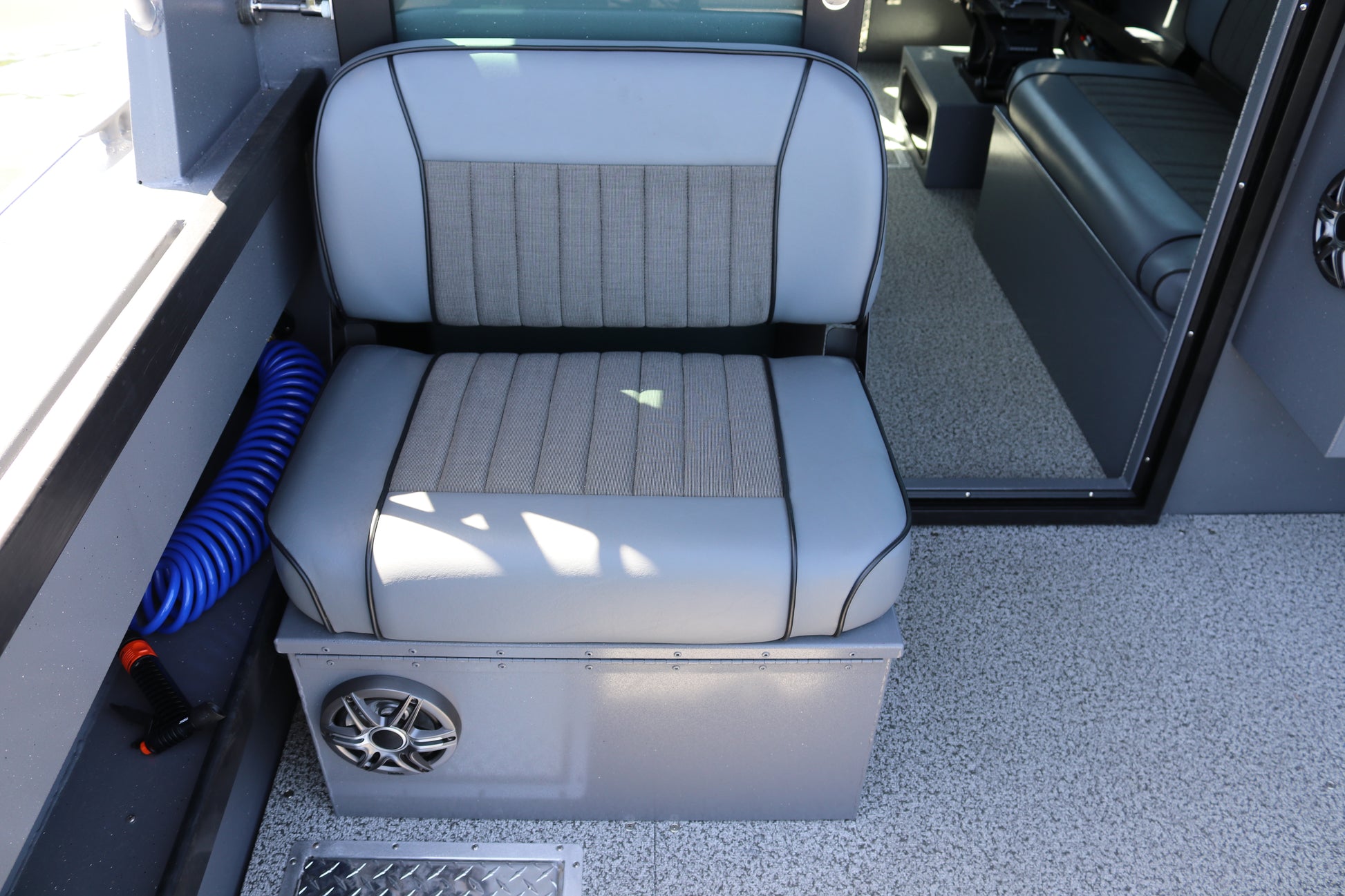

-Two guide seats on lockable storage boxes
-Forward compartment storage area and floor storage

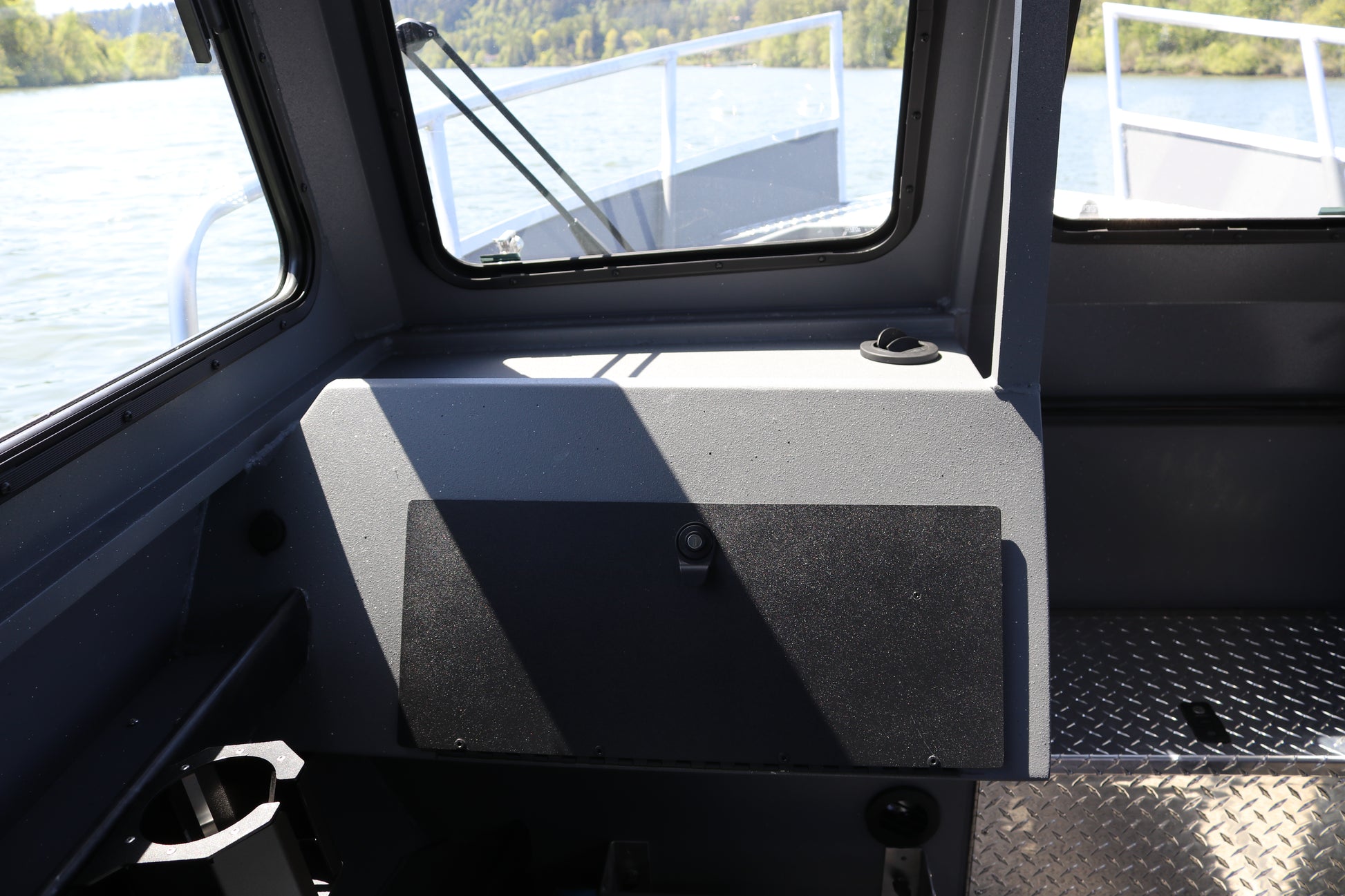

-Foredeck storage locker with locking door

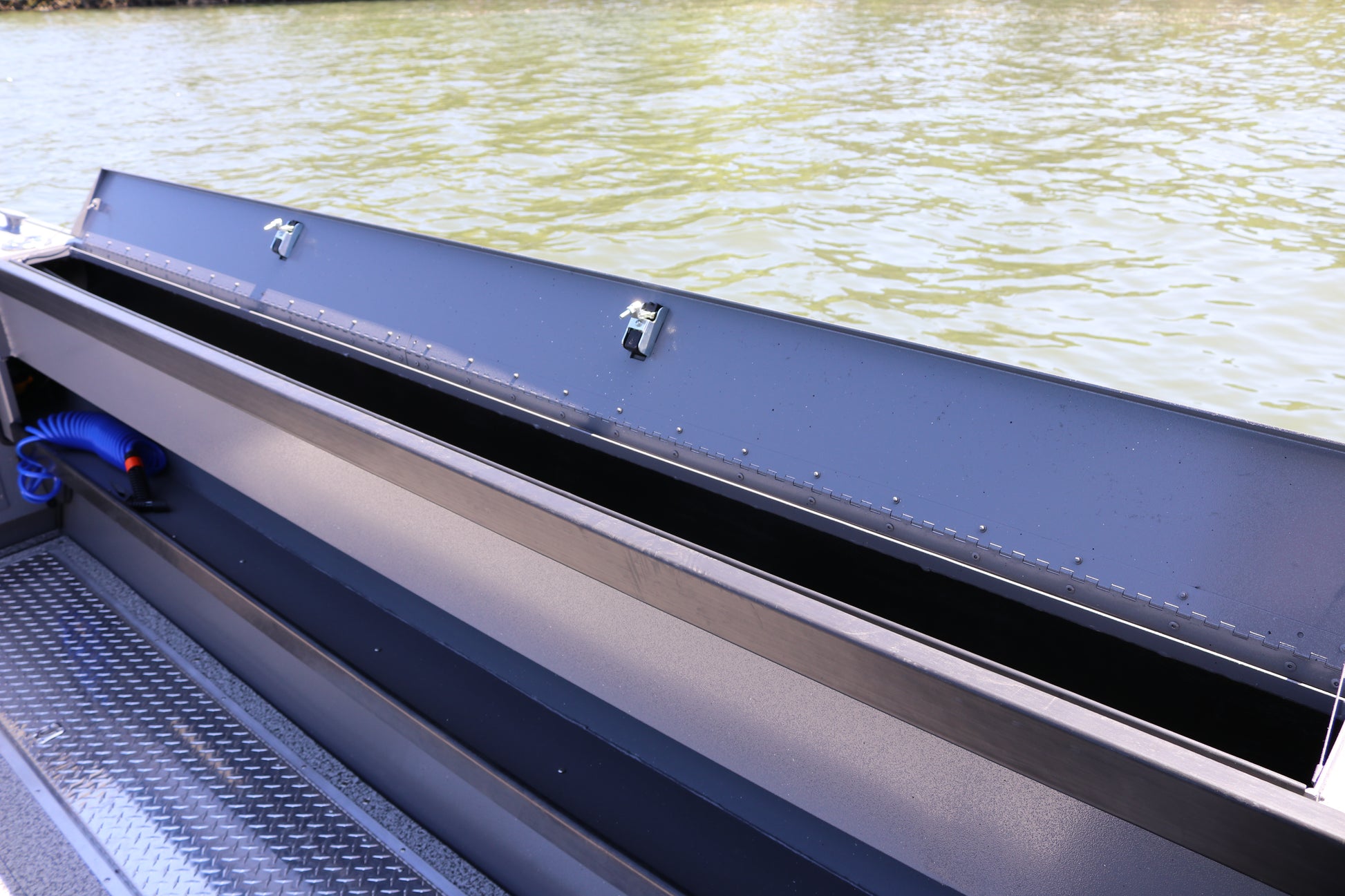

-Full length storage trays

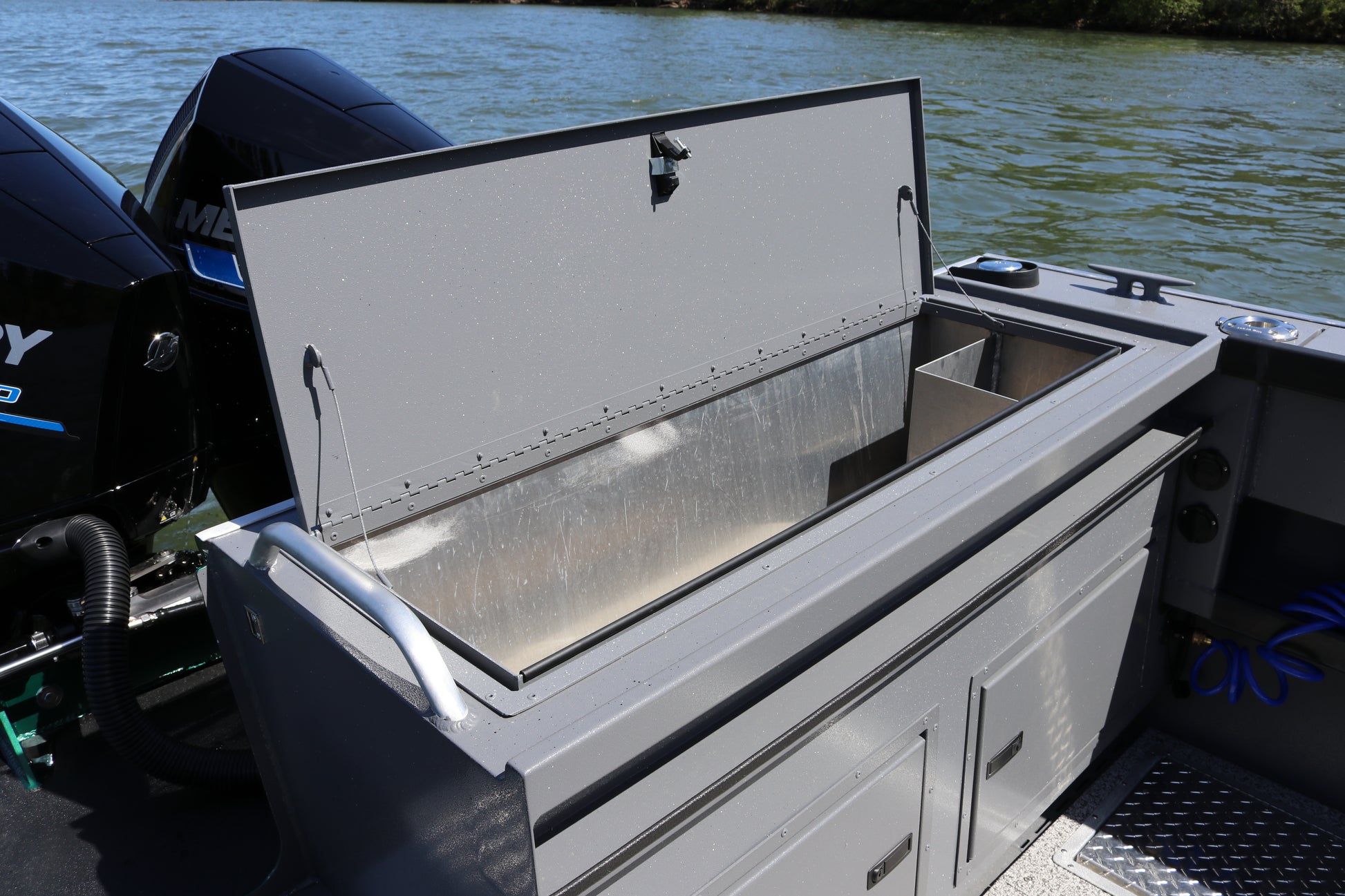

-Transom fishbox

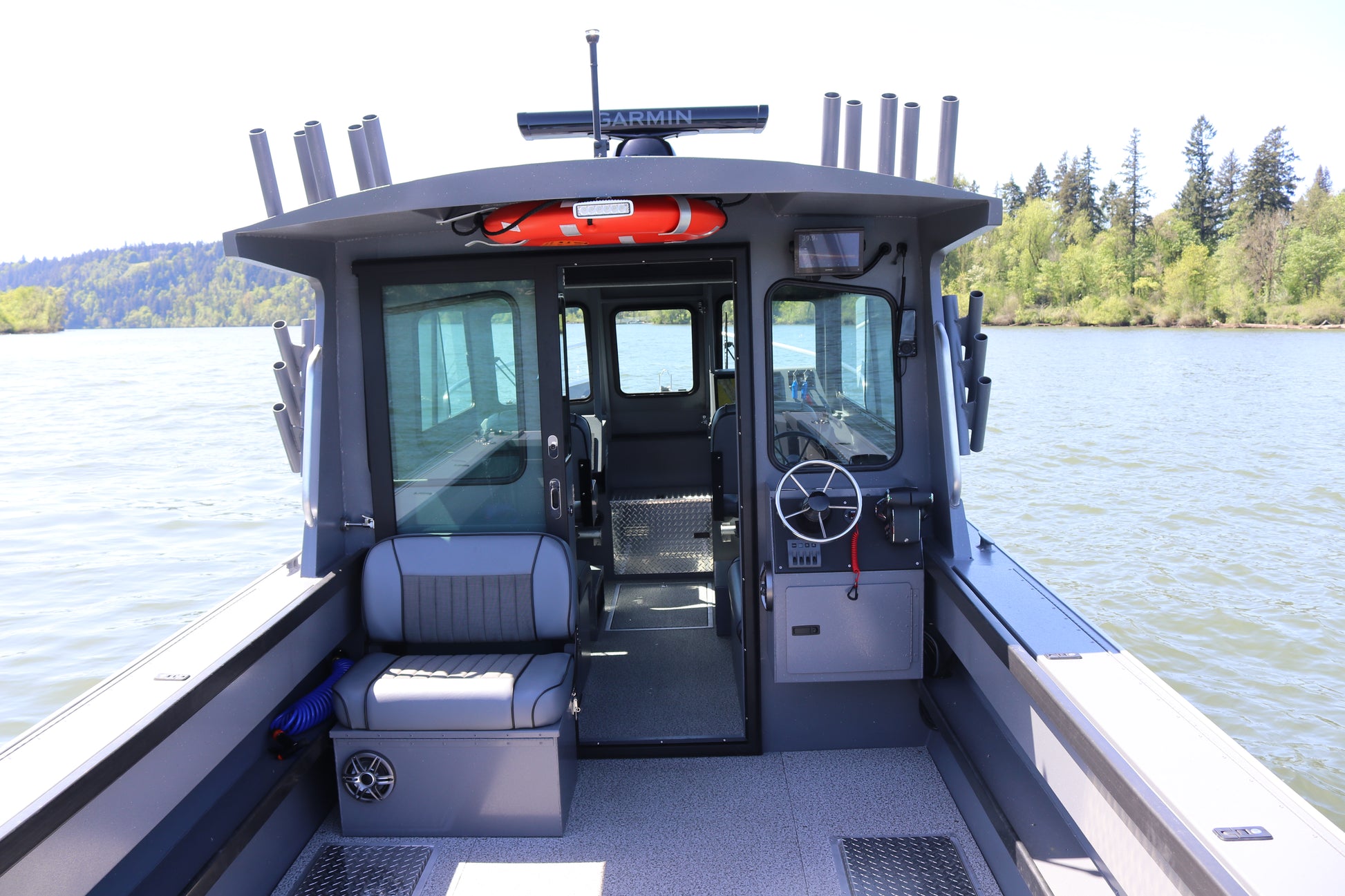

-Hardtop with sliding windows, top hand rails, deck light and drop curtain

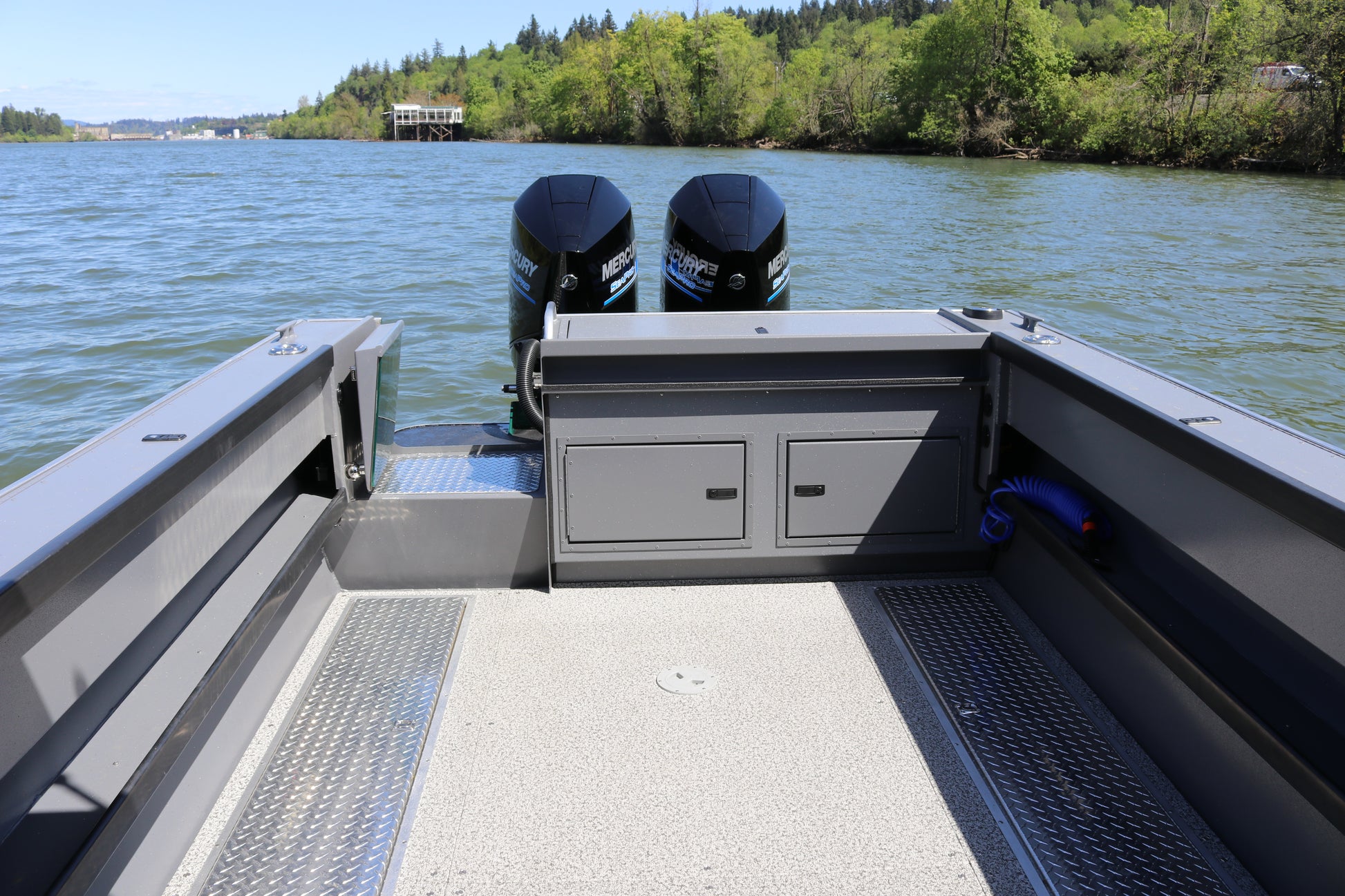

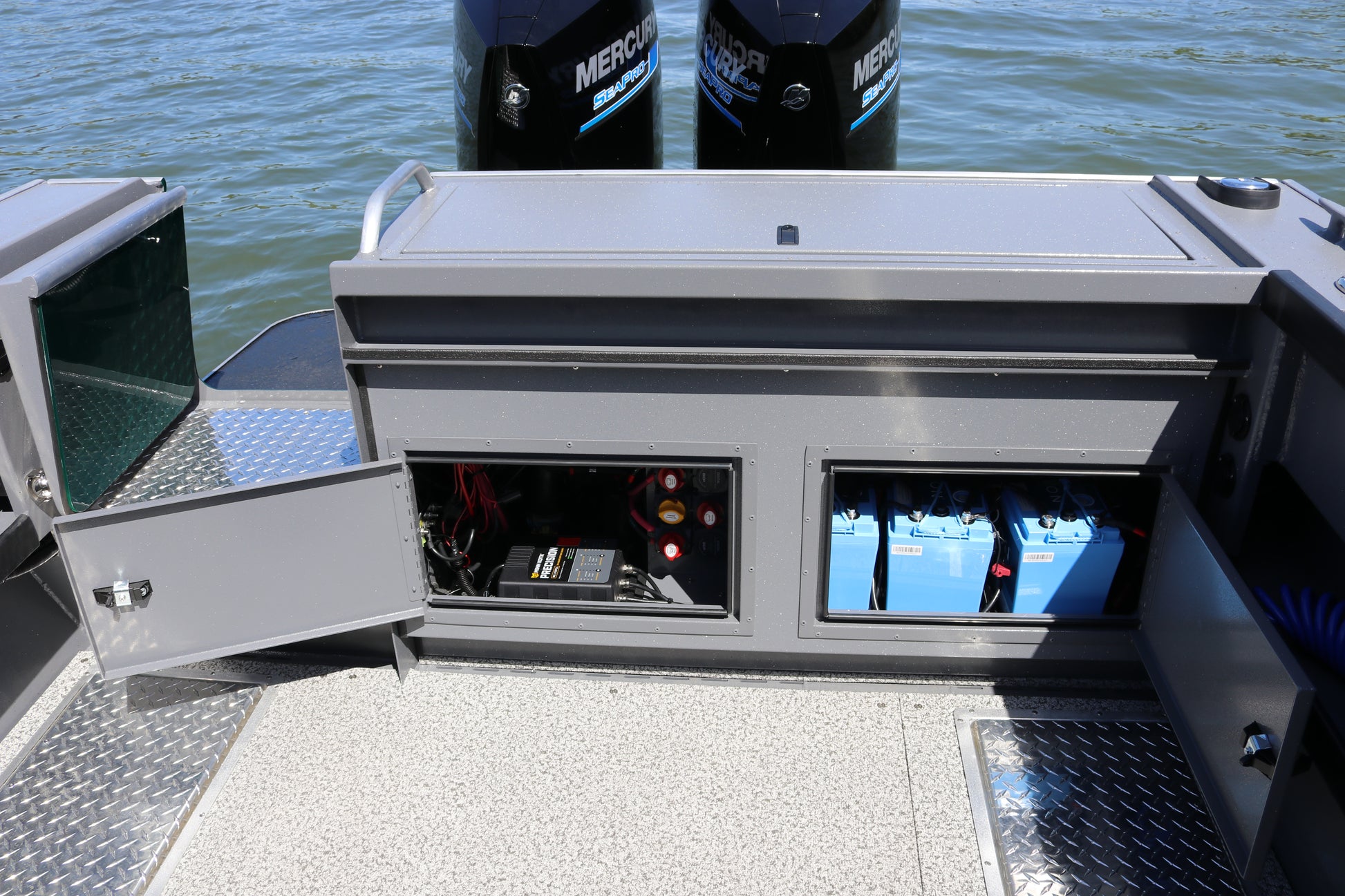

-Aluminum transom with two doors, toe kick and floor drains
-Welded walk-though windshield with starboard side wiper

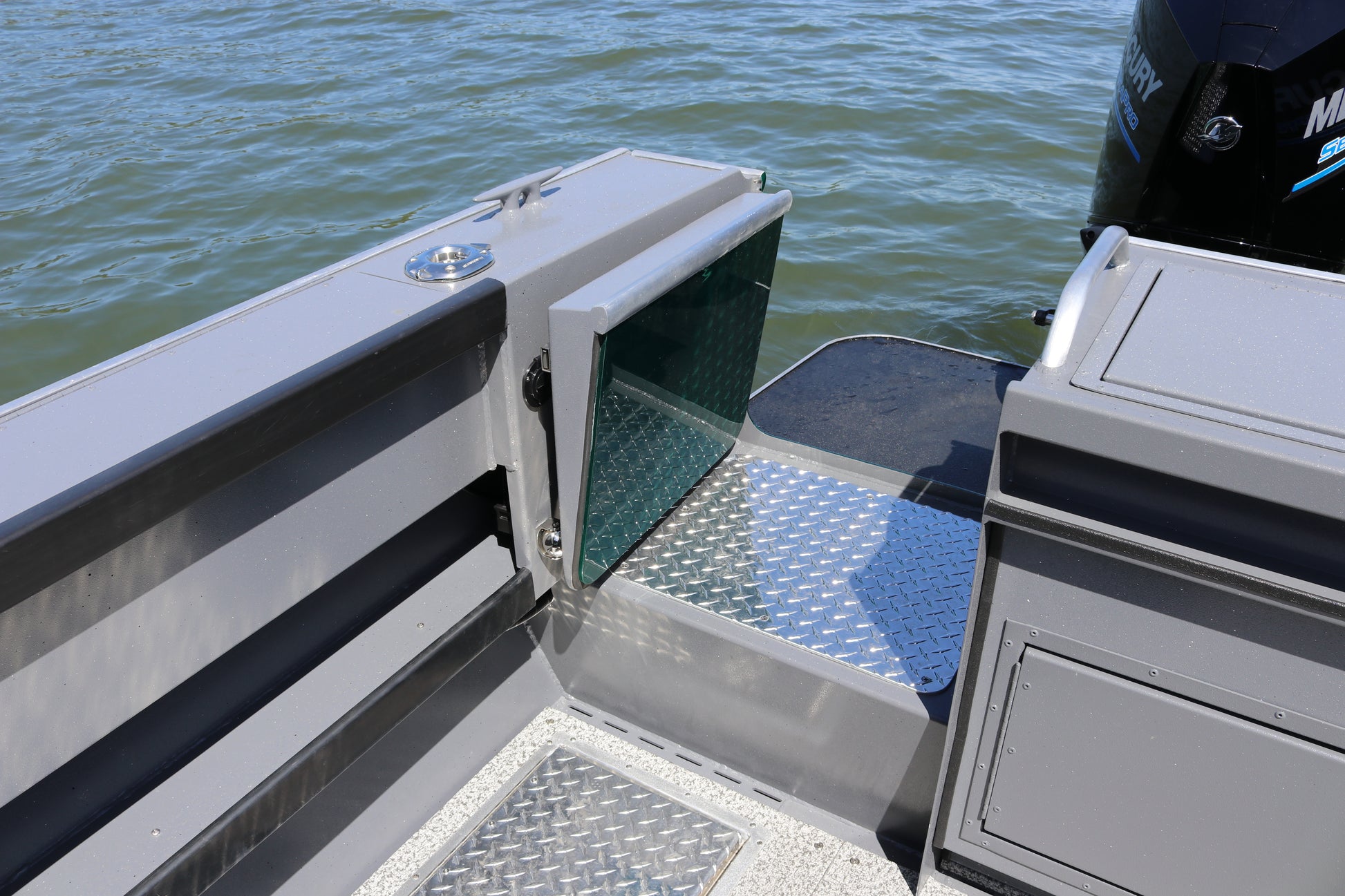

-Transom walk thru
-Weld-on zinc anode
-Alumadrive™ Bracket / Heavy duty dual Alumadrive™ bracket

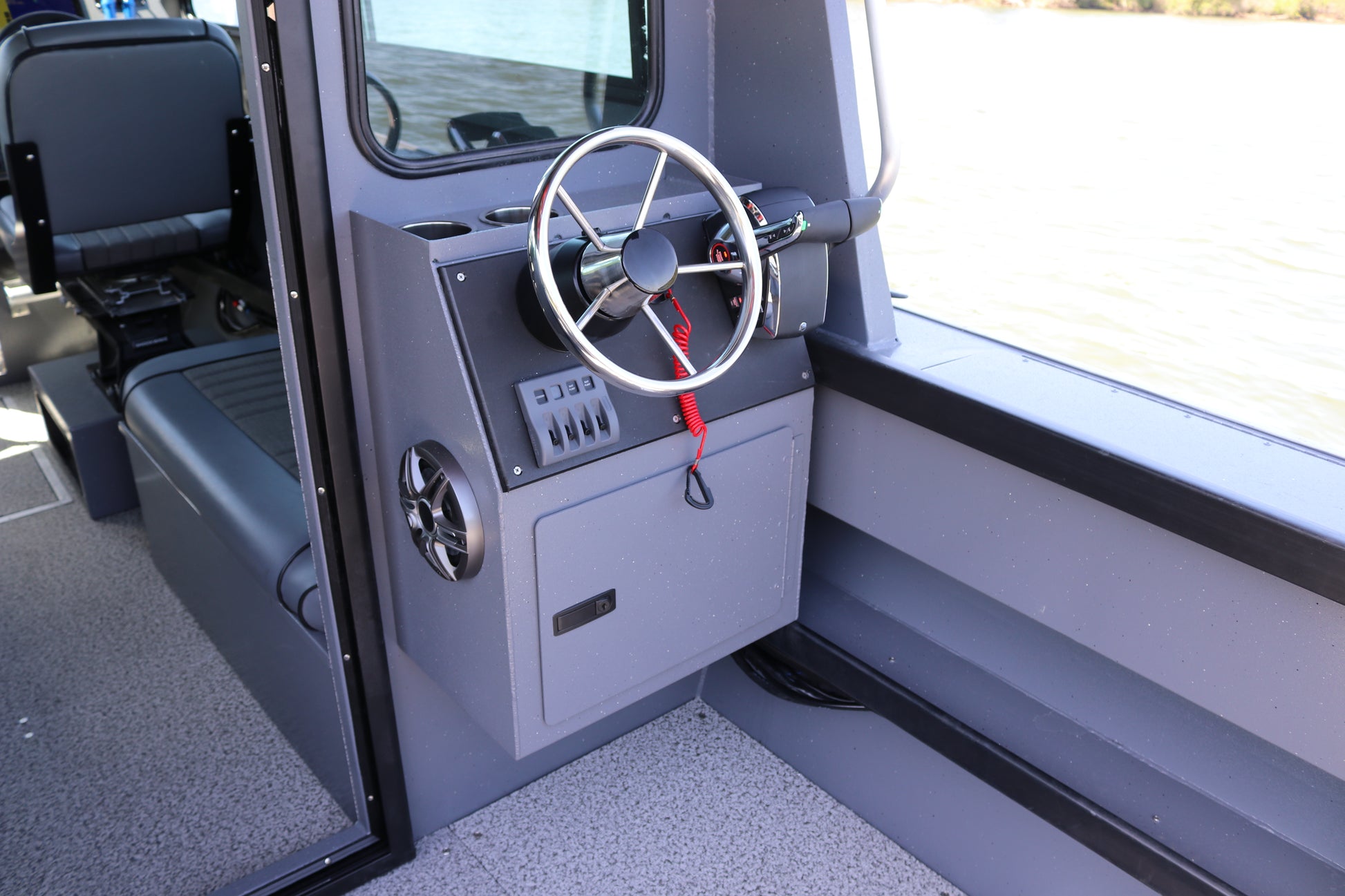

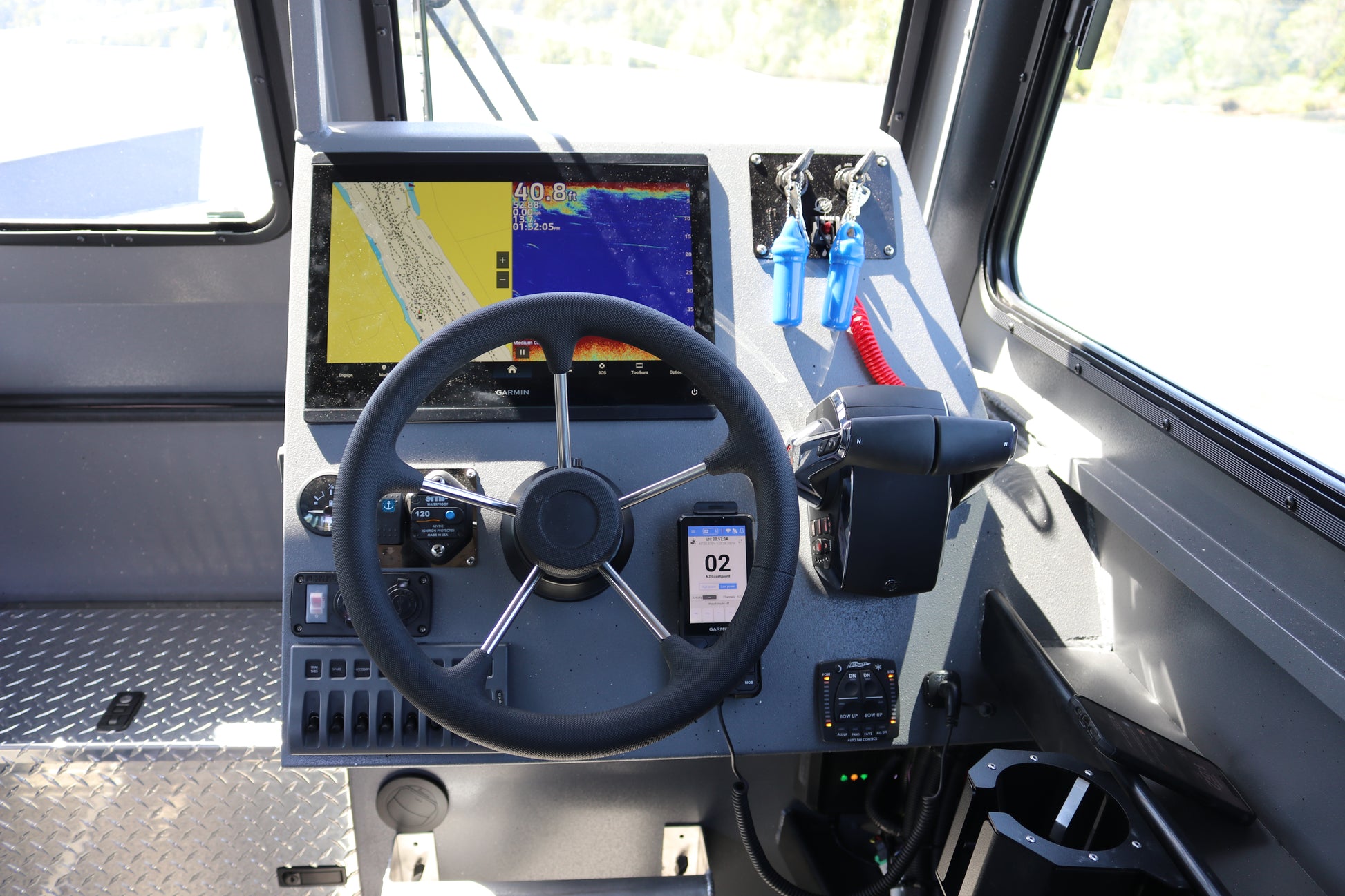

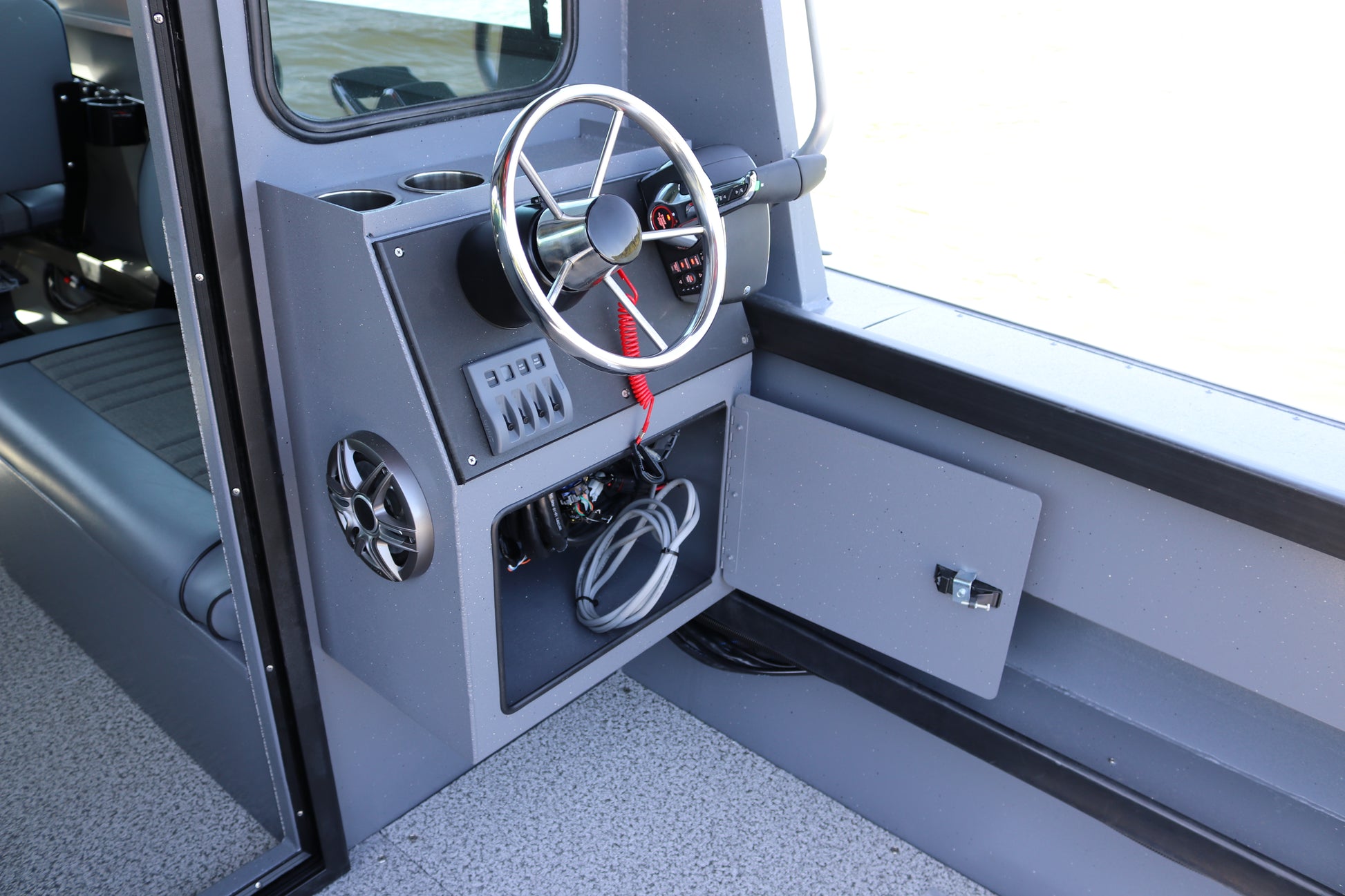

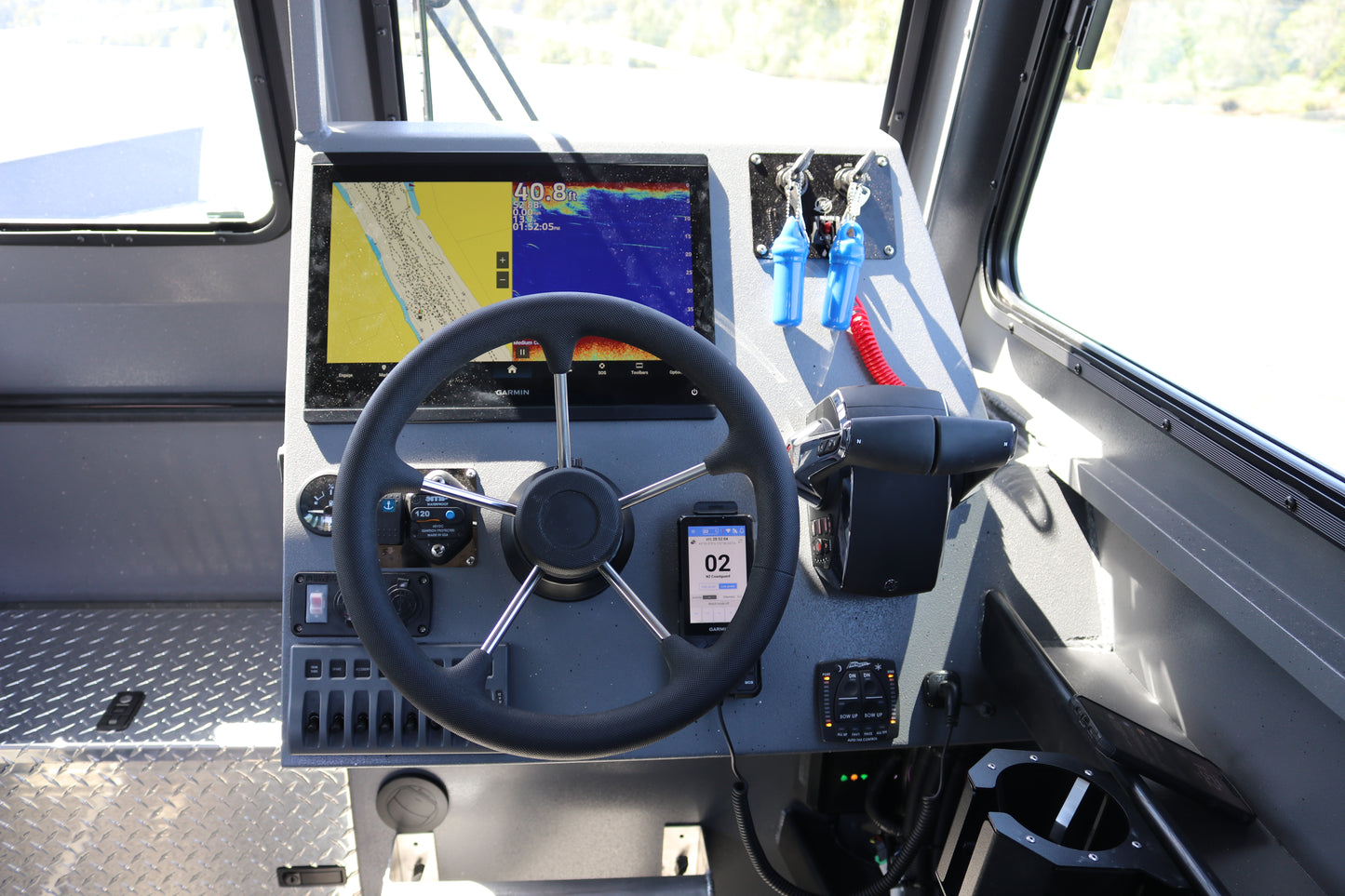

-Deluxe switch panel w/ dual USB ports, and 12-volt outlet
-Aluma-coat interior
-Under floor protective coating
-Six full length lifting / turning strakes
-Two 2000 GPH electric bilge pumps with one auto switch
-Self-bailing step deck
-Full outside paint (single color/single stage) with graphics
-Armor Tech™ premium floorboards with Dura Tuff™ non-skid vinyl covering
-Continuously welded box girder construction
-Navigation lights
-Rod grippers

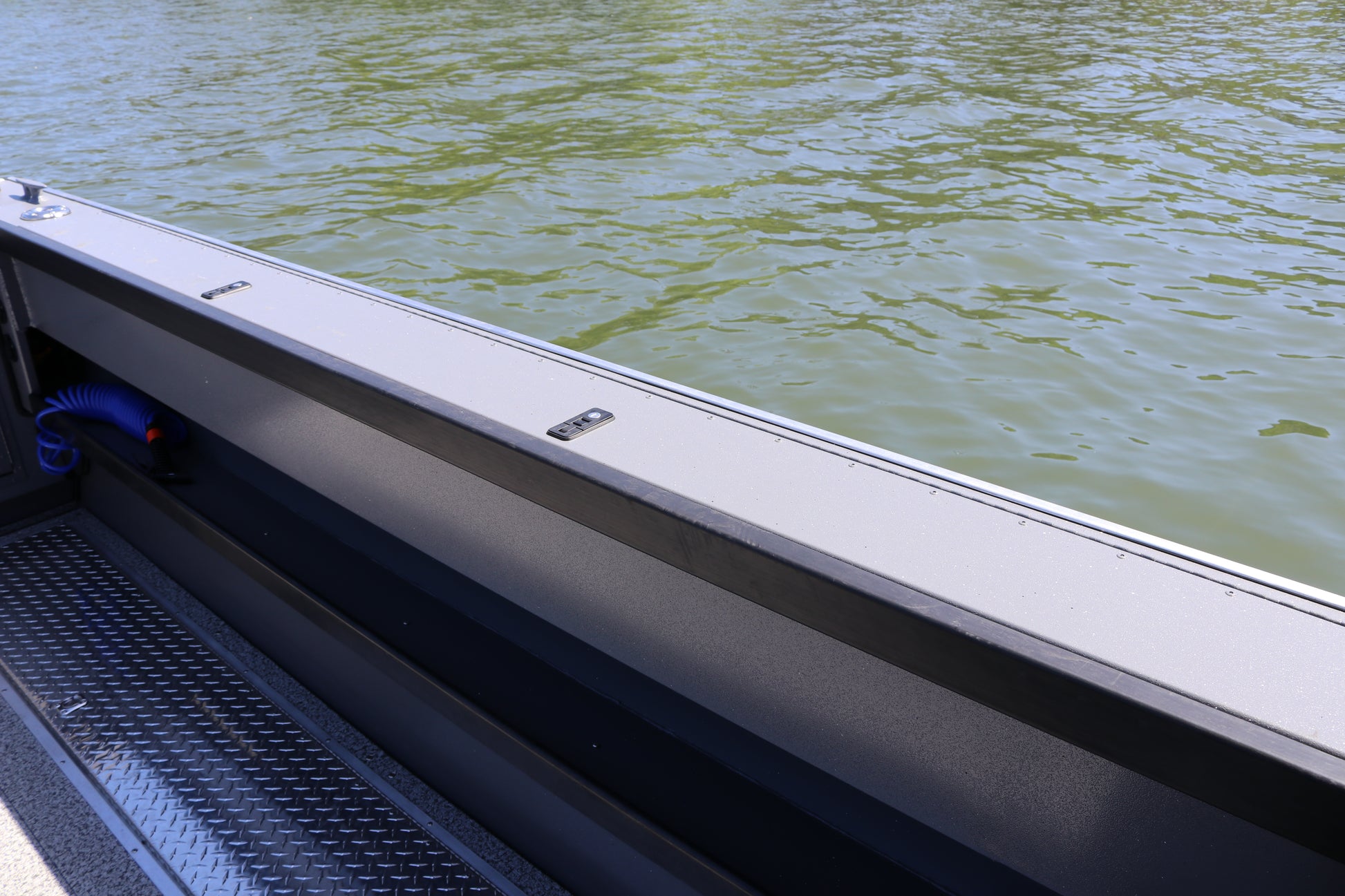

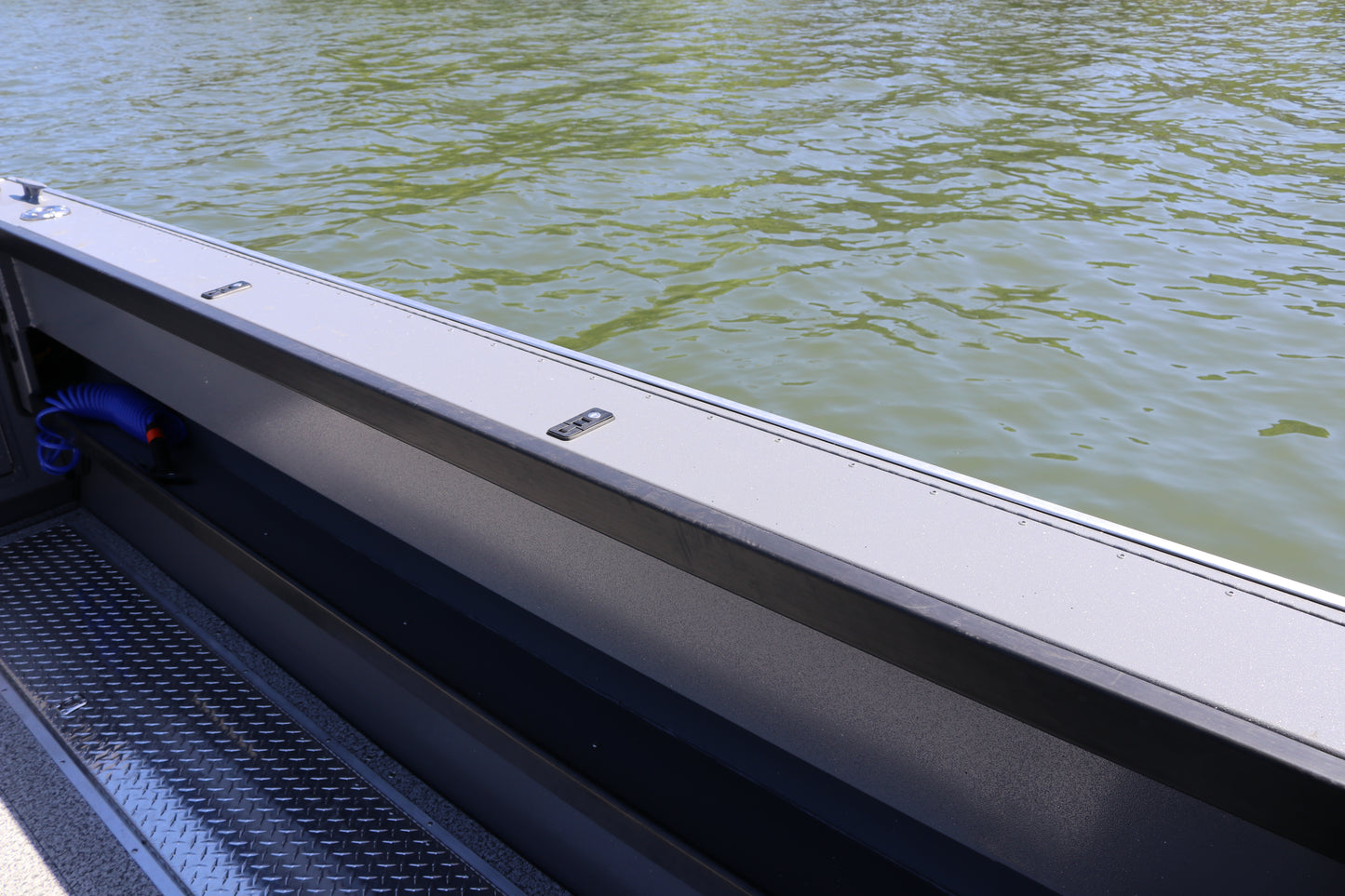

-Slotted chine and gunnel extrusions
-Two bolt-on transducer brackets

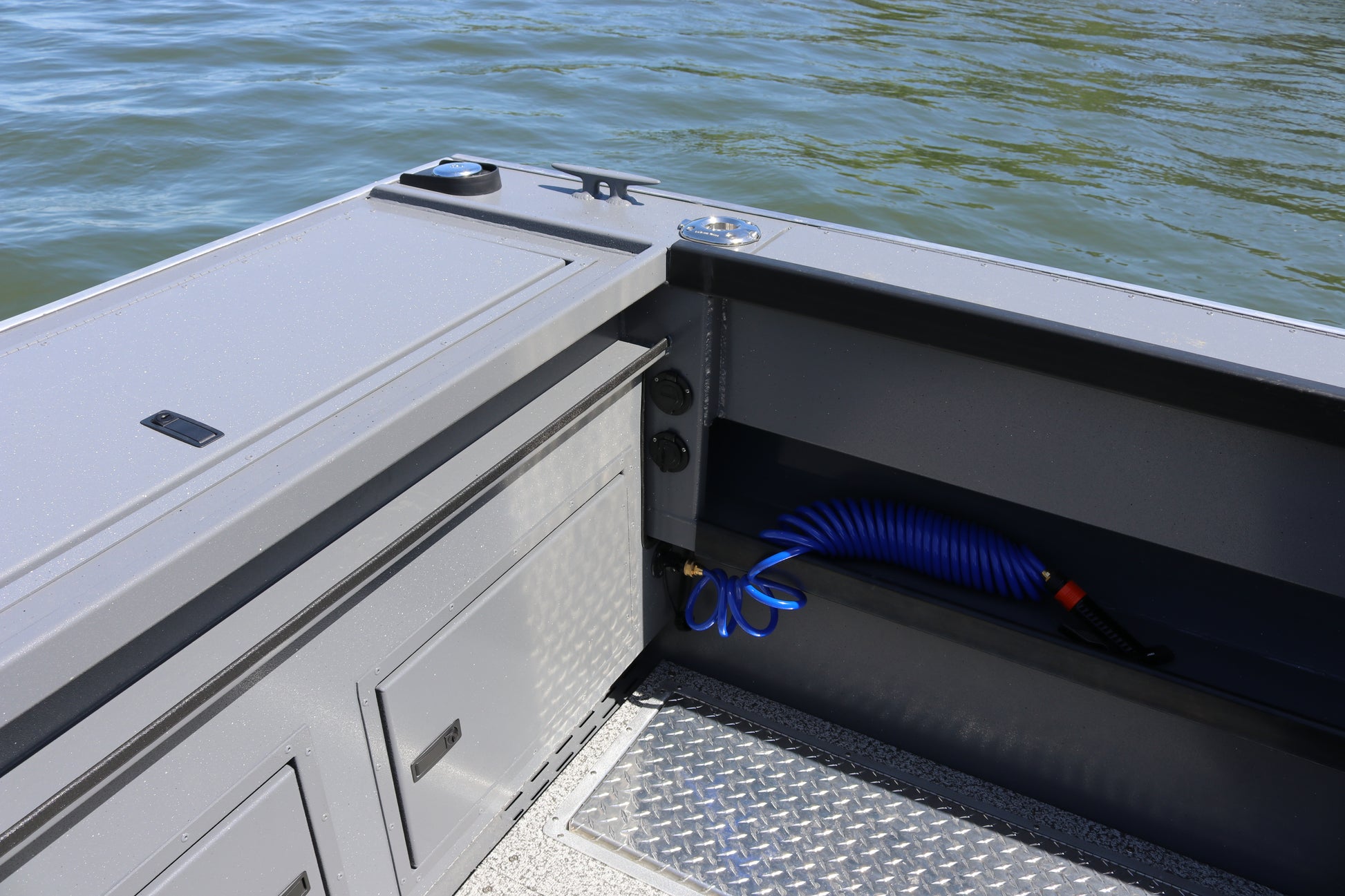

-Washdown pump
-Welded aluminum offshore bow rails
-Welded HD rubrails
-Five bolt-on powder coated cleats
-Built-in aluminum fuel tank with gauge
-Weld-on aluminum stern eyes and double bow eye
-Stainless steel hinges on boxes and lids
-Exclusive lifetime warranty
Exterior Colors
Pure White
Black
Red
Burgundy
Dark Blue
Flight Green
Silver Dust
Milano Beige
Storm Gray Metal
Cali Blue
Intense Blue
Inferno Red Metal
Meadow Green
Aluma-coat Deck and Interior
White
Light Gray
Dark Gray
View full details

Alumaweld Boat Comparison

Horizon 28 Other Alumaweld Models
Alumaweld Horizon 28
Alumaweld Horizon 28
Alumaweld Columbia XL 26
Alumaweld Columbia XL 26
Alumaweld Intruder 24
Alumaweld Intruder 24
Alumaweld Formula Vee 24
Alumaweld Formula Vee 24
Alumaweld Formula Vee 26
Alumaweld Formula Vee 26
General General
Length Length 30' 10" 23" 9' (24' XL), 25' 9" (26' XL), 27' 9" (28' XL) 26' 9" 26' 5" 28' 5"
Beam Beam 101" 109" 99.5" 101" 101"
Beam at Chine Beam at Chine 82" 90" 82" 82" 82"
Inside Freeboard Inside Freeboard 31" 31" 29" 31" 31"
Side Height Side Height 36" 34" 33" 36" 36"
Transom Height Transom Height 25"/30" 31" 25"/30" 25"/30" 25"/30"
Deadrise Deadrise 18 Deg 14 Deg 18 Deg 18 Deg 18 Deg
Bottom Thickness Bottom Thickness 0.250 0.250 0.250 0.250 0.250
Side Thickness Side Thickness 0.160 0.160 0.160 0.160 0.125
Persons/Capacity Persons/Capacity 9/1,350 7/1,050 to 9/1,350 9/1,350 lbs 9/1,350 lbs 9/1,350 lbs
Approx. Weight Approx. Weight 4,200 lbs 1,925 to 2,050 2,665 lbs 2,960 lbs 3,210 lbs
Weight Capacity Weight Capacity 2,400 lbs 1,850 to 2,120 2,400 lbs 2,400 lbs 2,400 lbs
Fuel Capacity Fuel Capacity 80 - 120 Gal 60 Gal 80 Gal 80 Gal 120 Gal
Max HP Prop/Jet Max HP Prop/Jet 500 HP 300/175 HP 250 HP 400 HP 500 HP
Product type Product type Boat Boat Boat Boat Boat
